Rancho RS66114B RS66114B Short Arm Suspension System - Master Part Number

RS66114B

Rancho RS66114B Suspension Lift Kit

---

Designed to deliver increased ground clearance, the Rancho® 4-in. short arm lift kit delivers the ultimate on- and off-road experience for the Jeep® Wrangler JK. The progressive rate coil springs and adjustable control arms provide comfort and durability.

• COMPATIBILITY -- Designed for 2-door and 4-door Jeep Wrangler JK
• BUY WITH CONFIDENCE -- Comes with Rancho's limited lifetime warranty
• BUILT FOR THE TRAIL -- Designed to fit up to 37-in. tires, get 4-in. of additional ground clearance and increased wheel travel for rock crawling, trail riding or on-road driving

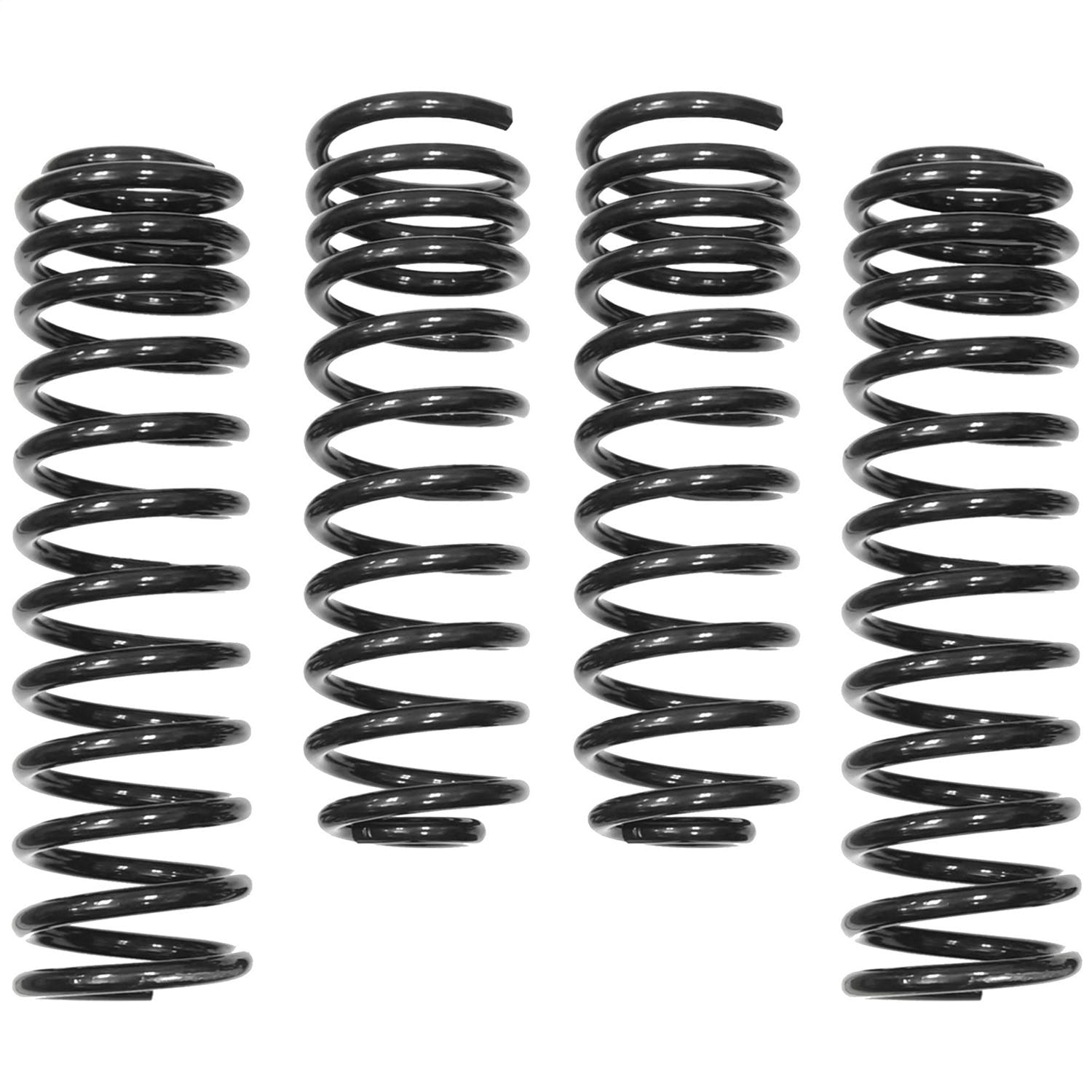

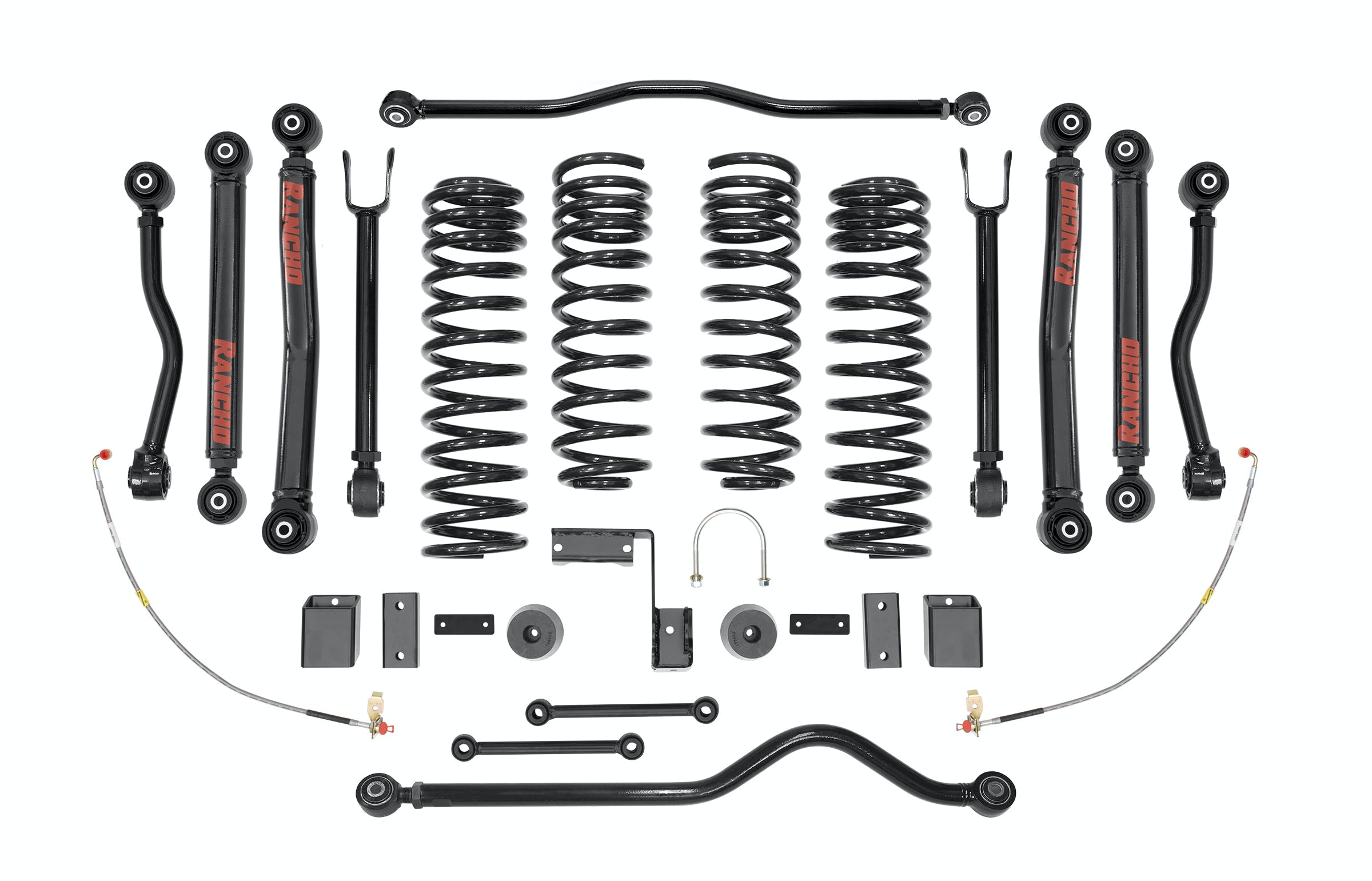

• COMPLETE SOLUTION -- Kit includes front and rear progressive rate coil springs, upper and lower control arms, heavy-duty front and rear adjustable track bars, extended sway bar end links, bump stop spacers and mounting hardware
• MAINTENANCE-FREE BUSHINGS -- Adjustable control arms and track bars feature Rancho's D2 high-articulation, grease-free bushings that allow the sleeve to rotate in the bushing without resistance to reduce wear
• ORDERING INFO -- Ships in three boxes; order RS66114B-1, RS66114B-2 and RS66114B-3 for a complete kit
• SUPERIOR PERFORMANCE -- Front and rear progressive rate coil springs are specifically tuned to provide superior on-road comfort and off-road performance and complies with NHTSA FMVSS126 standards
• ENGINEERED TO LAST -- Brackets fabricated from high-strength, low-alloy steel for long life and bolt-on design for easy installation
• REQUIREMENTS -- Rancho exhaust cross over pipe (RS720003) or DynoMax® exhaust cross over pipe (88347) is required for 2012-2018 models when not replacing the front driveshaft; sold separately
• NOTES -- Tire size varies between manufacturers; aftermarket bumpers, sliders, winches, etc. affect height

---

Information:

Short-Arm Suspension Lift Kit

---

Application Summary:

Year	Make/Model
2007-2017	Jeep Wrangler
2018	Jeep Wrangler JK

---
