Description

Rancho RS66125B RS66125B Short Arm Suspension System - Master Part Number

RS66125B

Rancho RS66125B Suspension Lift Kit

Designed to deliver increased ground clearance, the Rancho® 4.5-in. short arm lift kit delivers the ultimate on- and off-road experience for the Jeep® Wrangler JL. Progressive rate coil springs and adjustable control arms provide comfort and durability.
  • COMPATIBILITY -- Designed for Jeep Wrangler JL Unlimited (excludes diesel; non-Rubicon models will net taller lift height versus Rubicon)
  • BUY WITH CONFIDENCE -- Comes with Rancho's limited lifetime warranty
  • BUILT FOR THE TRAIL -- Designed to fit up to 37-in. tires, get 4.5-in. of additional ground clearance and increased wheel travel for rock crawling, trail riding or on-road driving

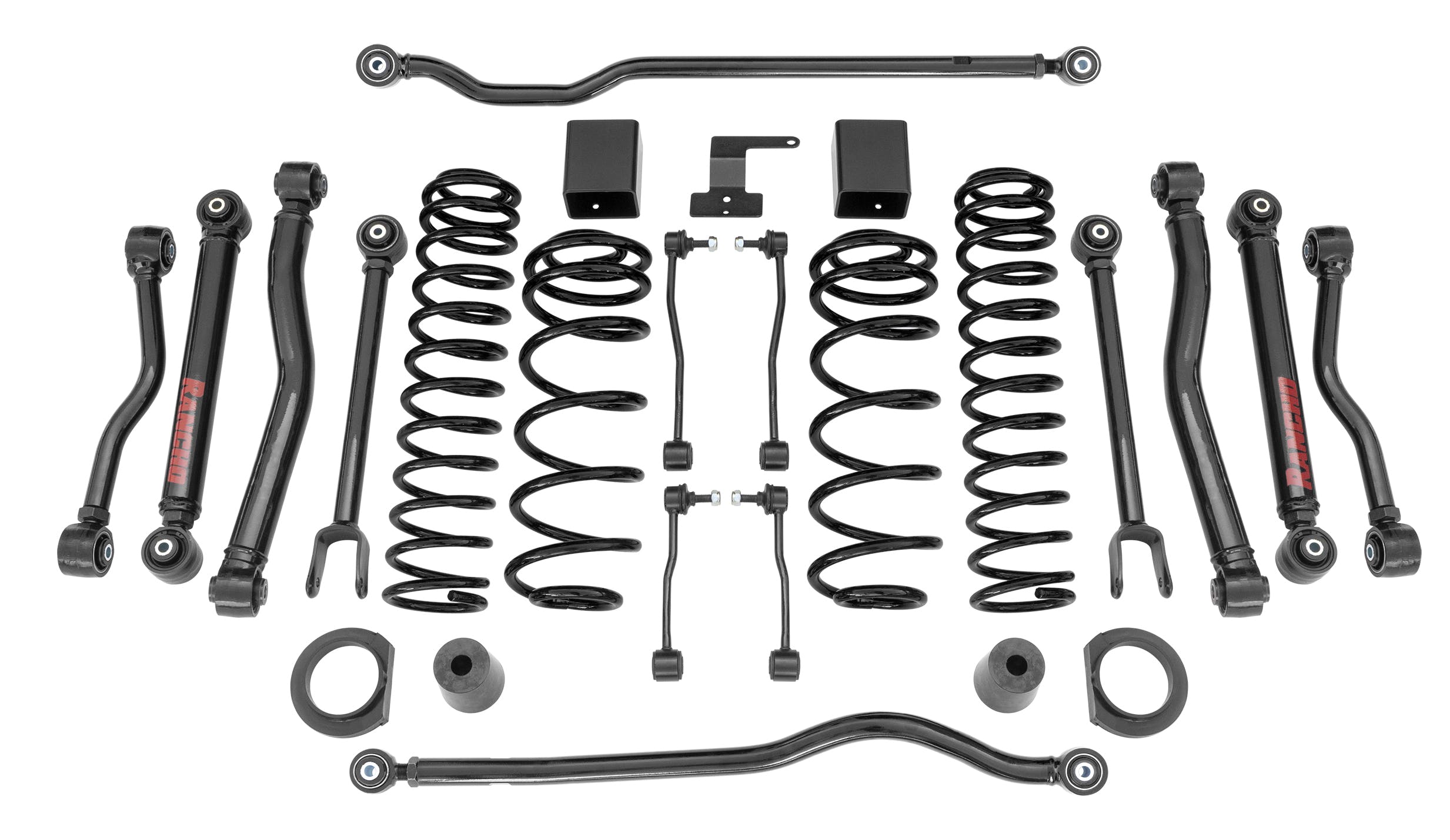

  • COMPLETE SOLUTION -- Kit includes front and rear corner-specific progressive rate coil springs, upper and lower control arms, HD front and rear adjustable track bars, extended sway bar end links, bump stop spacers and mounting hardware
  • MAINTENANCE-FREE BUSHINGS -- Adjustable control arms and track bars feature Rancho's D2 high-articulation, grease-free bushings that allow the sleeve to rotate in the bushing without resistance to reduce wear
  • ORDERING INFO -- Ships in three boxes; order RS66125B-1, RS66125B-2 and RS66125B-3 for a complete kit
  • SUPERIOR PERFORMANCE -- Front and rear corner-specific progressive rate coil springs, specifically tuned to provide superior on-road comfort and off-road performance and complies with NHTSA FMVSS126 standards
  • ENGINEERED TO LAST -- Brackets fabricated from high-strength, low-alloy steel for long life and bolt-on design for easy installation
  • REQUIREMENTS -- If using Rancho RS55067 or RS999067 shocks with Dynamic Rebound Spring, aftermarket driveshaft is required for max front axle articulation; front RS55065 or RS999065 do not require an aftermarket driveshaft; sold separately
  • NOTES -- Tire size varies between manufacturers; aftermarket bumpers, sliders, winches, etc. affect height

Application Summary:

Year Make/Model
2018-2022 Jeep Wrangler
