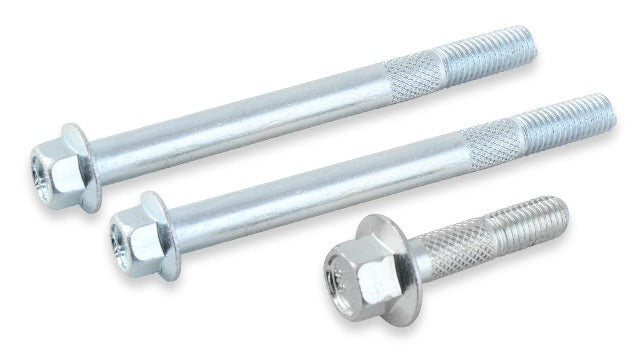

Starter Bolt Kit; Incl. 2 Long Bolts; 1 Short Bolt;
The metric starter bolts for GM LS engines can be tough to find & there are two different styles of starters. Some starters use one long and one short bolt & the other style starter uses two longer bolts. These bolt kits come in three versions to fit these starters or a set of (3) bolt that will work in all applications. Zinc plated steel. Long Bolts are M10 x 1.5 x 113mm Long Replaces OEM GM PN 12561387/11610633/11610787]. Short Bolts are M10 x 1.5 x 45mm Long Replaces GM OEM PN[12561848].
- Steel w/Zinc Plating

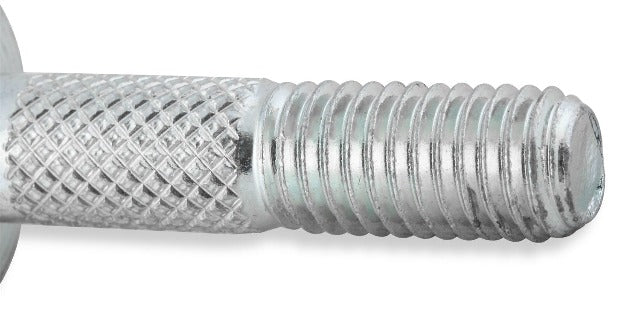

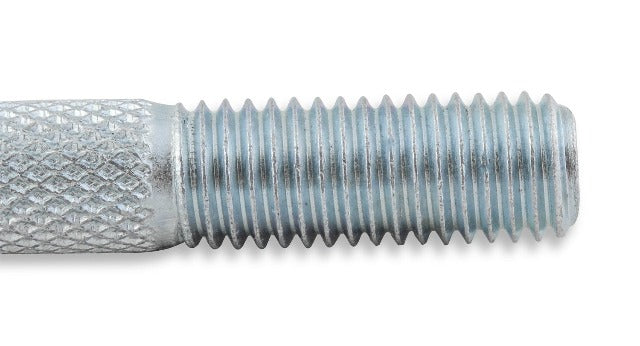

- Knurling On Bolts Improves Starter Alignment
Application Summary:
| Year |
Make/Model |
| 2008-2009 |
Buick Allure |
| 2008-2009 |
Buick LaCrosse |
| 2004-2007 |
Cadillac CTS |
| 1998-2002 |
Chevrolet Camaro |
| 2010-2015 |
Chevrolet Camaro |
| 1997-2013 |
Chevrolet Corvette |
| 2006-2009 |
Chevrolet Impala |
| 2006-2007 |
Chevrolet Monte Carlo |
| 2014-2017 |
Chevrolet SS |
| 2005-2006 |
Chevrolet SSR |
| 2006-2009 |
Chevrolet Trailblazer |
| 1998-2002 |
Pontiac Firebird |
| 2009 |
Pontiac G8 |
| 2005-2008 |
Pontiac Grand Prix |
| 2004-2006 |
Pontiac GTO |
