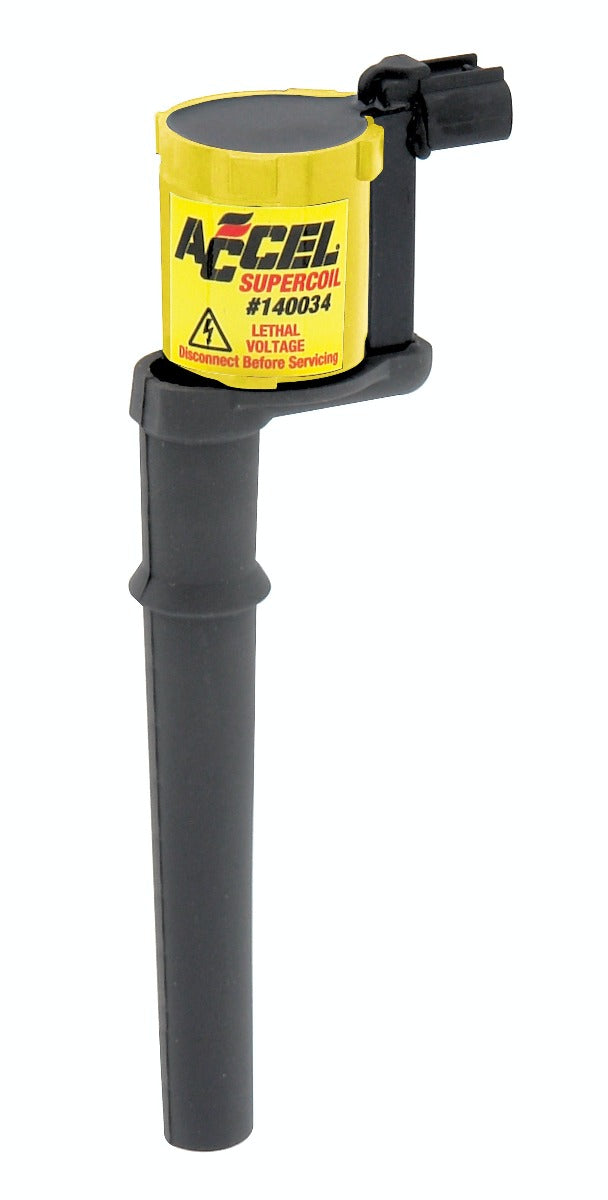

SuperCoil Direct Ignition Coil; 4 Valve Modular; Primary Resistance 0.62 Ohms; Secondary Resistance 5.6K Ohms; Turn Ratio 66:1; Max. Voltage 25KV; Yellow;

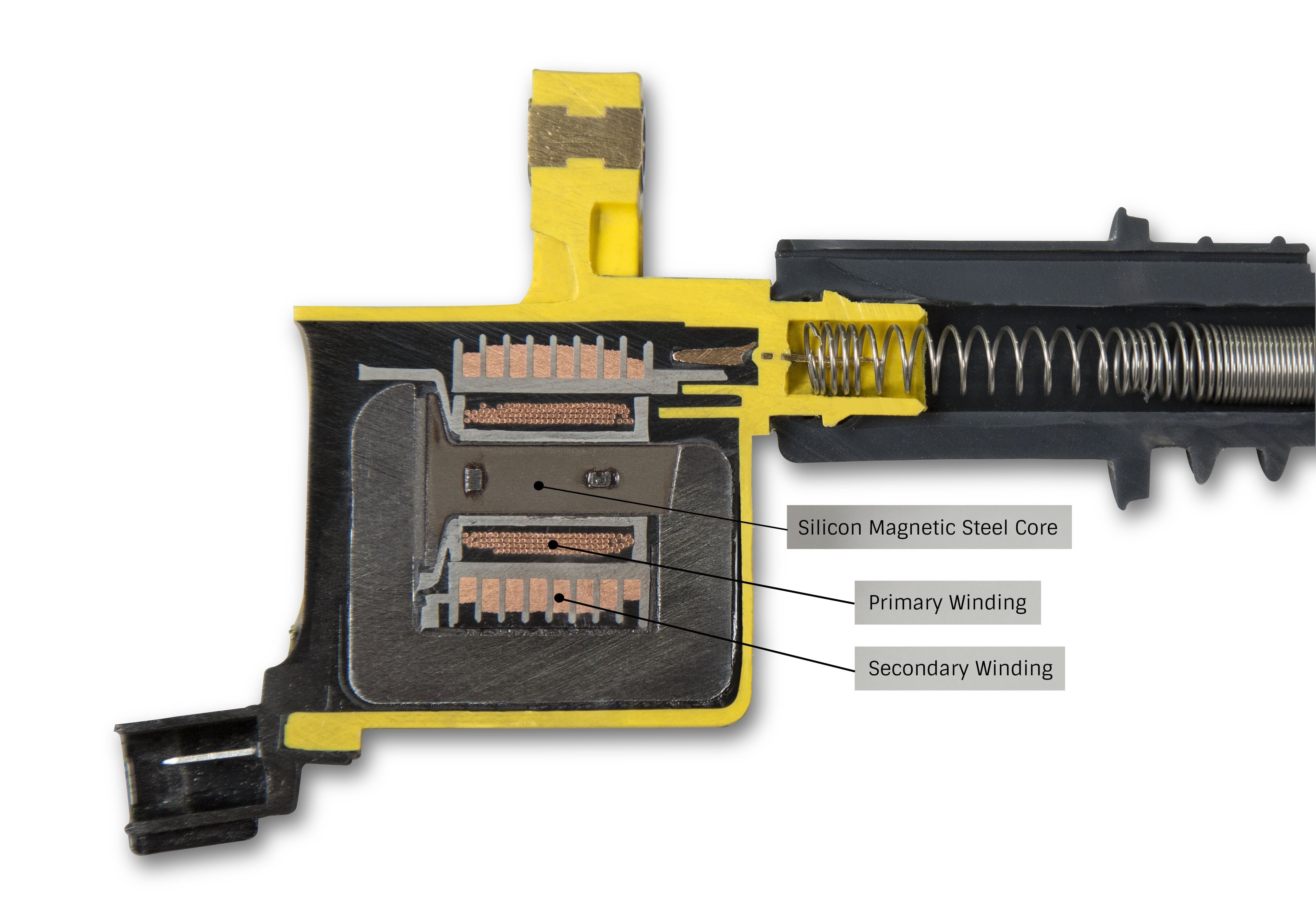

These coils feature advanced bobbin technology, highly specialized silicone magnetic steel cores, along with optimized winding, resistance and turns ratios to delivery 10-15 percent more energy than the OEM coils. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct plug replacements for OEM coils. They feature bodies and, or secondary towers molded in ACCEL yellow and feature brass secondary contacts (except direct fire coil on plug applications).
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Cores
- OBD II Compatible Safe
- Standard Motor Products SMP Uf-191
- MSD 8244 82448
Application Summary:
| Year |
Make/Model |
| 2005-2006 |
Ford GT |
| 1997-2001 |
Ford Mustang |
| 2003-2004 |
Ford Mustang |
| 2007-2011 |
Ford Mustang |
| 2002 |
Lincoln Blackwood |
| 1997-2002 |
Lincoln Continental |
| 1997-1998 |
Lincoln Mark VIII |
| 1999-2004 |
Lincoln Navigator |
| 2003-2004 |
Mercury Marauder |
