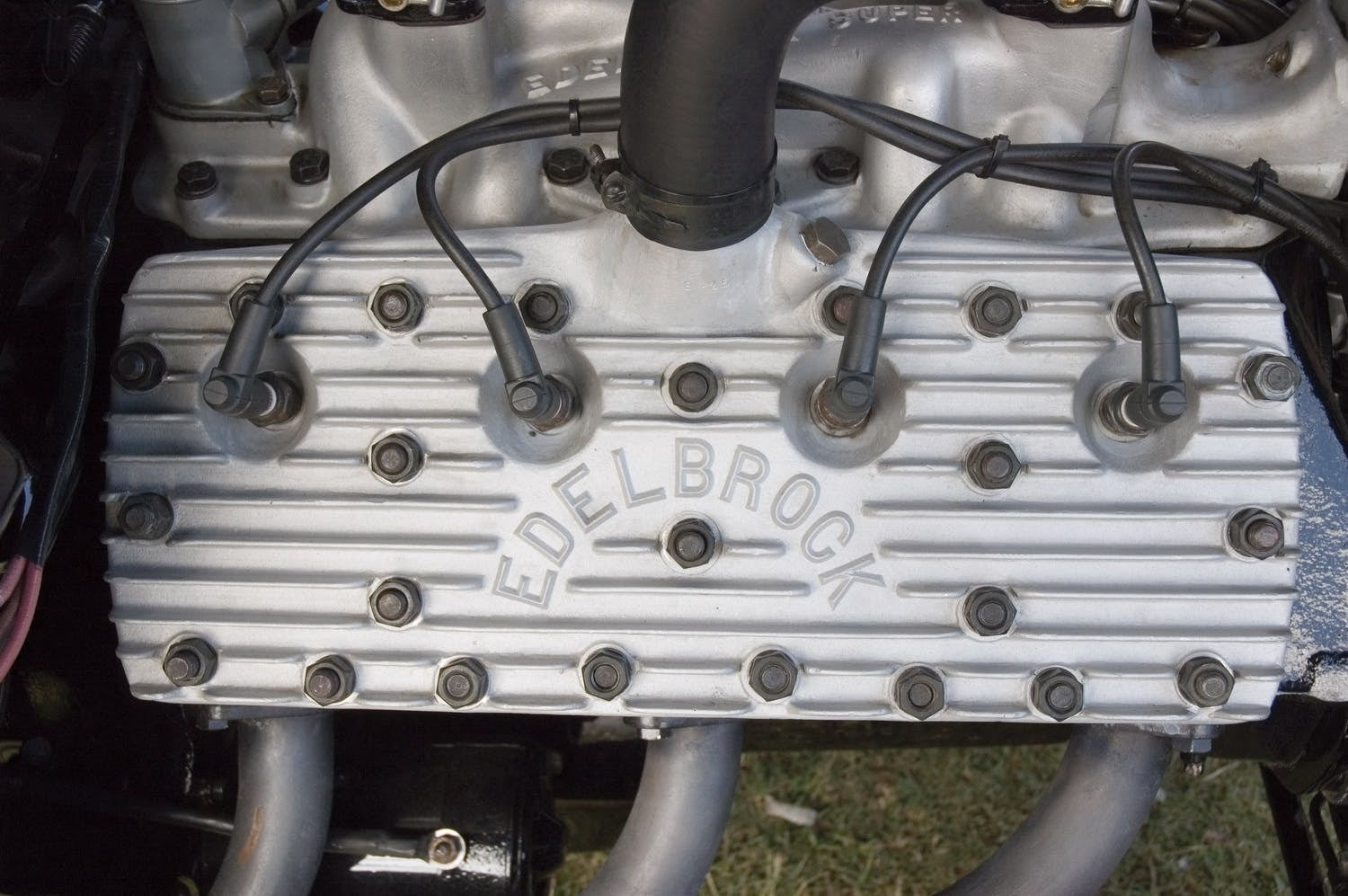

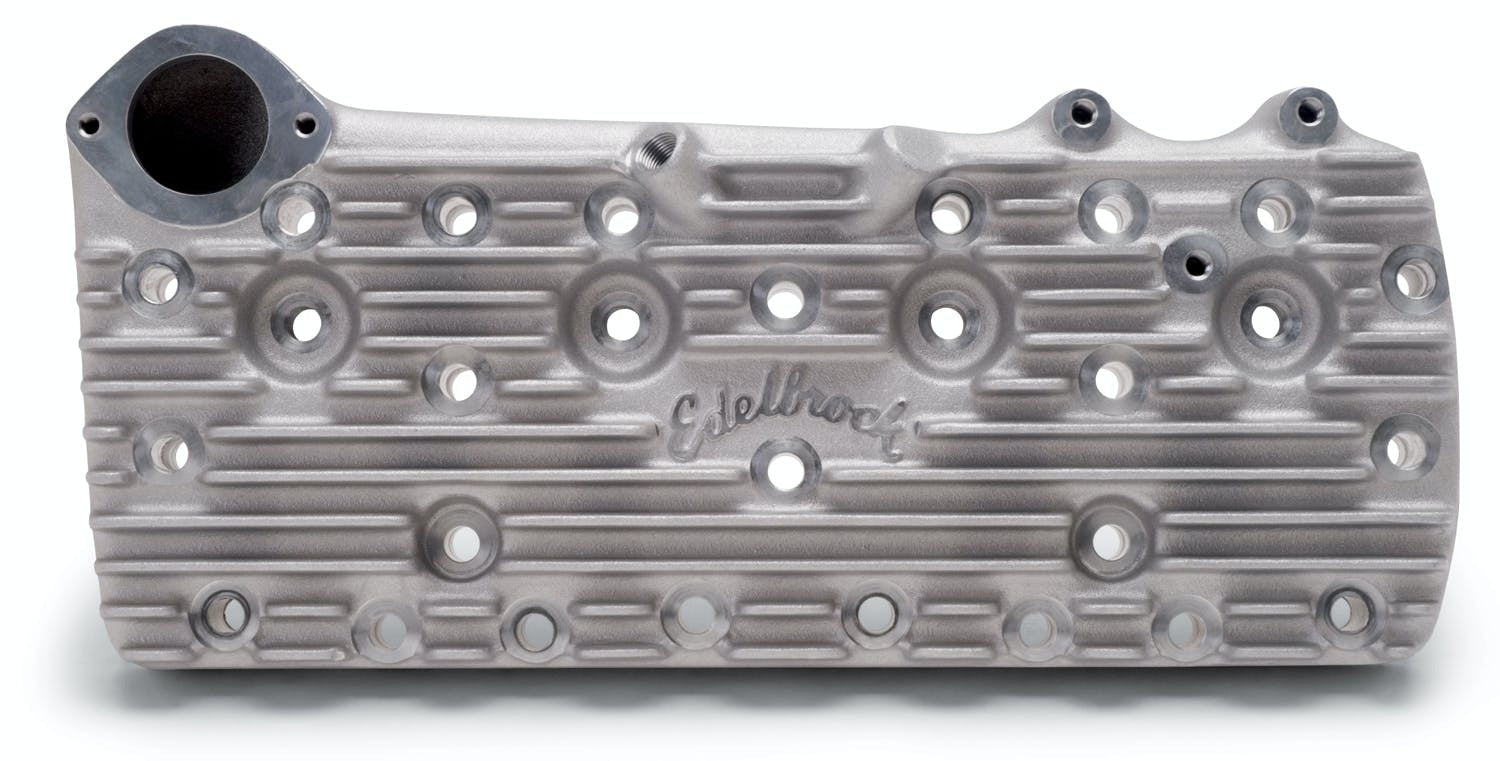

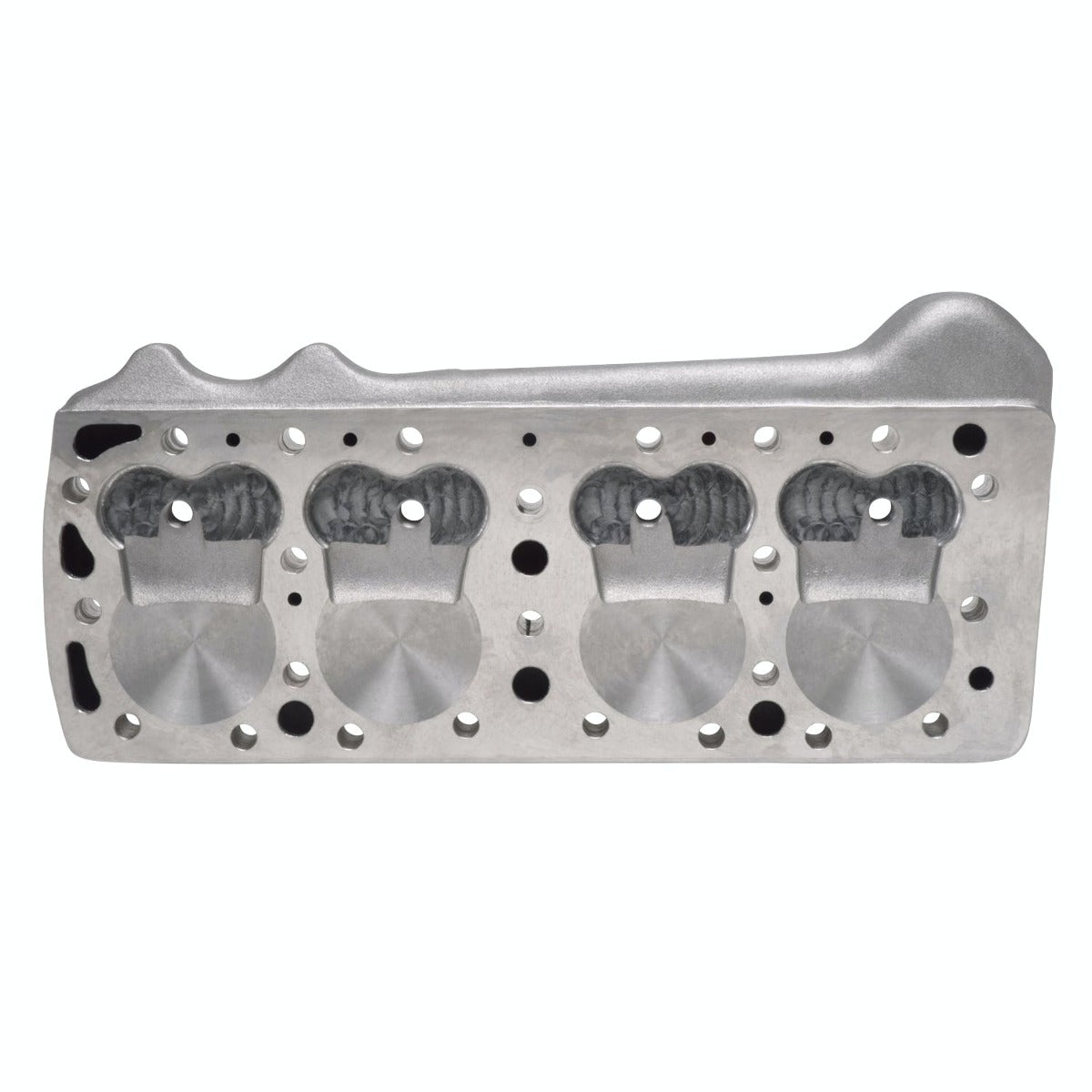

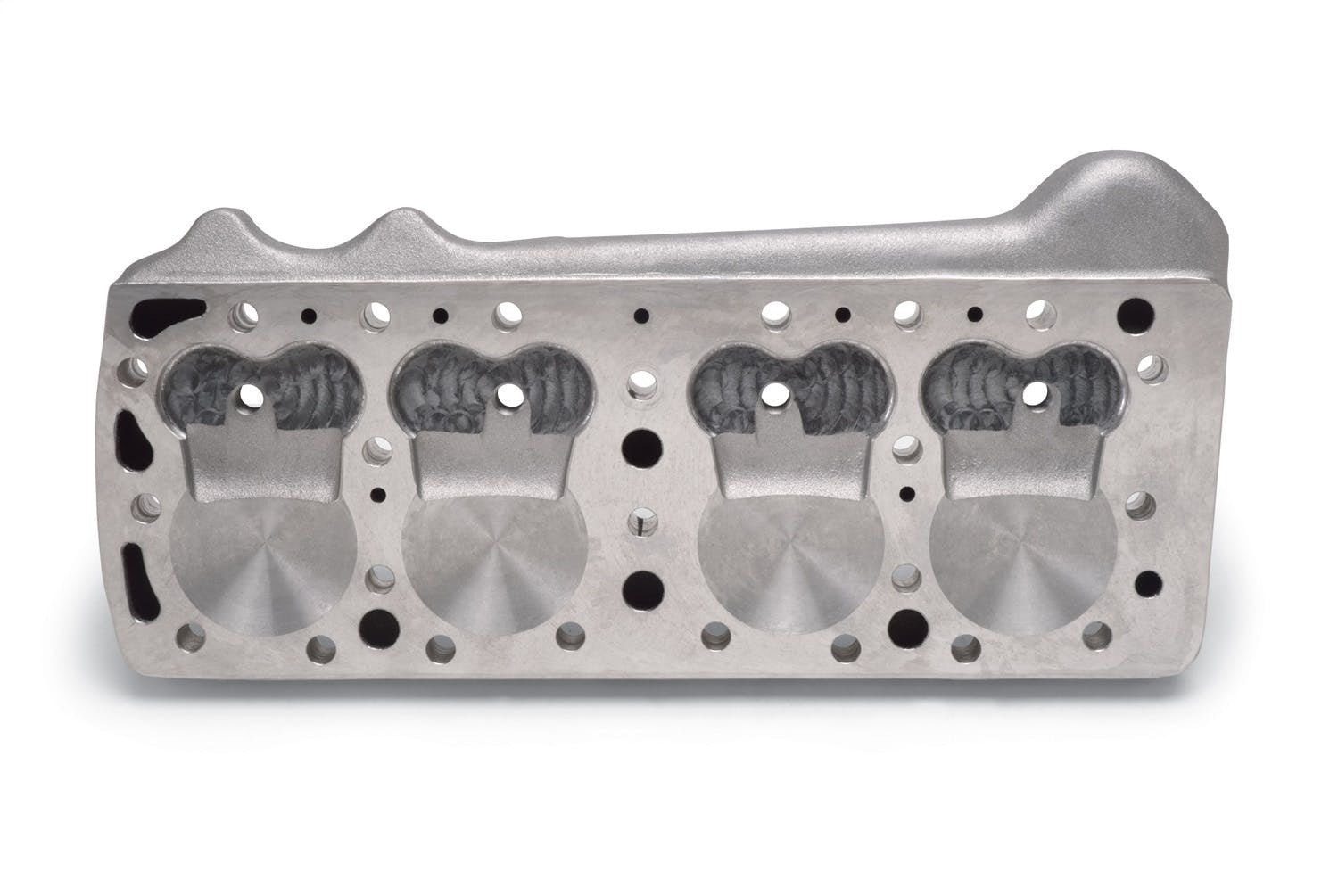

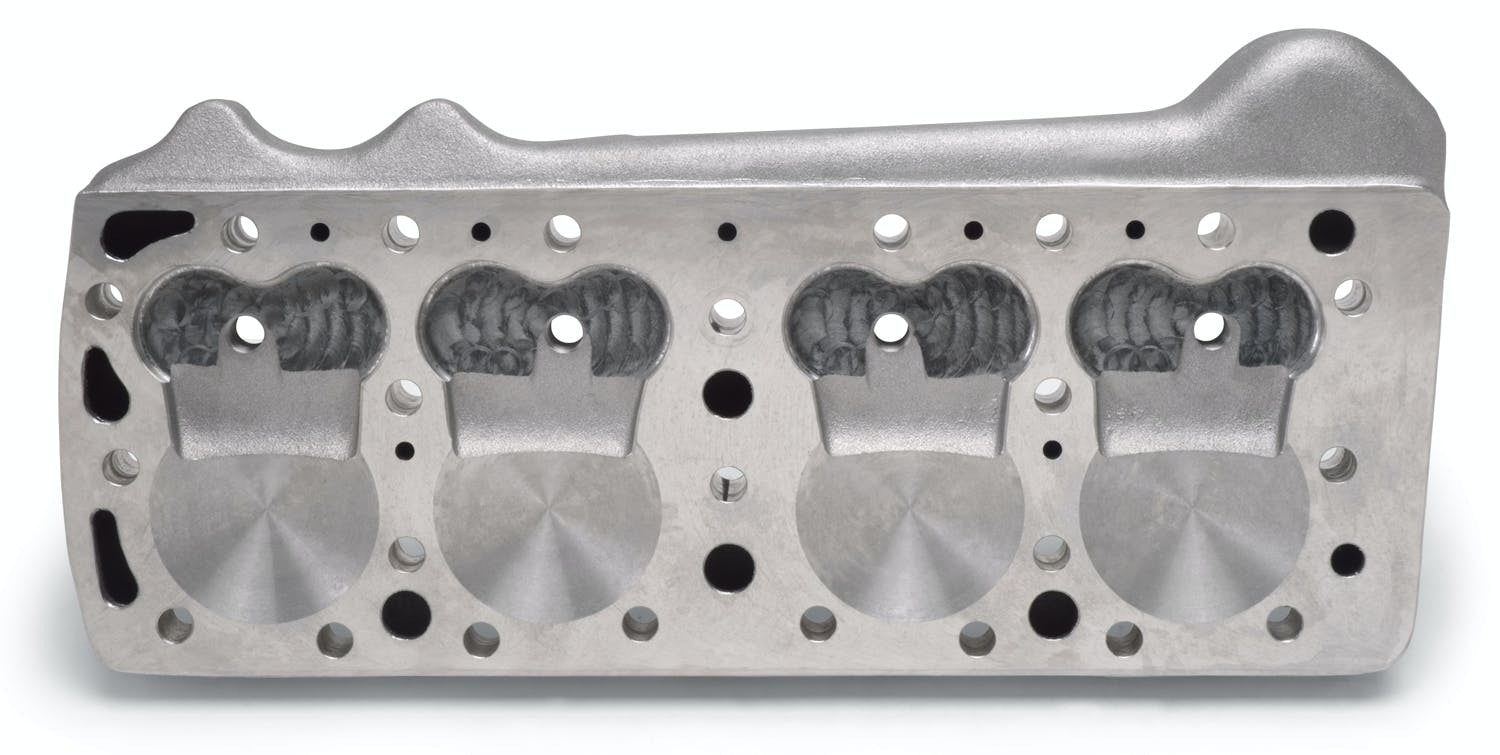

The Edelbrock #1115 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, the heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics.
The Edelbrock #1115 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1115 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.
- Casted At The Edelbrock Foundry In The USA
- T-6 Tempered A356 Aluminum
- Large Water Capacity
- Excellent Breathing Characteristics
- High Lift Heads Have Increased Valve Clearance
- Increased Flow Capacity
Application Summary:
| Year |
Make/Model |
| 1953 |
Ford Club |
| 1950-1953 |
Ford Country Sedan |
| 1950-1953 |
Ford Country Squire |
| 1952-1953 |
Ford Courier Sedan Delivery |
| 1950-1953 |
Ford Crestline |
| 1949-1952 |
Ford Custom |
| 1952-1953 |
Ford Customline |
| 1949-1951 |
Ford Deluxe |
| 1953 |
Ford F-100 |
| 1953 |
Ford F-250 |
| 1953 |
Ford F-350 |
| 1949-1952 |
Ford F1 |
| 1949-1952 |
Ford F2 |
| 1949-1952 |
Ford F3 |
| 1949-1952 |
Ford F4 |
| 1949 |
Ford Ford |
| 1952-1953 |
Ford Mainline |
| 1950-1953 |
Ford Ranch Wagon |
| 1952-1953 |
Ford Sunliner |
| 1951-1953 |
Ford Victoria |
| 1949-1950 |
Mercury M-47 |
