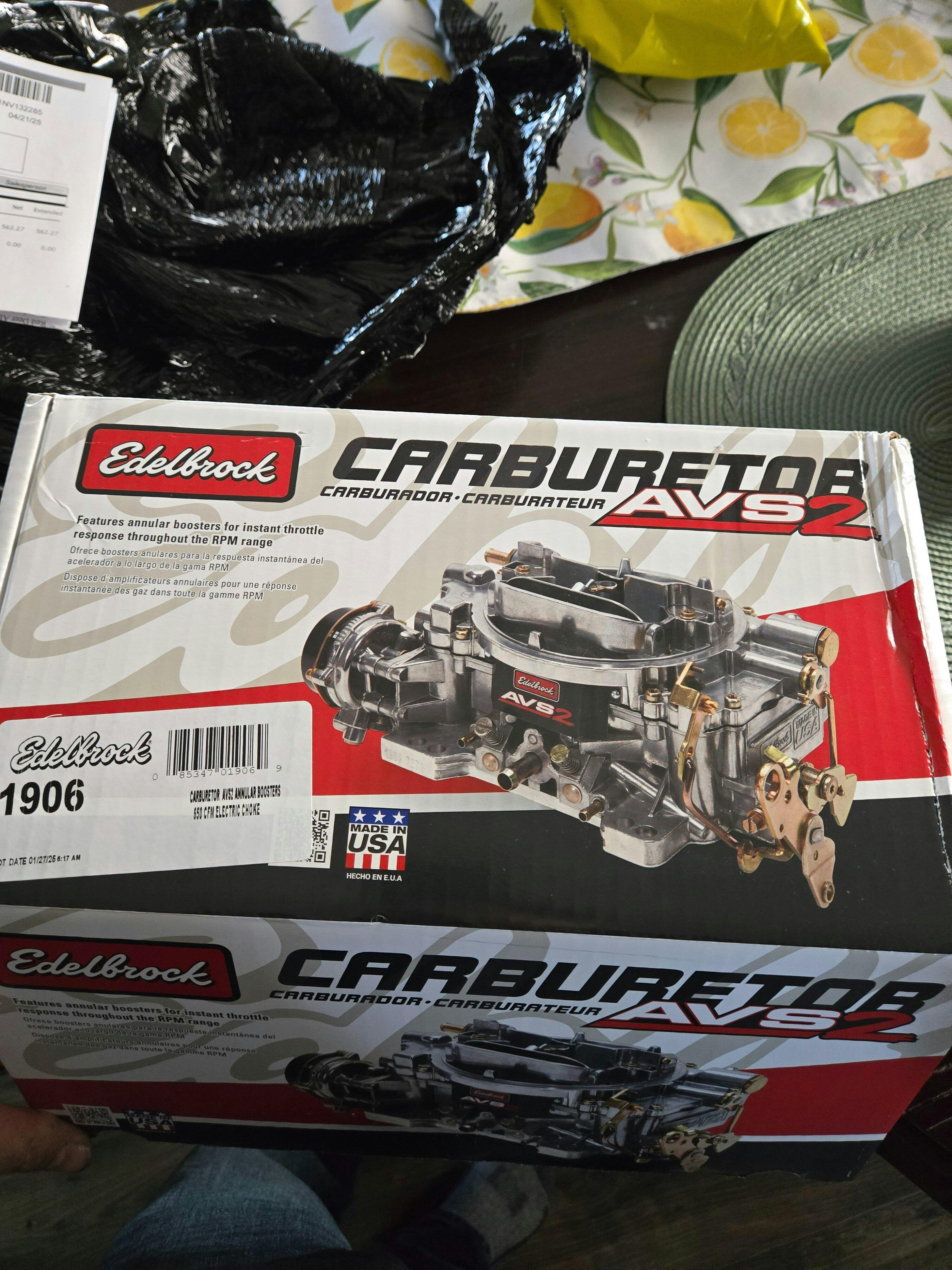

Edelbrock 1906 AVS2 650 CFM Carburetor with Electric Choke in Satin (non-EGR)

The Edelbrock #1906 AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines.

---

The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets; .070 x .037 metering rods; orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063.

• Designed and Calibrated For Optimum Street Performance
• Features Annular Flow Primary Boosters
• Timed And Full Vacuum Ports For Ignition Advance
• Delivers Improved Fuel Atomization To Eliminate Flat Spots
• Improved Flow Metering Make It Ideal For Small/Big Block Engines
• For Single Or Dual Plane Intake Manifolds

---

Application Summary:

Year	Make/Model
1960-1974	American Motors Ambassador
1967-1968	American Motors American
1968-1970	American Motors AMX
1965-1966	American Motors Classic
1971-1974	American Motors Hornet
1968-1974	American Motors Javelin
1965-1967	American Motors Marlin
1971-1976	American Motors Matador
1969	American Motors Rambler
1967-1970	American Motors Rebel
1965-1967	Avanti II
1969-1974	Avanti II
1976-1980	Avanti II
1974	Bricklin SV-1
1965	Bristol 408
1965-1967	Bristol 409
1967-1969	Bristol 410
1973-1974	Buick Apollo
1973	Buick Centurion
1954-1958	Buick Century
1973-1974	Buick Century
1977-1981	Buick Century
1959-1966	Buick Electra
1976	Buick Electra
1978-1981	Buick Electra
1959-1964	Buick Estate Wagon
1970	Buick Estate Wagon
1973	Buick Estate Wagon
1978-1980	Buick Estate Wagon
1965-1967	Buick Gran Sport
1970-1972	Buick GS
1968-1969	Buick GS 350
1968-1969	Buick GS 400
1959-1963	Buick Invicta
1959-1964	Buick LeSabre
1968-1975	Buick LeSabre
1978-1980	Buick LeSabre
1958	Buick Limited
1973-1974	Buick Regal
1977-1980	Buick Regal
1982-1987	Buick Regal
1963-1965	Buick Riviera
1978	Buick Riviera
1953-1958	Buick Roadmaster
1954	Buick Skylark
1965-1972	Buick Skylark
1977-1979	Buick Skylark
1968-1969	Buick Special
1968-1972	Buick Sportwagon
1955-1958	Buick Super
1962-1966	Buick Wildcat
1956-1963	Cadillac Commercial Chassis
1980-1984	Cadillac Commercial Chassis
1956-1963	Cadillac DeVille
1980	Cadillac DeVille
1956-1963	Cadillac Eldorado
1980	Cadillac Fleetwood
1982	Cadillac Fleetwood
1956-1963	Cadillac Series 60 Fleetwood
1956-1963	Cadillac Series 62
1958	Cadillac Series 70 Fleetwood Eldorado
1956-1963	Cadillac Series 75 Fleetwood
1966-1974	Checker Aerobus
1969-1970	Checker Deluxe
1965-1974	Checker Marathon
1977-1979	Checker Marathon
1969-1974	Checker Taxicab
1962-1975	Chevrolet Bel Air
1981	Chevrolet Bel Air
1962-1972	Chevrolet Biscayne
1969-1974	Chevrolet Blazer
1969-1972	Chevrolet Brookwood
1975-1986	Chevrolet C10

---
