Performer Vortec Intake Manifold for 90 Deg GM V6, 200-229-262 c.i.d. (3.8L and 4.3L) Engines will allow a Square-Bore 4150-Style Carburetor (#1403 or #1404 500cfm Recommended) to be used with the Vortec V6 Cylinder Heads. Non-EGR

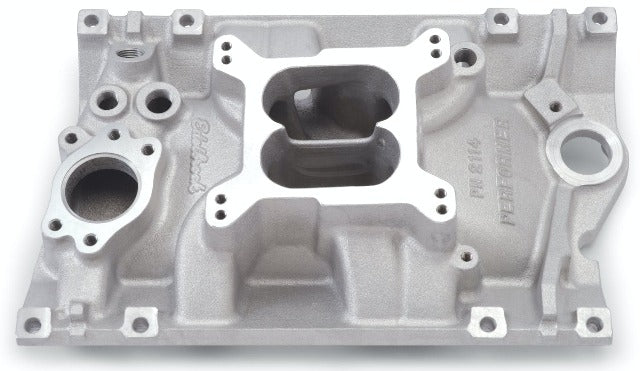

Edelbrock part #2114 Performer Vortec V6 intake manifold is based on the powerful Edelbrock #2111, this dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this manifold, rodders can take advantage of the higher flow available with the Vortec head design. This Performer Vortec intake manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Thunder Series AVS or Performer Series 500 cfm carbs, it accepts late model water neck, alternator, HEI and air conditioning.
Edelbrock part #2114 Performer Vortec V6 intake manifold is based on the powerful Edelbrock #2111, this dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this manifold, rodders can take advantage of the higher flow available with the Vortec head design. This Performer Vortec intake manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Thunder Series AVS or Performer Series 500 cfm carbs, it accepts late model water neck, alternator, HEI and air conditioning.
- For Idle to 5500 RPM Street-Driven Performance
- Dual-Plane Low-Rise Intake w/180 Deg. Firing Order
- Patented Runner Design Ensures Broad Torque Curve
- Excellent Throttle Response and Mid-Range Power
- Designed for Engine Swaps Using GM Vortec Heads
- Accepts External Water Bypass
- Works on Both Vortec and 1995 and Earlier Blocks
- Accepts Late Model Water Neck-Alternators-HEI-A/C
Application Summary:
Year | Make/Model |
---|---|
1986-1994 | Chevrolet Astro |
1988-1995 | Chevrolet C1500 |
1988-1995 | Chevrolet C2500 |
1985-1990 | Chevrolet Caprice |
1992-1993 | Chevrolet Caprice |
1992 | Chevrolet Commercial Chassis |
1985-1987 | Chevrolet El Camino |
1987-1995 | Chevrolet G10 |
1987-1995 | Chevrolet G20 |
1987-1996 | Chevrolet G30 |
1985 | Chevrolet Impala |
1988-1995 | Chevrolet K1500 |
1988-1995 | Chevrolet K2500 |
1985-1988 | Chevrolet Monte Carlo |
1987 | Chevrolet R10 |
1987-1988 | Chevrolet R20 |
1988-1995 | Chevrolet S10 |
1988-1994 | Chevrolet S10 Blazer |
1987 | Chevrolet V10 |
1988-1995 | GMC C1500 |
1988-1995 | GMC C2500 |
1985-1987 | GMC Caballero |
1987-1995 | GMC G1500 |
1987-1995 | GMC G2500 |
1987-1995 | GMC G3500 |
1992-1994 | GMC Jimmy |
1988-1995 | GMC K1500 |
1988-1995 | GMC K2500 |
1987 | GMC R1500 |
1987 | GMC R2500 |
1988-1990 | GMC S15 |
1988-1991 | GMC S15 Jimmy |
1986-1994 | GMC Safari |
1991-1995 | GMC Sonoma |
1991 | GMC Syclone |
1992-1993 | GMC Typhoon |
1987 | GMC V1500 |
1991-1992 | Oldsmobile Bravada |
1986 | Pontiac Bonneville |
1986-1987 | Pontiac Grand Prix |
1985-1986 | Pontiac Parisienne |
