Edelbrock Victor Olds 350-403 Intake Manifold for 350-403 c.i.d Oldsmobile Small-Block Engines is Designed for High-Performance Competition & Marine Engines. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR.

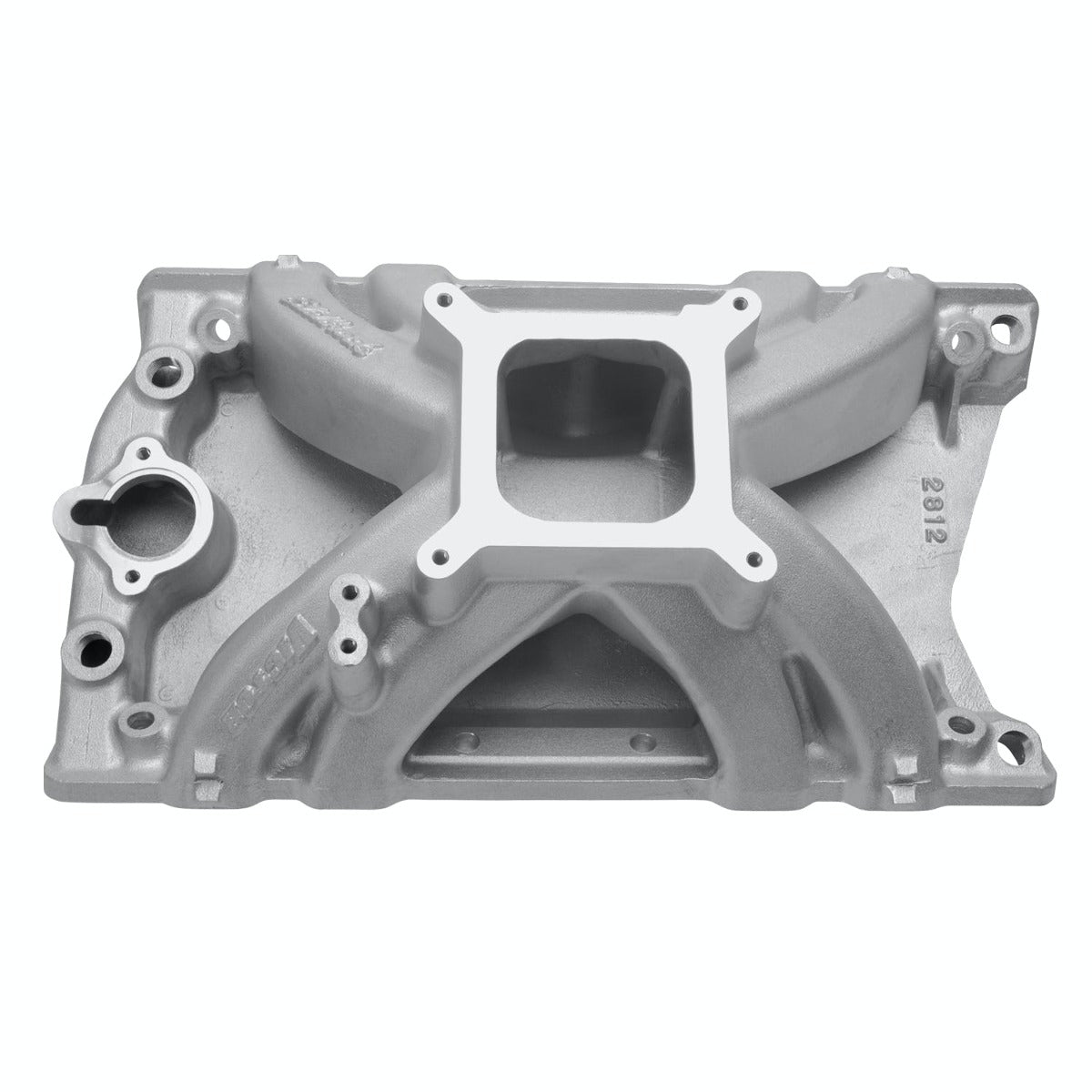

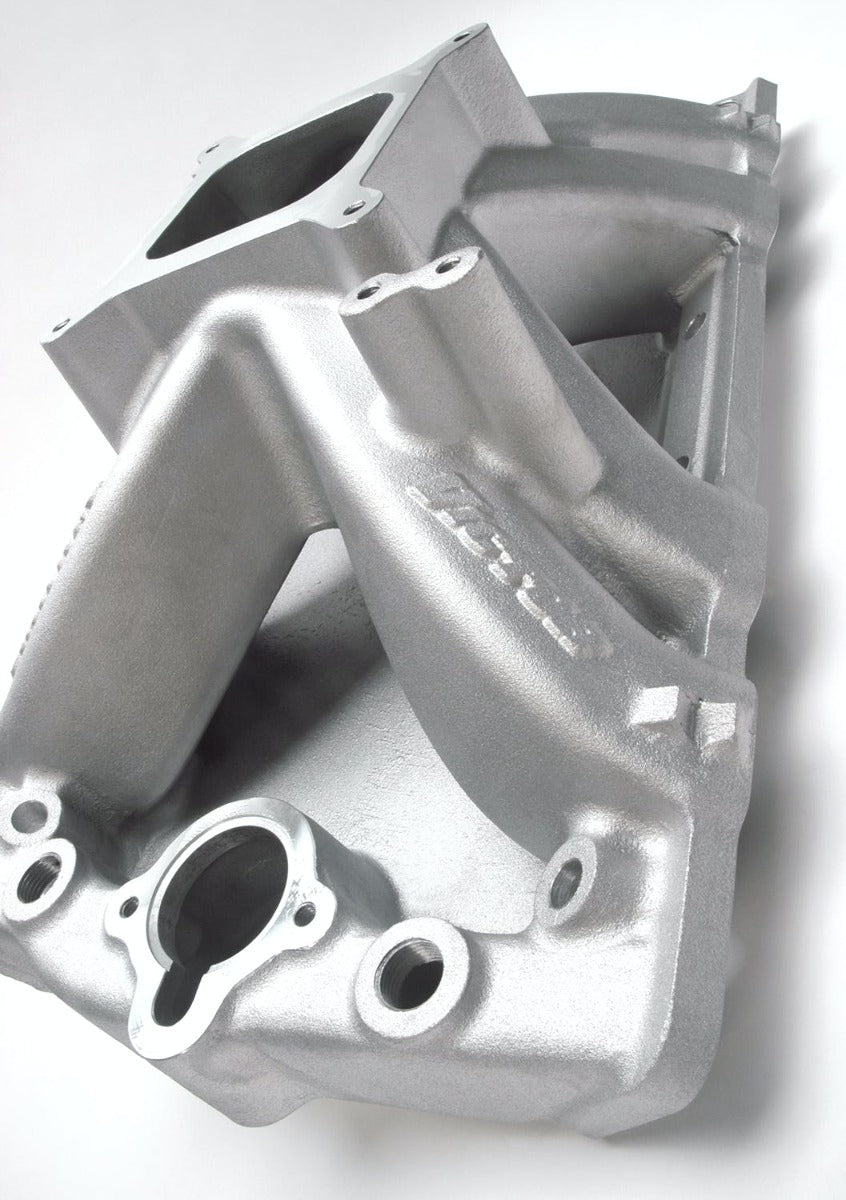

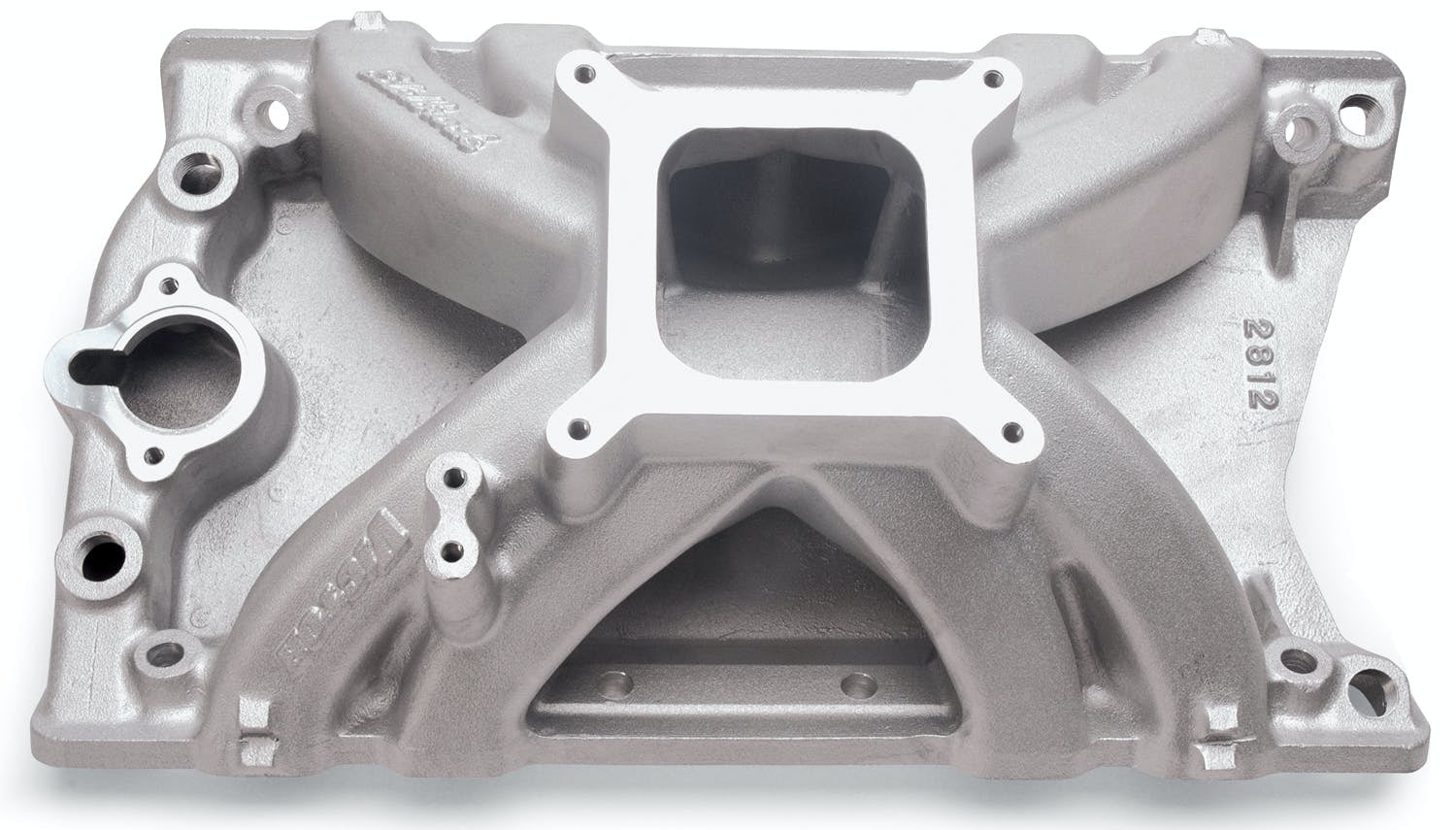

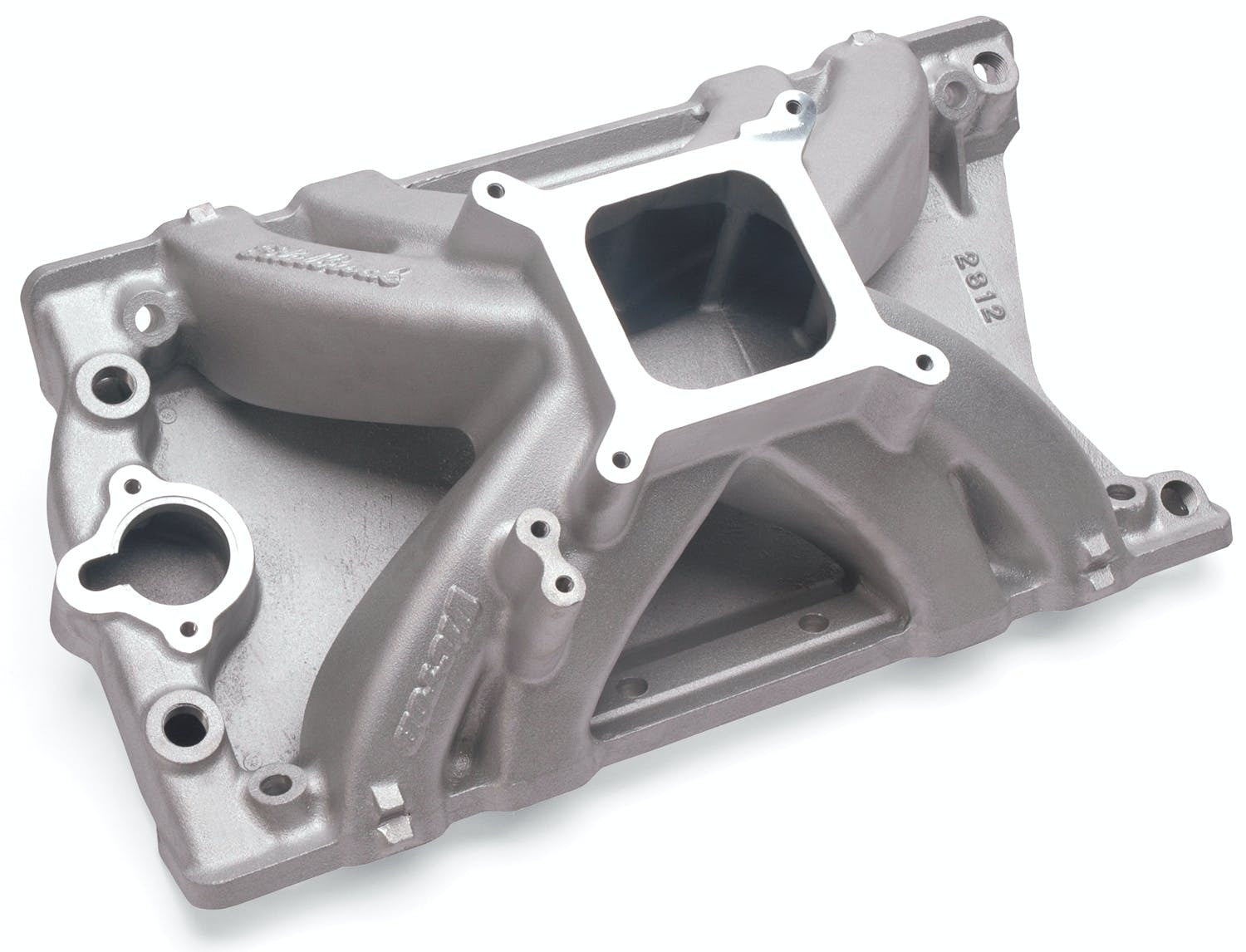

Edelbrock part #2812 Victor Oldsmobile intake manifold provides power levels never before available for competition single-carb 350-403 Olds engines. Featuring a single-plane "Air-Gap" design, it accepts square-bore carb and offers significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. It features a carb mount pad height of 7" and high-flow constant area 3.2-square-inch runners. The runners have been optimized to match the flow characteristics of Edelbrock Performer RPM aluminum cylinder heads #60519 and the exit size, as-cast, is 1.28" by 1.94" with plenty of metal thickness for gasket matching and porting.
- For 4500 to 7500 RPM High-Performance Engines
- Ideal For Drag Racing Or Marine Applications
- Single-Plane Air-Gap Design
- Any Carburetor Class Allows
Application Summary:
| Year |
Make/Model |
| Oldsmobile:Small-Block:307 |
(5.0L)/330 (5.4L)/350 (5.7L)/403 (6.6L) |
Additional Information:
