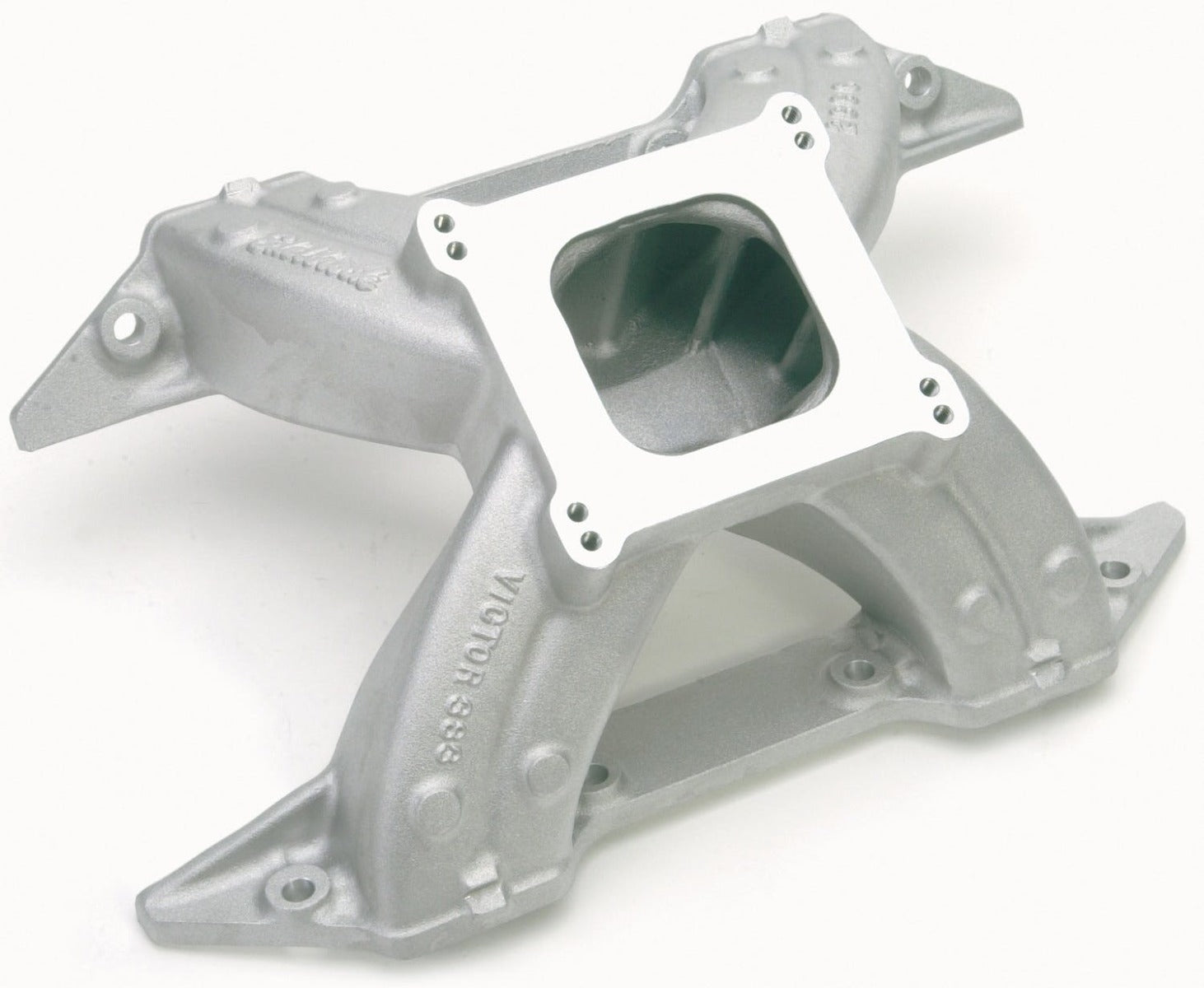

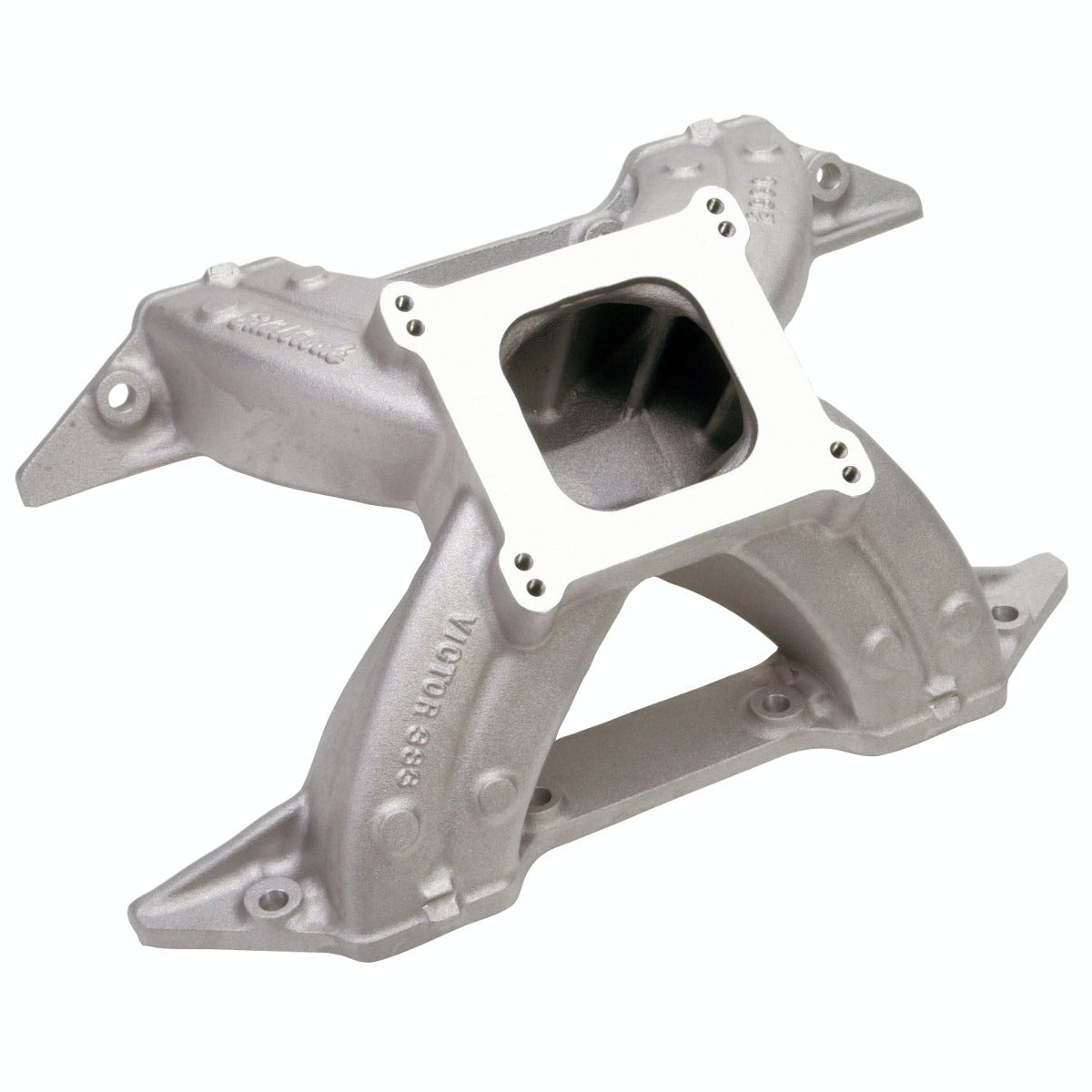

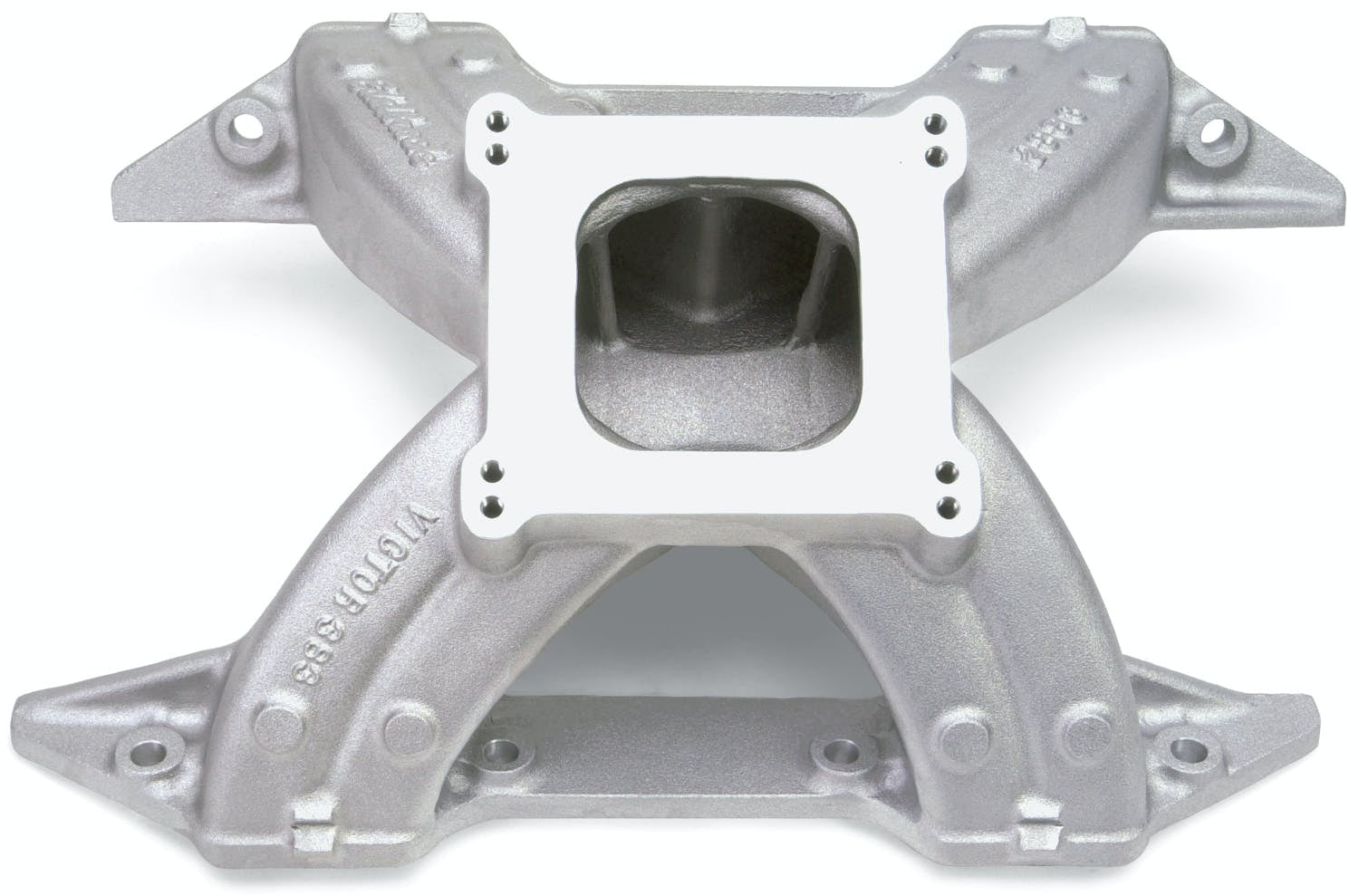

Edelbrock Victor 383 Intake Manifold for Chrysler 361-383-400 Big-Block V8
Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads.
Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads.
- For 3500 to 7500 RPM High-Performance Engines
- All-New Runner Design for Maximum Power
- Single-Plane High-Rise Intake
- Low Profile Works Well w/Limited Hood Clearance
- For High-Performance Street to Drag/Circle Racing
- Accepts both Square or Thermoquad Carburetor
- Can Use 1 Or 2 in. Spacers To Tune Performance
- Includes Nitrous Bosses on Runners
Application Summary:
| Year | Make/Model |
|---|---|
| Chrysler:Big-Block | B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
