Edelbrock Victor Jr. LS Cathedral Port Carbureted Intake Manifold with Timing Control Module For GM LS Gen III and Gen IV Engines

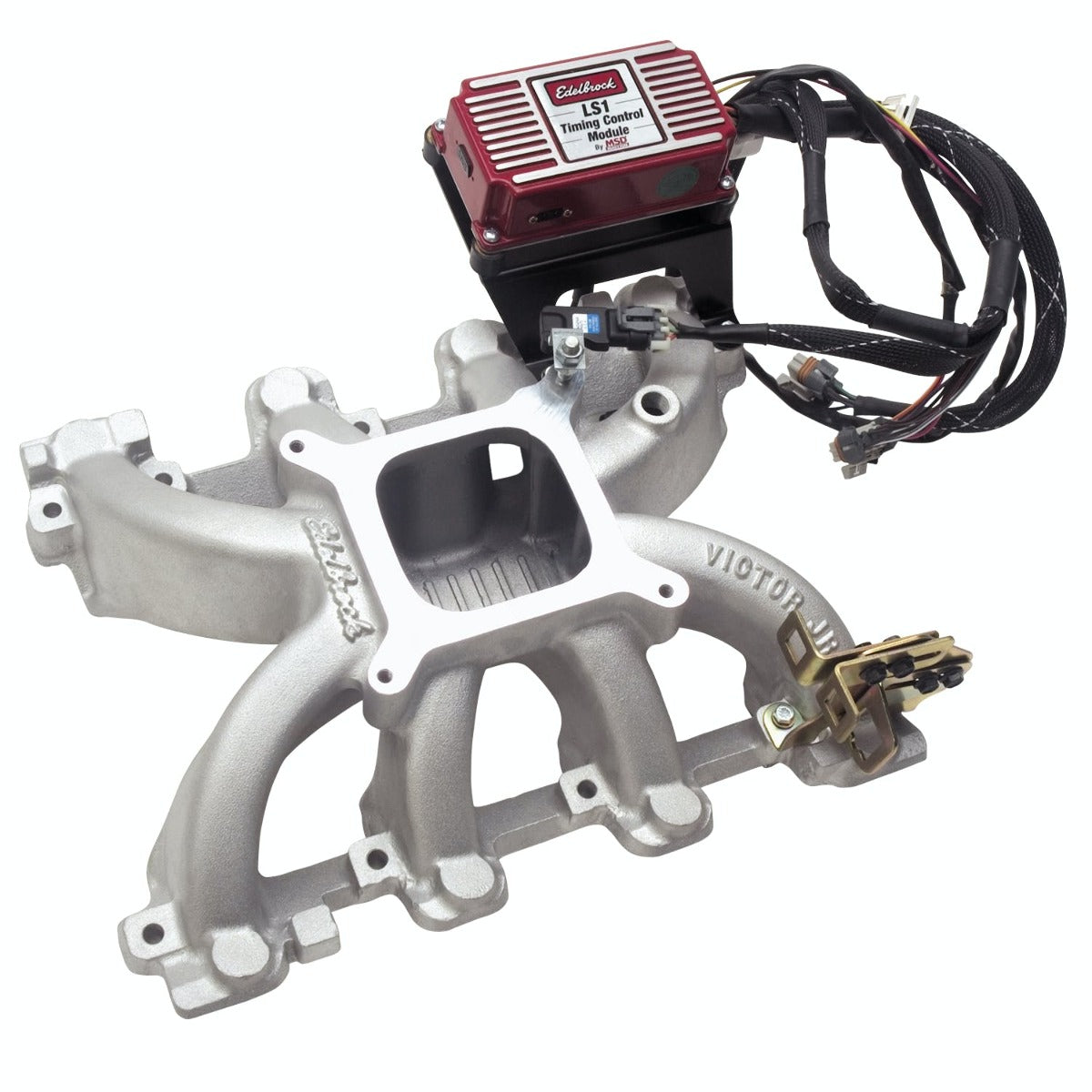

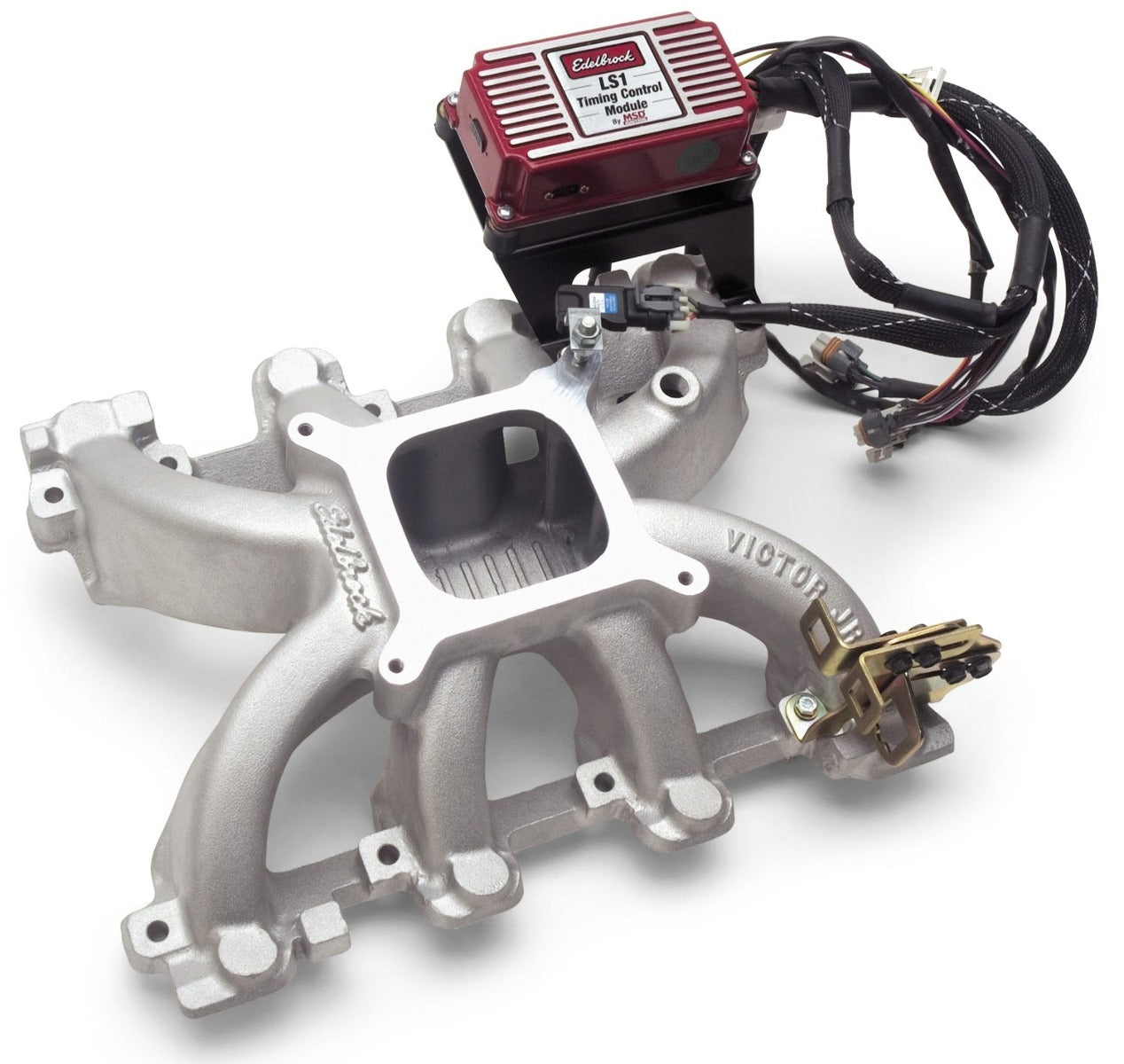

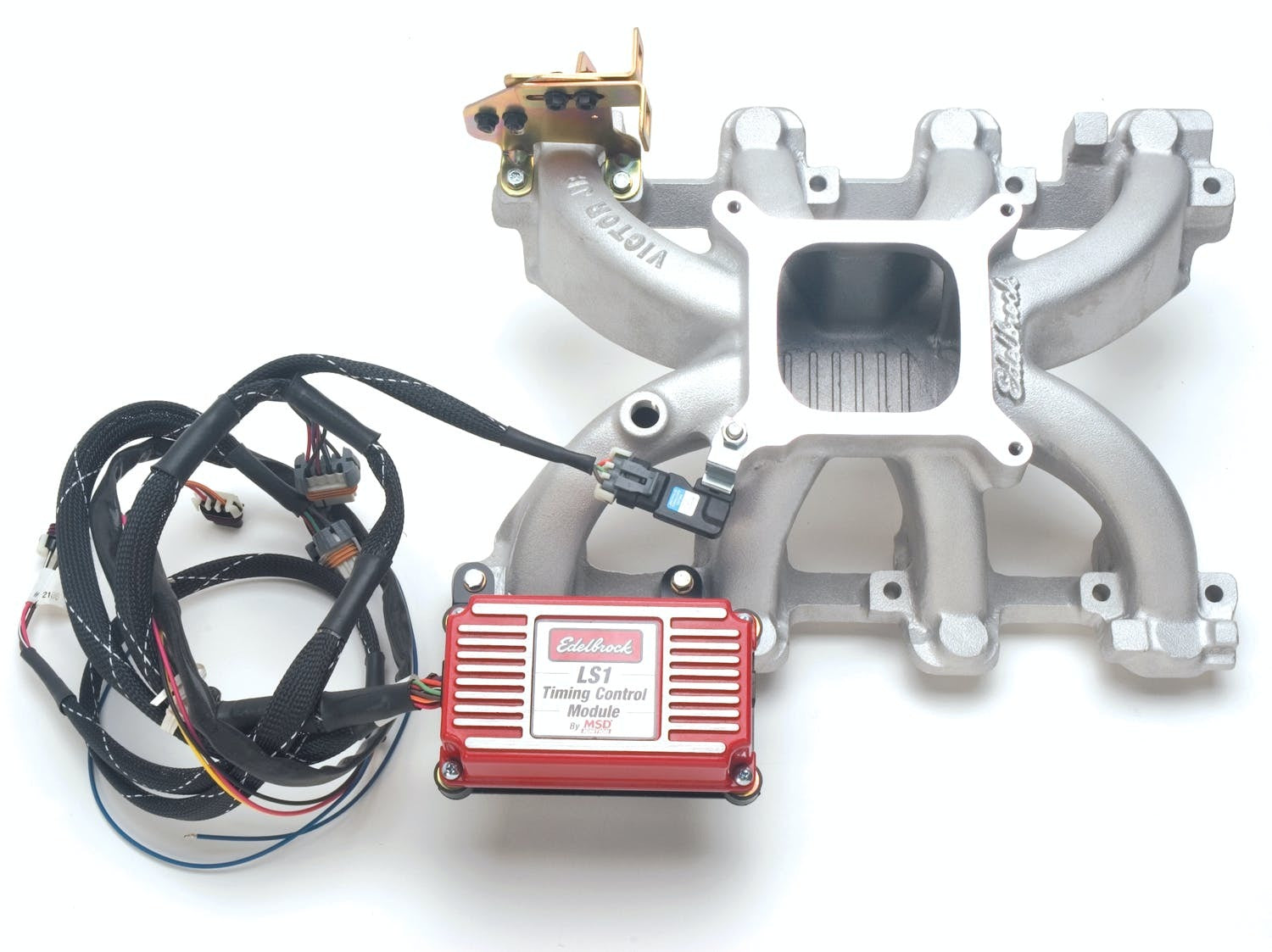

Edelbrock part #2908 Victor Jr. Cathedral Port intake manifold is a low-rise single plane intake capable of supporting up to 600 hp. The Victor Jr. Cathedral Port accepts a square bore carburetor and includes an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS Coil-on-Plug ignition system. It accepts either 24x or 58x input signal. The module offers a choice of 6 built-in timing curves, each tailored for engine displacement, cam profiles, and fuel grades. Can also be tuned using a laptop to control features such as launch and max rev limit, individual cylinder timing, and nitrous retard. The kit includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Uses stock o-ring gaskets GM PN 12533587. Fittings and mounting bolts included.
Edelbrock part #2908 Victor Jr. Cathedral Port intake manifold is a low-rise single plane intake capable of supporting up to 600 hp. The Victor Jr. Cathedral Port accepts a square bore carburetor and includes an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS Coil-on-Plug ignition system. It accepts either 24x or 58x input signal. The module offers a choice of 6 built-in timing curves, each tailored for engine displacement, cam profiles, and fuel grades. Can also be tuned using a laptop to control features such as launch and max rev limit, individual cylinder timing, and nitrous retard. The kit includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Uses stock o-ring gaskets GM PN 12533587. Fittings and mounting bolts included.
- Converts LS1 Engine to Square Bore Carburetor
- Use OEM Factory O-Rings for Intake Gasket
- Module picks up MAP
- Crank and Cam Position
- Module Drives Stock Coil-on-Plug System
- Module Includes Multiple Timing Curves
- Throttle Brkt Included for 700R-4/200R-4/Turbo 350
Application Summary:
Year | Make/Model |
---|---|
Chevrolet:Small-Block | LC9:325 (5.3L) |
Chevrolet:Small-Block | LH8:325 (5.3L) |
Chevrolet:Small-Block | LMF:325 (5.3L) |
Chevrolet:Small-Block | LMG:325 (5.3L) |
Chevrolet:Small-Block | LY5:325 (5.3L) |
Chevrolet:Small-Block | Gen III LM7:325 (5.3L) |
Chevrolet:Small-Block | Gen III LR4:293 (4.8L) |
Chevrolet:Small-Block | Gen III LS1:346 (5.7L) |
Chevrolet:Small-Block | Gen III LS2:364 (6.0L) |
Chevrolet:Small-Block | Gen IV LMF:325 (5.3L) |
Chevrolet:Small-Block | Gen IV LY5:325 (5.3L) |
