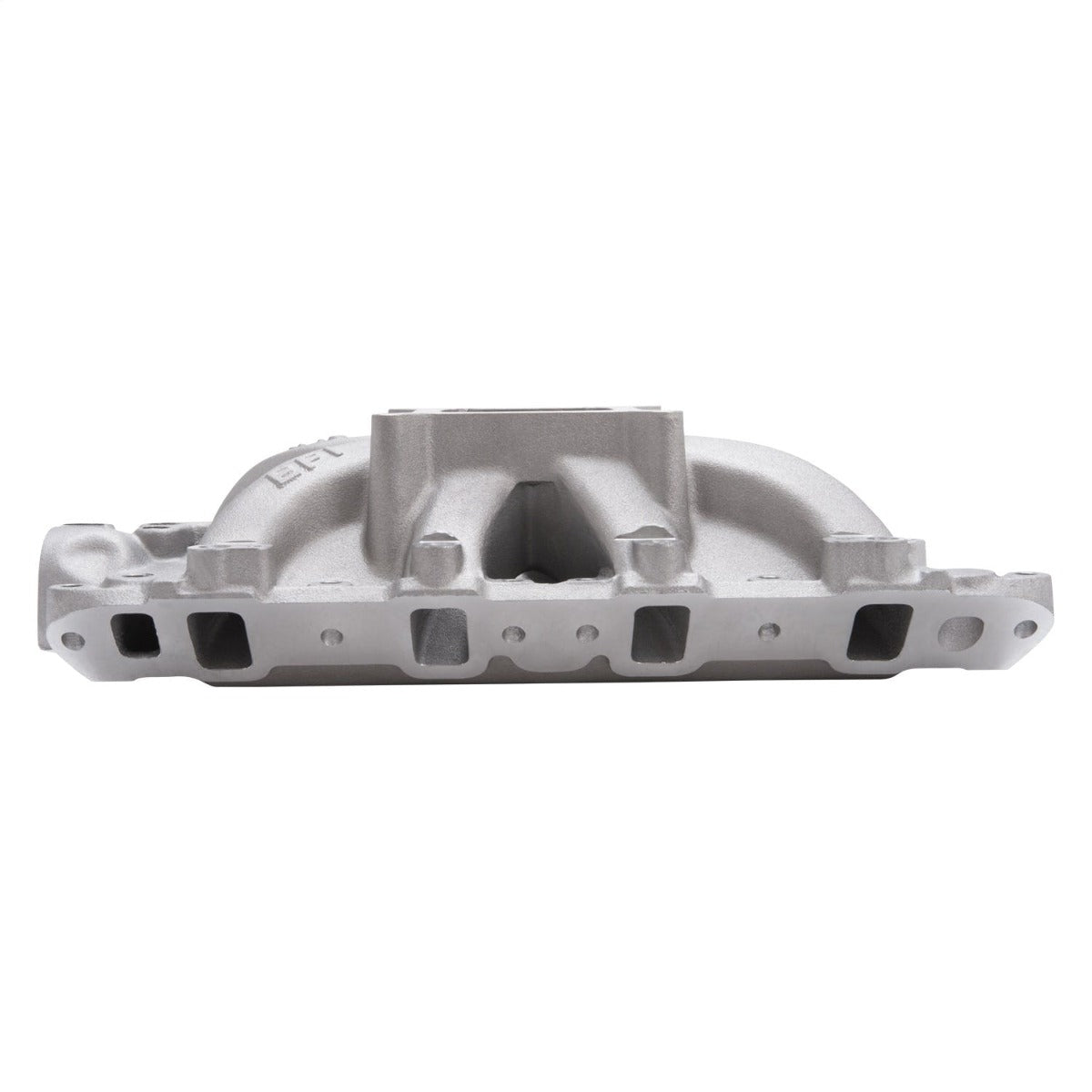

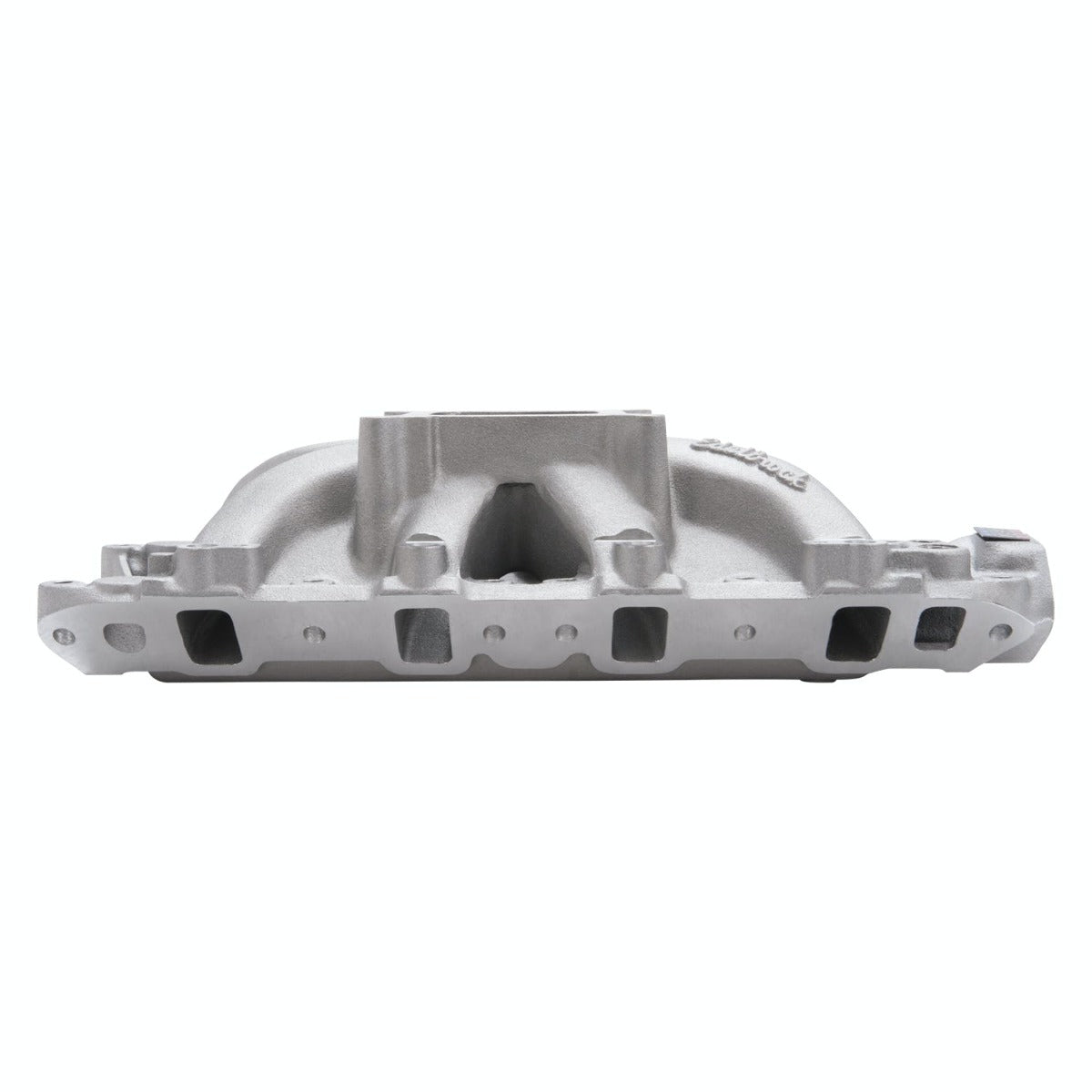

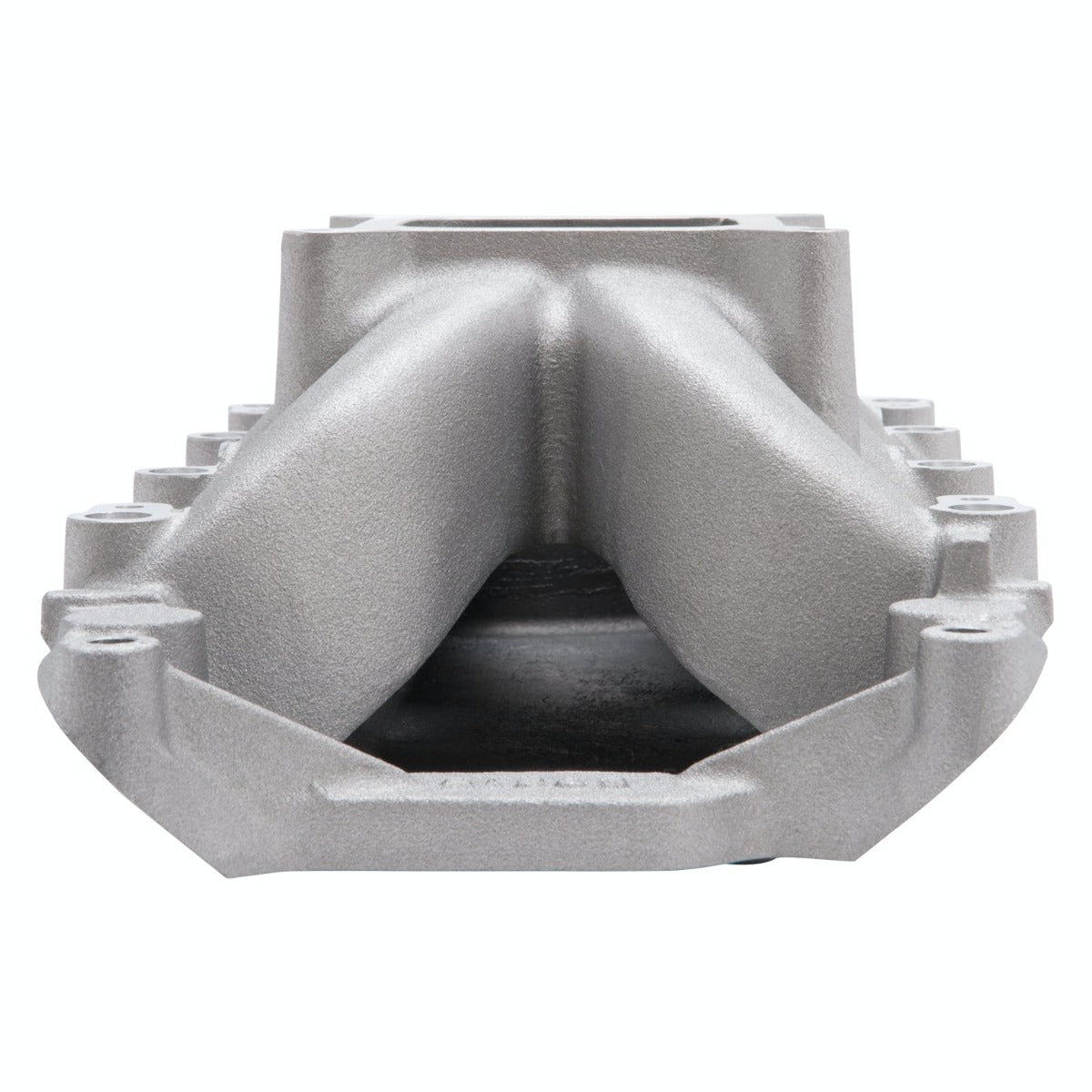

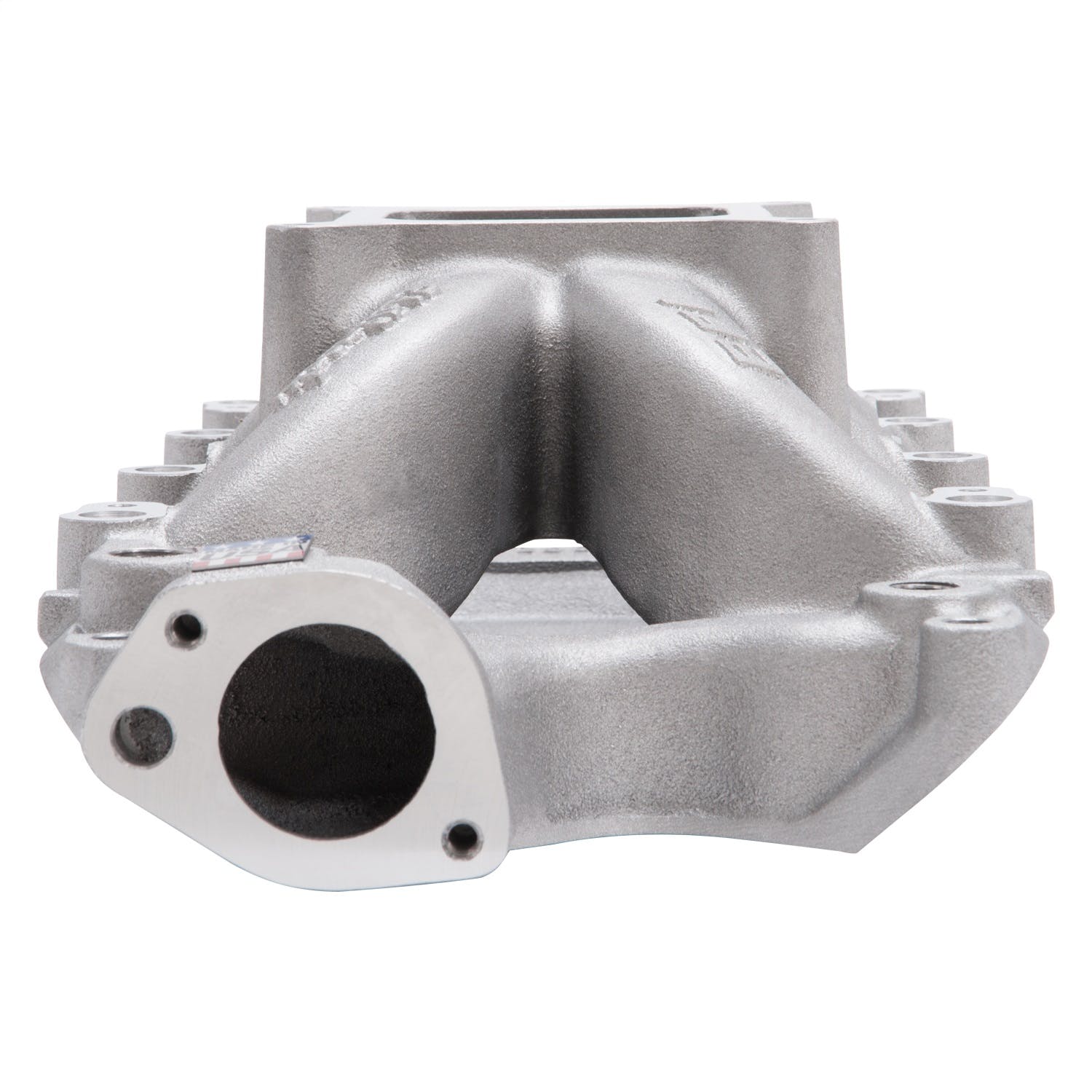

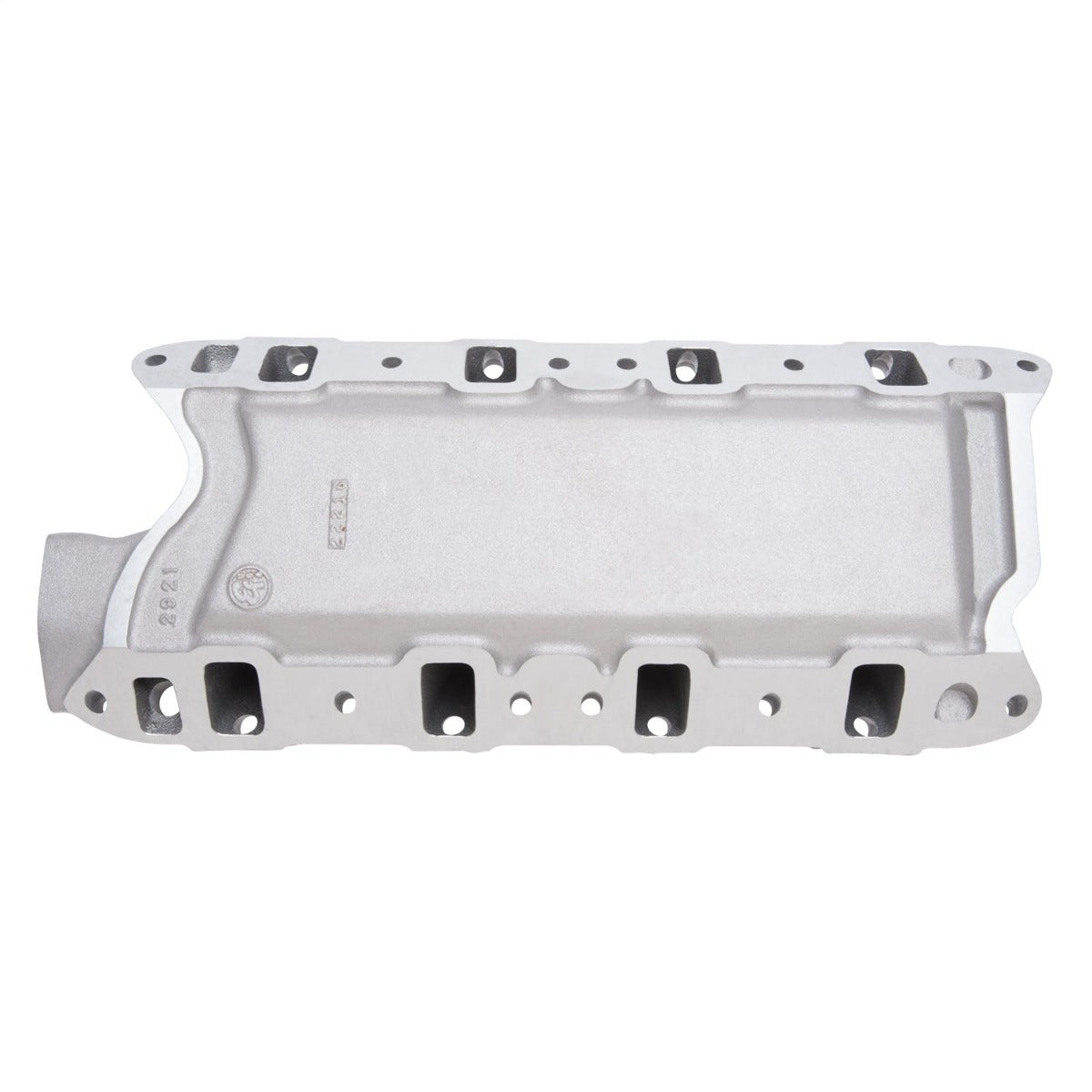

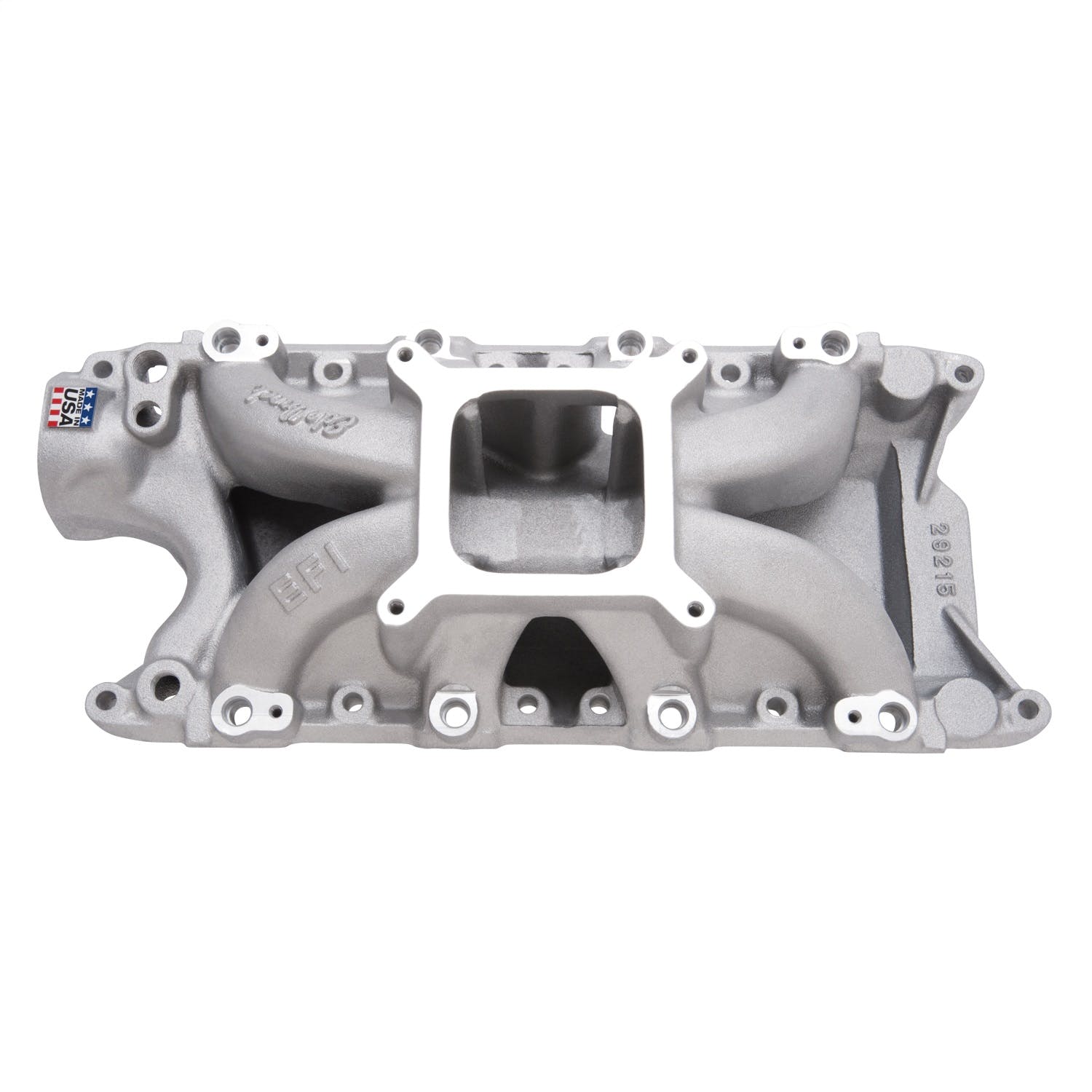

Edelbrock Victor Jr. 302 EFI Intake Manifold for Ford 289-347 Small-Block V8
Edelbrock part #29215 Victor Jr. 302 EFI intake manifold is designed for use with Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. Victor Jr. EFI also features bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. The Edelbrock Victor Jr. #29215 EFI is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
- Race-Winning Design For All Types Of Competition
- Single-Plane Maximizes Torque And Horsepower
- Runners Feature Extra Material for Custom Porting
- For Performance in 3500 to 7500 RPM Range
- For Modified OE or Aftermarket Windsor Alum Heads
- Match with Edelbrock Heads for Max Performance
- Port Exits Can be Opened to 2.10 x 1.18 in.
Application Summary:
| Year |
Make/Model |
| Ford:Small-Block |
Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
Additional Information:
