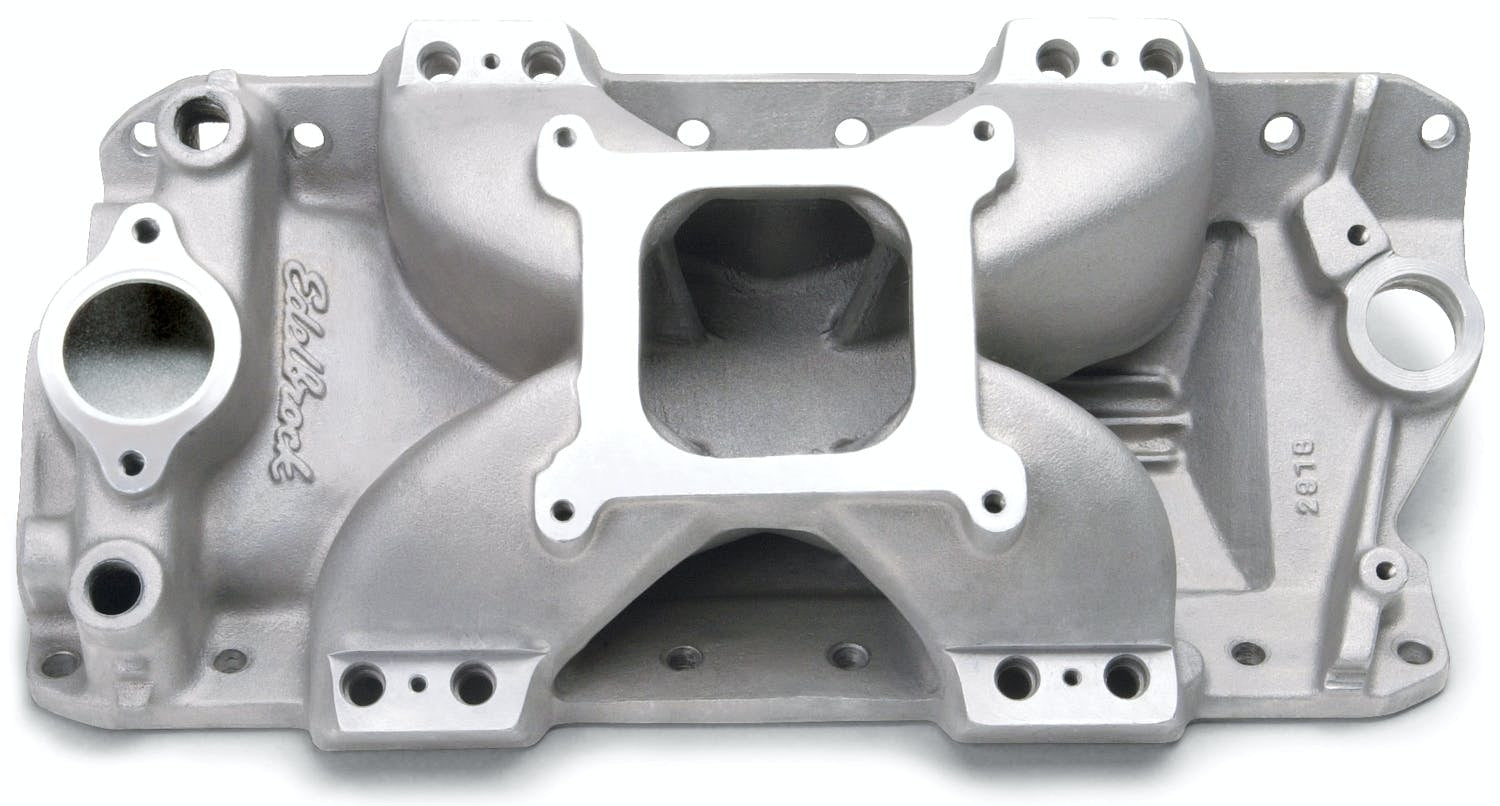

Edelbrock Victor E 23 Degree Intake Manifold For Chevrolet 262-400 Small-Block V8
Edelbrock part #29785 Victor E EFI intake manifold for small-block Chevy has a larger and deeper plenum than the #2975. It provides maximum power in the higher rpm range for engines with standard port location iron and aluminum cylinder heads. Runners have a tapered cross-section, and plenty of material at the manifold port exit allows port matching to the small port heads used in NHRA Super Stock classes. 1" or 2" spacers can be used for performance tuning. The large plenum and runner volume of this intake manifold is also ideal for alcohol-fueled applications. The Edelbrock Victor E EFI is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
- Features EFI Fuel Injector Bosses on Runners
- Can Be Used w/Any Pontiac Heads Except 265-301 cid
- Has deeper and larger plenum than Victor Jr.
- For standard port location iron and aluminum heads
- Extra material allows port matching
- Great choice for NHRA Super Stock Classes
- Also great for alcohol-fueled applications
- Can Use 1 Or 2 in. Spacers To Tune Performance
Application Summary:
| Year |
Make/Model |
| Chevrolet:Small-Block |
Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
