Edelbrock 35813 PRO FLO 4 FUEL INJECTION KIT XT SBC 1986 and EARLIER 625 MAX HP

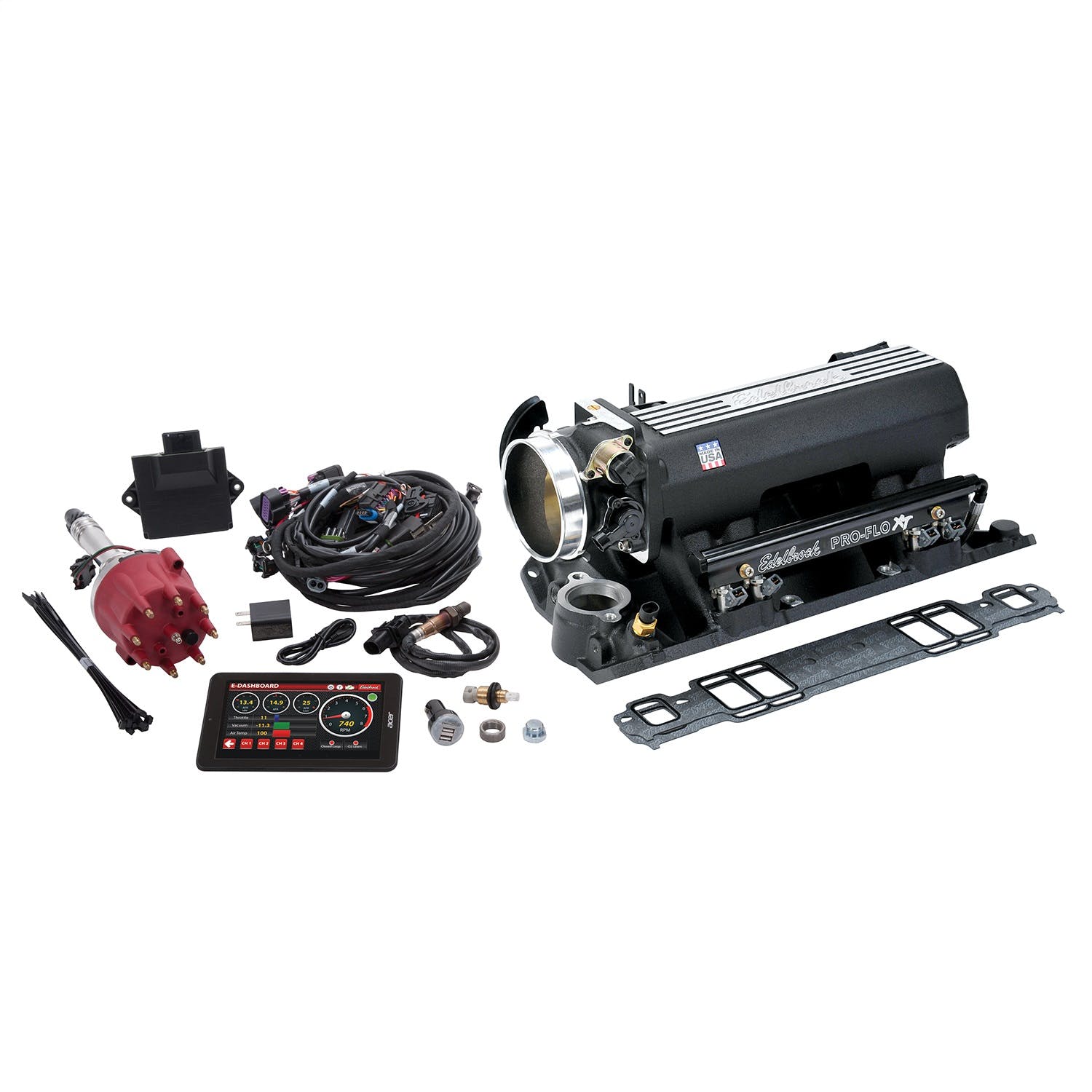

Edelbrock Pro-Flo 4 XT EFI Kit #35813 with Black Finish for 1986-Earlier Small-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a black-finished XT intake manifold.

---

The Edelbrock Pro-Flo 4 XT EFI Kit #35813 for 1986-earlier Small-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a black powder-coated XT intake manifold with large plenum and long tapered runners that comes ready to run with high-flow injectors, fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. This kit is rated at a maximum 625 horsepower with 35 lb/hr injectors and includes all supporting sensors, a wide-band O2 sensor, wire harnesses and Android-based tablet. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI #35813 for the Small-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.

• Pro-Flo 4 Fuel Injection Kit

---

Application Summary:

Year	Make/Model
1959	Chevrolet 3B
1959	Chevrolet 3C
1959	Chevrolet 3D
1959	Chevrolet 3E
1959	Chevrolet 3F
1959	Chevrolet 3G
1957-1975	Chevrolet Bel Air
1958-1972	Chevrolet Biscayne
1969-1974	Chevrolet Blazer
1958-1961	Chevrolet Brookwood
1969-1972	Chevrolet Brookwood
1975-1986	Chevrolet C10
1960-1974	Chevrolet C10 Pickup
1967-1986	Chevrolet C10 Suburban
1982-1985	Chevrolet C15
1975-1986	Chevrolet C20
1960-1974	Chevrolet C20 Pickup
1967-1986	Chevrolet C20 Suburban
1975-1986	Chevrolet C30
1960-1974	Chevrolet C30 Pickup
1983-1986	Chevrolet C35
1960-1962	Chevrolet C40
1967-1981	Chevrolet Camaro
1966-1982	Chevrolet Caprice
1985-1986	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1963-1968	Chevrolet Chevy II
1957-1982	Chevrolet Corvette
1984-1986	Chevrolet Corvette
1957-1958	Chevrolet Del Ray
1959-1960	Chevrolet El Camino
1964-1979	Chevrolet El Camino
1969-1970	Chevrolet Estate
1975-1986	Chevrolet G10
1974	Chevrolet G10 Van
1975-1986	Chevrolet G20
1967	Chevrolet G20 Van
1970-1974	Chevrolet G20 Van
1975-1986	Chevrolet G30
1974	Chevrolet G30 Van
1958-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1960-1974	Chevrolet K10 Pickup
1967-1986	Chevrolet K10 Suburban
1975-1986	Chevrolet K20
1967	Chevrolet K20 Panel
1960-1974	Chevrolet K20 Pickup
1967-1986	Chevrolet K20 Suburban
1977-1986	Chevrolet K30
1968-1974	Chevrolet K30 Pickup
1975-1986	Chevrolet K5 Blazer
1959-1961	Chevrolet Kingswood
1969-1972	Chevrolet Kingswood
1973-1976	Chevrolet Laguna
1964-1967	Chevrolet Malibu
1973-1981	Chevrolet Malibu
1970-1977	Chevrolet Monte Carlo
1981-1984	Chevrolet Monte Carlo
1957-1961	Chevrolet Nomad
1969-1979	Chevrolet Nova
1957	Chevrolet One-Fifty Series
1975	Chevrolet P10
1977-1978	Chevrolet P10
1961-1962	Chevrolet P10 Series
1975-1986	Chevrolet P20
1961-1962	Chevrolet P20 Series
1974	Chevrolet P20 Van
1975-1986	Chevrolet P30
1961-1962	Chevrolet P30 Series
1974	Chevrolet P30 Van
1959-1961	Chevrolet Parkwood

---
