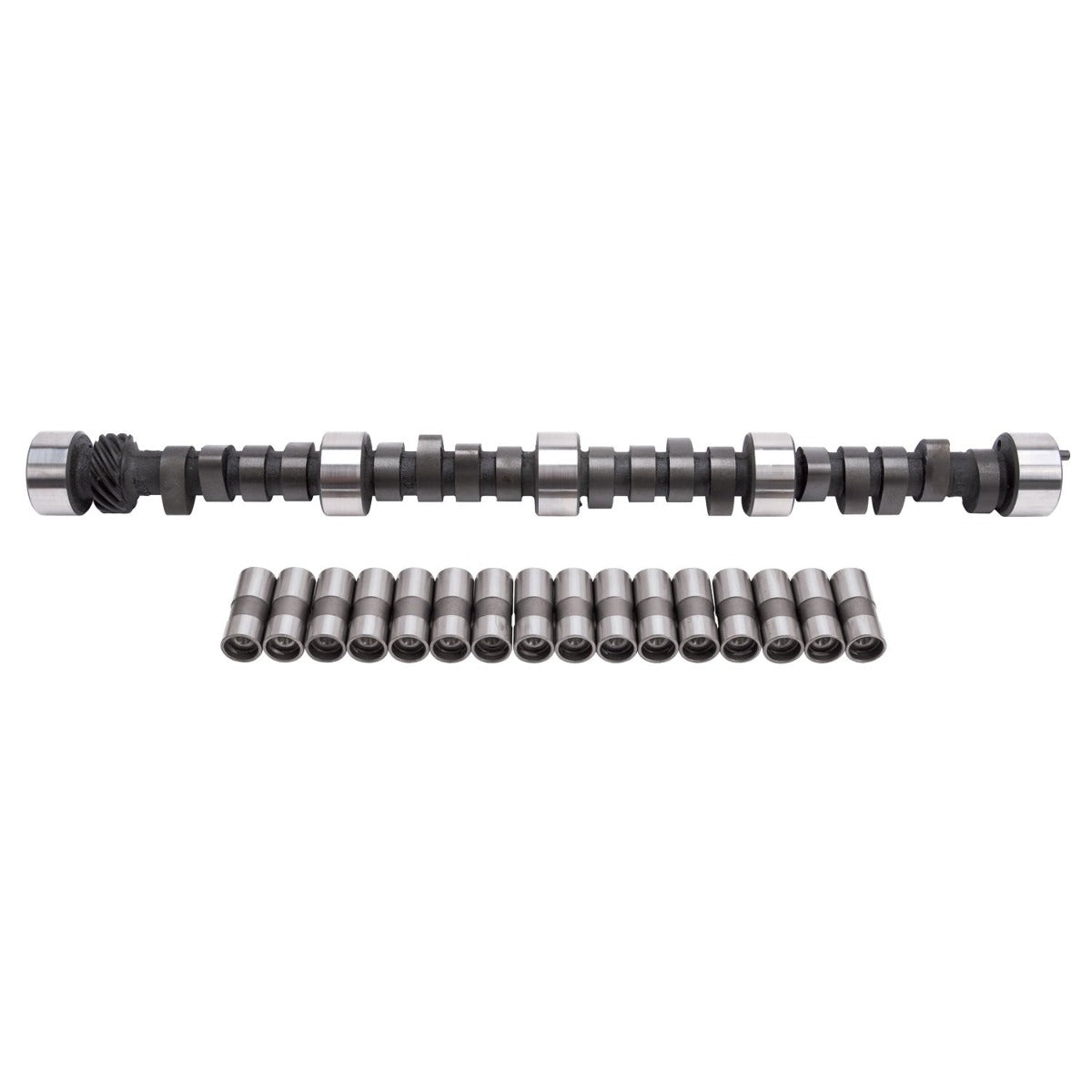

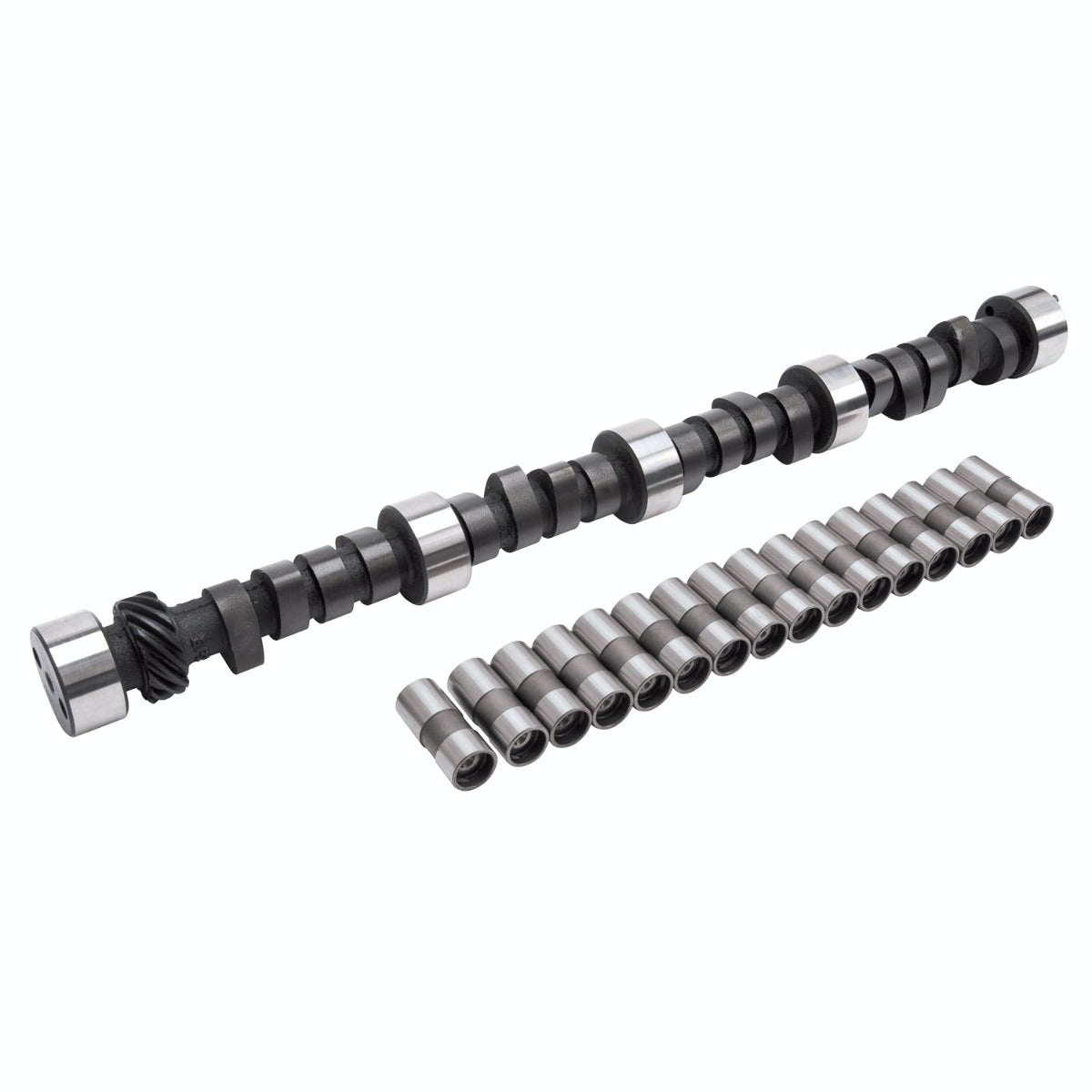

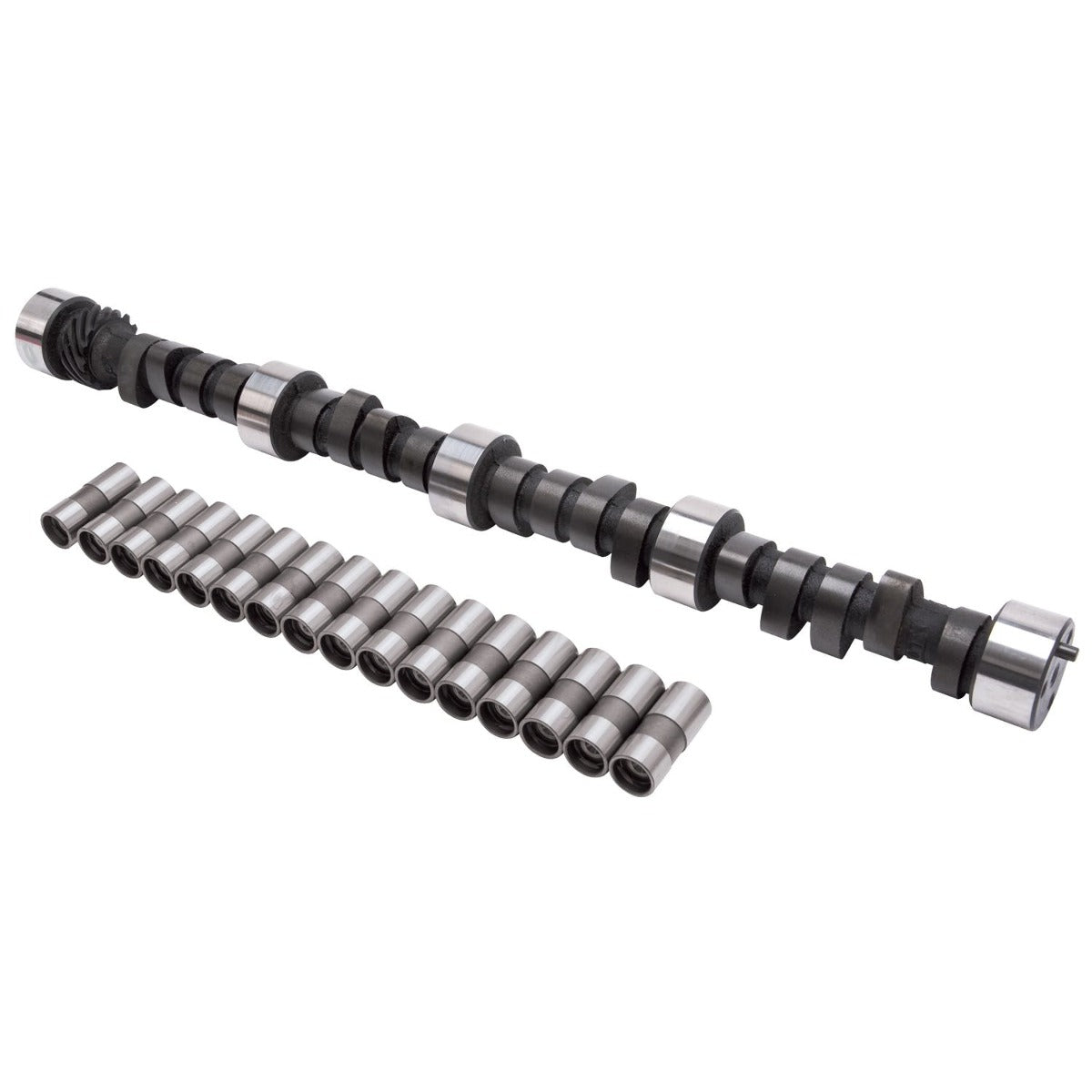

Edelbrock 5062 CAM KIT 5061

Edelbrock part #5062 Torker-Plus Camshaft is designed for big-block Chevy 396-427-454 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm.

---

Edelbrock part #5062 Torker-Plus Camshaft is designed for big-block Chevy 396-427-454 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft. Camshaft Specifications: - Duration @ .050 Intake: 224 degrees - Duration @ .050 Exhaust: 232 degrees - Lift @ Valve Intake: .527" - Lift @ Valve Exhaust: .553" - Lobe Separation: 114 Degrees - Intake Centerline: 109 Degrees

• Designed for 2500 to 6500 RPM Performance
• Designed for Hi-Perf Street
• Drag or Marine Use
• Matched to Edelbrock Torker II Intakes
• Includes Hydraulic Lifters and Assembly Lube
• Dyno-Matched/Street-Proven Performance
• Take the Guesswork Out of Camshaft Selection!

---

Application Summary:

Year	Make/Model
1963	Chevrolet Bel Air
1965-1975	Chevrolet Bel Air
1963	Chevrolet Biscayne
1965-1972	Chevrolet Biscayne
1973-1974	Chevrolet Blazer
1969-1972	Chevrolet Brookwood
1975-1980	Chevrolet C10
1968-1969	Chevrolet C10 Pickup
1973-1974	Chevrolet C10 Pickup
1968-1969	Chevrolet C10 Suburban
1973-1980	Chevrolet C10 Suburban
1990-1993	Chevrolet C1500
1975-1986	Chevrolet C20
1968-1969	Chevrolet C20 Pickup
1973-1974	Chevrolet C20 Pickup
1968-1969	Chevrolet C20 Suburban
1973-1986	Chevrolet C20 Suburban
1991-1995	Chevrolet C2500
1992-1995	Chevrolet C2500 Suburban
1975-1986	Chevrolet C30
1968-1969	Chevrolet C30 Pickup
1973-1974	Chevrolet C30 Pickup
1988-1995	Chevrolet C3500
1967-1969	Chevrolet Camaro
1966-1976	Chevrolet Caprice
1965-1973	Chevrolet Chevelle
1968	Chevrolet Chevy II
1965-1974	Chevrolet Corvette
1966-1975	Chevrolet El Camino
1969-1970	Chevrolet Estate
1973-1974	Chevrolet G10 Van
1976	Chevrolet G20
1973-1974	Chevrolet G20 Van
1975-1976	Chevrolet G30
1988-1996	Chevrolet G30
1973-1974	Chevrolet G30 Van
1963	Chevrolet Impala
1965-1976	Chevrolet Impala
1976	Chevrolet K10
1980	Chevrolet K10
1968-1969	Chevrolet K10 Pickup
1973-1974	Chevrolet K10 Pickup
1968-1969	Chevrolet K10 Suburban
1973-1974	Chevrolet K10 Suburban
1976-1978	Chevrolet K20
1968-1969	Chevrolet K20 Pickup
1973-1974	Chevrolet K20 Pickup
1968-1969	Chevrolet K20 Suburban
1973-1974	Chevrolet K20 Suburban
1985	Chevrolet K20 Suburban
1991-1995	Chevrolet K2500
1992-1995	Chevrolet K2500 Suburban
1977	Chevrolet K30
1980-1986	Chevrolet K30
1968-1969	Chevrolet K30 Pickup
1973-1974	Chevrolet K30 Pickup
1988-1995	Chevrolet K3500
1976-1978	Chevrolet K5 Blazer
1969-1972	Chevrolet Kingswood
1973-1975	Chevrolet Laguna
1965-1967	Chevrolet Malibu
1973-1975	Chevrolet Malibu
1970-1975	Chevrolet Monte Carlo
1969-1971	Chevrolet Nova
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1991	Chevrolet R2500 Suburban
