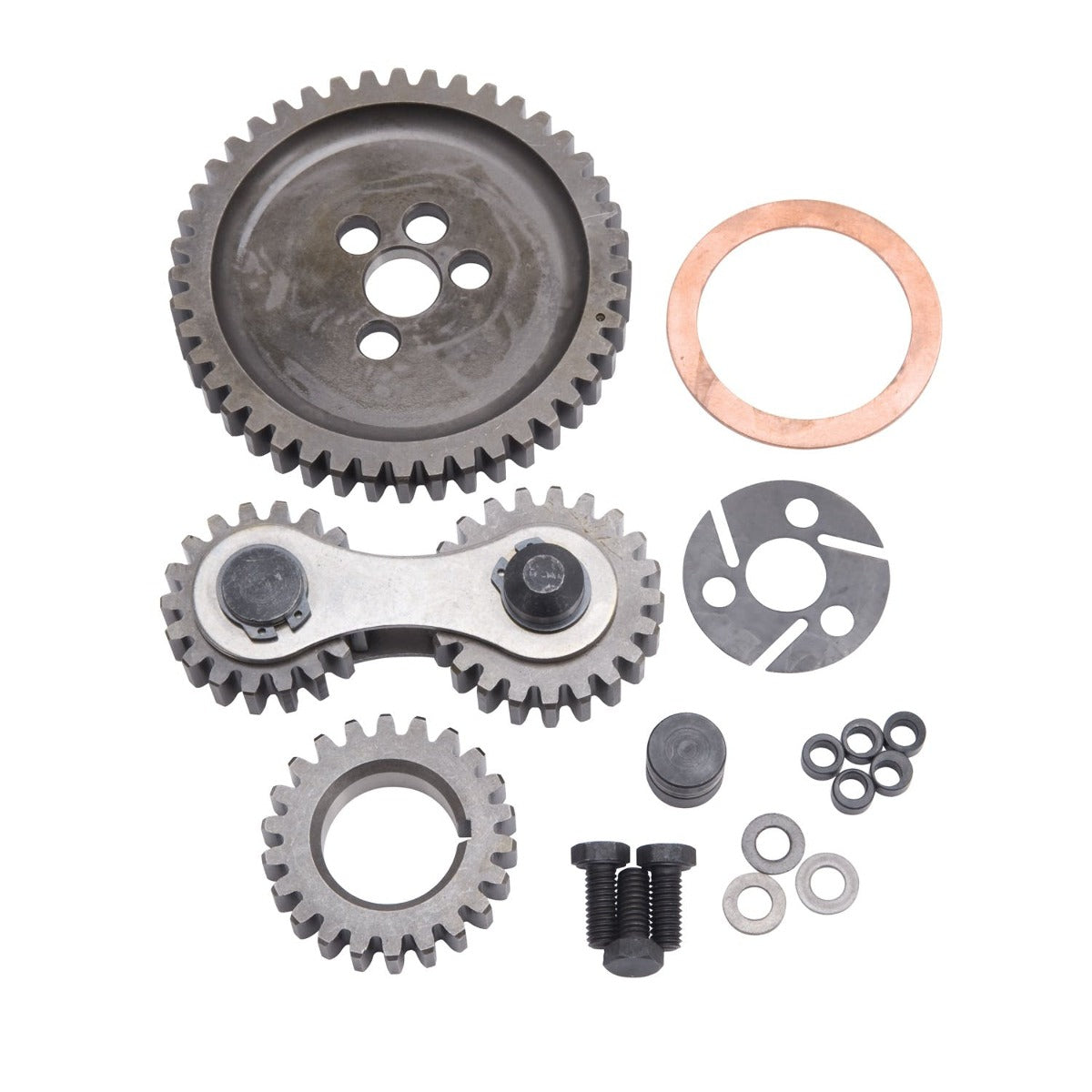

Edelbrock 7890 Accu-Drive Gear Drive Big-Block Chevy

Edelbrock part #7890 Accu-Drive camshaft gear drive kit for small-block Chevy engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train.

---

Edelbrock part #7890 Accu-Drive camshaft gear drive kit for small-block Chevy engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train. The gear drive can be easily installed. Just replace the stock crank and camshaft sprockets with Accu-Drive gears and slip in the idler assembly. Most Accu-Drives require no modifications to the engine block, although some fitting of the axles and front cover may be required. This Accu-Drive camshaft gear drive system for small-block Chevy Engines transmits power from the crankshaft gear to a full floating main idler which drives the camshaft gear. A unique feature of the Edelbrock Accu-Drive system is the ability of the main idler gear to float to an optimum position between the crankshaft and camshaft gears, assuring absolutely equal load sharing between the crankshaft and the camshaft gears. The gears are made from billet SAE-1144 steel with induction hardened teeth. Gear teeth are shaved for precision operation. The set features hardened and ground idler pins from billet steel and are compatible with all standard camshafts. Features Include: - Accurate timing control..No chain to stretch - Provides multiple cam timing adjustments for optimum performance - Smooth cam rotation for precise valve timing

• Precision Gear Drive System
• Accurate Timing Control
• No Chain To Stretch
• Smooth Cam Rotation For Precise Valve Timing
• Accurate and Multiple Cam Timing Settings
• Compatible With All Standard Camshafts

---

Application Summary:

Year	Make/Model
1977-1980	Buick Century
1978	Buick LeSabre
1977-1980	Buick Regal
1977-1979	Buick Skylark
1957-1975	Chevrolet Bel Air
1958-1972	Chevrolet Biscayne
1969-1973	Chevrolet Blazer
1987-1994	Chevrolet Blazer
1970	Chevrolet Brookwood
1972	Chevrolet Brookwood
1975-1986	Chevrolet C10
1961-1973	Chevrolet C10 Pickup
1968-1973	Chevrolet C10 Suburban
1975-1986	Chevrolet C10 Suburban
1988-1995	Chevrolet C1500
1992-1995	Chevrolet C1500 Suburban
1975-1986	Chevrolet C20
1961-1973	Chevrolet C20 Pickup
1968-1973	Chevrolet C20 Suburban
1975-1986	Chevrolet C20 Suburban
1988-1995	Chevrolet C2500
1992-1995	Chevrolet C2500 Suburban
1975-1986	Chevrolet C30
1961-1973	Chevrolet C30 Pickup
1988-1995	Chevrolet C3500
1967-1973	Chevrolet Camaro
1975-1992	Chevrolet Camaro
1966-1995	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1963-1968	Chevrolet Chevy II
1957-1968	Chevrolet Corvette
1975-1982	Chevrolet Corvette
1984-1991	Chevrolet Corvette
1958	Chevrolet Del Ray
1959-1960	Chevrolet El Camino
1964-1987	Chevrolet El Camino
1975-1995	Chevrolet G10
1968-1973	Chevrolet G10 Van
1975-1995	Chevrolet G20
1968-1969	Chevrolet G20 Van
1975-1995	Chevrolet G30
1959-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1961-1970	Chevrolet K10 Pickup
1968-1973	Chevrolet K10 Suburban
1975-1986	Chevrolet K10 Suburban
1988-1995	Chevrolet K1500
1992-1995	Chevrolet K1500 Suburban
1975-1986	Chevrolet K20
1961-1969	Chevrolet K20 Pickup
1968-1973	Chevrolet K20 Suburban
1975-1986	Chevrolet K20 Suburban
1988-1995	Chevrolet K2500
1992-1995	Chevrolet K2500 Suburban
1977-1986	Chevrolet K30
1968-1973	Chevrolet K30 Pickup
1988-1995	Chevrolet K3500
1975-1986	Chevrolet K5 Blazer
1970-1972	Chevrolet Kingswood
1974-1976	Chevrolet Laguna
1964-1967	Chevrolet Malibu
1973-1983	Chevrolet Malibu
1970-1988	Chevrolet Monte Carlo
1975-1979	Chevrolet Monza
1969-1973	Chevrolet Nova
1975-1979	Chevrolet Nova
1957	Chevrolet One-Fifty Series
1987	Chevrolet R10
