Special Order

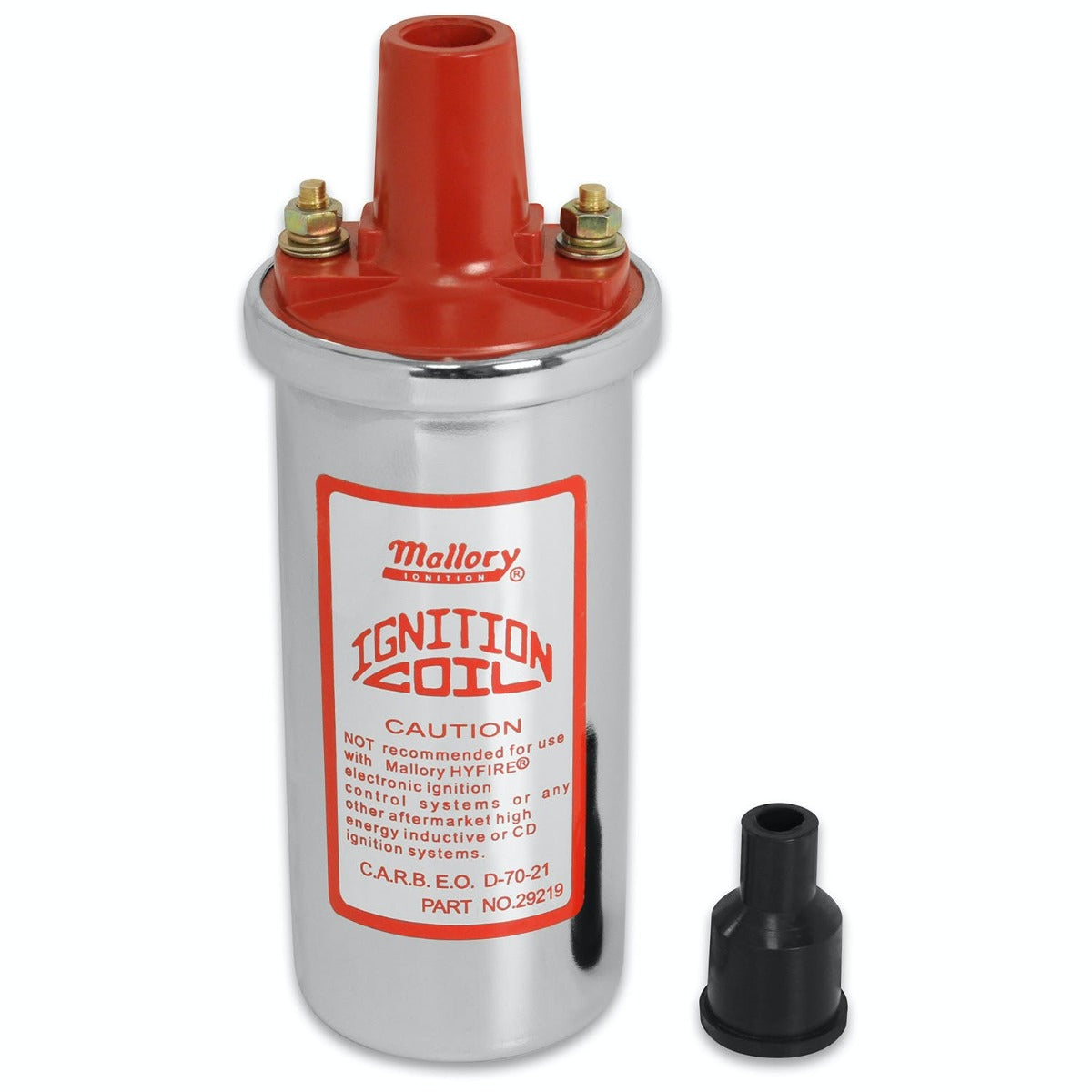

Street Performance Ignition Coil; Canister Style; 12 Volt; For Unilite And MBI Distributors And Conversion Kits; Chrome; Red Top;
If you are looking to upgrade your stock coil, or want to compliment the performance of your Mallory HyFire Ignition, this coil is the right choice. Designed for improved spark output, special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of arcing. When installing this coil, most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application. Mallory Unilite applications require the ballast resistor.
If you are looking to upgrade your stock coil, or want to compliment the performance of your Mallory HyFire Ignition, this coil is the right choice. Designed for improved spark output, special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of arcing. When installing this coil, most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application. Mallory Unilite applications require the ballast resistor.
- Maximum Voltage 58000 Volts
- Fits In Most Stock Brackets
- Alkyd tower w/high dielectric prop. less prone to carbon tracking
- 100:1 turns ratio/lower primary resistance produce high voltage
- Metal Canister Is Filled With A Premium Grade Oil For Cooling
Application Summary:
| Year | Make/Model |
|---|---|
| 1960-1965 | American Motors Ambassador |
| 1967-1974 | American Motors Ambassador |
| 1959-1962 | American Motors American |
| 1967-1968 | American Motors American |
| 1968-1970 | American Motors AMX |
| 1961-1965 | American Motors Classic |
| 1978-1979 | American Motors Concord |
| 1961-1962 | American Motors Custom |
| 1961-1962 | American Motors Deluxe |
| 1970-1974 | American Motors Gremlin |
| 1977-1978 | American Motors Gremlin |
| 1970-1974 | American Motors Hornet |
| 1968-1974 | American Motors Javelin |
| 1965 | American Motors Marlin |
| 1967 | American Motors Marlin |
| 1971-1974 | American Motors Matador |
| 1959-1960 | American Motors Rambler |
| 1969 | American Motors Rambler |
| 1959-1961 | American Motors Rebel |
| 1967-1970 | American Motors Rebel |
| 1979 | American Motors Spirit |
| 1976 | Buick Opel |
| 1965-1974 | Cadillac Calais |
| 1953-1956 | Cadillac DeVille |
| 1958-1974 | Cadillac DeVille |
| 1953-1974 | Cadillac Eldorado |
| 1965-1974 | Cadillac Fleetwood |
| 1954-1964 | Cadillac Series 60 Fleetwood |
| 1953-1964 | Cadillac Series 62 |
| 1958 | Cadillac Series 70 Fleetwood Eldorado |
| 1953-1964 | Cadillac Series 75 Fleetwood |
| 1969 | Checker Deluxe |
| 1965-1974 | Checker Marathon |
| 1955-1974 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1961-1974 | Chevrolet C10 Pickup |
| 1968-1974 | Chevrolet C10 Suburban |
| 1961-1974 | Chevrolet C20 Pickup |
| 1968-1974 | Chevrolet C20 Suburban |
| 1961-1974 | Chevrolet C30 Pickup |
| 1967-1974 | Chevrolet Camaro |
| 1966-1974 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1962-1968 | Chevrolet Chevy II |
| 1960 | Chevrolet Corvair |
| 1955-1956 | Chevrolet Corvette |
| 1958-1974 | Chevrolet Corvette |
| 1958 | Chevrolet Del Ray |
| 1964-1975 | Chevrolet El Camino |
| 1964-1974 | Chevrolet G10 Van |
| 1967-1974 | Chevrolet G20 Van |
| 1970-1974 | Chevrolet G30 Van |
| 1959-1974 | Chevrolet Impala |
| 1961-1974 | Chevrolet K10 Pickup |
| 1968-1974 | Chevrolet K10 Suburban |
| 1961-1974 | Chevrolet K20 Pickup |
| 1968-1974 | Chevrolet K20 Suburban |
| 1968-1974 | Chevrolet K30 Pickup |
| 1969-1972 | Chevrolet Kingswood |
| 1973-1975 | Chevrolet Laguna |
| 1975-1978 | Chevrolet LUV |
| 1982 | Chevrolet LUV |
