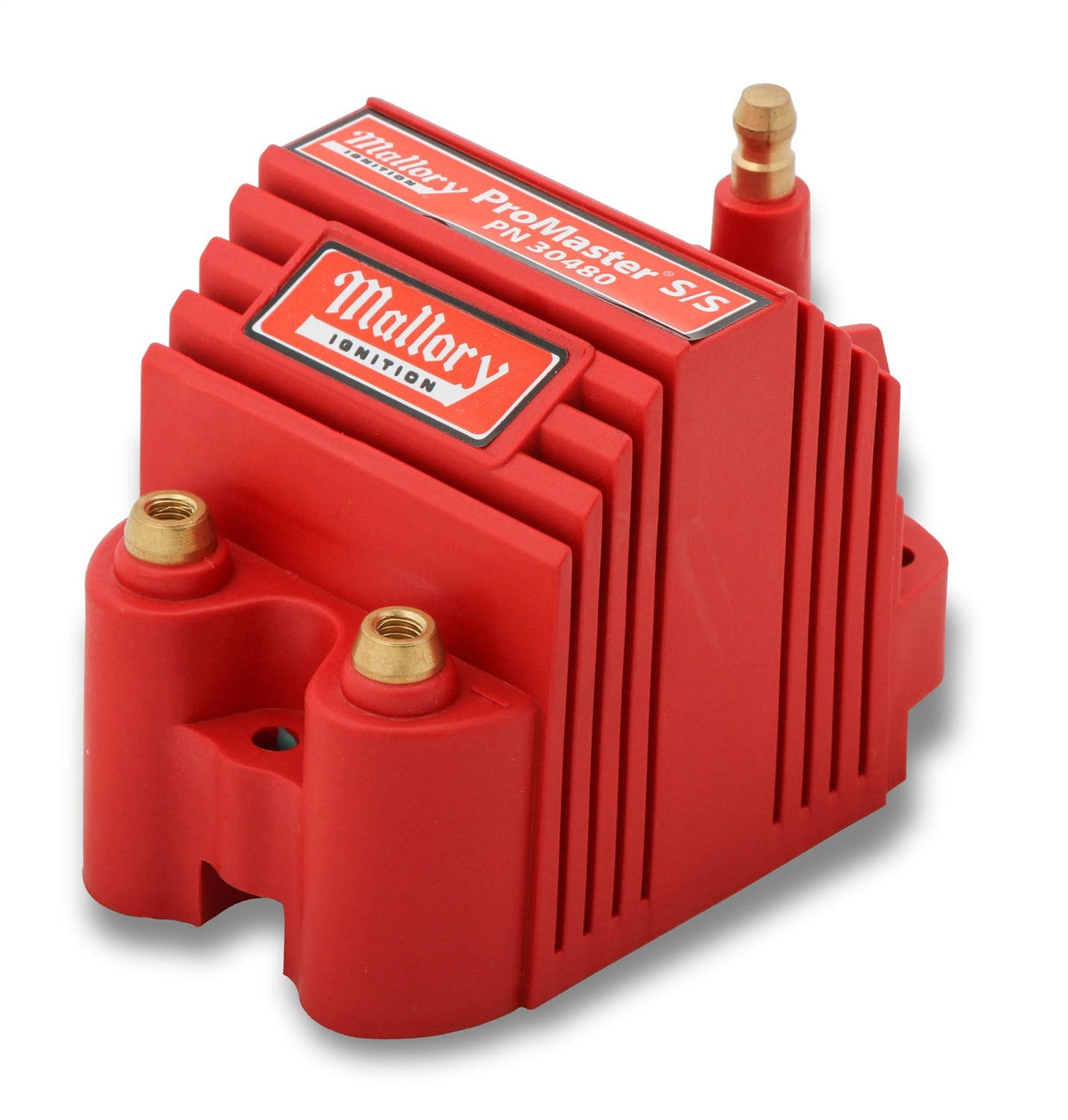

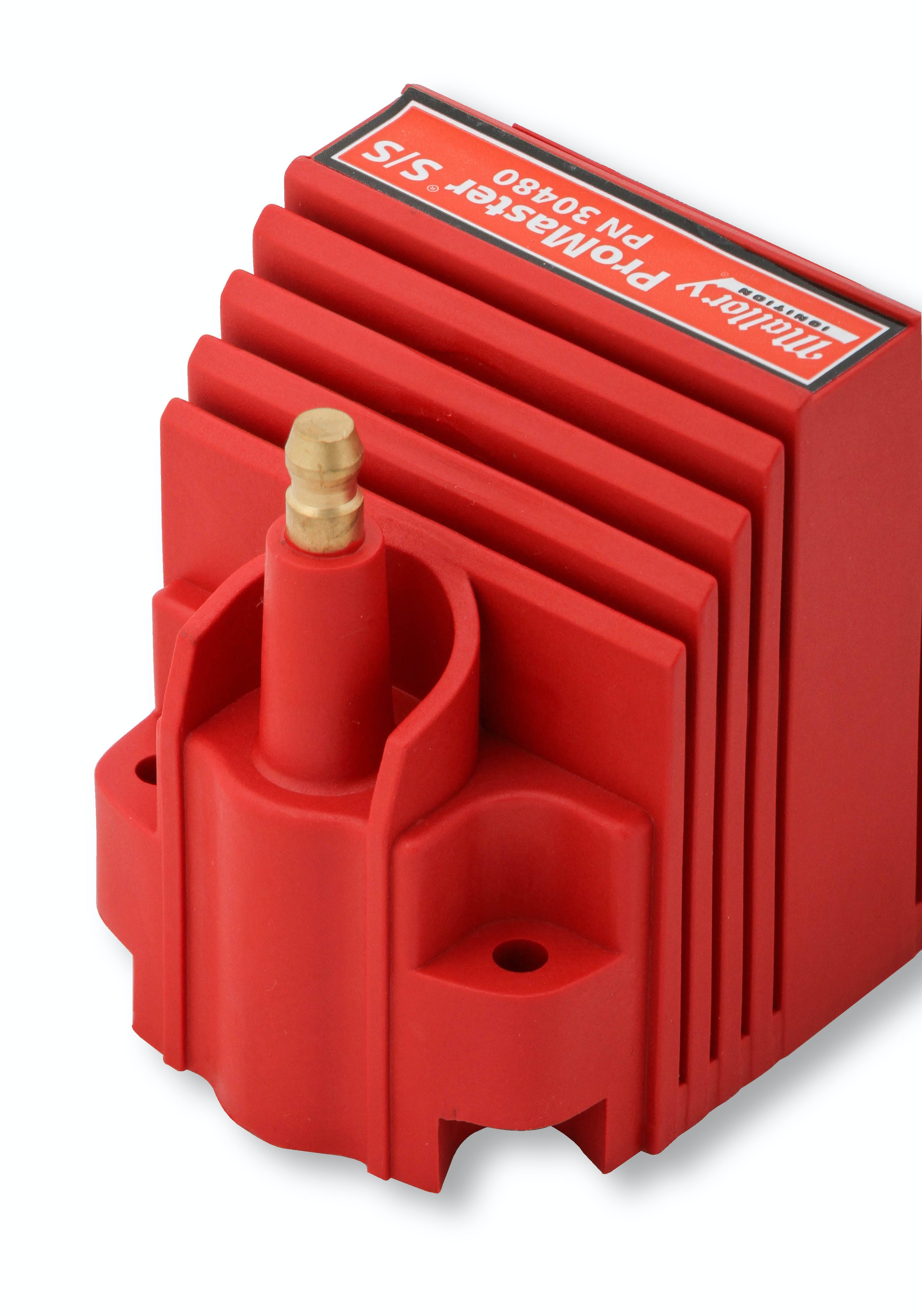

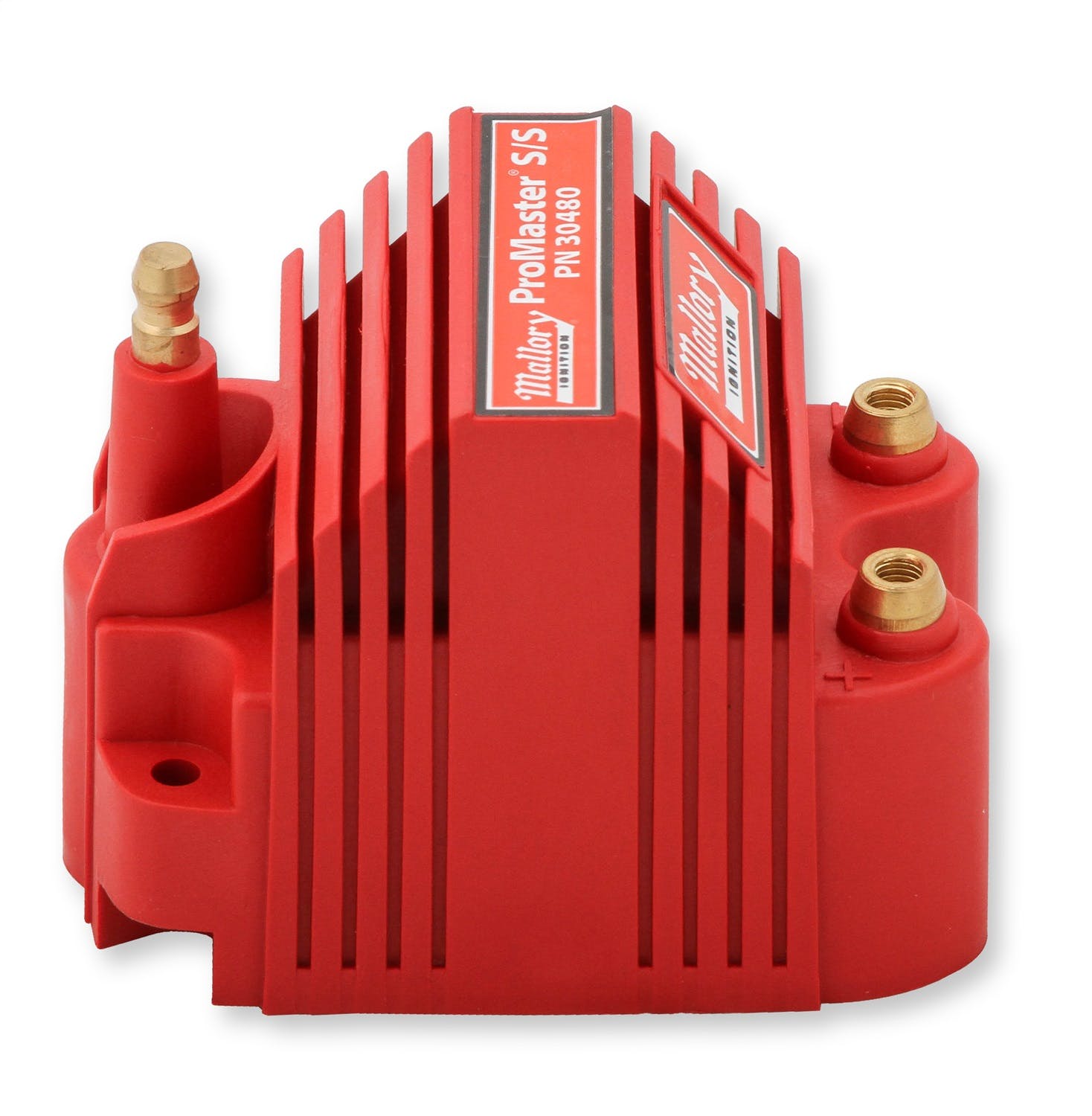

Promaster S/S Ignition Coil; Fits w/HyFire/HyFire Pro CD Ignitions; Brass Terminals; Incl. 90 Degree Spark Plug Boot/Terminal/Vibration Mounts; Max Voltage 40000;

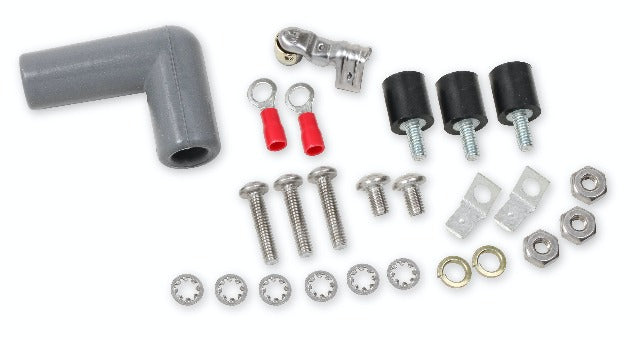

Don't let the compact size of the ProMaster S/S Coil fool you. The efficient E-core windings are designed to produce high amounts of current without sacrificing voltage output. In fact, when used with a Mallory HyFire Ignition, the ProMaster S/S produces 300 milliamps of current and a maximum voltage output of 40,000 volts! The ProMaster S/S features brass terminals and a sturdy housing for long life, durability and maximum performance. It is supplied with a 90° spark plug boot, terminal and vibration mounts. It's a great addition to CD Ignitions and some stock applications.
- Efficient Winding Design And Assembly Creates A Compact Housing
- Primary And Secondary Windings Are Encased In Polyurethane
- Tough/Rigid Housing w/A Tall Tower/Brass Primary Terminal
- 70:1 Turns Ratio/Lower Primary Resistance Produce High Voltage
- Increased Output Efficiency
Application Summary:
| Year |
Make/Model |
| Mallory |
ProMaster S/S (Note uses Same applications as MSD 8207) |
