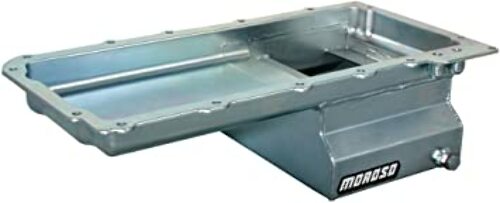

One of the biggest weapons in oil-control technology is the trap-door baffle within an oil pan. Unlike static baffles, trap-door baffles open and close to allow almost unrestricted one-way fluid flow, while effectively limiting flow in the opposite direction. The baffle assemblies are arranged in a way that allows oil to move from non-pickup areas to the sump pickup area, through the use of baffle doors that have wire hinges that open approximately 1/3 of the way (so the door can close quickly without allowing too much oil to pass through).
- Wet Sump
- Use stock dipstick
- Steel
- 7 qt. Capacity
- 6 deep
- Trap Door Baffle
- GM LS Series
- For '68-'72 Nova/'65-'72 Chevelle/'67-'69 Camaro
- Clears 4.25 stroke with most steel rods
- (2) -10AN fitting for remote filter
