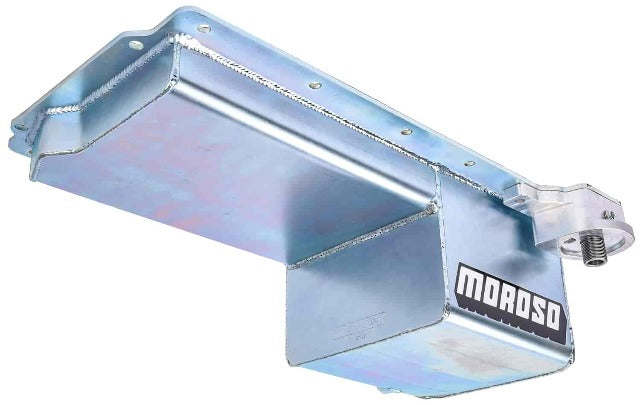

CHEVROLET GM LS SERIES, REAR SUMP SWAPWet Sump, 5 Quart Capacity, 6” Deep, 8.5” Wide, 8.375” LongEngine Application: GM LS Series Fits: LS Engine Conversions that require a Rear Sump (Check Measurements); Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish; Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction ; Clears 4.25” stroke with most steel rods ; Front of the oil pan is 1.813 ” deep to the beginning of the 6” Deep, 8.5” Wide, and 8.375” Long sump ; Removable anti-slosh baffle ; Features a billet aluminum adapter that allows a 13/16” thread Moroso or OEM oil filter to be mounted in the stock location, no need to run a remote oil filter; Accepts MOROSO PART No. 22941 Windage Tray; Designed to be used with MOROSO PART No. 24050 Oil Pump Pick up; Magnetic drain plug and uses a stock dipstick PN: DESCRIPTION20145 GM LS, Rear Sump, Swap, Fully Fabricated, Steel, Oil PanPN: RECOMMENDED PICKUP24050 Stock Oil Pumps or Moroso LS Series High Volume Race Pump No. 22120 AVAILABLE OPTIONSPN: DESCRIPTION22941 Windage Tray38541 Oil Pan Mounting Stud Kit71162 Dust Shield, GM LS93152 Oil Pan Gasket, GM LS
- Wet Rear Sump
- Fabricated Steel
- Anti-climb Baffle
- 5qt
- 1.813/6 Deep front/rear
- 8.5W x 8.375L
- For GM LS Series & Conversions that need Rear Sump
- Moroso (PN: 22463)/OEM oil filter can mount in stock location
- Use OEM dipstick
