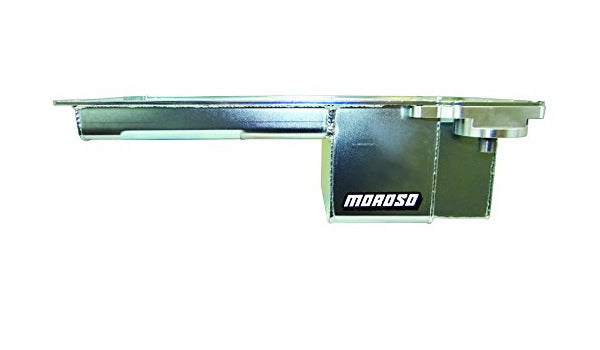

GM LS SERIES, REAR SUMP SWAPWet Sump, 5 Quart Capacity, 6” Deep, 8.295” Wide, 8.375” LongEngine Application: GM LS Series Fits: LS Engine Conversions that require a narrower Rear Sump (Check Measurements) for “Block Hugger” headers ; Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish; Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction ; Clears 4.25” stroke with most steel rods ; Front of the oil pan is 1.813 ” deep to the beginning of the 6” Deep, 8.295” Wide, and 8.375” Long sump ; Anti-climb baffle; Features a detachable, billet aluminum adapter that allows a 13/16” thread Moroso No. 22462 or OEM oil filter to be mounted in the stock location, no need to run a remote oil filter; Accepts Moroso No. 22941 Windage Tray ; Designed to be used with Moroso No. 24050 Oil Pump Pickup ; Magnetic drain plug and uses a stock dipstick
- Wet Sump
- Fabricated Steel
- Anti-Climb Baffle
- 5qt
- 1-7/8 deep front to 6 Deep, 8-5/16 x W 8-3/8L rear
- For GM LS Series & Conversions that require a narrower Rear Sump for Block Hugger headers
- Magnetic drain plug
- Use stock dipstick
