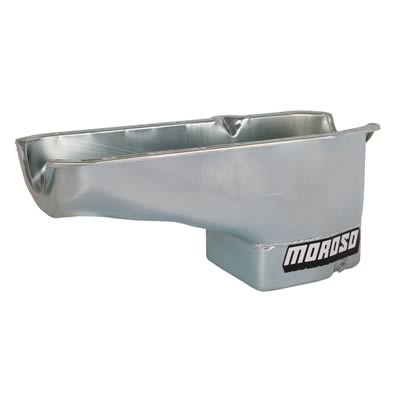

One of the biggest weapons in oil-control technology is the trap-door baffle within an oil pan. Unlike static baffles, trap-door baffles open and close to allow almost unrestricted one-way fluid flow, while effectively limiting flow in the opposite direction. The baffle assemblies are arranged in a way that allows oil to move from non-pickup areas to the sump pickup area, through the use of baffle doors that have wire hinges that open approximately 1/3 of the way (so the door can close quickly without allowing too much oil to pass through). The simplest of all the Moroso baffle designs is the Street/Strip and Drag Racing oil pan that only needs to control oil in two directions, forward and backward (under acceleration and deceleration). All of these oil pans incorporate a horizontal baffle that allows oil to move toward the pickup while accelerating, and prevents oil from leaving the pickup area while decelerating.
- Wet Sump
- Lowers oil temp
- Steel
- Trap Door Baffle
- 7qt.
- 9.5 deep
- SBC/'80-85 Blocks with Passenger-side Dipstick
- Most chassis (except '62-'67 Chevy II/V8 Vega/Monza)
- Clears 4.125 stroke w/ steel rods
- 4 bolt Dart/GM/Merlin main caps
