One of the biggest weapons in oil-control technology is the trap-door baffle within an oil pan. Unlike static baffles, trap-door baffles open and close to allow almost unrestricted one-way fluid flow, while effectively limiting flow in the opposite direction. The baffle assemblies are arranged in a way that allows oil to move from non-pickup areas to the sump pickup area, through the use of baffle doors that have wire hinges that open approximately 1/3 of the way (so the door can close quickly without allowing too much oil to pass through). Road race baffling is designed in consideration of lateral forces as well (for left & right turns). The Diamond baffle is a trap-door system that has a square arrangment of trap door baffles, rotated 45-degrees. Each side has its own door that opens inward (towards the pickup) so the pickup is always fed.

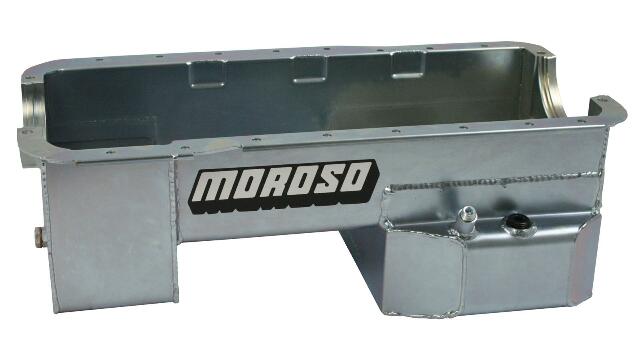

- Wet Rear Sump
- Steel
- 4 Trap Door Anti-Slosh Baffle
- 7qt
- 7.5 Deep
- For 302: 05-up Mustang SCCA, NASA racecars/'79-up Mustang/'81-88 Thunderbird, Cougar/'79-86 Capri/Ford rear sump applications
- Clears 4-bolt main caps like 4-bolt rear
