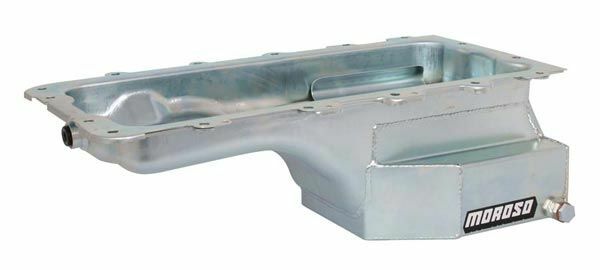

One of the biggest weapons in oil-control technology is the trap-door baffle within an oil pan. Unlike static baffles, trap-door baffles open and close to allow almost unrestricted one-way fluid flow, while effectively limiting flow in the opposite direction. The baffle assemblies are arranged in a way that allows oil to move from non-pickup areas to the sump pickup area, through the use of baffle doors that have wire hinges that open approximately 1/3 of the way (so the door can close quickly without allowing too much oil to pass through).
- Wet Rear Sump
- (2) .5 NPT fittings
- Steel
- Anti-Slosh 4-Trap Door Baffle
- 8qt
- 6.5 Deep
- For 4.6/5.4 Liter & '79-Up, including '05-Up Mustang
- For factory 2v/3v/4v oil pump pickup
- Uses factory dipstick
- Magnetic drain plug
