One of the biggest weapons in oil-control technology is the trap-door baffle within an oil pan. Unlike static baffles, trap-door baffles open and close to allow almost unrestricted one-way fluid flow, while effectively limiting flow in the opposite direction. The baffle assemblies are arranged in a way that allows oil to move from non-pickup areas to the sump pickup area, through the use of baffle doors that have wire hinges that open approximately 1/3 of the way (so the door can close quickly without allowing too much oil to pass through).

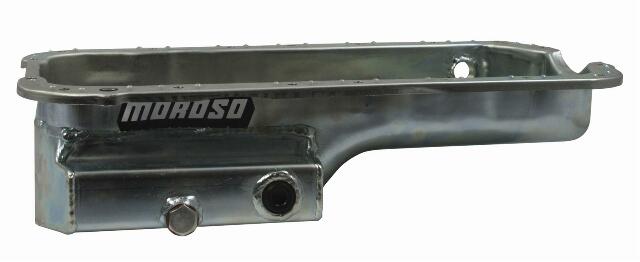

- Wet Sump
- Fabricated Steel
- Anti-Slosh Trap Door Baffle
- For Honda H-Series 2.2L/2.3L (NOT 4ws)
- Use OEM windage tray, main girdle, pump, & pickup
- (2) .5 NPT fitting for supercharger/turbo drain & oil temp sender
- Magnetic drain plug
Additional Information:
