LSx Plenum Kit; w/o Air Filter; For LS Engine; w/ Y-Tube;

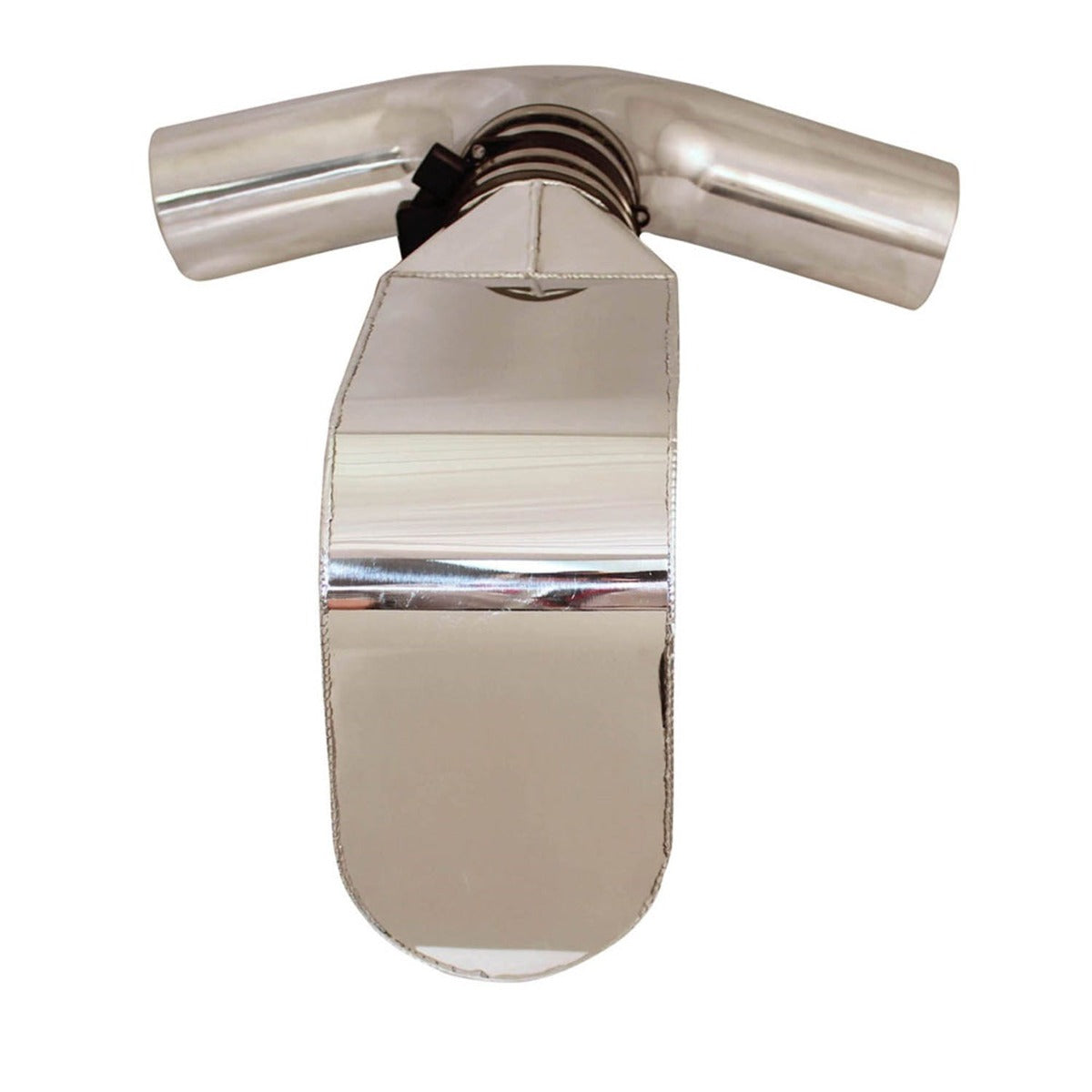

Spectre's universal LSx plenum kits are designed for LS engine swaps where space in the front of the engine compartment is limited. Fabricated from high quality polished aluminum sheet metal, these "over the top design" intake systems mount to the plenum and go over the top of the intake manifold placing the air filters at the back of the engine compartment. These kits require 4.25 inches minimum clearance between the throttle body and the fan or radiator in front of the engine and 7.25 inches minimum from centerline of the throttle body to the underside of the hood. 6mm threaded support holes are included on the bottom of the plenum. The polished aluminum intake tube has a 150 degree Y with a 6 inch legs. The air filters are not included in this kit allowing you to add any clamp-on air filters that will fit onto a 4 inch outside diameter air intake tube. 5 worm gear clamps and 3 couplers are also included to complete installation.
