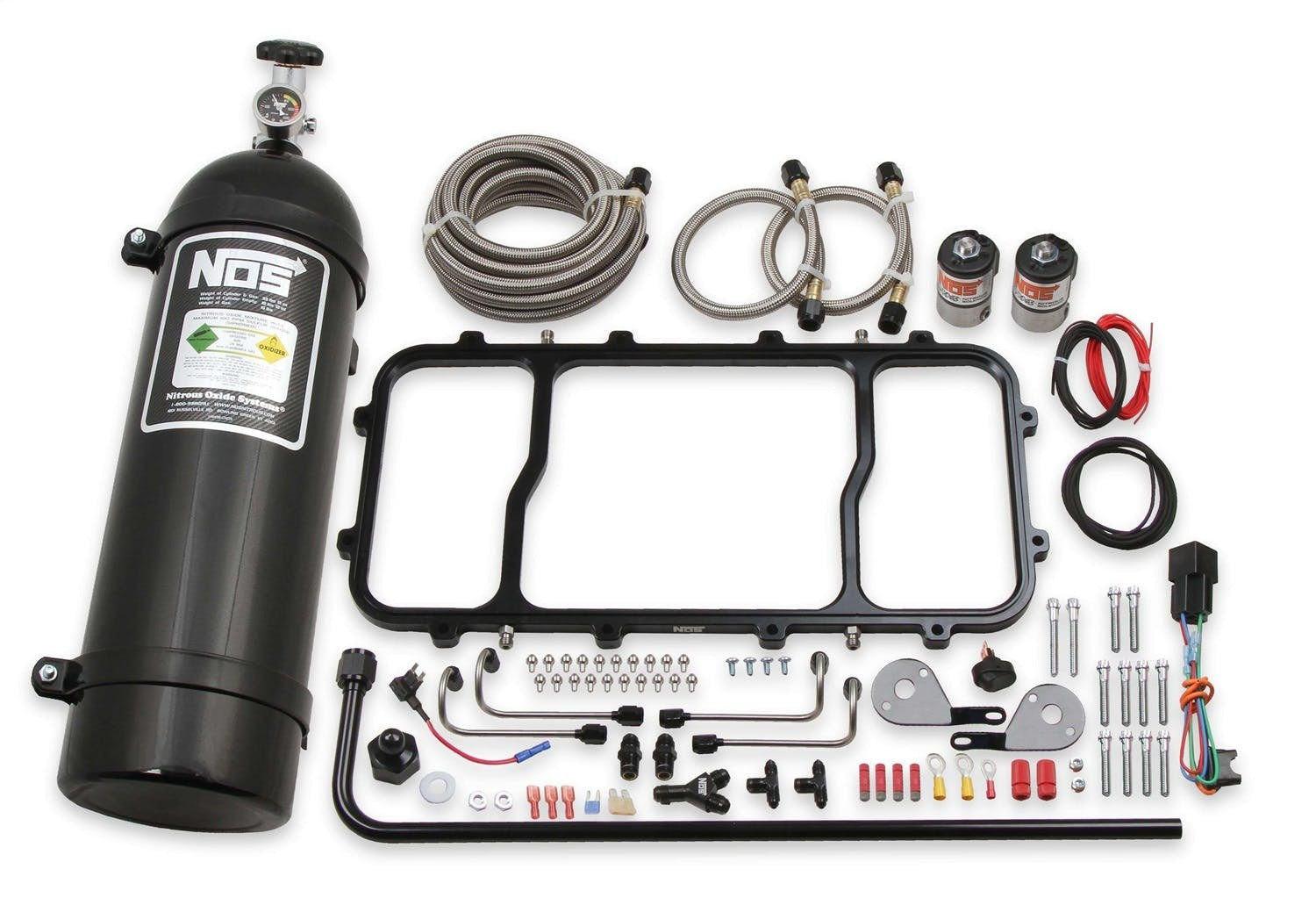

Dry Nitrous Plate System; For Holley LS Hi-Ram Intake Man.; 1000+ HP Max; Incl. Plate/Gasket/Jet Holders/Solenoids/Brackets/Hose/Fittings/Jets/15 lb. Black Bottle; Black Finish;

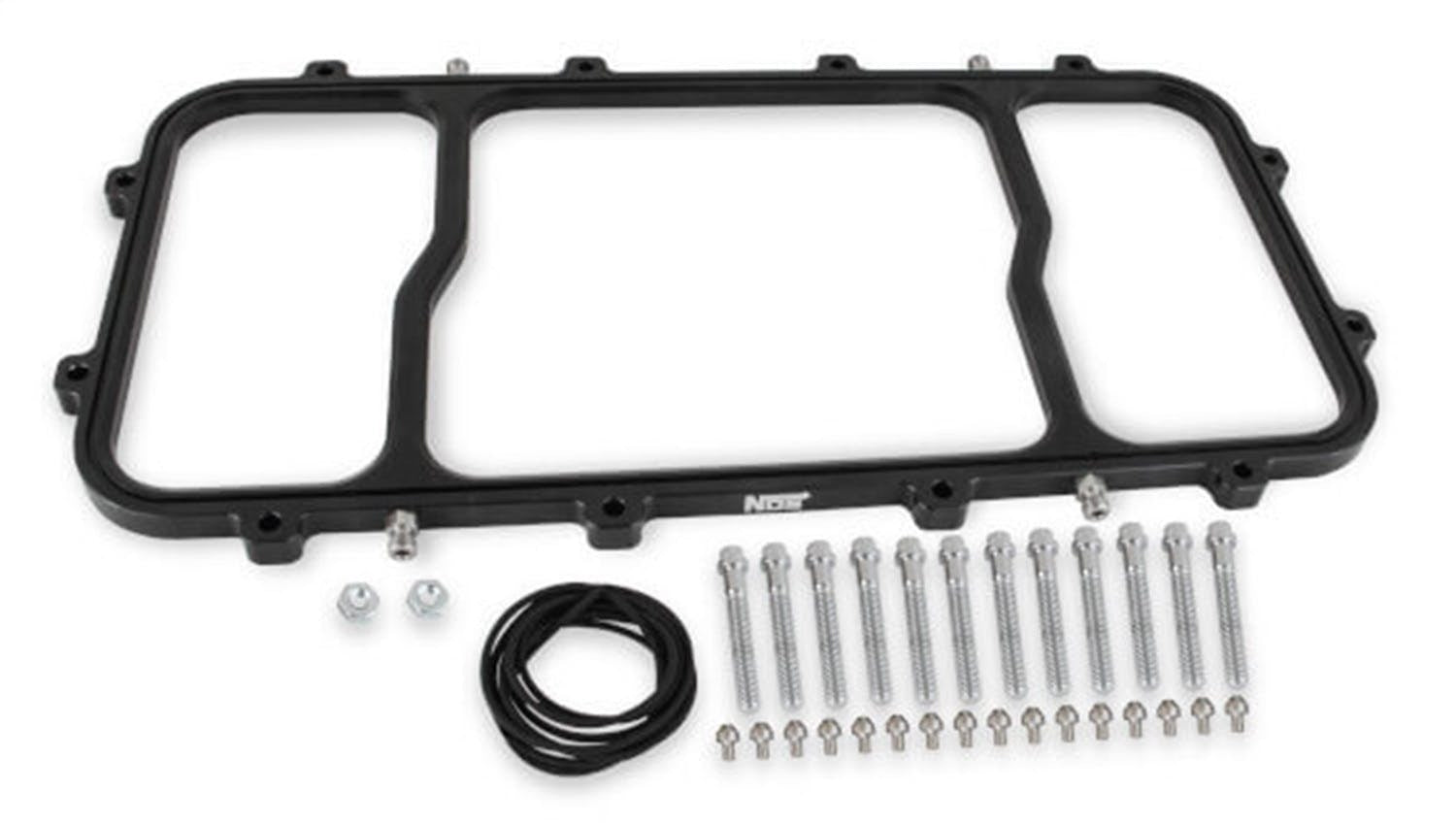

NOS sandwich-style plate systems are designed to bolt between the upper and lower intake sections on Holley Hi-Ram LS manifolds. Our dry nitrous systems give you everything you need including 2 NOS Pro-Race nitrous solenoids, brackets, hoses, jetting, and hardware, along with your choice of nitrous bottle. At the center of this system is our machined billet 6061-T6 aluminum plate laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.
NOS sandwich-style plate systems are designed to bolt between the upper and lower intake sections on Holley Hi-Ram LS manifolds. Our dry nitrous systems give you everything you need including 2 NOS Pro-Race nitrous solenoids, brackets, hoses, jetting, and hardware, along with your choice of nitrous bottle. At the center of this system is our machined billet 6061-T6 aluminum plate laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.
- Designed Specifically For LS-Based Engines
- Supports Up To 1000+ Hp [Jets Sold Separately]

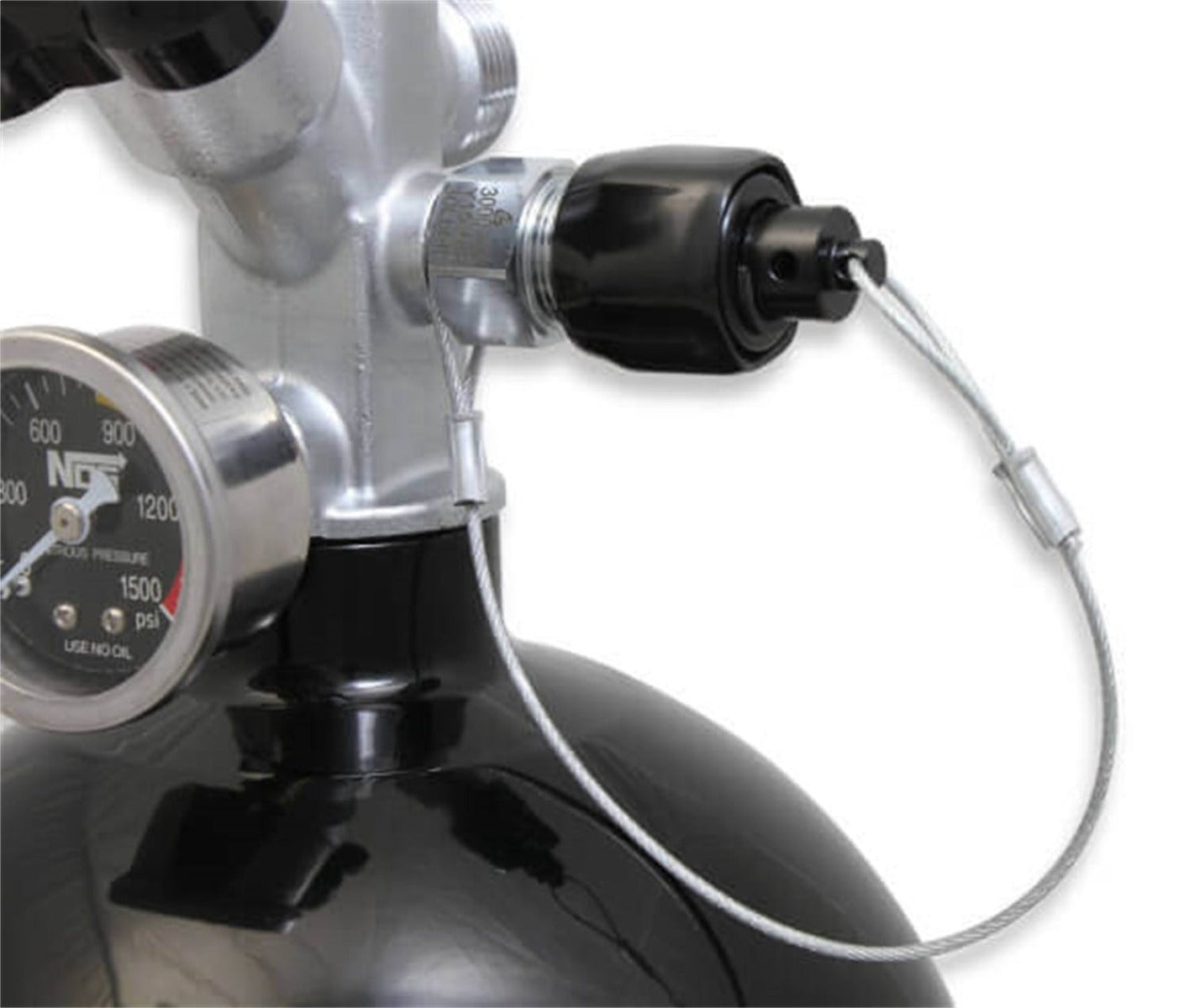

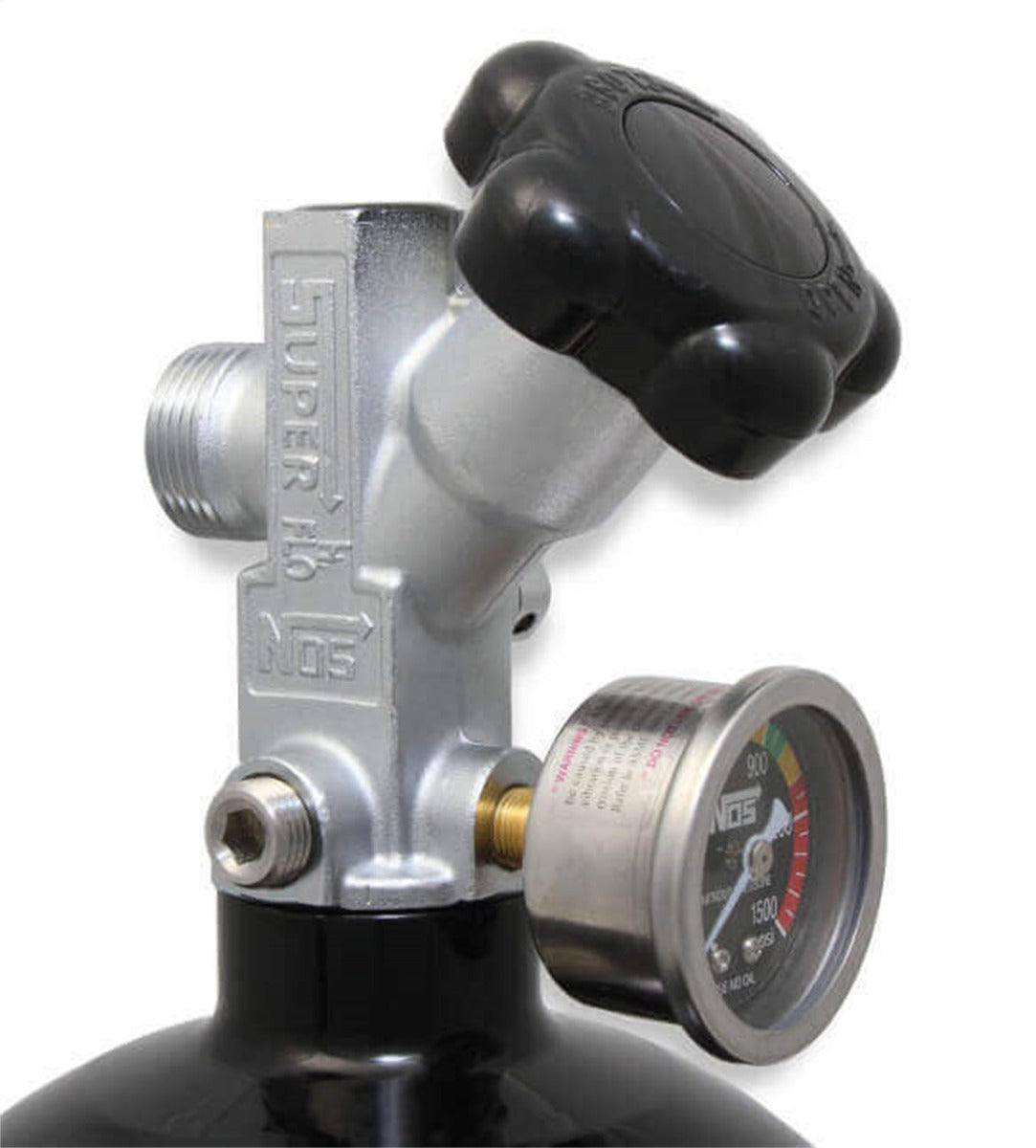

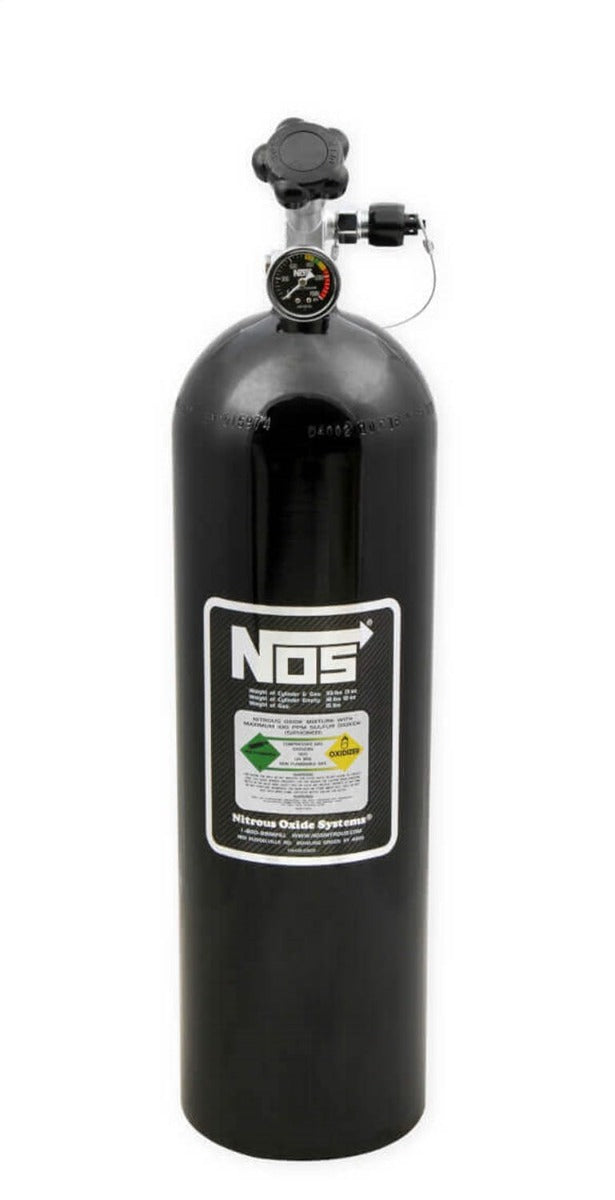

- Includes 15 lb. Black Nitrous Bottle

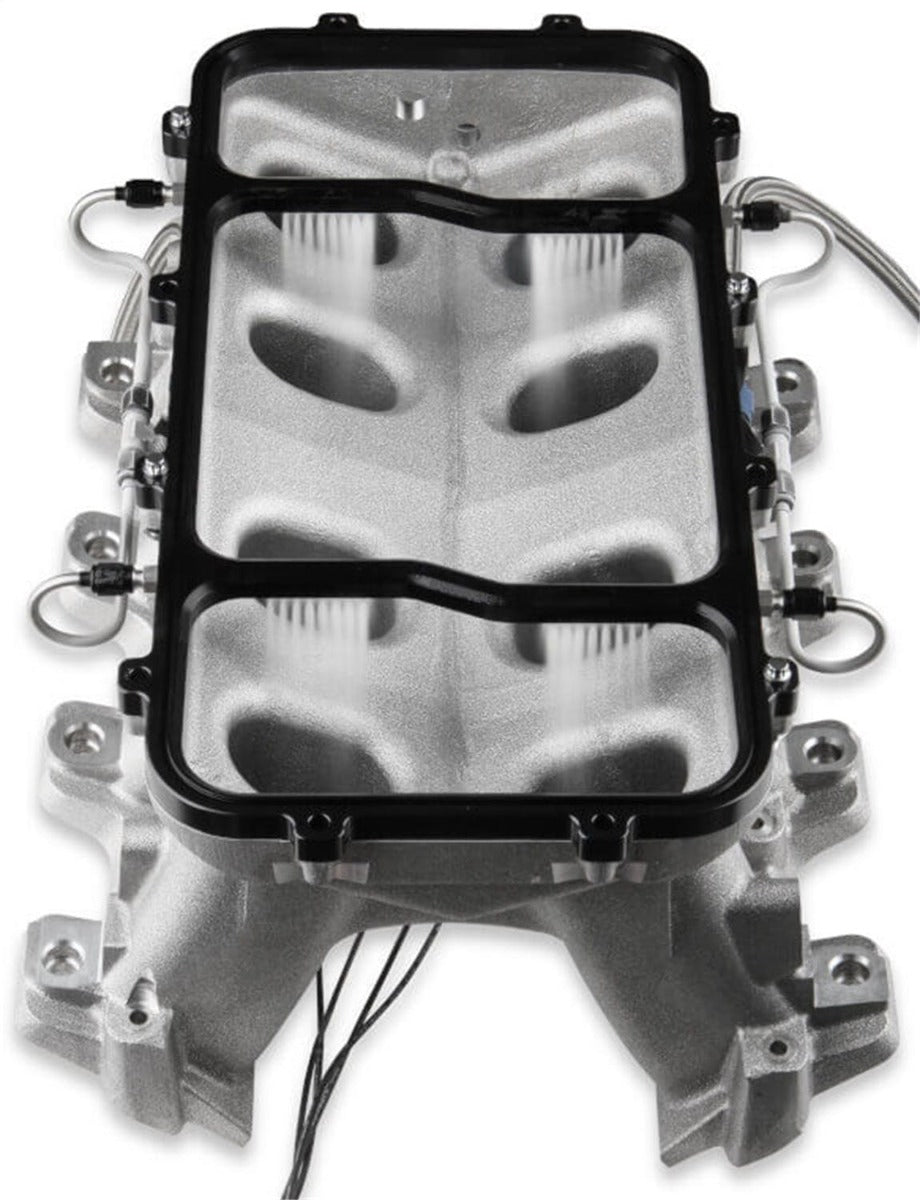

- Sprays Nitrous Directly Into Each Cylinder

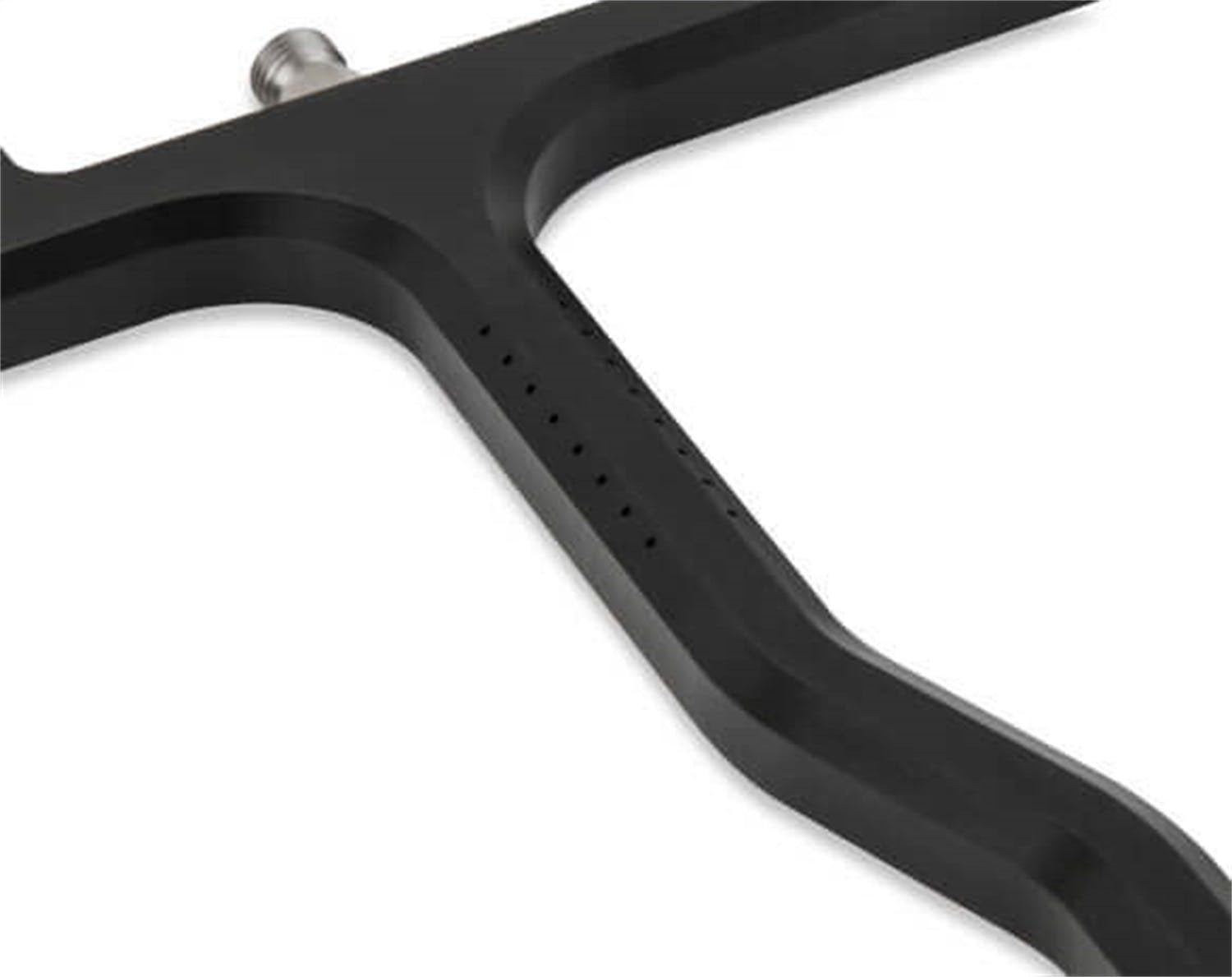

- Plate Features Machined 0.103 in. Passage
- Feeds [8] 0.040 in. Openings Per Intake Runner
- Made From Billet 6061-T6 Aluminum w/Laser Etched NOS Logo
- Anodized Black For Corrosion Resistance And Appearance
- Utilizes [2] NOS Pro-Race Nitrous Solenoids
- Incl. Jetting For 50/100/150/200/250 Hp Configurations
