Dry Nitrous Plate; For Holley LS Hi-Ram EFI Intake Manifolds; 1000+ HP Max; Incl. Plate/Gasket/Jet Holders/Jets [50/100/150/200/250]; Billet 6061-T6 Aluminum; Silver Finish;

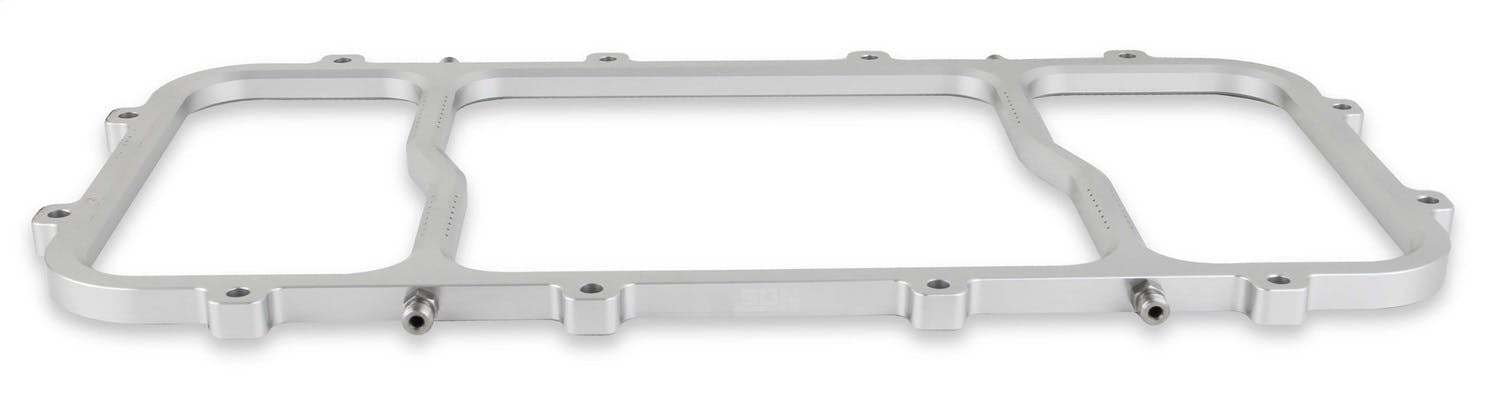

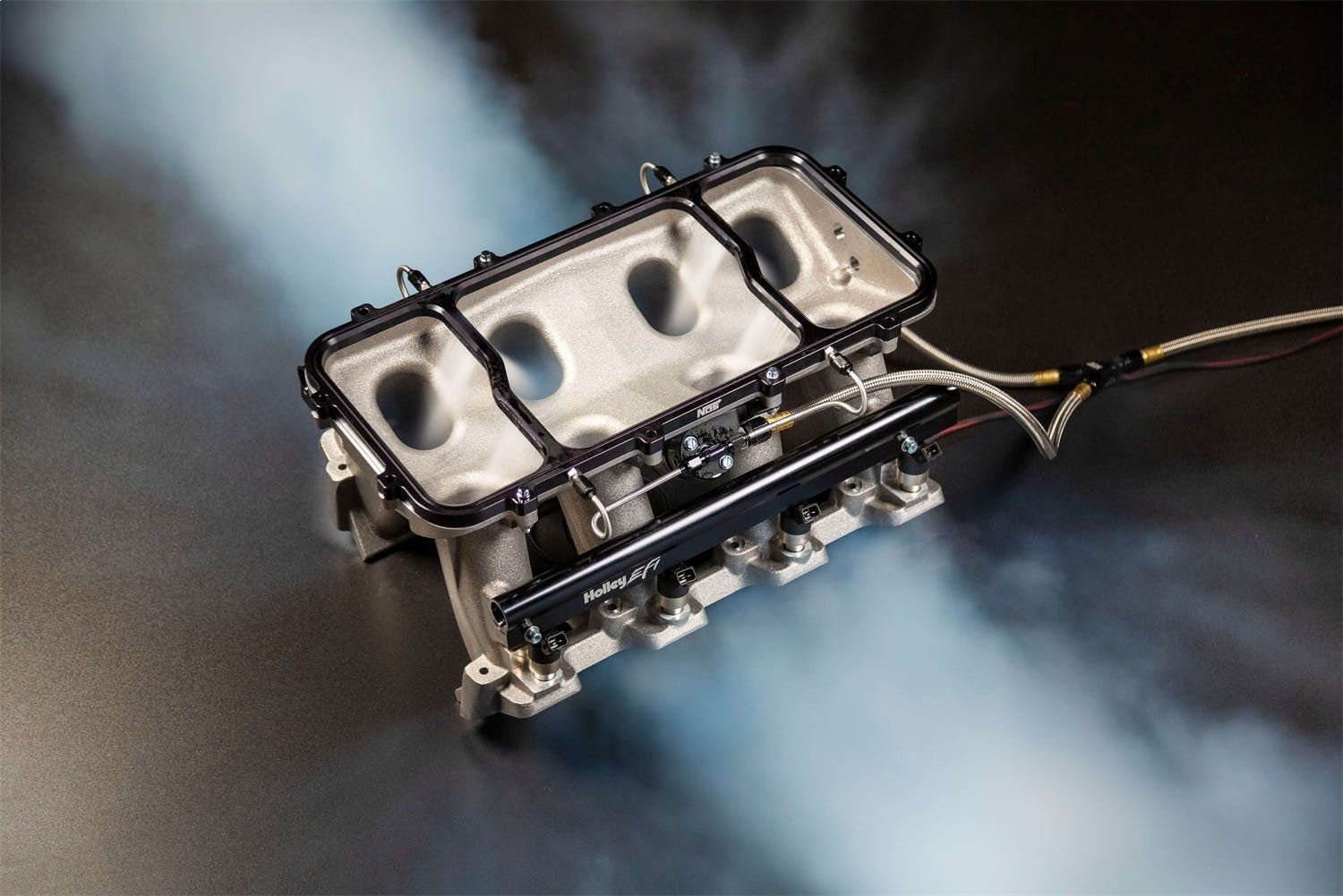

NOS now offers innovative 1-piece billet aluminum dry nitrous plates designed to bolt between the upper and lower intake manifold on Holley Hi-Ram LS manifolds. These sandwich-style plates give you an easy way to add nitrous oxide to your Hi-Ram equipped LS engine. Our plates are machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.

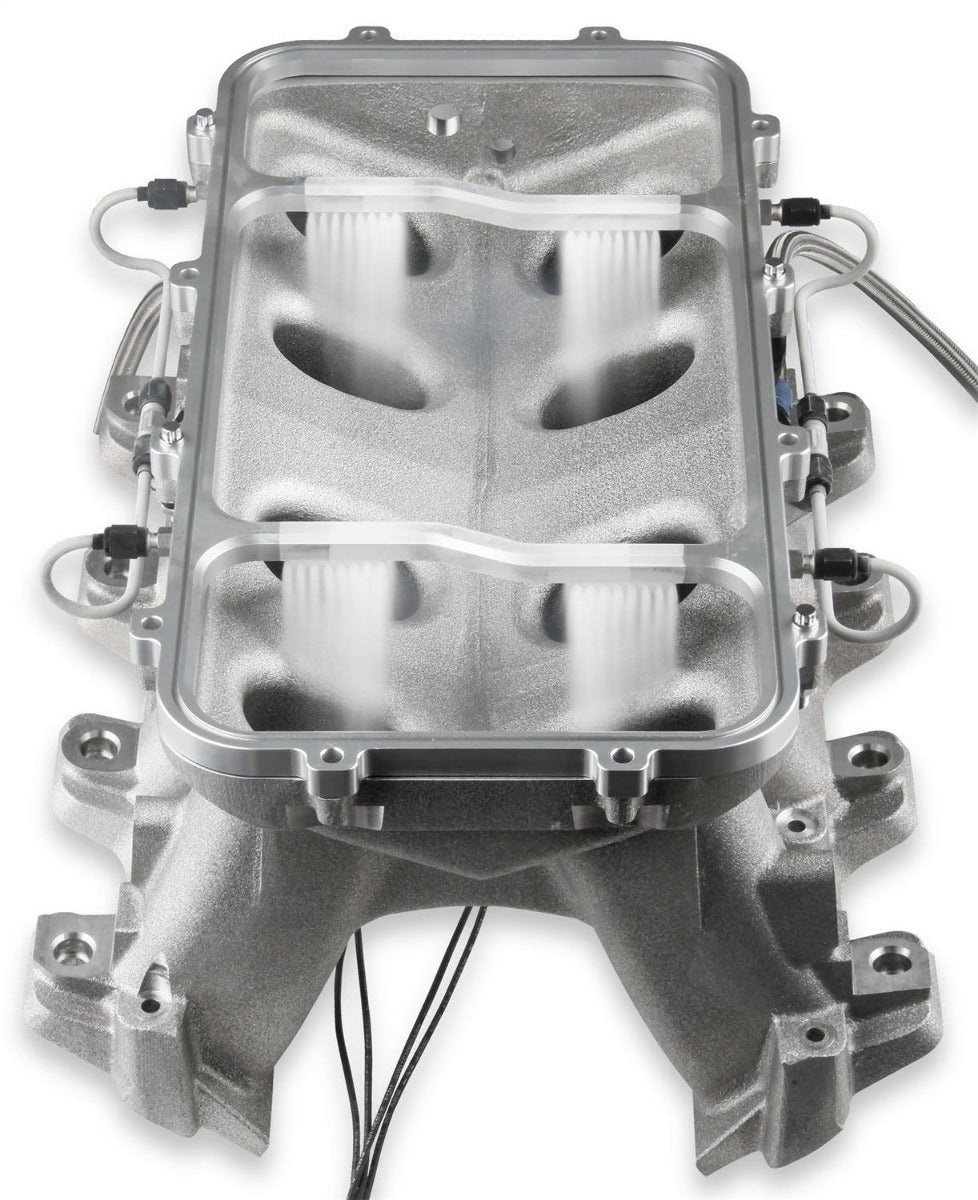

- Sandwiches Between Bottom Base And Top Plate
- Anodized Clear For Corrosion Resistance And Appearance
- Incl. Jetting For 50/100/150/200/250 Hp Configurations
- Supports Up To 1000+ Hp [Jets Purchased Separately]

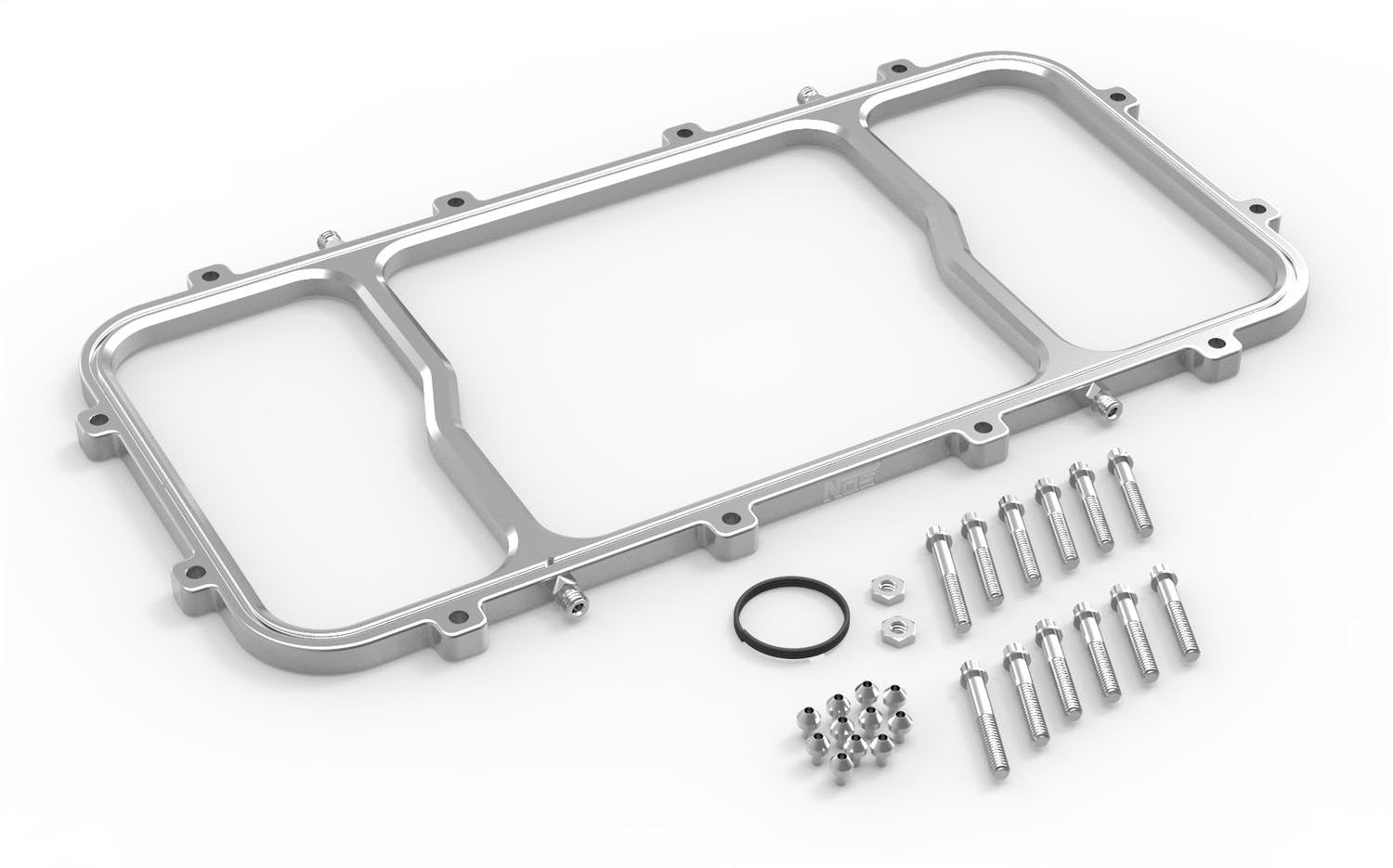

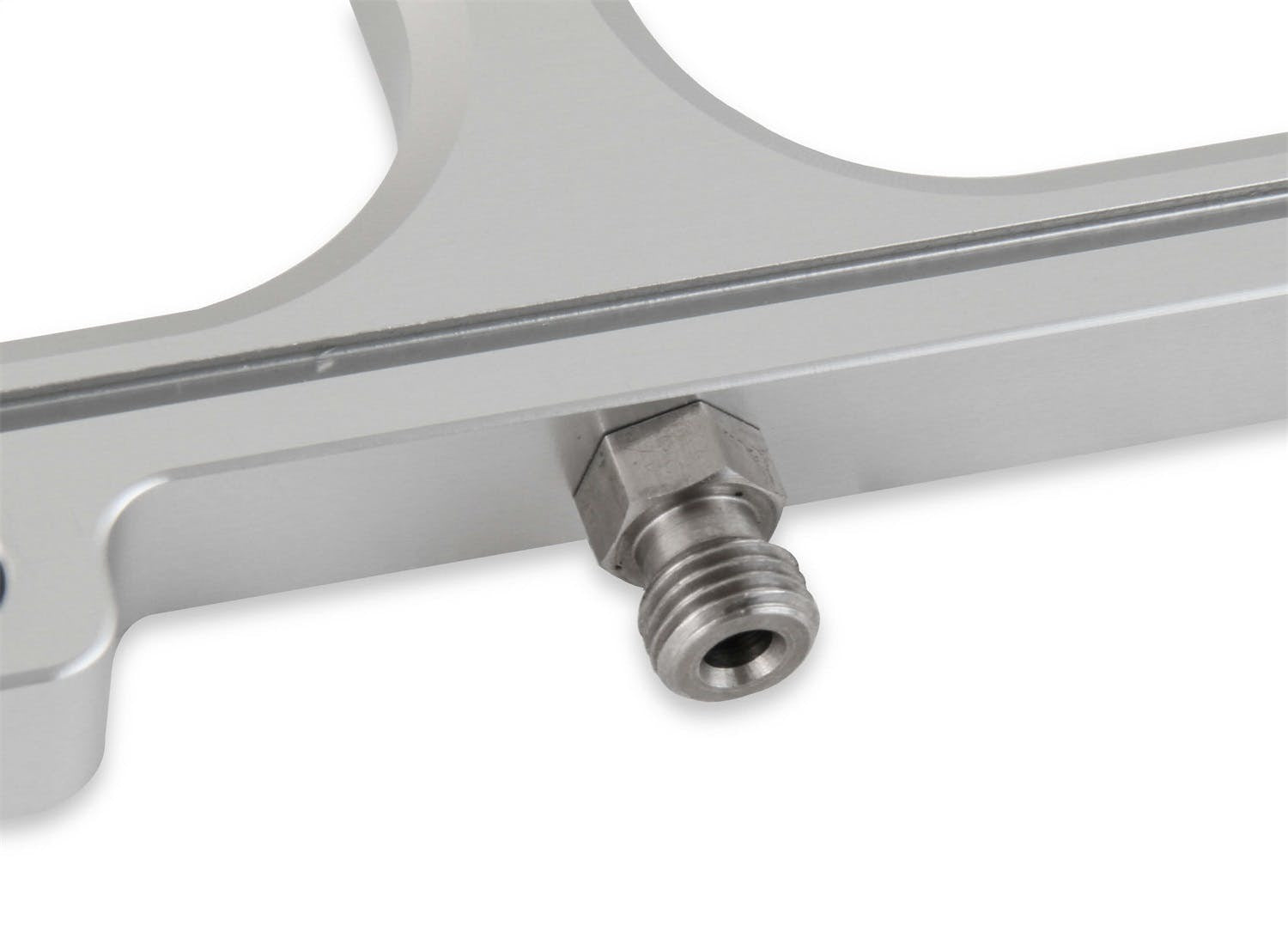

- Incl. Plate/Gasket/Hardware/Jet Holders/Jetting

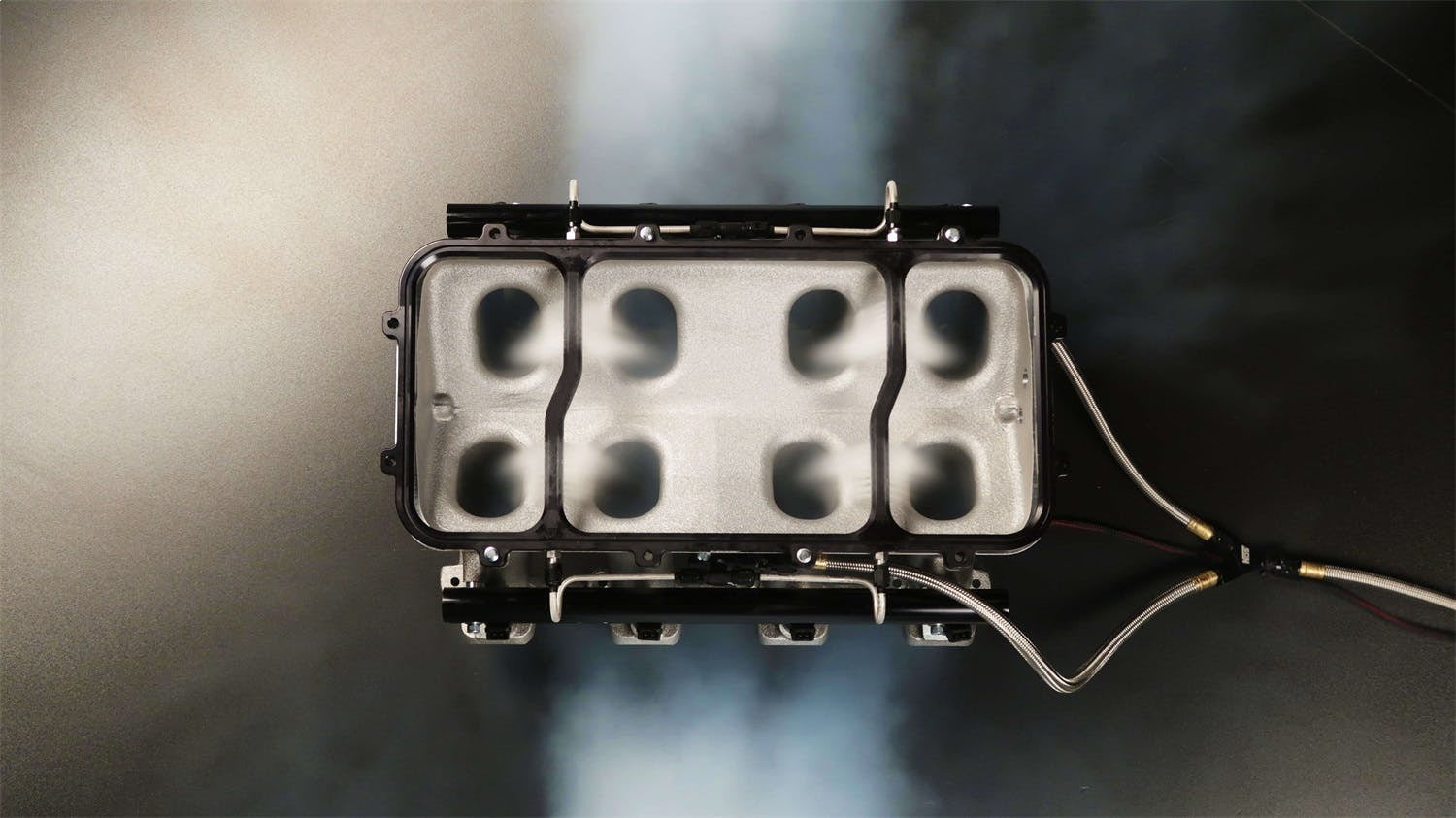

- Fits Holley® Hi-Ram Intake Manifolds
- Designed For Optimum Nitrous Distribution On LS-Based Engines

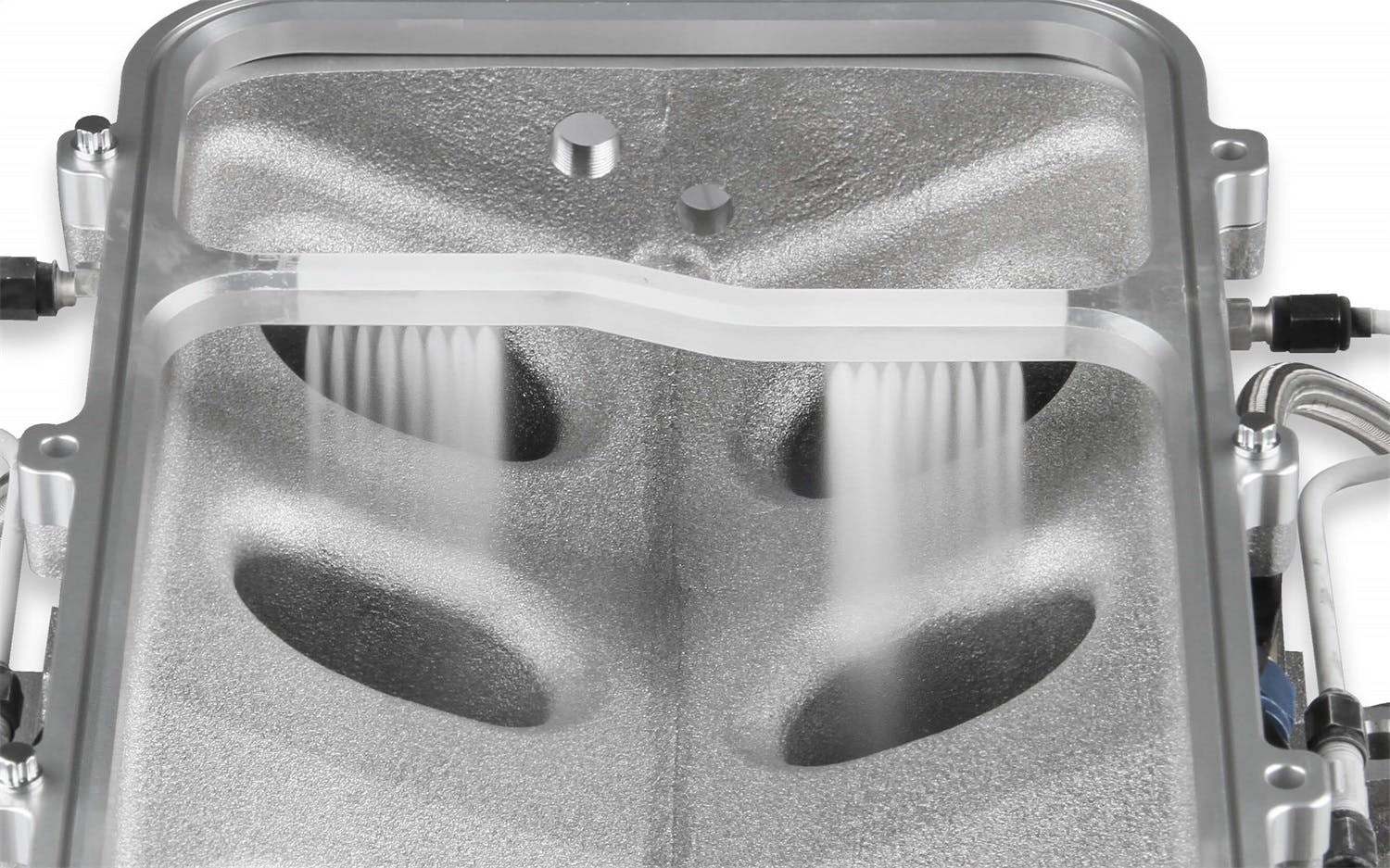

- Sprays Nitrous Directly Into Each Cylinder

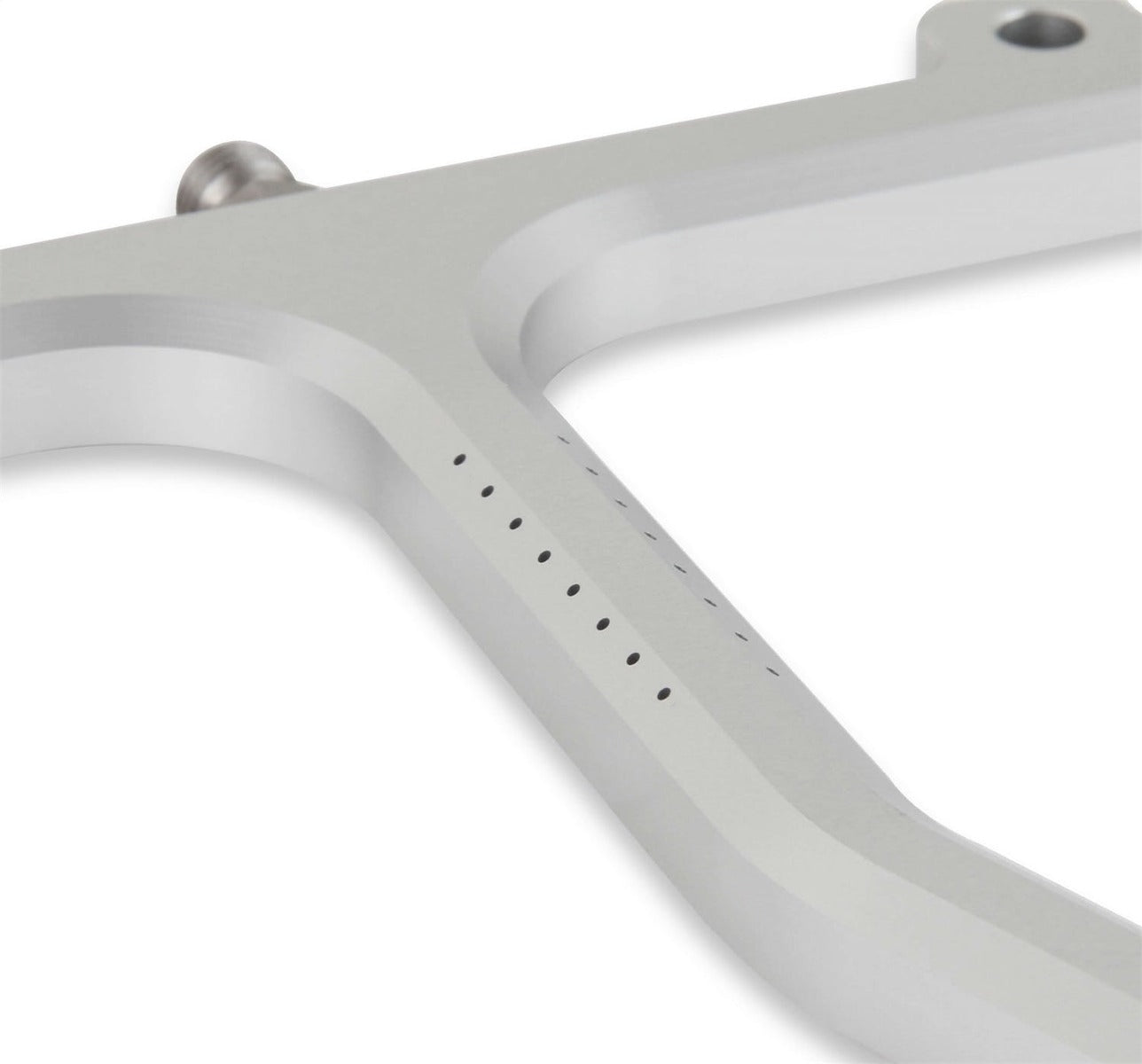

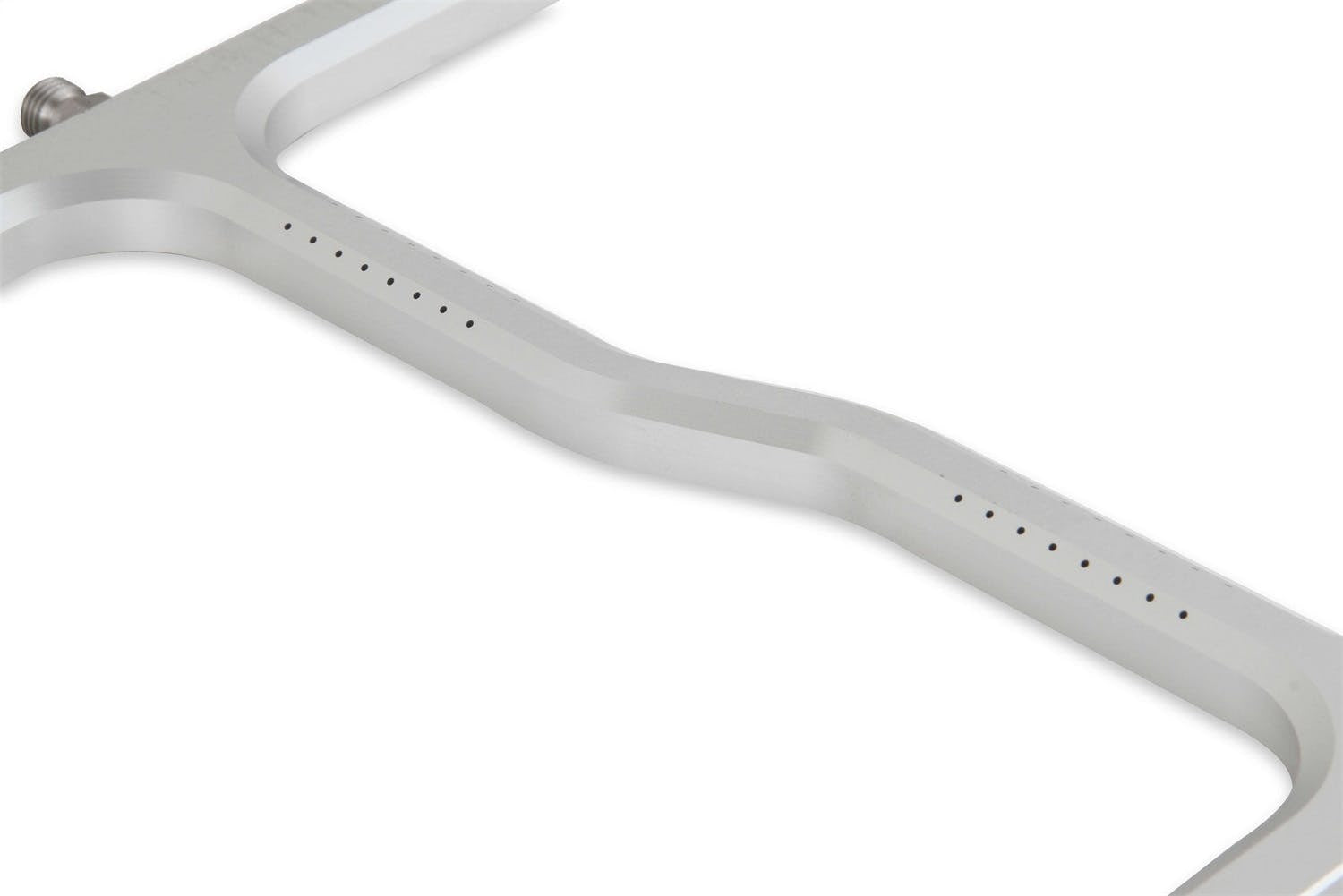

- 0.103 in. Passage Feeds [8] 0.040 in. Openings/Intake Runner
- Made From Billet 6061-T6 Aluminum

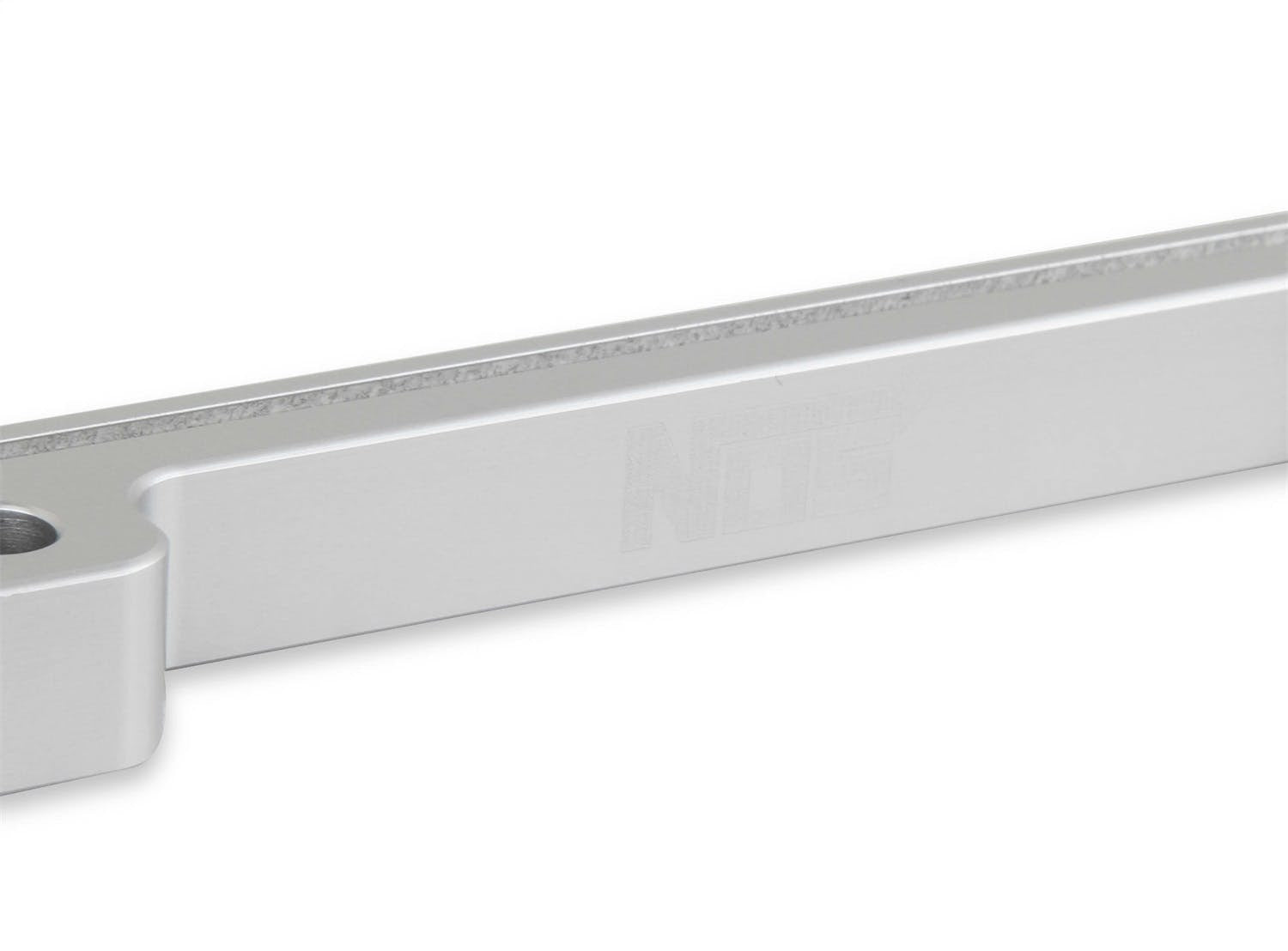

- Laser Etched NOS Logo
Application Summary:
| Year |
Make/Model |
| 2004-2005 |
Cadillac CTS |
| 1998-2002 |
Chevrolet Camaro |
| 2010-2015 |
Chevrolet Camaro |
| 1997-2013 |
Chevrolet Corvette |
| 2014-2017 |
Chevrolet SS |
| 1998-2002 |
Pontiac Firebird |
| 2009 |
Pontiac G8 |
| 2004 |
Pontiac GTO |
