Dry Nitrous Plate; For Sniper EFI Race Series LS Intake Manifolds; 1000+ HP Max; Incl. Plate/Gasket/Jet Holders/Jets [50/100/150/200/250]; Billet 6061-T6 Aluminum; Black Finish;

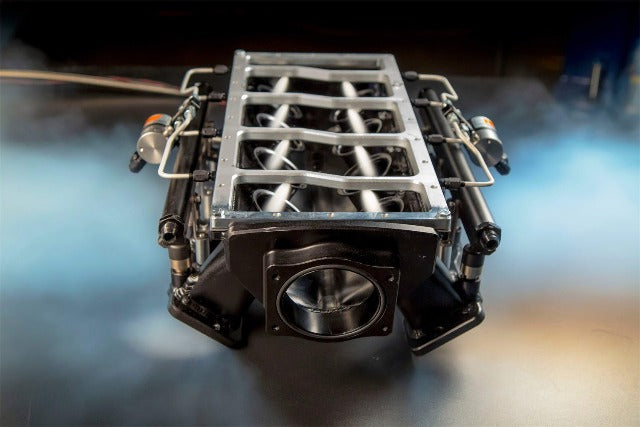

NOS now offers innovative 1-piece billet aluminum dry nitrous plates designed to bolt between the upper lid and lower intake manifold on Sniper EFI Fabricated Race Series LS manifolds. These sandwich-style plates give you an easy way to add nitrous oxide to your Sniper EFI Race Intake equipped LS engine. Our plates are machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.
- Sandwiches Between Bottom Base And Top Plate
- Anodized Black For Corrosion Resistance And Appearance
- Incl. Jetting For 50/100/150/200/250 Hp Configurations
- Supports Up To 1000+ Hp [Jets Purchased Separately]

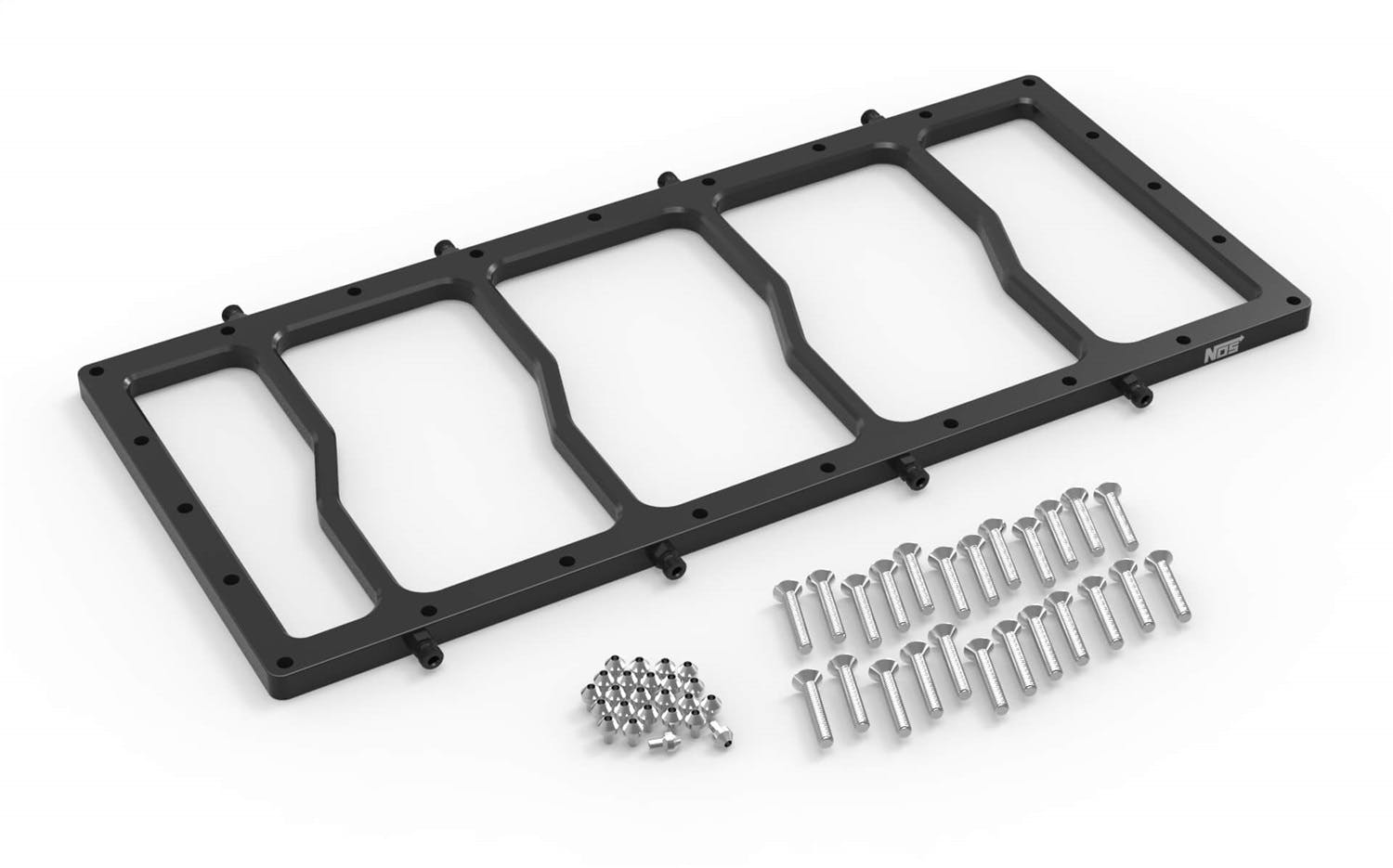

- Incl. Plate/Gasket/Hardware/Jet Holders/Jetting
- Fits Sniperâ„¢ EFI Race Series Intake Manifolds
- Designed For Optimum Nitrous Distribution On LS-Based Engines

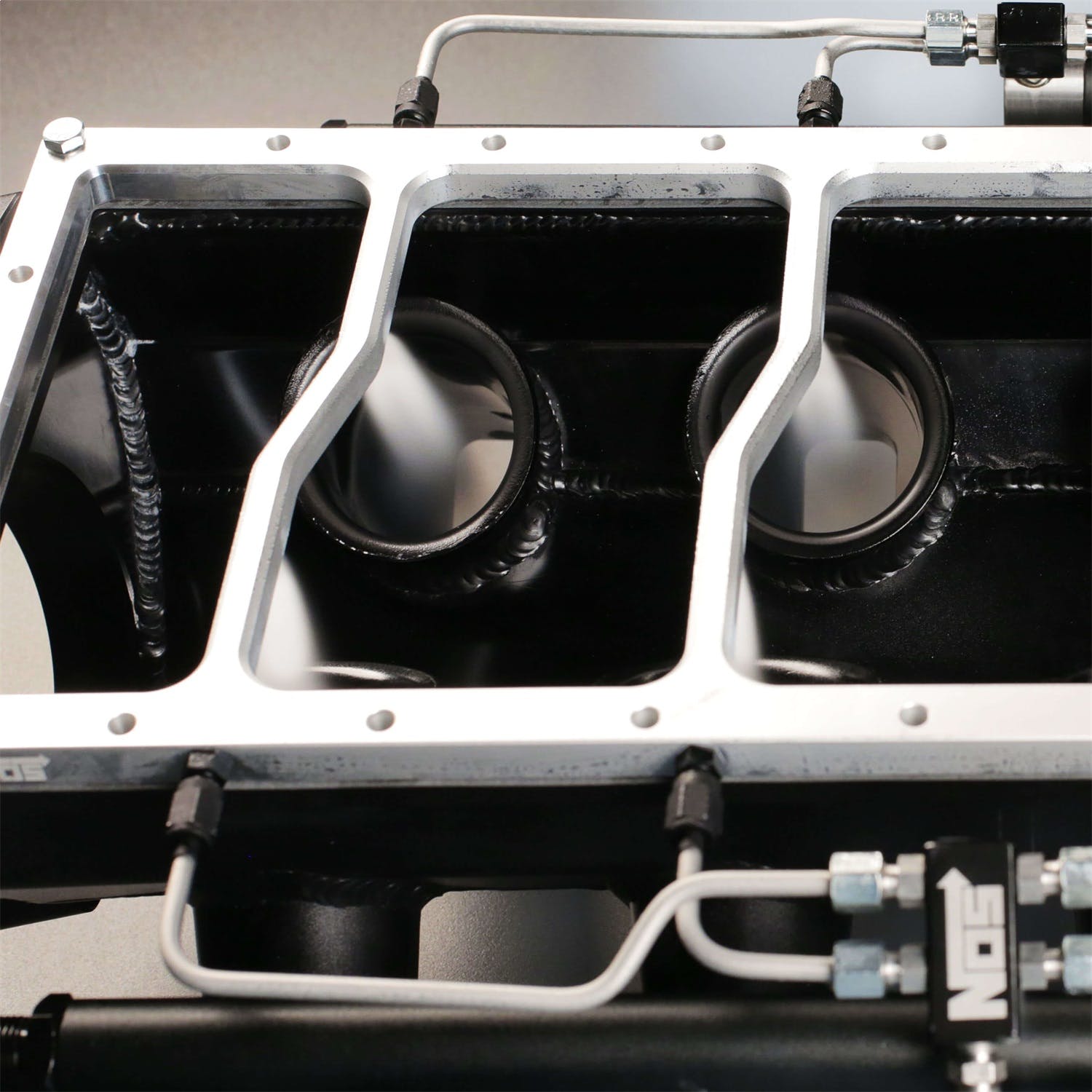

- Sprays Nitrous Along Center Axis Of Each Runner
- 0.125 in. Passage Feeds [8] Machined Orifices
- Made From Billet 6061-T6 Aluminum
- Laser Etched NOS Logo
Application Summary:
| Year |
Make/Model |
| 2004-2007 |
Cadillac CTS |
| 1998-2002 |
Chevrolet Camaro |
| 1997-2007 |
Chevrolet Corvette |
| 2005-2006 |
Chevrolet SSR |
| 2006-2009 |
Chevrolet Trailblazer |
| 1998-2002 |
Pontiac Firebird |
| 2004-2006 |
Pontiac GTO |
