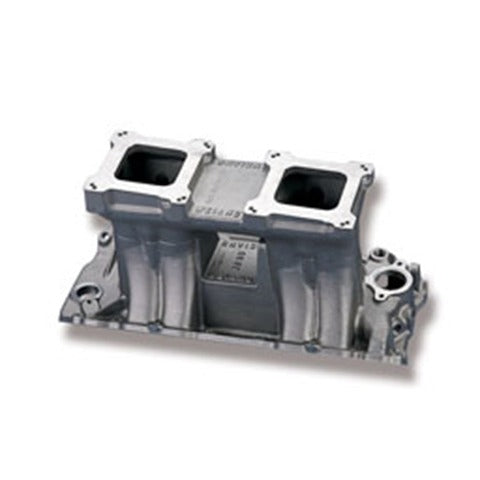

Weiand 1981 CHEV B/B D/Q HI RAM (OVAL)

Nostalgic Series Hi-Ram Intake Manifold; Upper; Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mount; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;

---

HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is designed to be used with performance oval port heads. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! *** GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vacuum operated secondary's, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation. Will fit tall blocks with use of Weiand P/N 8204 manifold spacer plate kit.

• 2 x 4 Carburetor Top
• Square Flange Carburetor Mounting
• 2500-7800 RPM Power Band
• Special D-Shaped Port Runner Design
• Large Volume Plenum
• Height Front 10.12 in.
• Rear 10.93 in.
• Port Size 1.82 in. Height x 1.60 in. Width
• Carb Flange Center-To-Center 9 11/16 in.

---

Application Summary:

Year	Make/Model
1963	Chevrolet Bel Air
1966-1975	Chevrolet Bel Air
1963	Chevrolet Biscayne
1966-1969	Chevrolet Biscayne
1971-1972	Chevrolet Biscayne
1973	Chevrolet Blazer
1972	Chevrolet Brookwood
1975-1980	Chevrolet C10
1968-1969	Chevrolet C10 Pickup
1973-1974	Chevrolet C10 Pickup
1968-1969	Chevrolet C10 Suburban
1973-1980	Chevrolet C10 Suburban
1975-1986	Chevrolet C20
1968-1969	Chevrolet C20 Pickup
1973-1974	Chevrolet C20 Pickup
1968-1969	Chevrolet C20 Suburban
1973-1986	Chevrolet C20 Suburban
1975-1986	Chevrolet C30
1968-1969	Chevrolet C30 Pickup
1973-1974	Chevrolet C30 Pickup
1968-1972	Chevrolet Camaro
1966-1976	Chevrolet Caprice
1966	Chevrolet Chevelle
1968-1973	Chevrolet Chevelle
1968	Chevrolet Chevy II
1966-1974	Chevrolet Corvette
1969-1975	Chevrolet El Camino
1976	Chevrolet G20
1973-1974	Chevrolet G20 Van
1975-1976	Chevrolet G30
1973-1974	Chevrolet G30 Van
1963	Chevrolet Impala
1966-1976	Chevrolet Impala
1976	Chevrolet K10
1980	Chevrolet K10
1968-1969	Chevrolet K10 Pickup
1974	Chevrolet K10 Pickup
1968-1969	Chevrolet K10 Suburban
1976-1978	Chevrolet K20
1968-1969	Chevrolet K20 Pickup
1973-1974	Chevrolet K20 Pickup
1977	Chevrolet K30
1980-1986	Chevrolet K30
1968-1969	Chevrolet K30 Pickup
1973-1974	Chevrolet K30 Pickup
1976-1978	Chevrolet K5 Blazer
1970-1972	Chevrolet Kingswood
1973-1975	Chevrolet Laguna
1973-1975	Chevrolet Malibu
1970-1975	Chevrolet Monte Carlo
1969-1970	Chevrolet Nova
1987-1988	Chevrolet R30
1989	Chevrolet R3500
1970	Chevrolet Townsman
1972	Chevrolet Townsman
1987-1988	Chevrolet V30
1989	Chevrolet V3500
