Wilwood Brakes CALIPER,DH4,1.50/.94,.19 ROTOR,LOW 120-9234

Wilwood Brakes CALIPER,DH4,1.50/.94,.19 ROTOR,LOW 120-9234

Wilwood Brakes
wwb120-9234
This is a SPECIAL ORDER part. This item can be brought in either with a stock order or on its own. Contact us today to discuss available options BEFORE ordering.
$188.61
$188.61
$188.61
Wilwood Brakes CALIPER,DH4,1.50/.94,.19 ROTOR,LOW 120-9234

Wilwood Brakes

Wilwood Brakes CALIPER,DH4,1.50/.94,.19 ROTOR,LOW 120-9234

$188.61
Wilwood Brakes CALIPER,DH4,1.50/.94,.19 ROTOR,LOW 120-9234

Wilwood Brakes

Wilwood Brakes CALIPER,DH4,1.50/.94,.19 ROTOR,LOW 120-9234

$188.61
Description

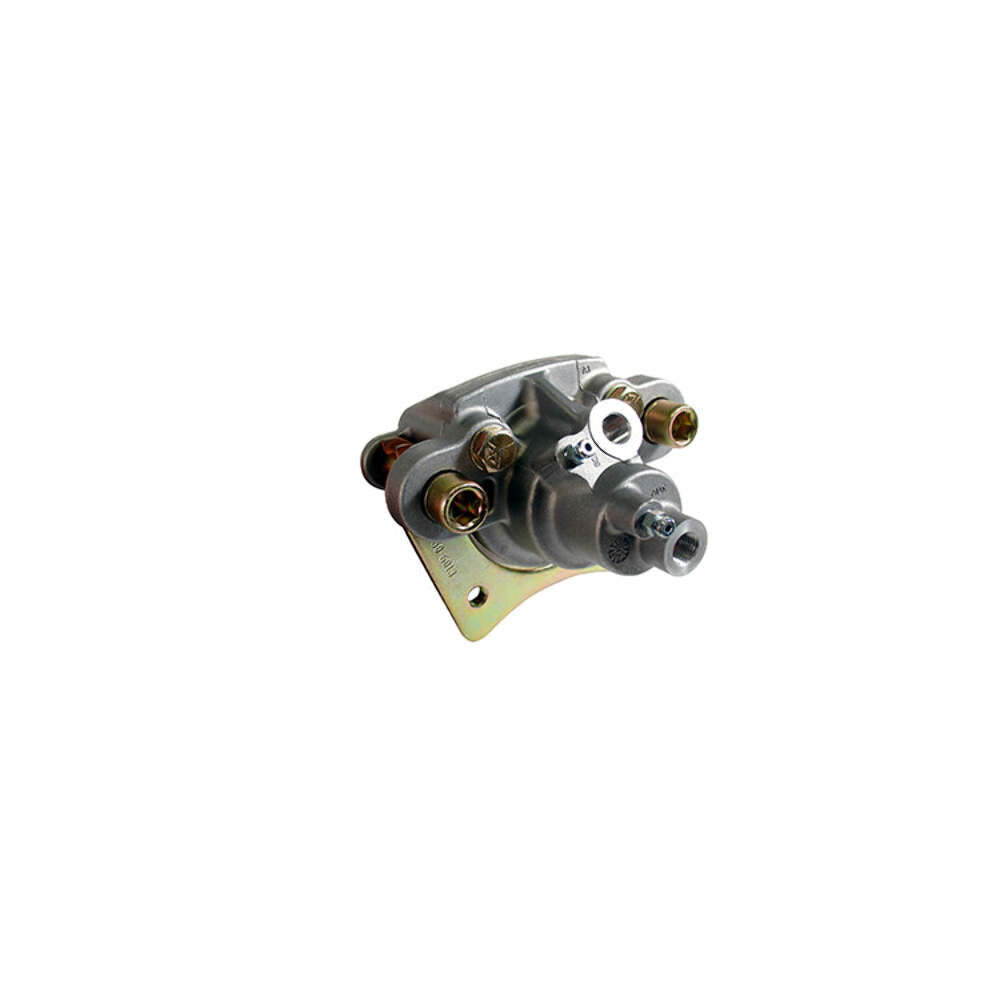

Wilwood Brakes CALIPER,DH4,1.50/.94,.19 ROTOR,LOW

120-9234

CALIPER,DH4,1.50/.94,.19 ROTOR,LOW SQUEEZE

Wilwood's DH4, Dual Hydraulic Calipers offers a step bore piston with a unique primary braking circuit and an additional isolated secondary hydraulic actuated parking brake. Primary piston bore is 1.50" inches, secondary is .94 "diameter and is further isolated with dual 10mm x 1.00 fluid inlets. Designed for rotors no larger 9.00" diameter and .19" width. DH4 caliper feature a floating, single piston design with 3.38" wide slide pin mounting. The DH4's Low squeeze version use a modified seal design to maximize piston retraction in applications where low drag is paramount. Calipers are supplied without brackets. Additional steel brackets are available.
