Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

Wilwood Brakes
wwb260-12627
Heads up — this is a Special Order item. We don't carry it on the shelf, but we can bring it in for you! Lead times vary and can be 10 weeks or more depending on the manufacturer. Give us a call or send us a message so we can check current availability and walk you through your options before you commit to an order.
$75.10
$75.10
$75.10
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

Wilwood Brakes

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

$75.10
Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

Wilwood Brakes

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-12627

$75.10
Description

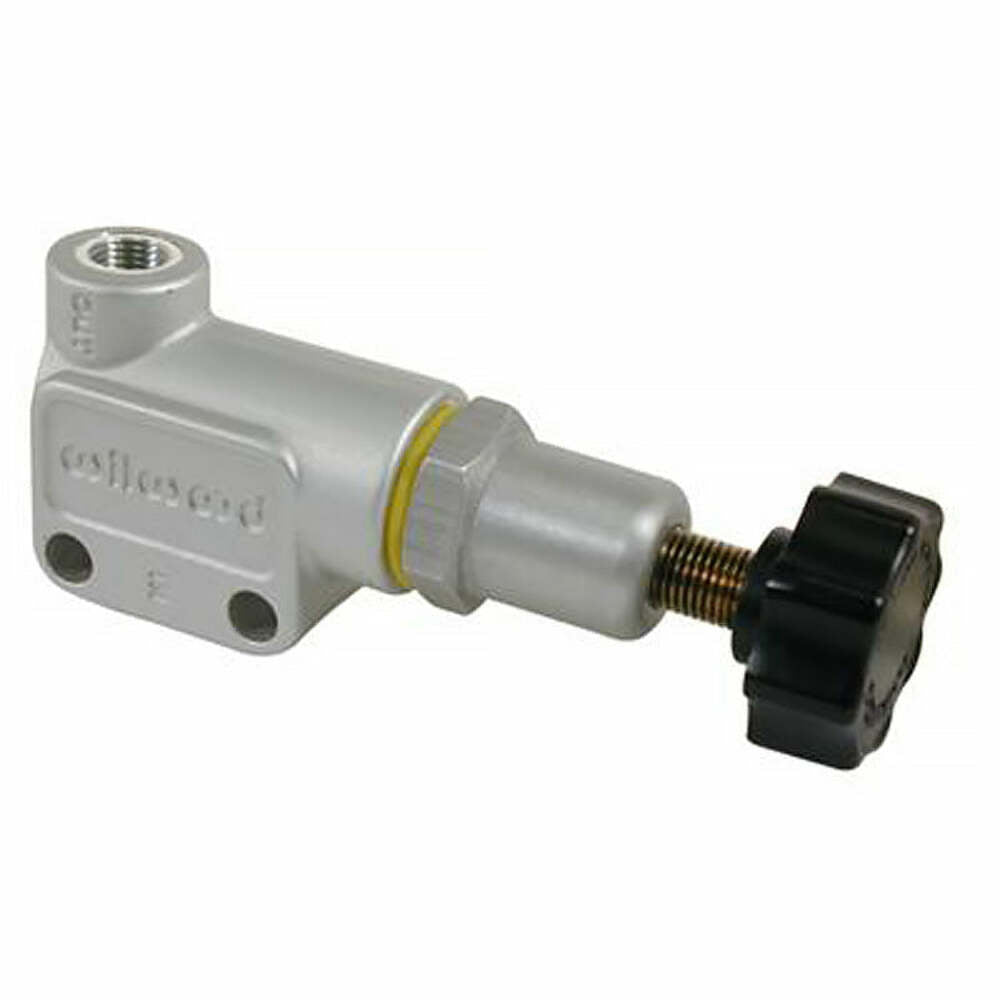

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY

260-12627

VALVE,PROPORTIONING,COMPACT-ASSEMBLY KNOB TYPE,M10x1 BF,IN/ OUT,WILWOOD

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25" side mounting holes spaced 1.00" apart. This valve varies from our standard Knob Style Proportioning valve, as the inlet and outlet ports are 10MM X 1 bubble flare seats and do not require tube nut adapters to directly install tubing with bubble flare 10MM x 1 nuts.
