Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-8420

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-8420

Wilwood Brakes
wwb260-8420
Heads up — this is a Special Order item. We don't carry it on the shelf, but we can bring it in for you! Lead times vary and can be 10 weeks or more depending on the manufacturer. Give us a call or send us a message so we can check current availability and walk you through your options before you commit to an order.
$149.09
$149.09
$149.09
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-8420

Wilwood Brakes

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-8420

$149.09
Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-8420

Wilwood Brakes

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY 260-8420

$149.09
Description

Wilwood Brakes VALVE,PROPORTIONING,COMPACT-ASSEMBLY

260-8420

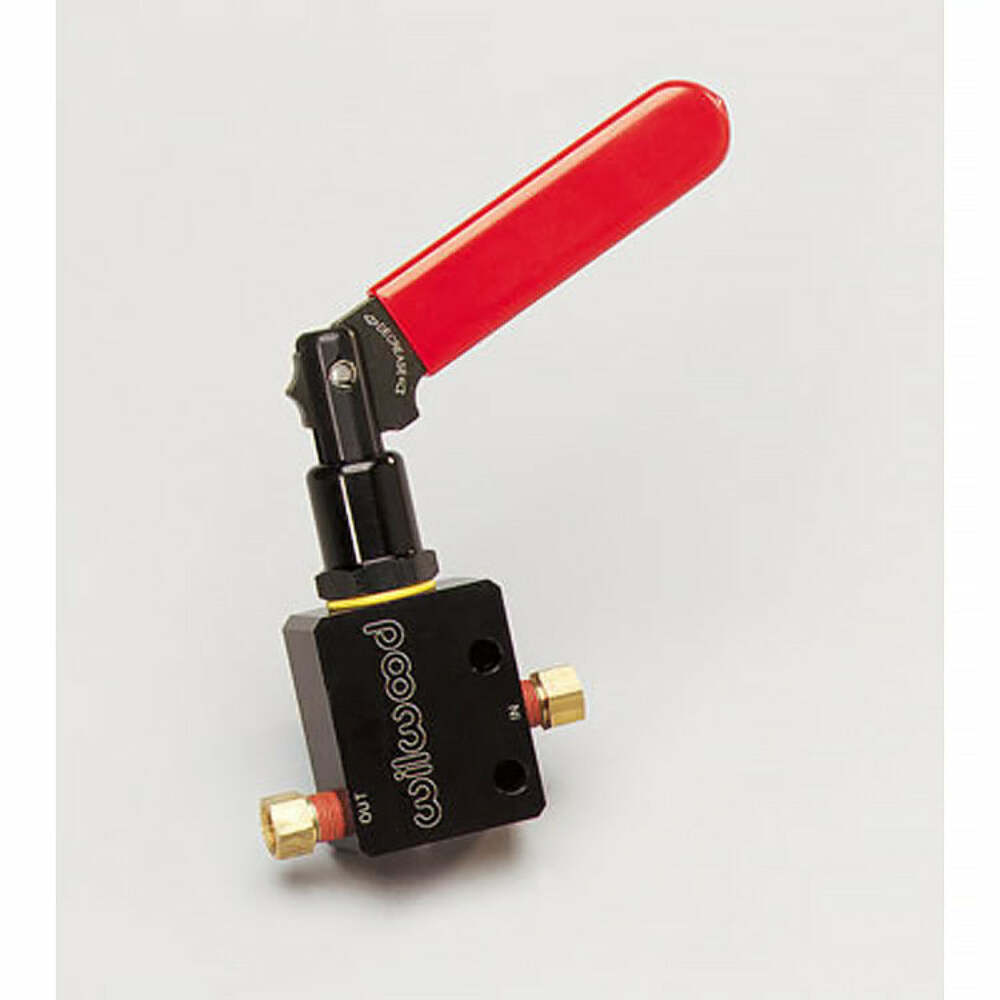

VALVE,PROPORTIONING,COMPACT-ASSEMBLY LEVER TYPE,WILWOOD

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever "clicks" into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25" side mounting holes spaced 1.00" apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.
