PowerBond RACE PERFORMANCE BALANCER, POWERBOND PB81461SS

PowerBond
PBBPB81461SS
Heads up — this is a Special Order item. We don't carry it on the shelf, but we can bring it in for you! Lead times vary and can be 10 weeks or more depending on the manufacturer. Give us a call or send us a message so we can check current availability and walk you through your options before you commit to an order.
$460.51
$464.90
$460.51

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
PowerBond RACE PERFORMANCE BALANCER, POWERBOND PB81461SS

Vendor: PowerBond

PowerBond RACE PERFORMANCE BALANCER, POWERBOND PB81461SS

$464.90 $460.51

Vendor: PowerBond

PowerBond RACE PERFORMANCE BALANCER, POWERBOND PB81461SS

$464.90 $460.51

PowerBond RACE PERFORMANCE BALANCER, POWERBOND PB81461SS

PB81461SS

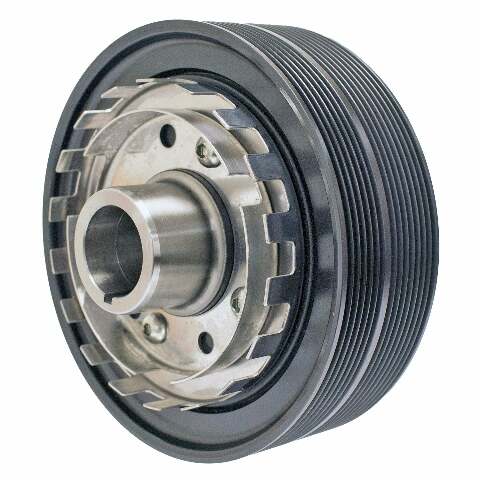

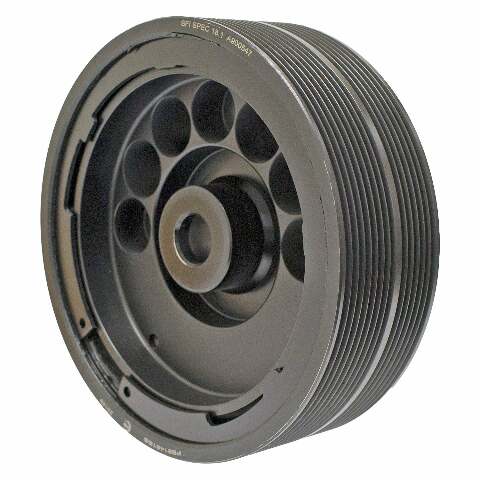

PowerBond Race Performance Harmonic Balancers PowerBond Race performance harmonic balancers bring the advantages of bonded balancers to high-revving and high-horsepower street/race applications where an SFI-approved balancer is required. They have been tested beyond 21,000 rpm without failure, and every balancer features a precision CNC-machined AISI 1045 forged steel hub bonded to an equally strong steel inertia ring. They are very light and in most cases, they are only marginally heavier than the original cast iron balancer. The steel inertia ring on the Race Series models is positively protected against forward and backward movement. PowerBond uses our Race Series high-pressure, low-cure that features a natural rubber developed in our laboratory. Every model has easy to read computer etched timing marks and meet SFI specification 18.1

Property Description
Part # PB81461SS
Overall OD (mm) 176.20
Overall OD (In) 6.938
Overall Width (mm) 57.50
Overall Width (In) 2.264
Nose OD (mm) 49.12
Nose OD (In) 1.934
Crank Bore (mm) 34.87
Crank Bore (In) 1.373
Ring Width (mm) 58.60
Ring Width (In) 2.308
Bolt Hole Quantity 2
Counterweight Balance Hub weighted
No of Integrated Pulleys 2
Pulley Type 1 Serpentine
Grooves, Pulley Type 1 6
Pulley Type 2 Serpentine
Grooves, Pulley Type 2 8
Pulley Type 3
Grooves, Pulley Type 3
Pulley OD 1 (mm) 176.200
Pulley OD 1 (In) 6.938
Pulley OD 2 (mm) 176.200
Pulley OD 2 (In) 6.938
Pulley OD 3 (mm)
Pulley OD 3 (In)
Crank Trigger/Exciter Plate Y
SFI Certified Y
Comments
Timing Marks N
Hardware Included N
Balancer Hub Material Type Steel
Balancer Outer Ring Mat Type Steel
Woodruff Key Included 11.32
