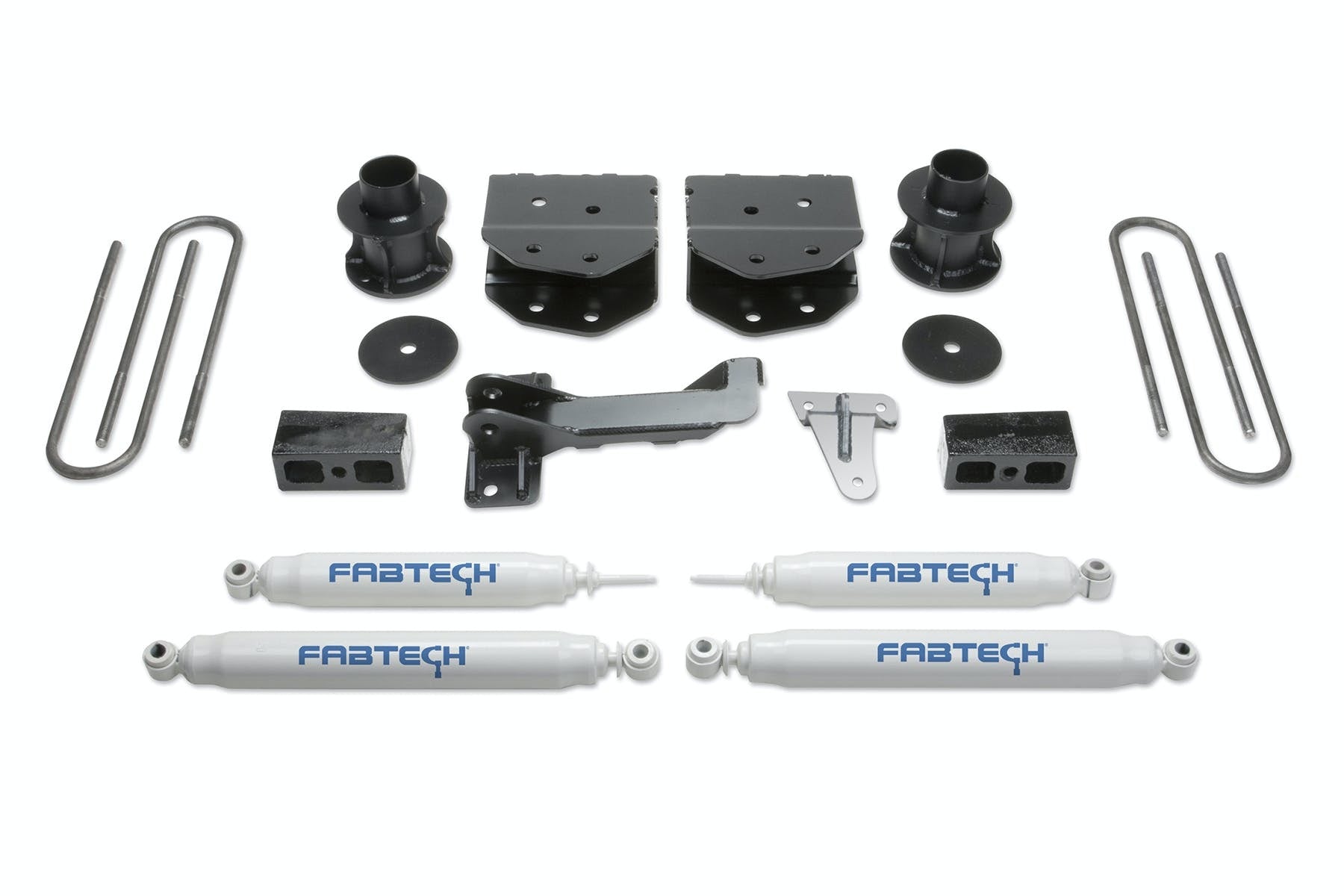

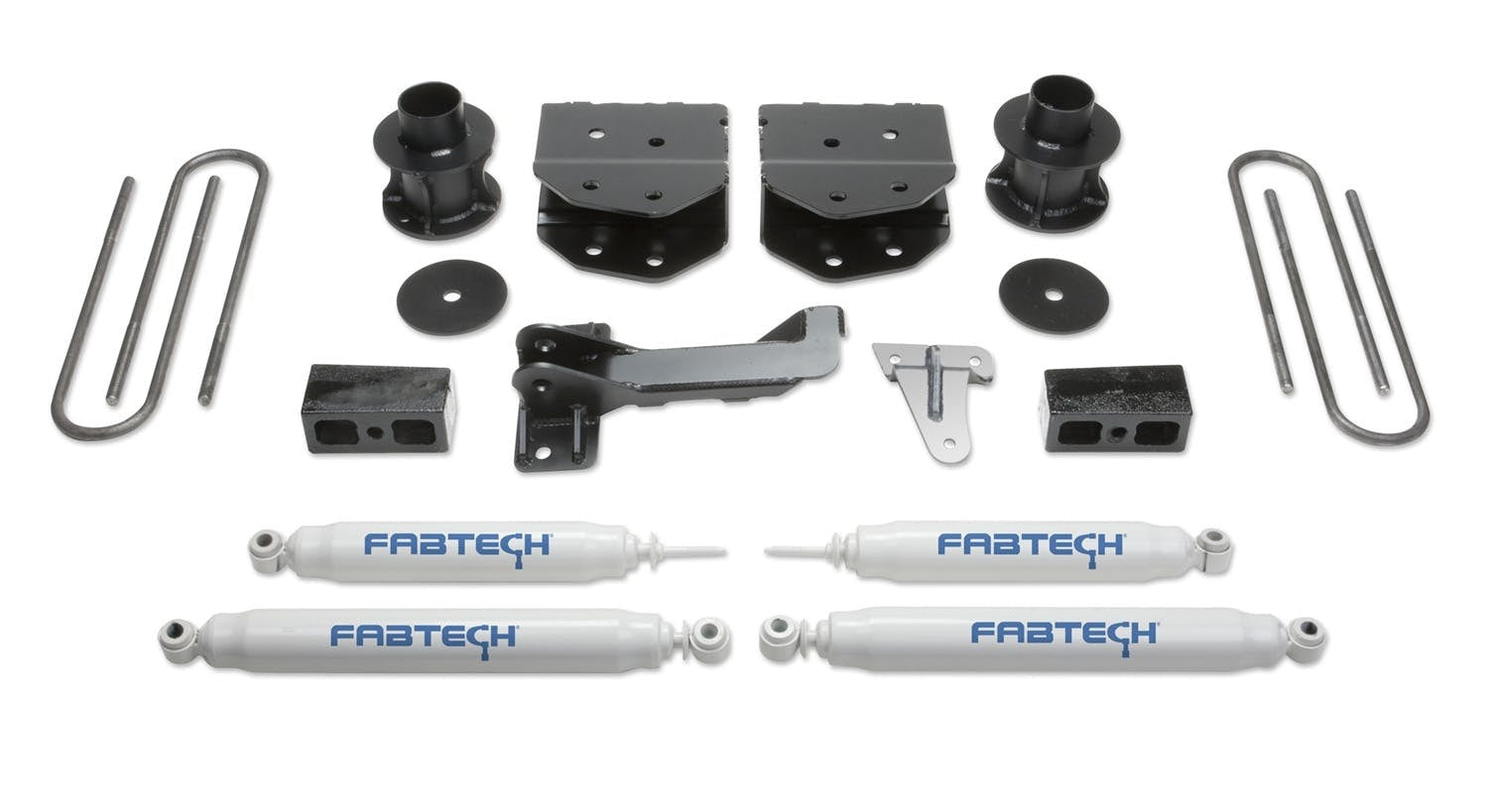

Budget Lift System w/Shock; w/Performance Shocks; 4 in. Lift;
The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35 tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.
- Retains Factory Front Coil Springs For Stock Ride
- Drop Brackets For Proper Caster w/Increased Height
- Trac Bar Works w/Factory Pitman Arm
- Trac Bar Relocated To Center Axle
- Includes Driveshaft Carrier Bearing
- Ample Clearance For 33 in. Tires
Application Summary:
| Year |
Make/Model |
| 2005-2007 |
Ford F-250 Super Duty |
| 2005-2007 |
Ford F-350 Super Duty |
This Product Page / Kit Number is only for Reference
To Purchase This Kit, Please place your order using the following list of parts that make up the kit;
FTS22153 Qty. Reqd.= 1, FTS7236 Qty. Reqd.= 2, FTS7266 Qty. Reqd.= 2
