Special Order
Radius Arm System; 8 in. Lift; Incl. Front Coil Springs/Stealth Shocks;
Fabtech's 8" Radius Arm system for the Ford Super Duty is built to handle the on and offroad demands of the truck enthusiast. This Radius Arm system is a heavy duty upgrade to the factory suspension and will provide additional strength to the vehicle. The heart of this quality system is Fabtech's legendary tubular Radius Arms. The design of these arms comes from Fabtech's racing experience and are built with a tubular structure reinforced by dimple die side plates and heavy gusseting for rugged offroad use. They are superior in strength to the stock stamped arms. Unique to this 8" system is Fabtech's extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this ground breaking system that offers proper steering performance. Fabtech's extended length Track Bar is 4" longer than stock and is offset to the driver side with a stout 1/4" thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4" BS wheels. This high quality 8" System provides increased strength and performance for the demanding Super Duty enthusiast. System includes a free 5 year 60,000 mile powertrain warranty. Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understanding of each these components please see below.
Fabtech's 8" Radius Arm system for the Ford Super Duty is built to handle the on and offroad demands of the truck enthusiast. This Radius Arm system is a heavy duty upgrade to the factory suspension and will provide additional strength to the vehicle. The heart of this quality system is Fabtech's legendary tubular Radius Arms. The design of these arms comes from Fabtech's racing experience and are built with a tubular structure reinforced by dimple die side plates and heavy gusseting for rugged offroad use. They are superior in strength to the stock stamped arms. Unique to this 8" system is Fabtech's extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this ground breaking system that offers proper steering performance. Fabtech's extended length Track Bar is 4" longer than stock and is offset to the driver side with a stout 1/4" thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4" BS wheels. This high quality 8" System provides increased strength and performance for the demanding Super Duty enthusiast. System includes a free 5 year 60,000 mile powertrain warranty. Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understanding of each these components please see below.

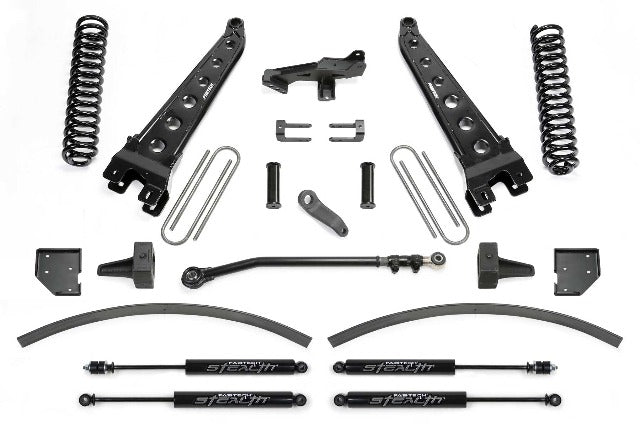

- Fabtech Replacement Radius Arms
- Fabtech Front Coil Springs
- Track Bar Relocation Bracket
- Extended Length Track Bar
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block And U-Bolt Kit
- Rear Add A Leaf Kit
Application Summary:
| Year | Make/Model |
|---|---|
| 2017-2020 | Ford F-250 Super Duty |
| 2017-2020 | Ford F-350 Super Duty |
This Product Page / Kit Number is only for Reference
To Purchase This Kit, Please place your order using the following list of parts that make up the kit;
FTS22025BK Qty. Reqd.= 1, FTS22272 Qty. Reqd.= 1, FTS22279 Qty. Reqd.= 1, FTS6063 Qty. Reqd.= 2, FTS6188 Qty. Reqd.= 2
