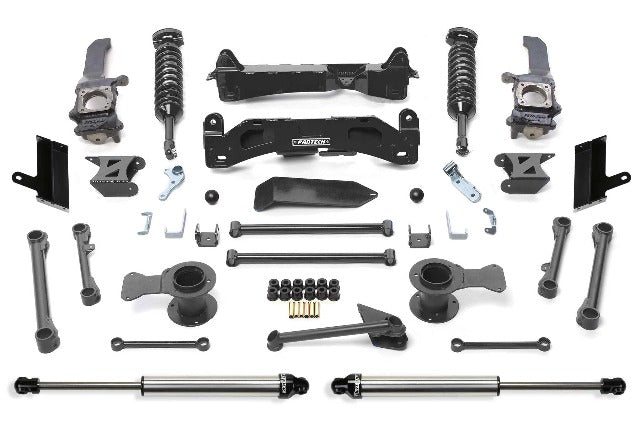

Performance Lift System w/Shocks; 6 in. Lift; w/Front Dirt Logic Resi 2.5/Rear 2.25 Shocks;
This Toyota 4Runner suspension system features Fabtechs proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4 thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain for offroad use. The front suspension is controlled with Fabtechs legendary stainless steel Dirt Logic 2.5 Coilover shocks for outstanding damping capacity with a superior highway ride. Rear lift is accomplished with steel coil spring spacers that retain the Toyota 4Runner coil springs for a smooth ride. Heavy duty Fabtech control link arms replace the factory arms to reposition the tire in the wheel well with the additional ride height. A stout 1/4 thick steel bracket relocates the rear Track Bar to keep the vehicle tracking proper. Rear shocks include the Dirt Logic 2.25.
- Everything You Will Need To Lift Your Vehicle
- No Driveshaft Change Required For Auto Trac
- Increased Caster For More Control
- Retains Factory Steering Centerlink
- Retains Factory Upper Control Arms
- Quick No Weld Installation
- Allows Use Of Stock Tires And Wheels
Application Summary:
| Year |
Make/Model |
| 2010-2017 |
Toyota 4Runner |
This Product Page / Kit Number is only for Reference
To Purchase This Kit, Please place your order using the following list of parts that make up the kit;
FTS26059 Qty. Reqd.= 1, FTS26080 Qty. Reqd.= 1, FTS26081 Qty. Reqd.= 1, FTS26082 Qty. Reqd.= 1, FTS810542 Qty. Reqd.= 2
