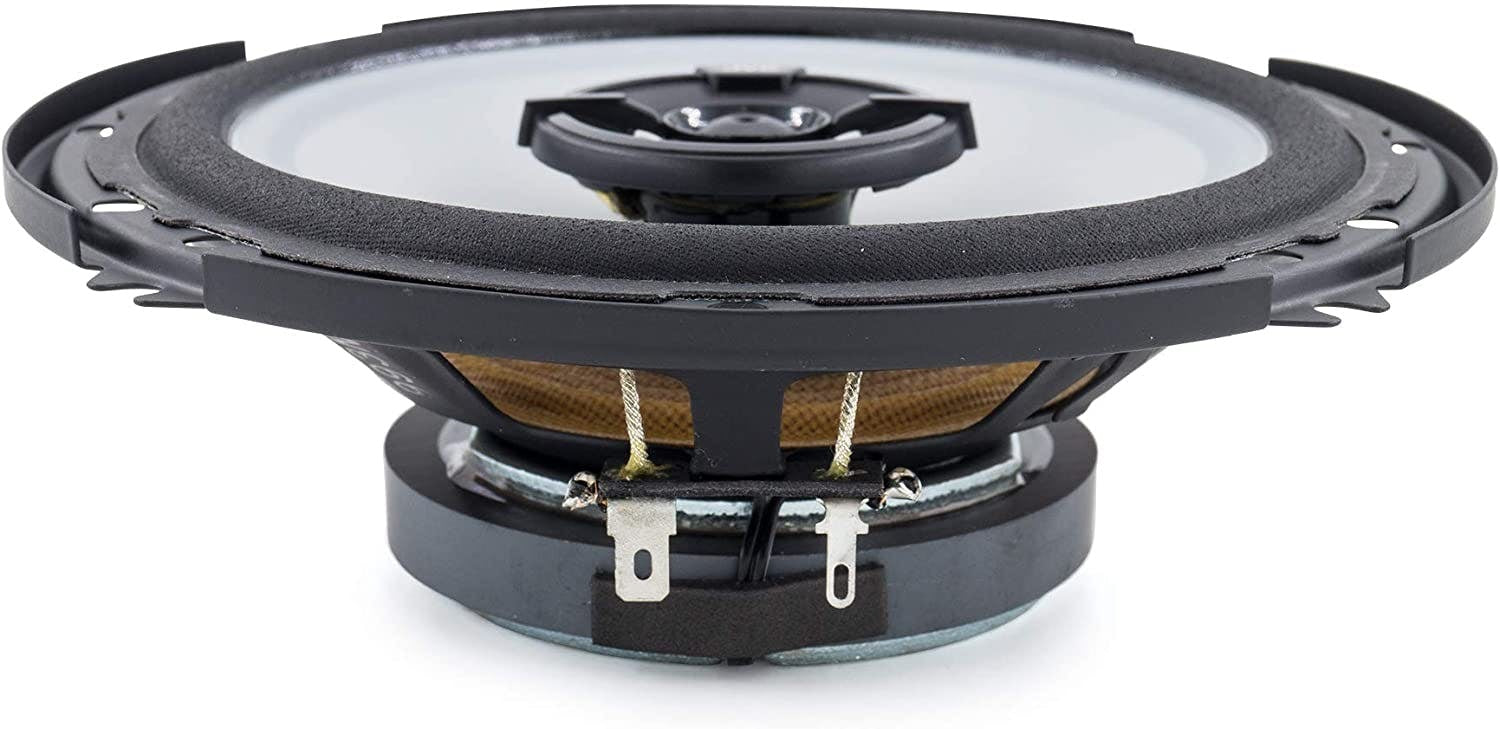

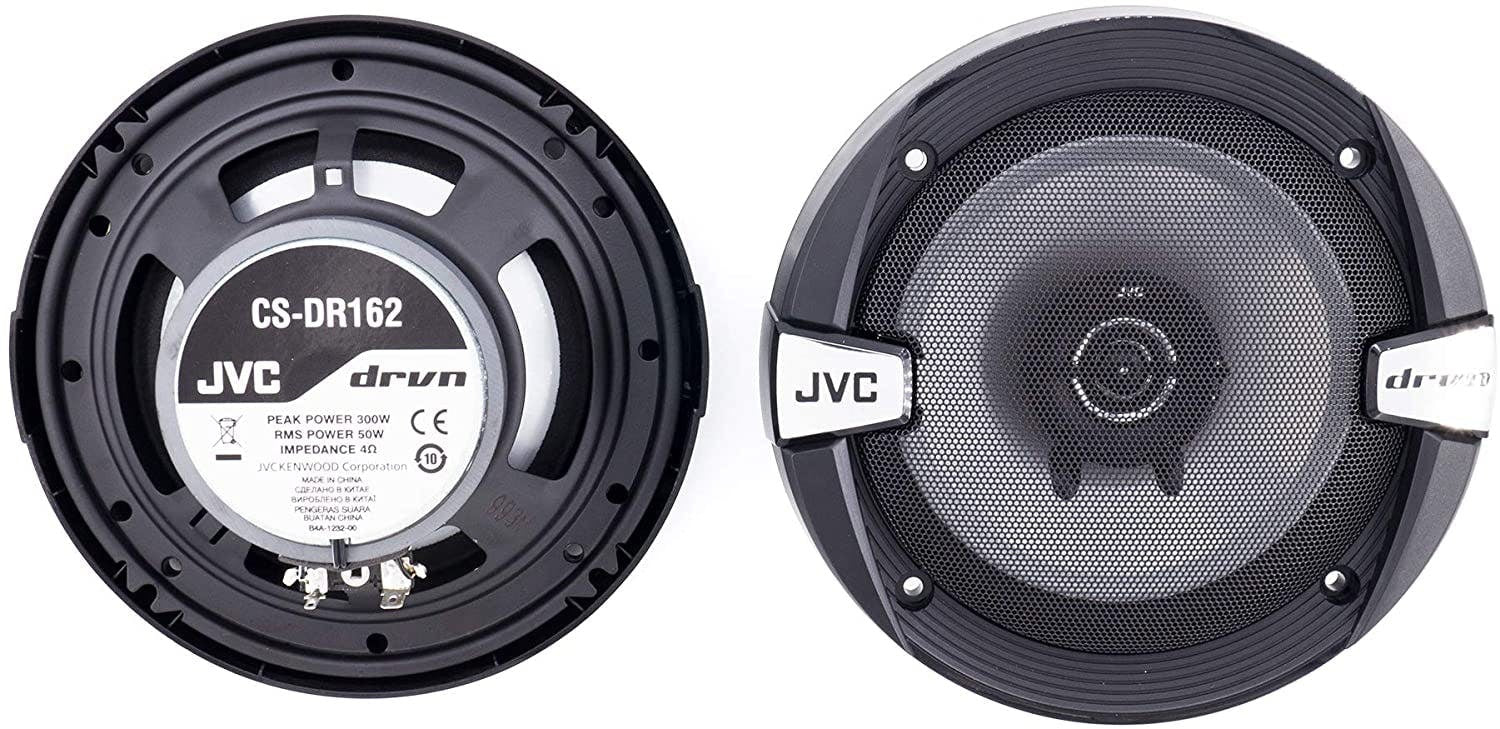

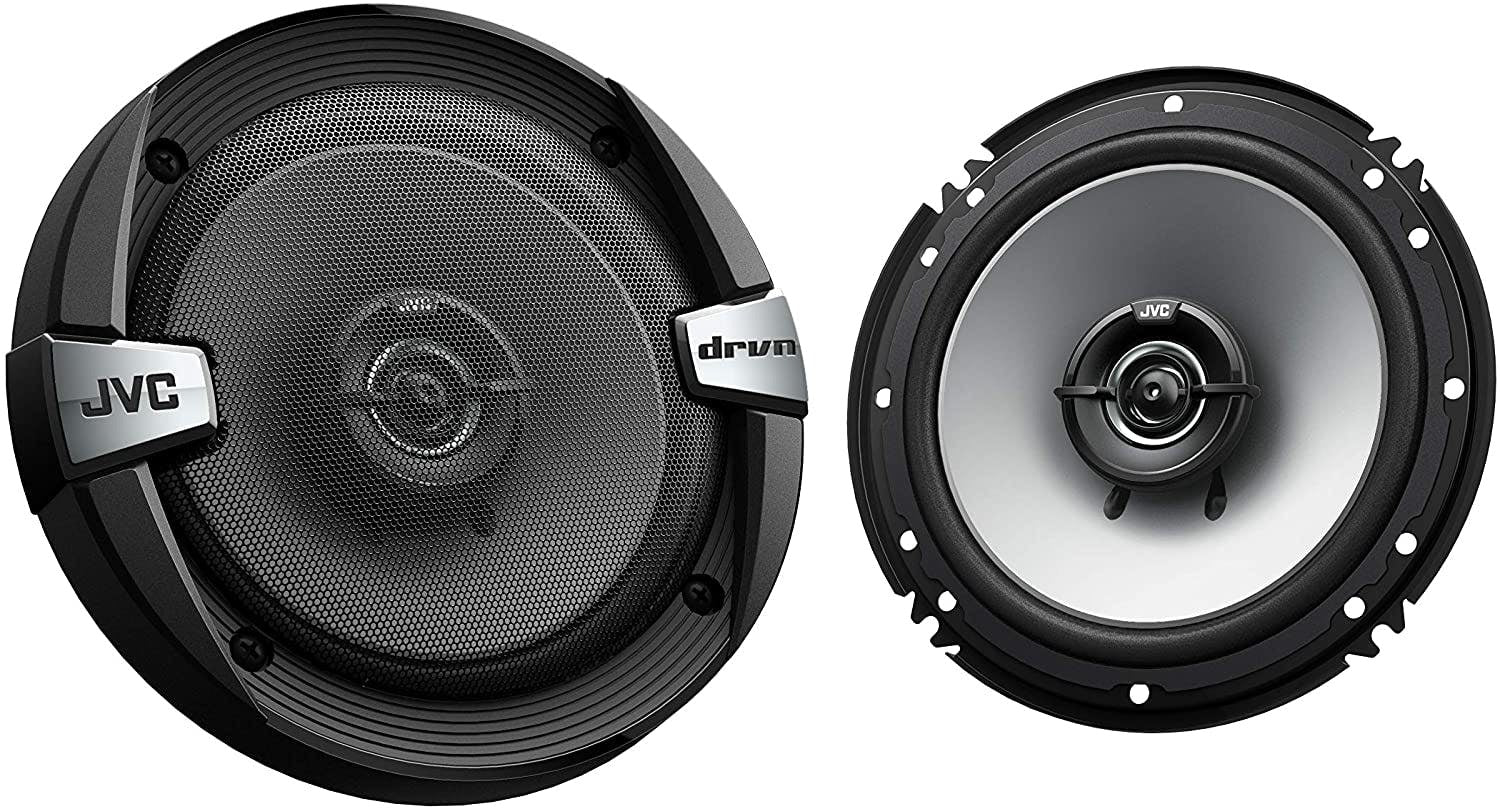

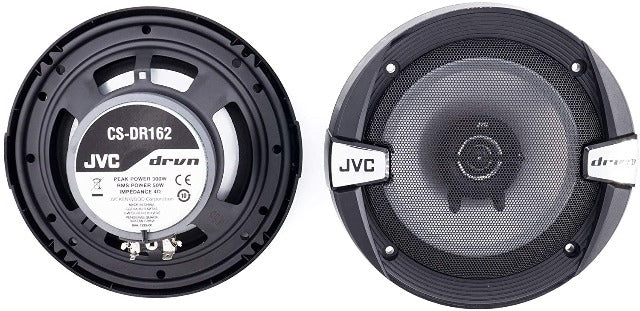

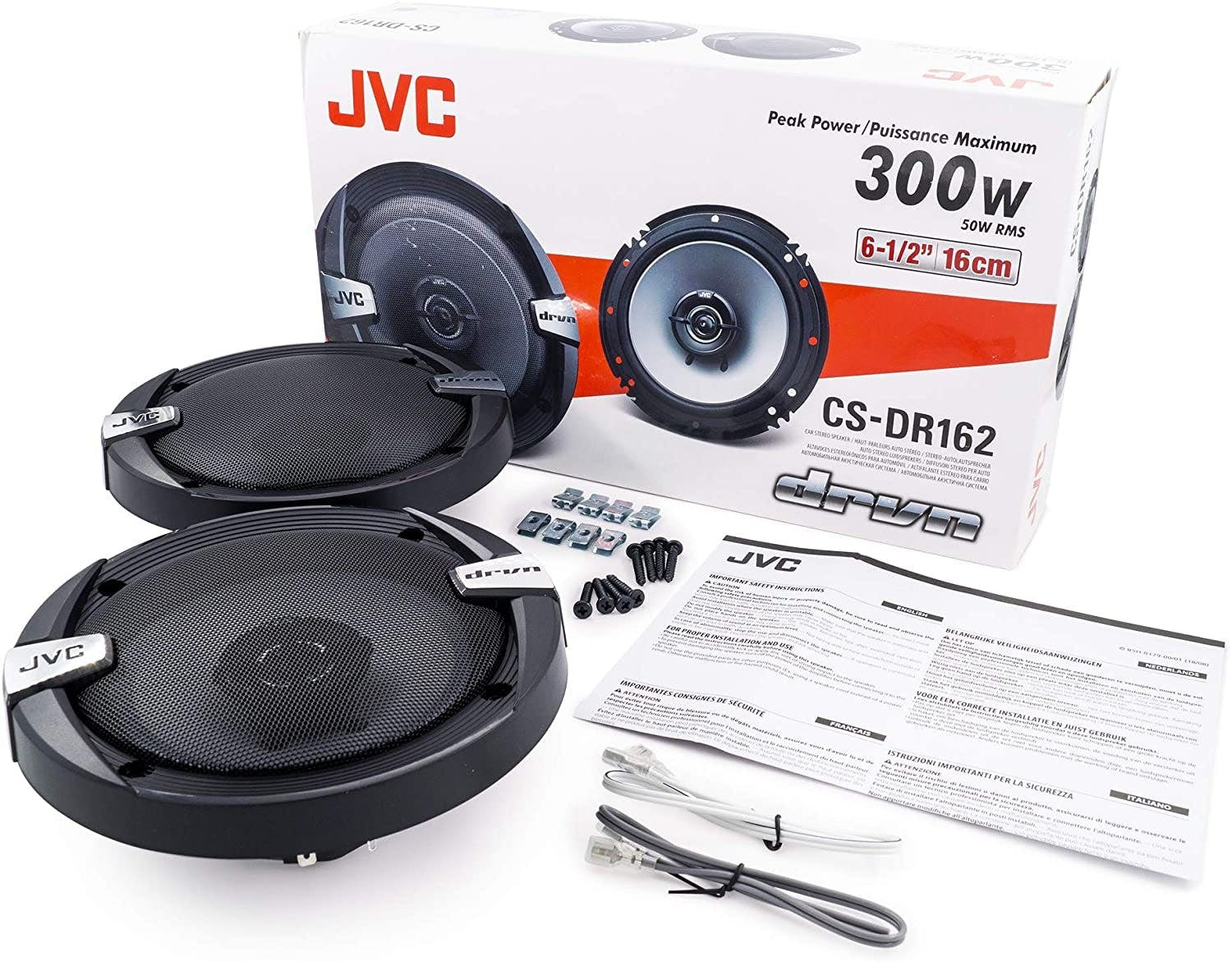

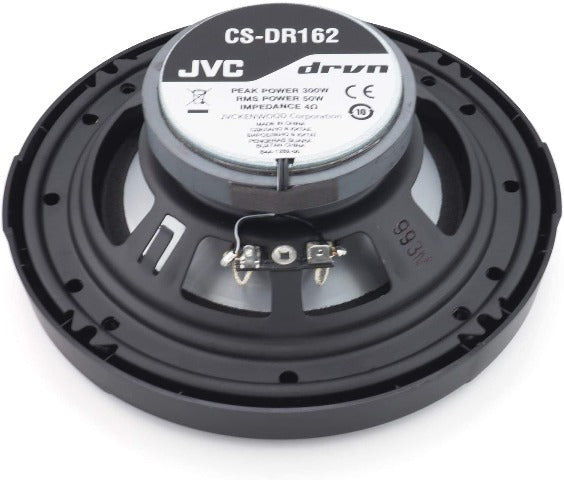

JVC

CS-DR162


6-1/2" (16cm) 2-Way Coaxial Speakers

Full Cover Grill Design

Protects the woofer and tweeter in open installations.

Horn Ring Sound Enhancer

Improves mid - higher frequency sound character and reproduces life-like sound.

PP + Mica Cone

Lightweight PP + Mica Cone Material provides highly responsive, clear and undistorted sound


Technical Specifications

Woofer
Size
16 cm (6-1/2'')
Diaphragm
PP
Surround
Cloth
Magnet
Ferrite
Midrange
Size
2.5 cm (1'')
Diaphragm
Balanced Dome
Magnet
Neodymium
General
Frequency Response
88 - 22,000Hz
Power Handling Capacity (RMS)
50W
Power Handling Capacity (Peak Power)
300W
Impedance
4 ohms
Sound Pressure Level
88 dB
Weight
Weight (w.Grille)
0.64kg (1.4lbs)
Weight (w/o Grille)
0.57kg (1.3lbs)
Magnet Mass
220g (7.8oz)
Mounting Depth
44 mm (1-3/4")
