JVC

KD-X560BT


A cool video display

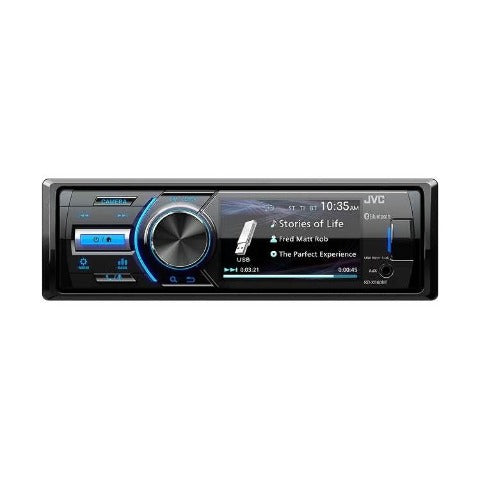

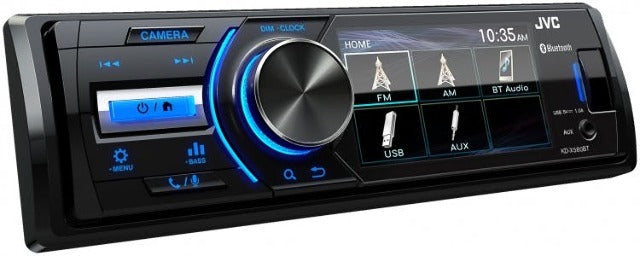

JVC packs a nifty 3" color screen into their marine-rated KD-X560BT digital media receiver for easy source control and for monitoring an optional rear-view cam. A front USB input makes it quick and easy to access your favorite music files, and built-in Bluetooth lets you stream music from your smartphone. When it comes to installation, JVC built the KD-X560BT with a chassis under 5" deep to fit more locations in your Jeep, convertible, or boat than your average DIN powersports receiver.

Boost your sound

The KD-X560BT sports three sets of preamp outputs so you'll have lots of options for building up your system with outboard amps and subs.

All weather-ready

JVC adds a conformal coating to protect this radio's electronic circuits from moisture to ensure your music can't be stopped, season after season.

Rear-view camera input

Backup cams are so handy, even in a boat or UTV. JVC equips this receiver with a rear-view camera input so you can add a view of what's behind you with an optional camera (not included).

Optional remote

Add control to your radio elsewhere in the boat with JVC's wired remote control (not included).

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities.

Product highlights:

    General Features:
    • digital media receiver for Jeep, powersports, or marine applications
    • 3" TFT color LCD screen
    • built-in Bluetoothand reg; for music streaming
    • plays MP3, WAV, WMA, and FLAC (96 kHz/24 bit) music files
    Marine-specific Features:
    • conformal coated circuitry
    • covered USB input
    Audio Features:
    • 13-band EQ
    • high-pass filter/low-pass filter
    • time alignment (improves stereo image at driver's seat)
    Expandability:
    • inputs: front aux input; front USB input; rear camera input
    • outputs: 5-channel preamp outputs (2-volt front, rear, and sub)
    Other Features and Specs:
    • built-in amplifier (16 watts RMS/45 peak x 4 channels)
    • compatible with most factory steering wheel audio controls (adapter required)
    • remote-ready:
    • wired remote (RM-RK62M, sold separately)
    • wireless remote (RM-RK258, sold separately)
    • warranty: 2 years (1 year for Canada)
    • MFR # KD-X560BT

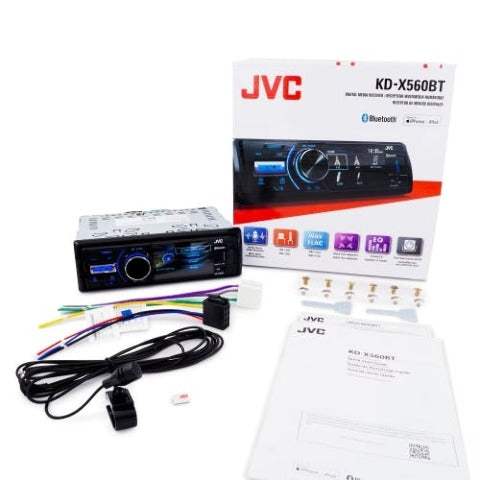

    What's in the box:

    • Digital media receiver (15A fuse)
    • Face (attached)
    • Sleeve (installed)
    • Trim ring
    • Power harness Speaker harness
    • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
    • 6 Pan-head ISO-screws
    • 6 Counter-sunk ISO-screws
    • 2 Radio removal tools
    • Trim-ring removal tool
    • Quick Start Guide
    • Warranty Information

    Features and amp; specs

    Expandability
    AUX Input Front
    Audio/video Input No
    USB Input Front
    Backup Camera Input Yes
    Second Camera Input No
    CarPlay No
    Android Auto No
    Siri Control No
    Alexa Voice Control N
    Android Control Yes
    Memory Card Slot USB memory
    Bluetooth Compatible Built-in
    Satellite Radio Ready No
    HD Radio No
    Navigation No
    iPod Compatibility
    Full size No
    Nano No
    Touch 6Gen and up
    iPhone 5 and up
    General
    RMS Power (CTA-2006) N/A
    RMS Power (Manufacturer) 16 watts
    Peak Output 45 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 5-channel
    Sub Preamp Outputs No
    Switchable Rear Preamp Outputs No
    Video Screen No
    Navigation App Compatible (iOS) N
    Navigation App Compatible (Android) N
    Preamp Voltage 2 volts
    Screen Size 3
    Display Color
    Key Button Color Blue
    EQ Bands 13
    Wireless Remote Optional
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 2 Years
    Labor Warranty 2 Years
    Tuner
    FM Sensitivity 8.2 dBf
    European Tuning Yes
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3, WMA, AAC, FLAC, WAV
    High-res Playback FLAC (96kHz)
    Second Camera Input Lane Watch N
