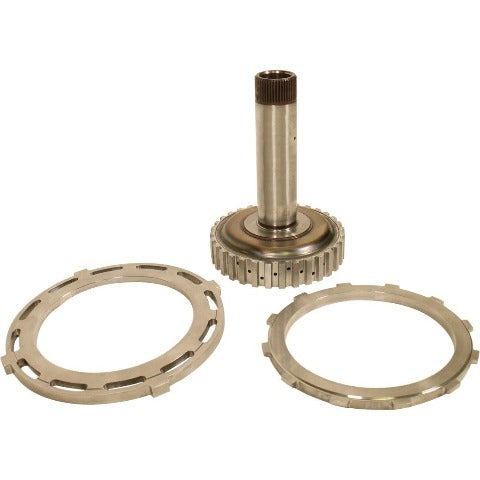

Big Stack Overdrive Shaft and Reaction Plates Kit; Big Stack Overdrive Shaft/Reaction Plates; Incl. BD Overdrive Shaft/Reaction Plate OE-US and OD-Rev;
The BD Big Stack consists of 16 overdrive clutches, made possible with an improved OD shaft with increased spline depth, and two billet QT100 reaction plates. This allows for a 33% increase in mechanical torque holding capacity and a 33% increase in steel thermal mass. The billet QT100 plates reduce clutch coning due to the stiffer material and geometry. The BD Big Stack can be used in conjunction with a Sonnax input drum to allow a 16% increase in apply area. This setup will allow for a 54% increase in mechanical torque holding capacity. An electronic pressure enhancer (1030369) will further increase OD torque holding capacity.
- 16 Overdrive Friction Surfaces
- 33 Percent Increased Torque Holding Capacity
- Billet QT100 Reaction Plates
- Billet Machined Overdrive Shaft Spline
- 33 Percent More Steel Mass For Better Heat Absorption
- Raybestos Clutches PN[B29308L/B29309L] Are Required
- 12 Month Warranty
Application Summary:
| Year |
Make/Model |
| 2007-2010 |
Dodge Ram 2500 |
| 2007-2010 |
Dodge Ram 3500 |
| 2011-2018 |
Ram 2500 |
| 2011-2018 |
Ram 3500 |
Additional Information:
