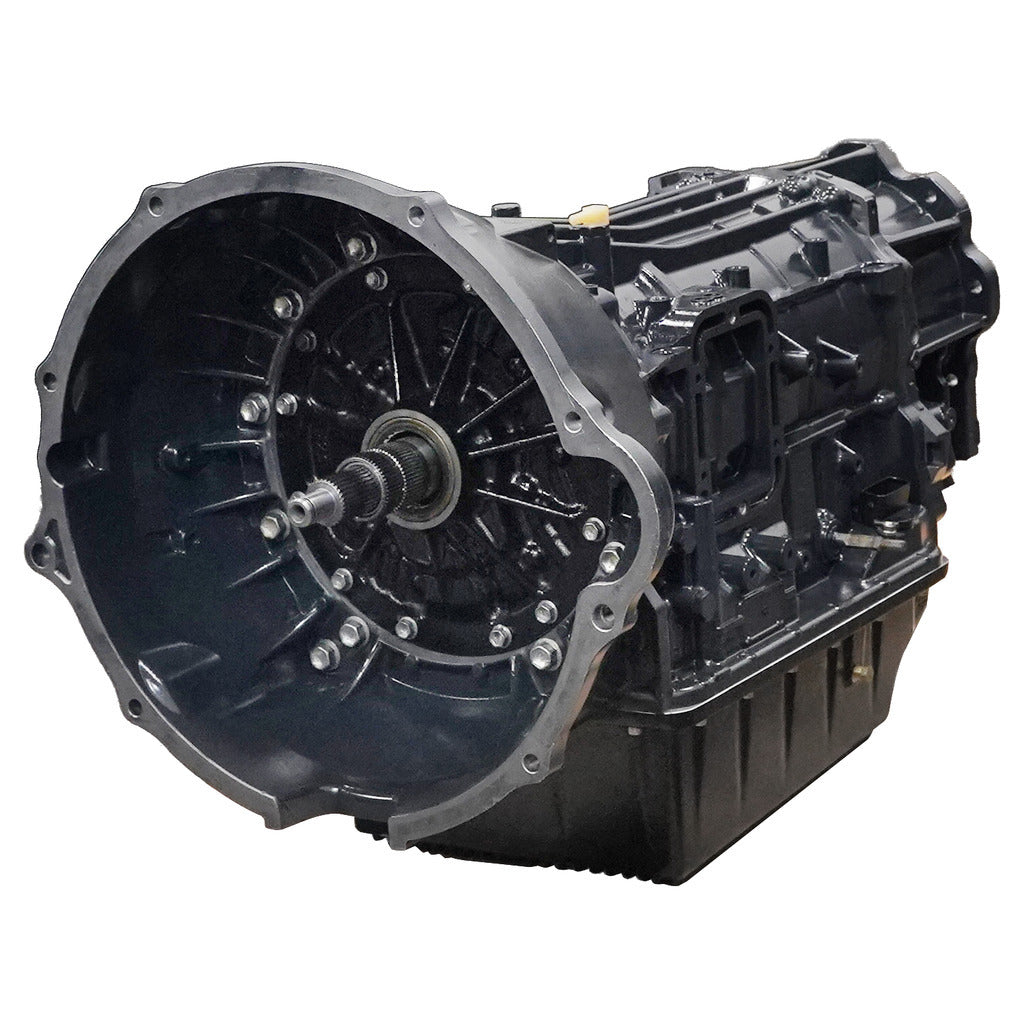

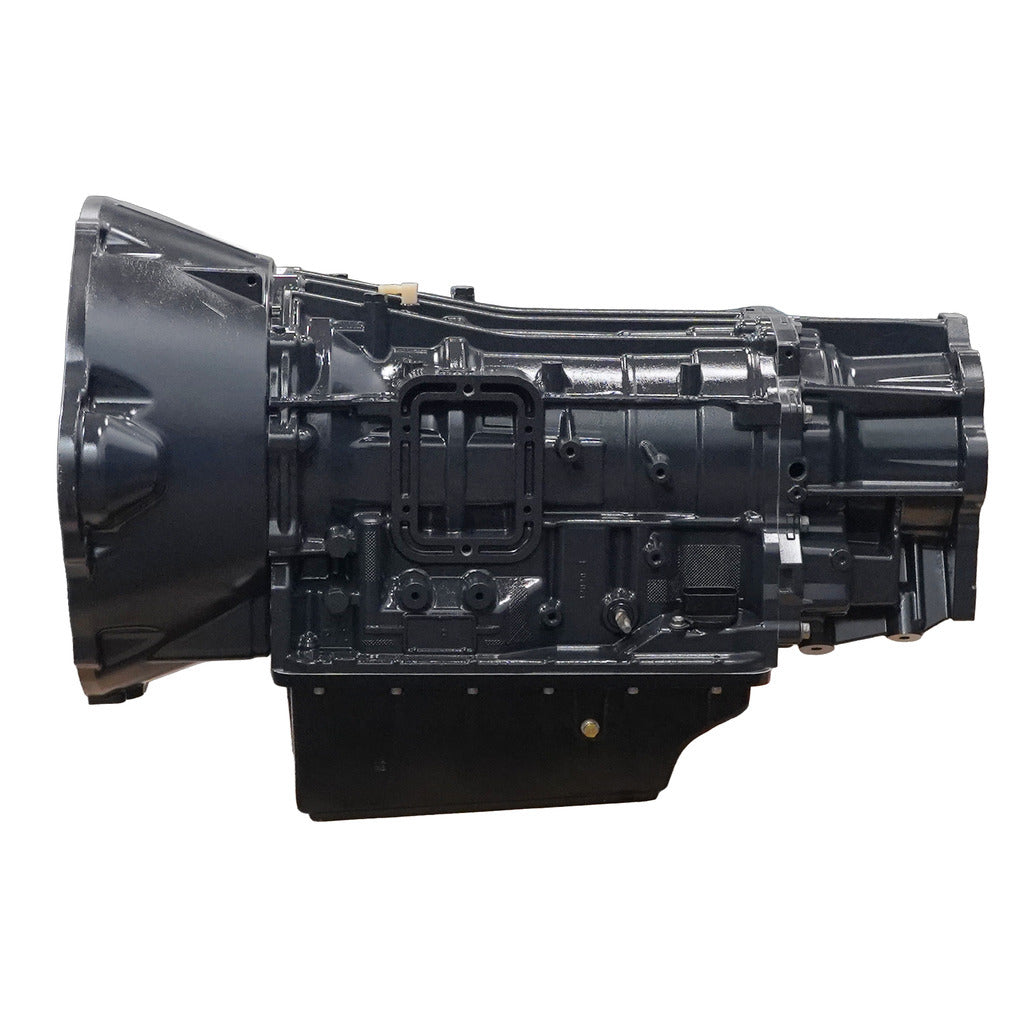

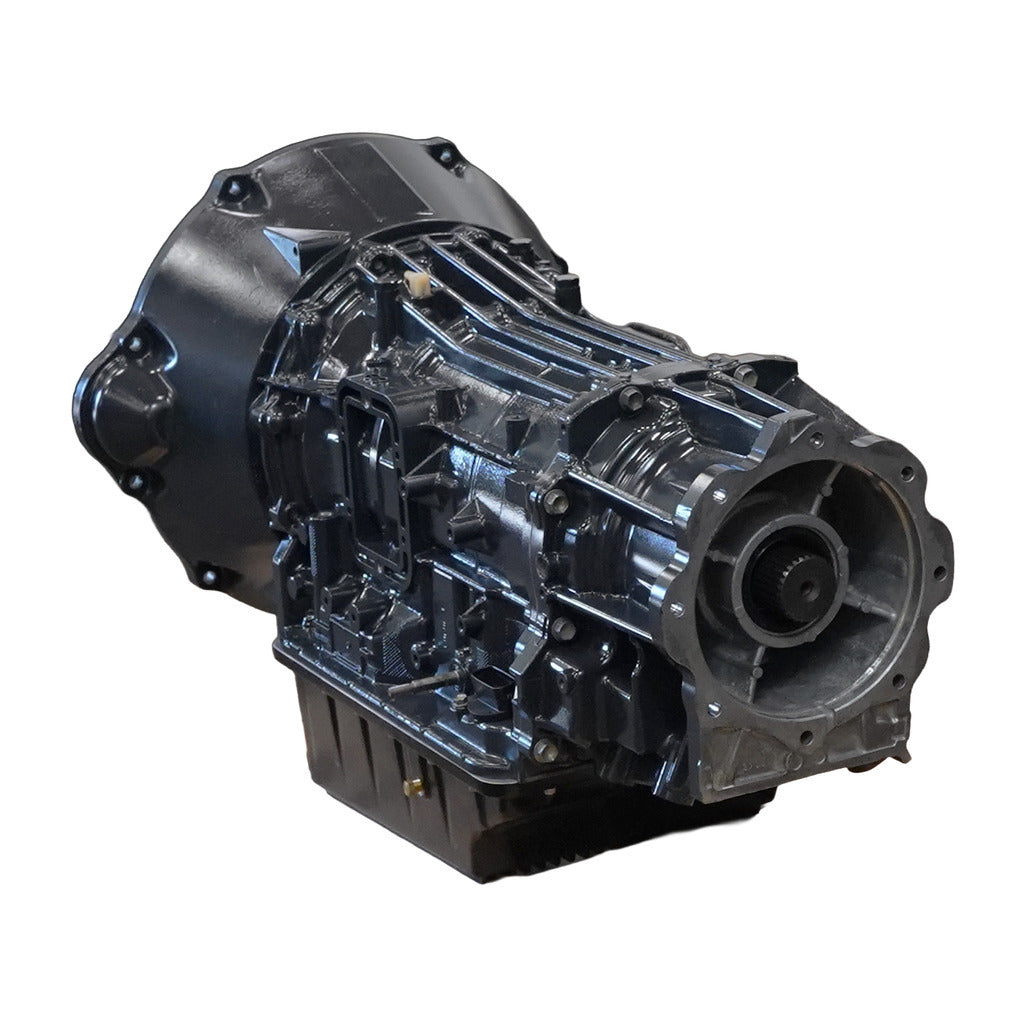

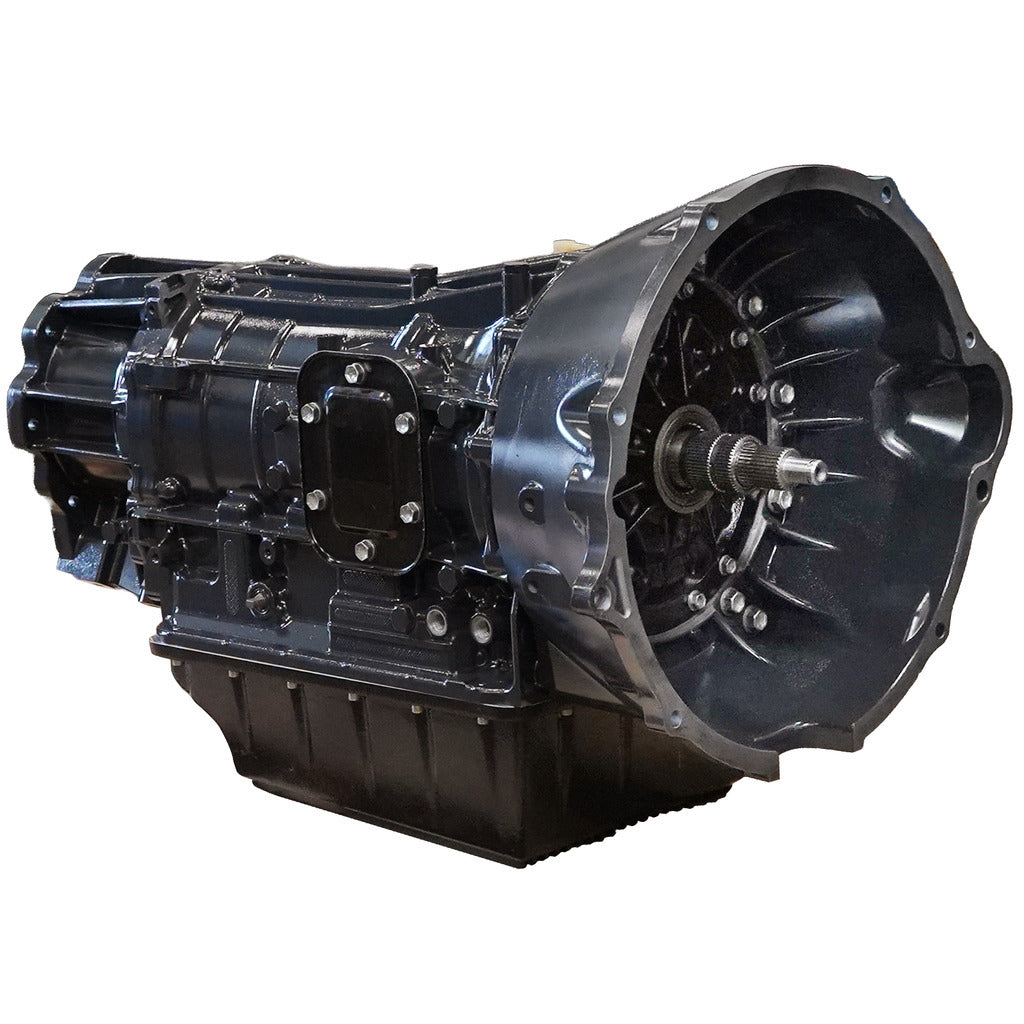

BD Diesel Performance TowMaster Transmission and Converter Package Aisin AS69RC for Ram 3500/4500/5500 6.7L 2013-2018 2WD

PN. 1064272SS

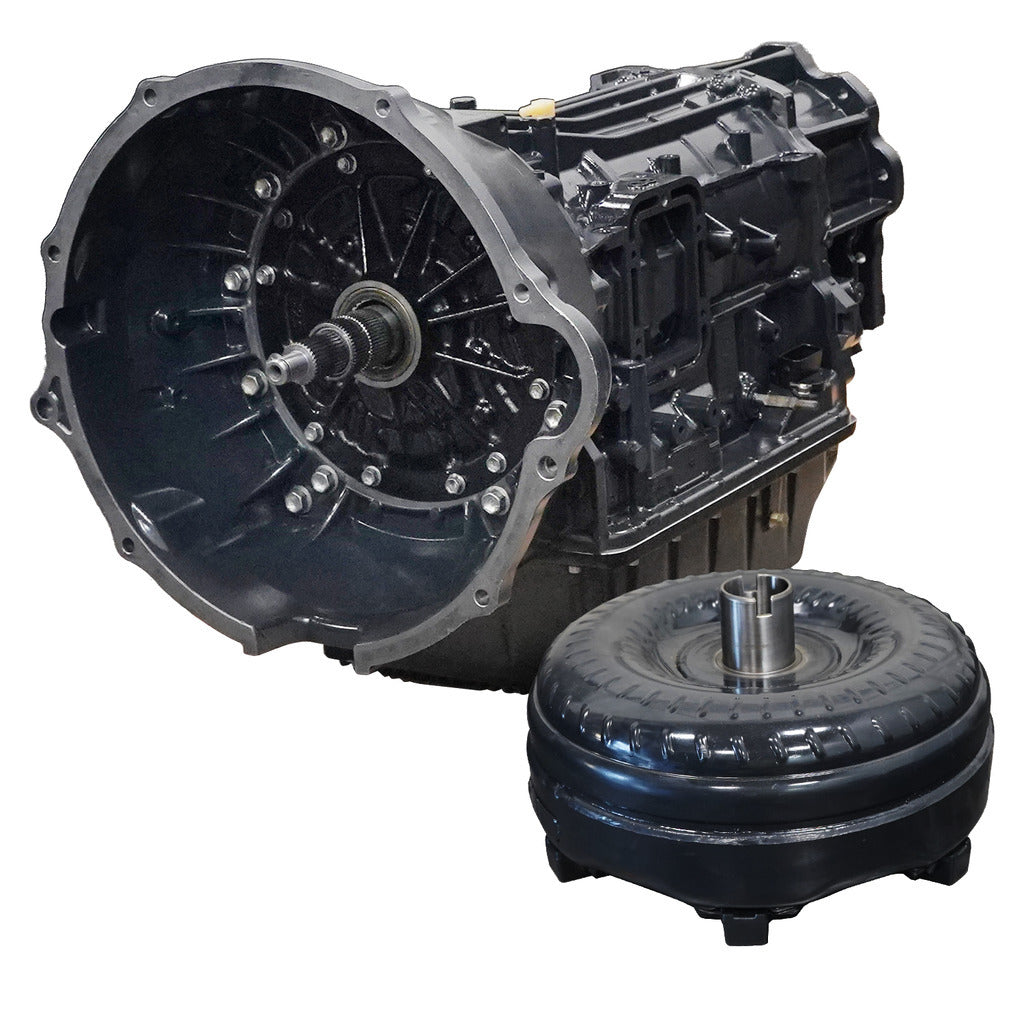

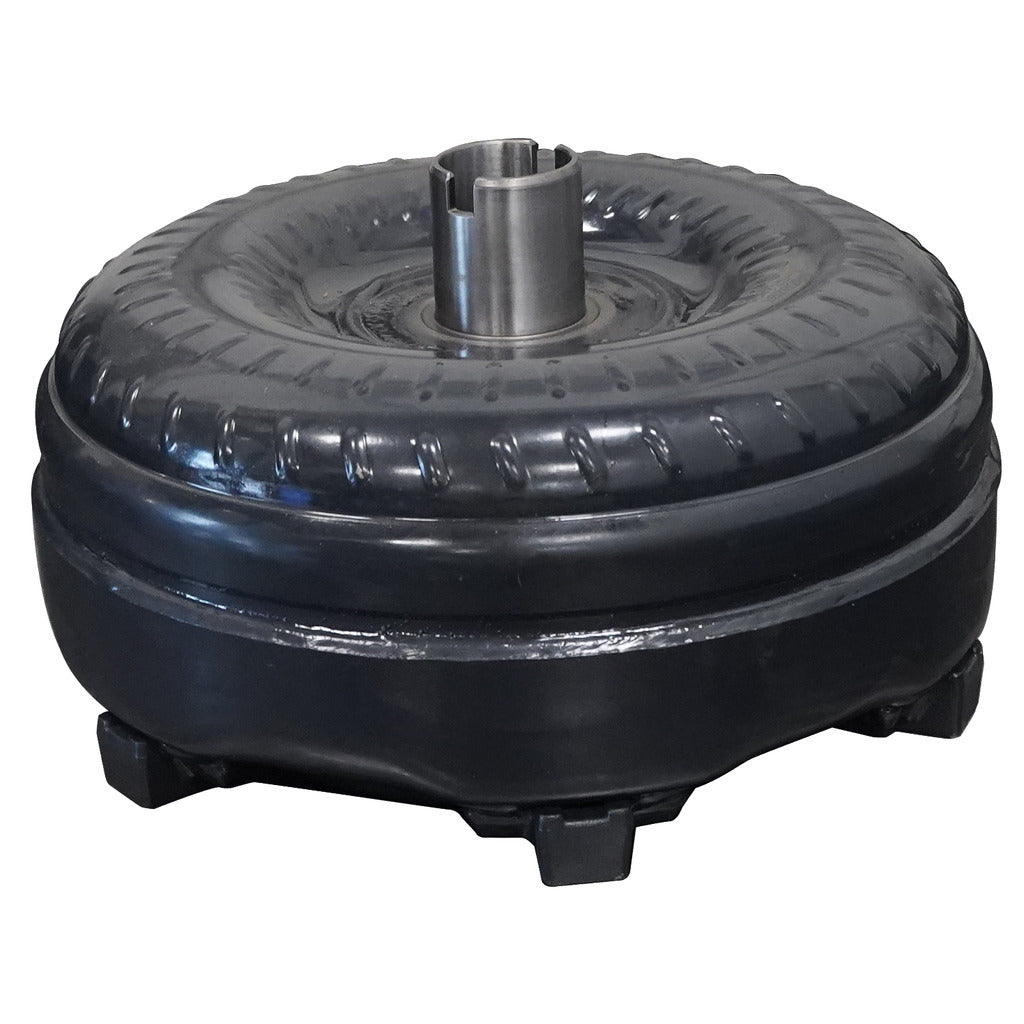

The BD TowMaster Aisin AS69RC transmission package is a heavy-duty replacement for modified 6.7L Cummins Ram 3500-5500 trucks. A hardened billet K2 hub and billet K3 drum correct the AS69RC's common K2 spline wear and primary failure points, while added clutches in the K2, K3 and B1 packs increase torque capacity. An upgraded valve body raises line pressure for better clutch apply, the deep sump pan adds 3.5 quarts for cooling, and nitrile pan and PTO gaskets prevent leaks. An OE-style ProForce torque converter is included.

Features and Benefits:

• 2WD

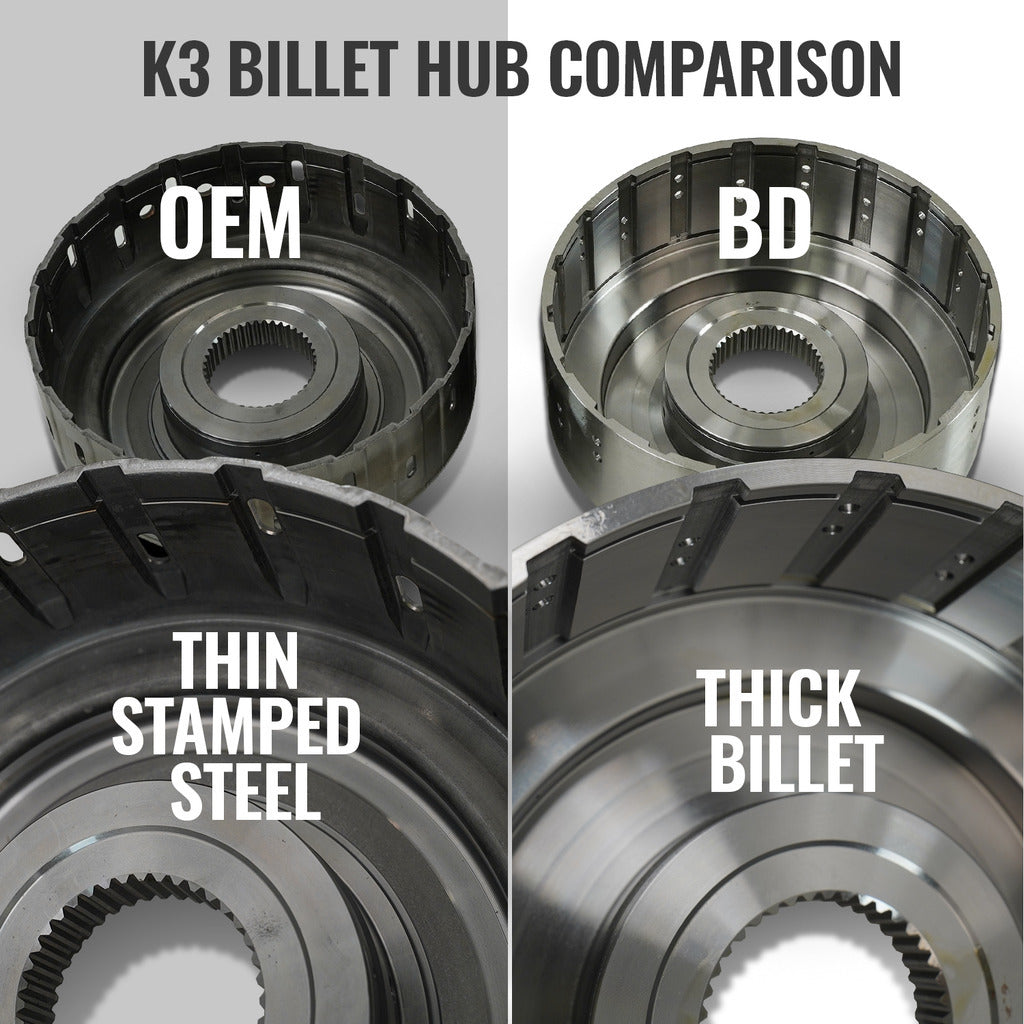

• Billet K3 Drum provides increased durability and strength

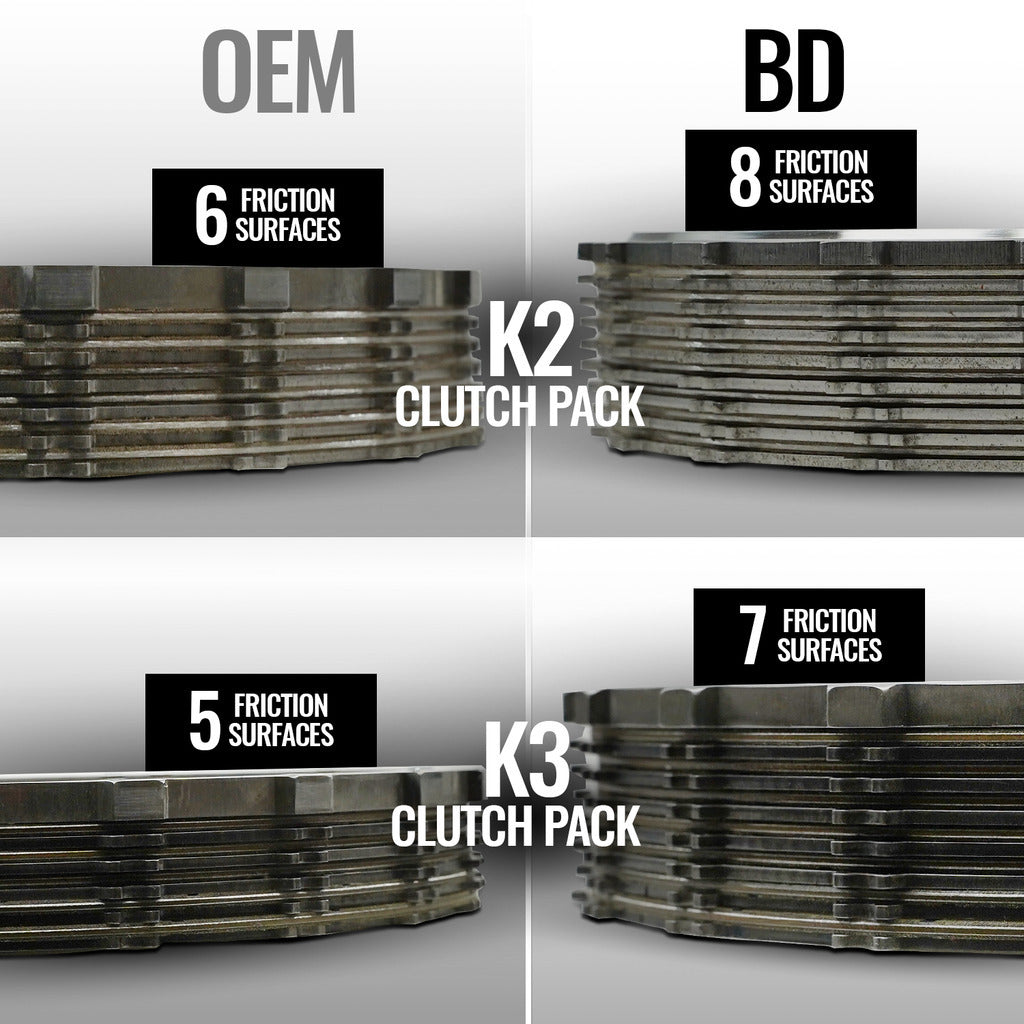

• More clutches compared to stock and competitors for increased clutch torque capacity and durability
• Clutch Count K1: 7
• Clutch Count K2: 8 (33% increase over stock)
• Clutch Count K3: 7 (40% increase over stock)
• Clutch Count B1: 6 (20% increase over stock)
• Clutch Count B2: 8
• Increased valve body line pressure for increased clutch holding capacity

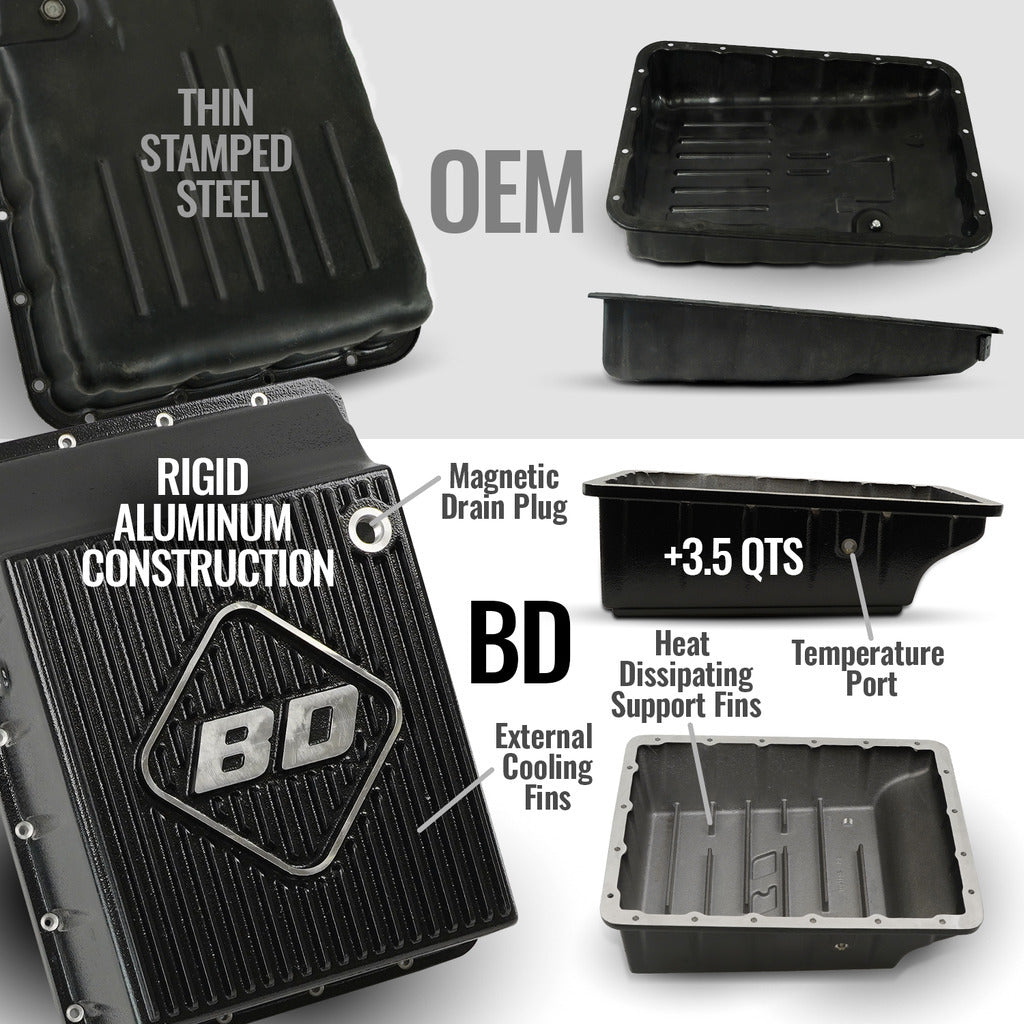

• BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling
• Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
• New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
• New sprag for reliable stator operation
