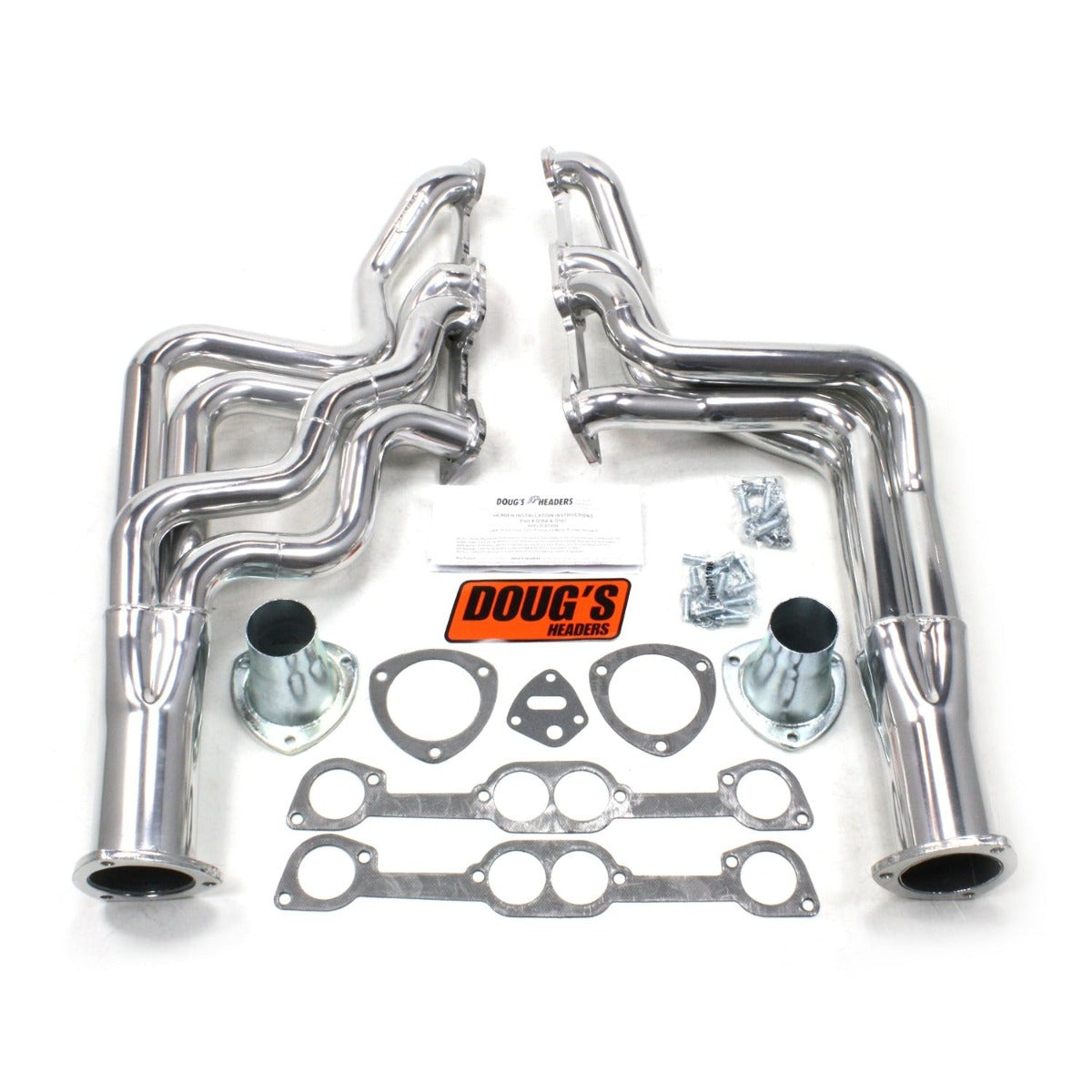

Doug's Headers D567 1 7/8 4-Tube Full Length Header Metallic Ceramic Coating

Doug's Headers D567 1 7/8 4-Tube Full Length Header Metallic Ceramic Coating

Doug's Headers
DOUD567
This is a SPECIAL ORDER part. This item can be brought in either with a stock order or on its own. Contact us today to discuss available options BEFORE ordering.
$1,553.84
$1,490.47
$1,553.84

Verify fitment with your vehicle
GO
Clear
 More payment options
Doug's Headers D567 1 7/8 4-Tube Full Length Header Metallic Ceramic Coating

Doug's Headers

Doug's Headers D567 1 7/8 4-Tube Full Length Header Metallic Ceramic Coating

$1,490.47 $1,553.84
Doug's Headers D567 1 7/8 4-Tube Full Length Header Metallic Ceramic Coating

Doug's Headers

Doug's Headers D567 1 7/8 4-Tube Full Length Header Metallic Ceramic Coating

$1,490.47 $1,553.84
Description
Doug's Long Tube Header 64-67 GTO 455 W/HO/SD/Ram Air Heads only 1 7/8 Primary 3 1/2 Collector Silver Ceramic Coated D567
Doug's PASSENGER CAR HEADERS Long Tube Metallic Ceramic Coated

Application Summary:

Year Make/Model
1964-1972 Pontiac GTO
1964-1971 Pontiac LeMans
1964-1970 Pontiac Tempest
Fitment
Year
Make
Model
Engine
Notes
1964 - 1966
Pontiac
GTO
6.4L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1964
Pontiac
GTO
6.4L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; Use 64 Z-Bar; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled/tapped; W/Turbo 400 use short modulator valve
1964
Pontiac
GTO
6.4L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1967 - 1972
Pontiac
GTO
6.6L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1967
Pontiac
GTO
6.6L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1970 - 1972
Pontiac
GTO
7.5L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1970
Pontiac
GTO
7.5L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1964 - 1967
Pontiac
LeMans
5.3L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1964
Pontiac
LeMans
5.3L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; Use 64 Z-Bar; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled/tapped; W/Turbo 400 use short modulator valve
1964
Pontiac
LeMans
5.3L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1968 - 1971
Pontiac
LeMans
5.7L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1968
Pontiac
LeMans
5.7L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1968 - 1971
Pontiac
LeMans
6.6L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1968
Pontiac
LeMans
6.6L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1970 - 1971
Pontiac
LeMans
7.5L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1970
Pontiac
LeMans
7.5L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1964 - 1967
Pontiac
Tempest
5.3L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1964
Pontiac
Tempest
5.3L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1968 - 1970
Pontiac
Tempest
5.7L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1968
Pontiac
Tempest
5.7L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
1968 - 1970
Pontiac
Tempest
6.6L
exc. states w/Calif. emission stds; Fits Edelbrock Performer, RAM-Air, Super Duty, HO heads only; removal/modification of locking Strg column req;factory heads w/o end bolt holes must be drilled and tapped; W/Turbo 400 use short modulator valve
1968
Pontiac
Tempest
6.6L
Requires removal or modification of locking steering columns if equipped.
Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
Header will fit with Milodon oil pans 30355, 31660 & 31665.
4 speed applications must modify the Z-Bar to clear the headers.
Turbo 400 equipped applications must use shorter aftermarket modulator valve (2 3/4" long)
