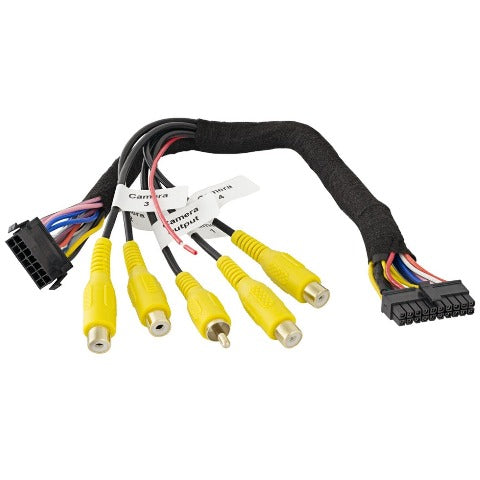

Metra Electronics AX-ADDCAM Universal Add-On Multiple CAN Activated Cameras

Universal Add-On Multiple CAN Activated Cameras;

---

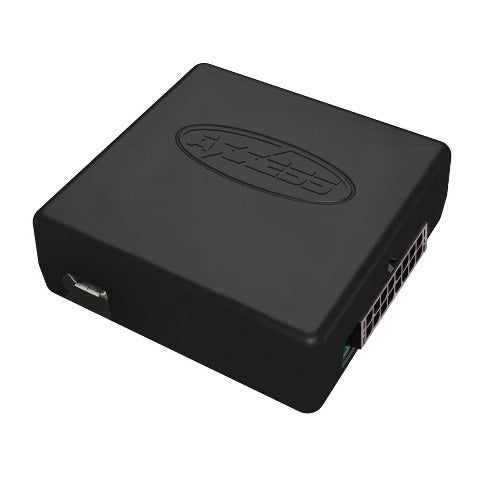

The Axxess AX-ADDCAM interface is a camera switching interface that will provide up to (3) additional camera inputs to the factory radio, while still retaining the factory camera. With this interface a front camera, and also side cameras can be added to the factory radio. The cameras function automatically*, no human interaction required, unless desired to do so. Axxesshas also created a line of vehicle specific "Plug & Play" harnesses for the AX-ADDCAM. These harnesses must be used along with the AX-ADDCAM. The AX-ADDCAM can also be used if the factory system does not originally come equipped with a backup camera, aDDINg up to (4) cameras in this instance. Some vehicles may not have the turn signal, and/or reverse signal available on the vehicles CAN-bus. For vehicles that do not have those signals available, the interface will need to be manually controlled by analog triggers. * Only applicable vehicles listed in the drop down menu in the Axxess Updater program will retain this feature.

• Camera Inputs
• Programmable 12V 5Amp Switched Output
• Reverse Signal Generated By CAN Bus Communication Of The Vehicle
• Turn Signal Trigger Generated By Can Bus Communication Of Vehicle
• Programmable Camera Control Wires
• Vehicle Speed Sense Input And Output
• Configured Through The Axxess Updater Program
• Micro B USB Updatable

---

Application Summary:

UNIVERSAL
