Metra Electronics AX-DSP-HD1 Plug-N-Play Harness For AX-DSP

Plug-N-Play Harness For AX-DSP;

---

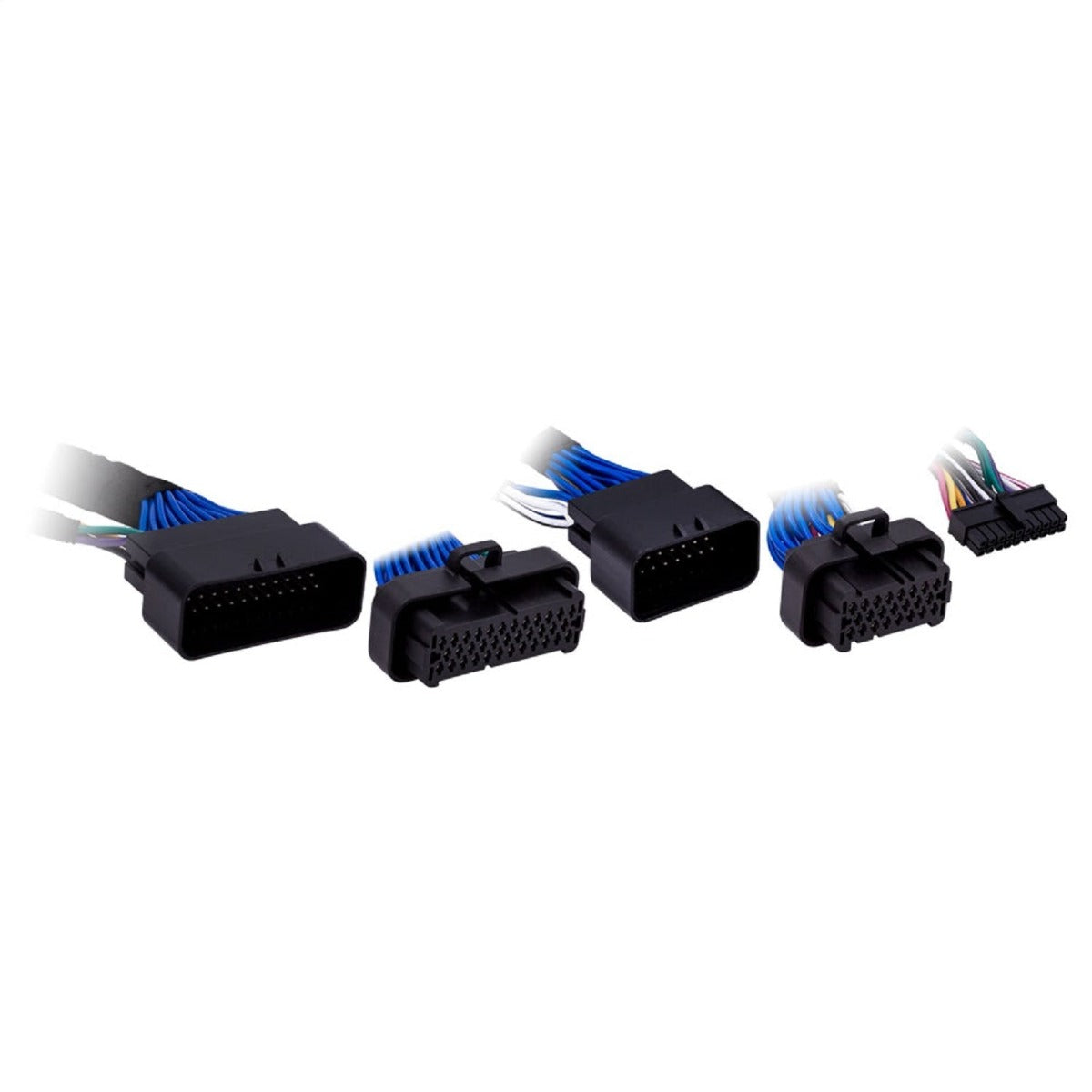

AXXESS has developed a cost effective option for customers wanting to retain their factory radio and improve vehicle sound quality. These plug-n-play harness work with the AX-DSP (SOLD SEPERATELY). The Axxess T-harness is a basic and simple plug-n-play harness for easy installation of the AX-DSP (sold separately) for vehicle specific applications. Most T-harnesses created by Axxess will either have a 4-pin or 8-pin harness, with the speaker wires pinned. If you are installing a 4-channel amplifier with the AX-DSP, leave these connectors disconnected. The only reason for connecting these harnesses together would be if the AX-DSP is being used for aDDINg a subwoofer amplifier only. Some T-harnesses require additional wiring and/or installation steps. Refer to the following page for a pinout legend for the 20-pin harness, and also additional wiring and notes.

• Retains Factory Radio
• Improves Vehicle Sound Quality
• Must Used With Ax-Dsp Digital Signal Processor Sold Separately
• Plug-N-Play Harness For Easy Installation Of The Ax-Dsp

---

Application Summary:

Year	Make/Model
2012-2013	Harley Davidson FLD Switchback
1998-2013	Harley Davidson FLHR Road King
2007-2013	Harley Davidson FLHRC Road King Classic
1998-2006	Harley Davidson FLHRCI Road King Classic
2000-2006	Harley Davidson FLHRI Road King
2004-2007	Harley Davidson FLHRS Road King Custom
2007	Harley Davidson FLHRSE3 Screamin Eagle Road King
2008	Harley Davidson FLHRSE4 Screamin Eagle Road King
2013	Harley Davidson FLHRSE5 CVO Road King
2002	Harley Davidson FLHRSEI Screamin Eagle Road King
2003	Harley Davidson FLHRSEI2 Screamin Eagle Road King 2
2004-2006	Harley Davidson FLHRSI Road King Custom
1998-2009	Harley Davidson FLHT Electra Glide Standard
1998-2005	Harley Davidson FLHTC Electra Glide Classic
2007-2013	Harley Davidson FLHTC Electra Glide Classic
1998-2006	Harley Davidson FLHTCI Electra Glide Classic
2004	Harley Davidson FLHTCSE Screamin Eagle Electra Glide
2005	Harley Davidson FLHTCSE2 Screamin Eagle Electra Glide 2
2007-2013	Harley Davidson FLHTCU Electra Glide Ultra Classic
1998-2006	Harley Davidson FLHTCUI Electra Glide Ultra Classic
2006	Harley Davidson FLHTCUSE Screamin Eagle Ultra Classic Electra Glide
2007	Harley Davidson FLHTCUSE2 Screamin Eagle Ultra Classic Electra Glide
2008	Harley Davidson FLHTCUSE3 Screamin Eagle Ultra Classic Electra Glide
2009	Harley Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide
2010	Harley Davidson FLHTCUSE5 CVO Ultra Classic Electra Glide
2011	Harley Davidson FLHTCUSE6 CVO Ultra Classic Electra Glide
2012	Harley Davidson FLHTCUSE7 CVO Ultra Classic Electra Glide
2013	Harley Davidson FLHTCUSE8 CVO Ultra Classic Electra Glide
2009-2013	Harley Davidson FLHTCUTG Tri Glide Ultra Classic
2003-2006	Harley Davidson FLHTI Electra Glide Standard
2010-2013	Harley Davidson FLHTK Electra Glide Ultra Limited
2006-2013	Harley Davidson FLHX Street Glide
2006	Harley Davidson FLHXI Street Glide
2010	Harley Davidson FLHXSE CVO Street Glide
2011	Harley Davidson FLHXSE2 CVO Street Glide
