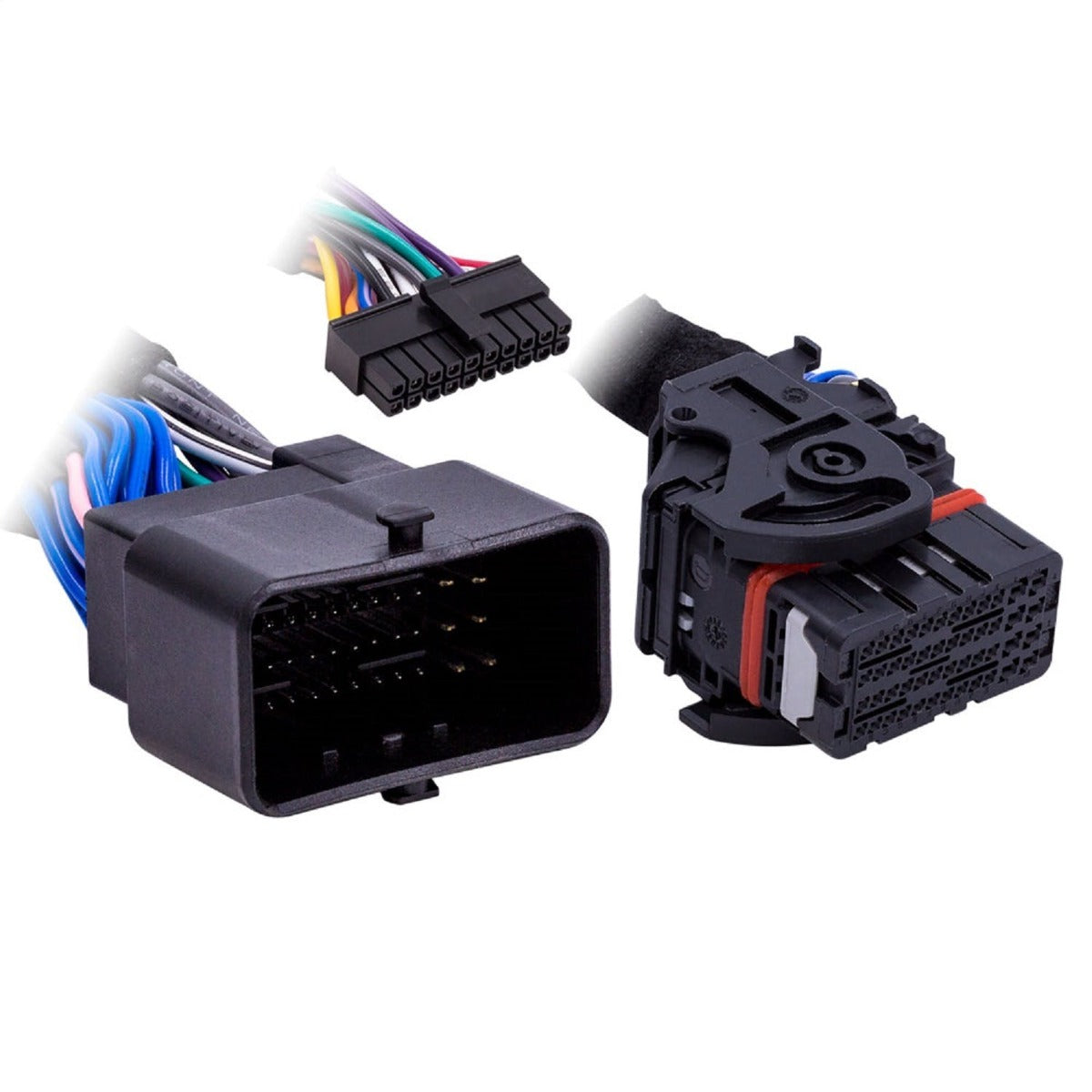

Metra Electronics AX-DSP-HD2 Plug-N-Play Harness For AX-DSP

Plug-N-Play Harness For AX-DSP;

---

AXXESS has developed a cost effective option for customers wanting to retain their factory radio and improve vehicle sound quality. These plug-n-play harness work with the AX-DSP (SOLD SEPERATELY). The Axxess T-harness is a basic and simple plug-n-play harness for easy installation of the AX-DSP (sold separately) for vehicle specific applications. Most T-harnesses created by Axxess will either have a 4-pin or 8-pin harness, with the speaker wires pinned. If you are installing a 4-channel amplifier with the AX-DSP, leave these connectors disconnected. The only reason for connecting these harnesses together would be if the AX-DSP is being used for aDDINg a subwoofer amplifier only. Some T-harnesses require additional wiring and/or installation steps. Refer to the following page for a pinout legend for the 20-pin harness, and also additional wiring and notes.

• Retains Factory Radio
• Improves Vehicle Sound Quality
• Must Used With Ax-Dsp Digital Signal Processor Sold Separately
• Plug-N-Play Harness For Easy Installation Of The Ax-Dsp

---

Application Summary:

Year	Make/Model
2020	Harley Davidson ELW LiveWire
2014-2016	Harley Davidson FLD Switchback
2018-2020	Harley Davidson FLDE Deluxe 107
2018-2019	Harley Davidson FLFB Fat Boy 107
2018-2020	Harley Davidson FLFBS Fat Boy 114
2018-2020	Harley Davidson FLHC Heritage Classic 107
2018-2020	Harley Davidson FLHCS Heritage Classic 114
2014-2020	Harley Davidson FLHR Road King
2014	Harley Davidson FLHRSE6 CVO Road King
2017-2020	Harley Davidson FLHRXS Road King Special
2020	Harley Davidson FLHT Electra Glide Standard
2014-2019	Harley Davidson FLHTCU Electra Glide Ultra Classic
2015-2016	Harley Davidson FLHTCUL Electra Glide Ultra Classic Low
2014-2020	Harley Davidson FLHTCUTG Tri Glide Ultra
2020	Harley Davidson FLHTCUTGSE CVO Tri Glide
2014	Harley Davidson FLHTK Electra Glide Ultra Limited
2015-2020	Harley Davidson FLHTK Ultra Limited
2015-2019	Harley Davidson FLHTKL Ultra Limited Low
2014-2020	Harley Davidson FLHTKSE CVO Limited
2014-2020	Harley Davidson FLHX Street Glide
2014-2020	Harley Davidson FLHXS Street Glide Special
2015-2020	Harley Davidson FLHXSE CVO Street Glide
2015-2020	Harley Davidson FLRT Freewheeler
2014-2017	Harley Davidson FLS Softail Slim
2018-2020	Harley Davidson FLSB Sport Glide 107
2018-2020	Harley Davidson FLSL Softail Slim 107
2016-2017	Harley Davidson FLSS Softail Slim S
2014-2017	Harley Davidson FLSTC Heritage Softail Classic
2014-2017	Harley Davidson FLSTF Fat Boy
2014-2016	Harley Davidson FLSTFB Fat Boy Lo
2016-2017	Harley Davidson FLSTFBS Fat Boy S
2014-2017	Harley Davidson FLSTN Softail Deluxe
2014-2015	Harley Davidson FLSTNSE CVO Softail Deluxe
2020	Harley Davidson FLTRK Road Glide Limited
2016-2019	Harley Davidson FLTRU Road Glide Ultra
2015-2016	Harley Davidson FLTRUSE CVO Road Glide Ultra
2015-2020	Harley Davidson FLTRX Road Glide
2015-2020	Harley Davidson FLTRXS Road Glide Special
2018-2019	Harley Davidson FLTRXSE CVO Road Glide
2018-2020	Harley Davidson FXBB Street Bob 107
