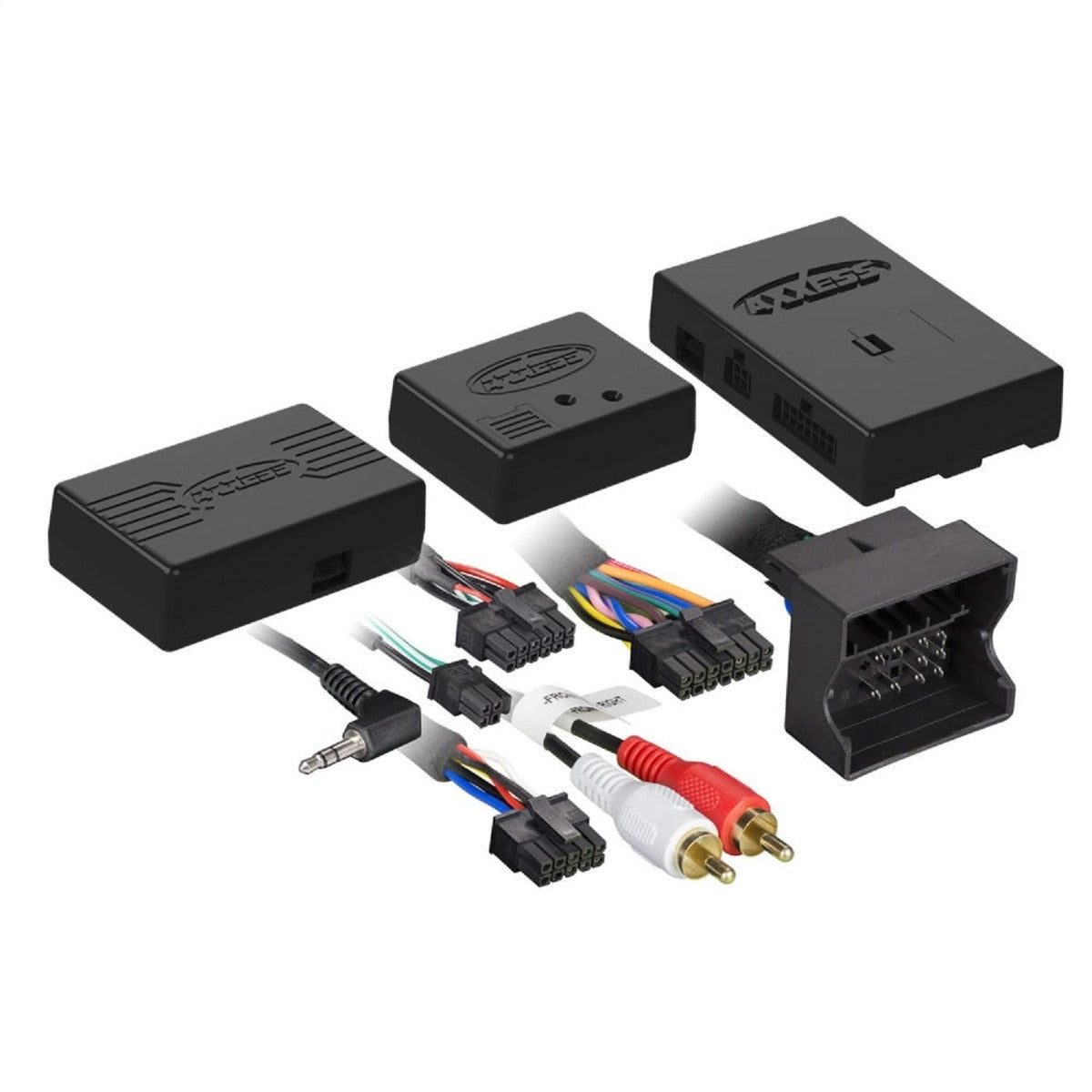

Data Interface; w/SWC And M.O.S.T. 25 AMP;
Axxess interface that can be used when replacing the factory radio in select Mercedes 2005-2011. This interface provides Navigation outputs required when installing a Navigation radio. This interface will also retain the MOST 25 amplifiers (select vehicles). This interface will also retain the steering wheel control functions for a all-in-one solution. The aftermarket radios backup camera input will be used to display the vehicle settings. If the radio does not have a backup camera Input, then there will be no visualization of the vehicle settings. An externally mounted screen could be substituted in this situation.
- Provides Accessory Power
- Designed For Amplified Models
- Provides Navigation Outputs Parking Brake/Reverse/Speed Sense
- Retains Audio Controls On The Steering Wheel
- Retains Balance
- Micro B USB Updatable
Application Summary:
| Year |
Make/Model |
| 2007-2009 |
Mercedes-Benz GL320 |
| 2010-2011 |
Mercedes-Benz GL350 |
| 2007-2011 |
Mercedes-Benz GL450 |
| 2008-2011 |
Mercedes-Benz GL550 |
| 2007-2009 |
Mercedes-Benz ML320 |
| 2005-2011 |
Mercedes-Benz ML350 |
| 2010-2011 |
Mercedes-Benz ML450 |
| 2005-2007 |
Mercedes-Benz ML500 |
| 2008-2011 |
Mercedes-Benz ML550 |
