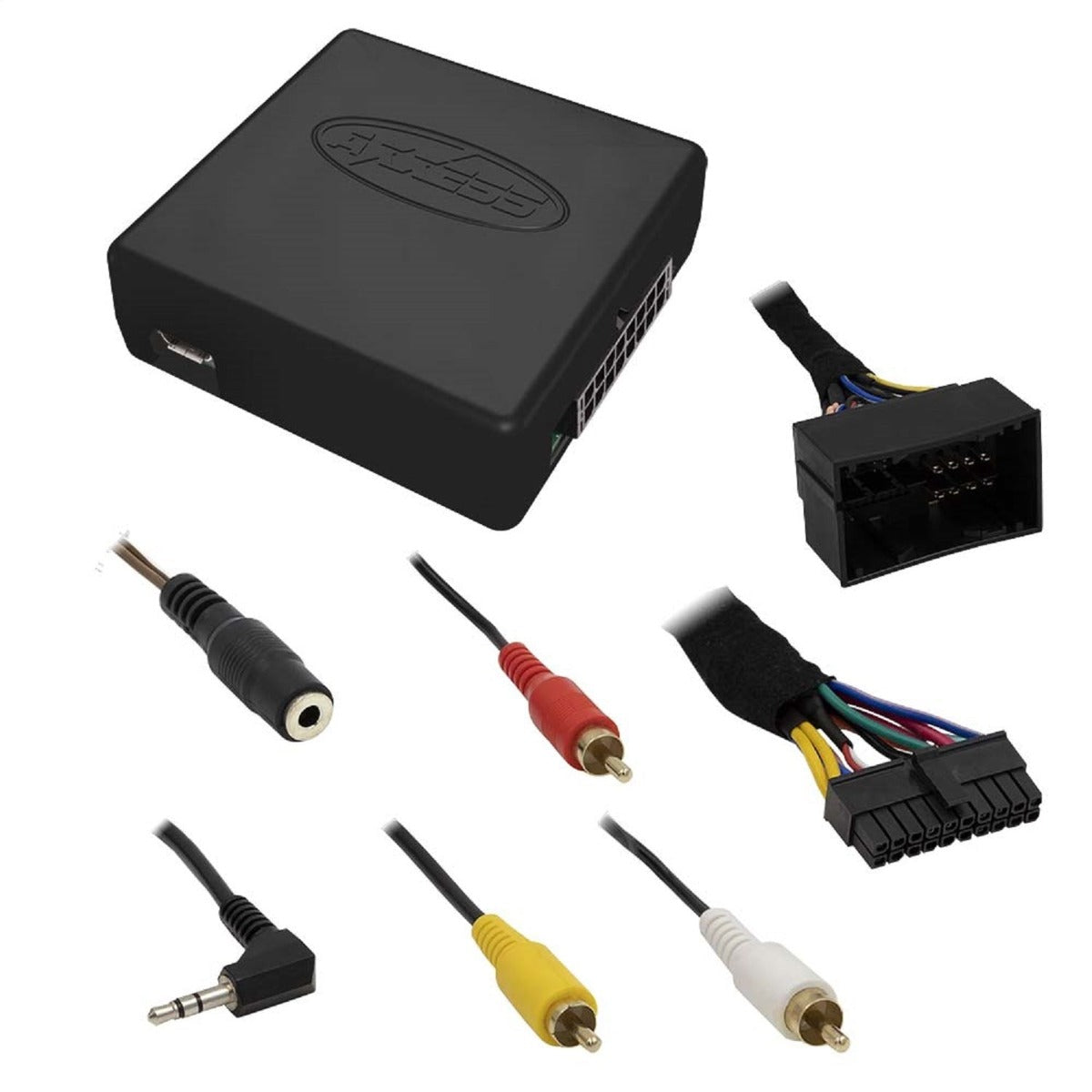

Non-Amplified And Amplified Data Interface w/SWC;
One Solution Provides Total Control. Axxess has engineered a new data interface that combines all of the features of the patented AXSWC with additional patent-pending features into one robust solution for new radio installations. When replacing a radio, the AXTC-1 utilizes patented Auto-Detect technology(1) that automatically detects the vehicle type, radio connection and preset controls, while allowing the ability to dual assign steering wheel controls. It provides NAV outputs, accessory power and a 12-volt illumination output, in addition to retaining R.A.P., balance and fade. Compatible with More Radios and Vehicles. The Axxess Total Control Series is a universal solution designed to work with all major radio brands and both amplified and non-amplified audio systems. In addition to Auto-Detect, it can be manually programmed for most vehicles and will retain settings even after battery disconnection or interface removal. Additional vehicle-specific packages include harnessing for an easier installation.
- Provides Accessory Power 10-Amp
- Provides Wires For Nav Radios Park Brake/Reverse/Speed Sense
- Retains Audio Controls On The Steering Wheel
- Designed To Be Compatible With All Major Radio Brands
- Auto Detects Vehicle Type/Radio Connection And Preset Controls
- Ability To Dual Assign Steering Wheel Control Buttons
- Retains The Factory Backup Camera
- Retains The 3.5mm AUX-IN Jack
Application Summary:
| Year |
Make/Model |
| 2015-2016 |
Chrysler 200 |
| 2013-2016 |
Dodge Dart |
| 2014-2016 |
Jeep Cherokee |
| 2017-2018 |
Jeep Compass |
| 2013-2017 |
Ram 1500 |
| 2019 |
Ram 1500 Classic |
| 2013-2017 |
Ram 2500 |
| 2013-2017 |
Ram 3500 |
