Brandmotion TRNS-2181: Wireless Transparent Trailer? System for Ford F-150 (2015-Current) & Super Duty (2017-Current)

Brandmotion TRNS-2181: Wireless Transparent Trailer? System for Ford F-150 (2015-Current) & Super Duty (2017-Current)

Brandmotion
BRMTRNS-2181
This is a SPECIAL ORDER part. This item can be brought in either with a stock order or on its own. Contact us today to discuss available options BEFORE ordering.
$1,073.85
$1,073.85
$1,073.85
Brandmotion TRNS-2181: Wireless Transparent Trailer? System for Ford F-150 (2015-Current) & Super Duty (2017-Current)

Brandmotion

Brandmotion TRNS-2181: Wireless Transparent Trailer? System for Ford F-150 (2015-Current) & Super Duty (2017-Current)

$1,073.85
Brandmotion TRNS-2181: Wireless Transparent Trailer? System for Ford F-150 (2015-Current) & Super Duty (2017-Current)

Brandmotion

Brandmotion TRNS-2181: Wireless Transparent Trailer? System for Ford F-150 (2015-Current) & Super Duty (2017-Current)

$1,073.85
Description

BrandMotion Wireless Transparent Trailer® System for Ford F-150 (2015-Current) & Super Duty (2017-Current)

TRNS-2181

Not being able to see behind your trailer is a thing of the past. The first-of-its-kind Brandmotion Transparent Trailer system provides a continuous high-definition video feed to your digital rearview mirror, enhancing safety, increasing confidence, and reducing stress while pulling trailers or hauling cargo.

What does the system allow you to do?

  • See behind the trailer at all times – not just while in reverse – with HD-quality video. See if you’re being tailgated or when a vehicle is about to pass you.
  • Watch the front of the trailer through the integrated third brake light cargo bed camera. Want a quick check on your boat, camper, or horse trailer? Simply touch the bottom of the mirror to switch camera views.
  • Capture excellent daily utility beyond towing by watching your pickup bed cargo at all times AND eliminating blind spots around the rear of your truck when not towing.
  • Every system component looks factory-integrated thanks to vehicle-specific third brake light cargo bed cameras.
  • Thanks to the wireless trailer camera that snaps into most existing trailer camera brackets, installation of the entire system is simple, with no hole-drilling or loss of vehicle features (professional installation recommended).

Features

Integration

  • Integrates Into Your Specific Truck And Trailer
  • Heavy Duty Design For Increased Durability
  • Ultra High-Quality Truck-To-Trailer Quick Disconnect Wiring
  • Easy to Install

Camera Specifications

  • Industrial Grade CMOS Camera
  • Camera Dimensions: 2.5″ Wide x 2.2″ Deep x 2.3″ Tall (Bracket Adds 1.5″ Height)
  • Included Harnessing
  • 1920 x 1080 Resolution 1080p
  • 0.1 Lux With Infrared For Better Illumination And A Sharper Image
  • Parking Gridlines Available
  • Format: NTSC
  • 9-16V Operating Voltage Range
  • Color Image With Automatic White Balance
  • Electric Auto Iris
  • 170º Horizontal Field of View
  • 130º Vertical Field of View
  • Waterproof and Shockproof Case
  • IP 68 Equivalent

Wireless Camera Specifications

  • 1280 x 1080 Resolution
  • 9-16 V Operating Voltage Range
  • 130 Degree Wide Viewing Angle
  • Shockproof Case
  • IP68 Equivalent
  • Night Vision Up To 16m

Mirror Specifications

  • Large, Vibrant 9.66″ Full-Color Display
  • 1980 x 320 Resolution 1080p
  • 9.66″ Mirror With Edge To Edge Display Embedded
  • 2 Inputs (4 Pin Aviation)
  • 16:9 Aspect Ratio
  • Format: NTSC and PAL
  • 12-24V Operating Voltage Range
  • 2 Inputs Selectable Via Bottom Button
  • Mirror Functionality By Holding Bottom Button
  • No Parking Gridline Overlay (May Be Supplied By Camera)

Installation

  • Professional Installation Always Recommended
  • DIY Installation Estimate: 90-120 Minutes
  • Professional Installation Estimate: 30-60 Minutes

Compatibility

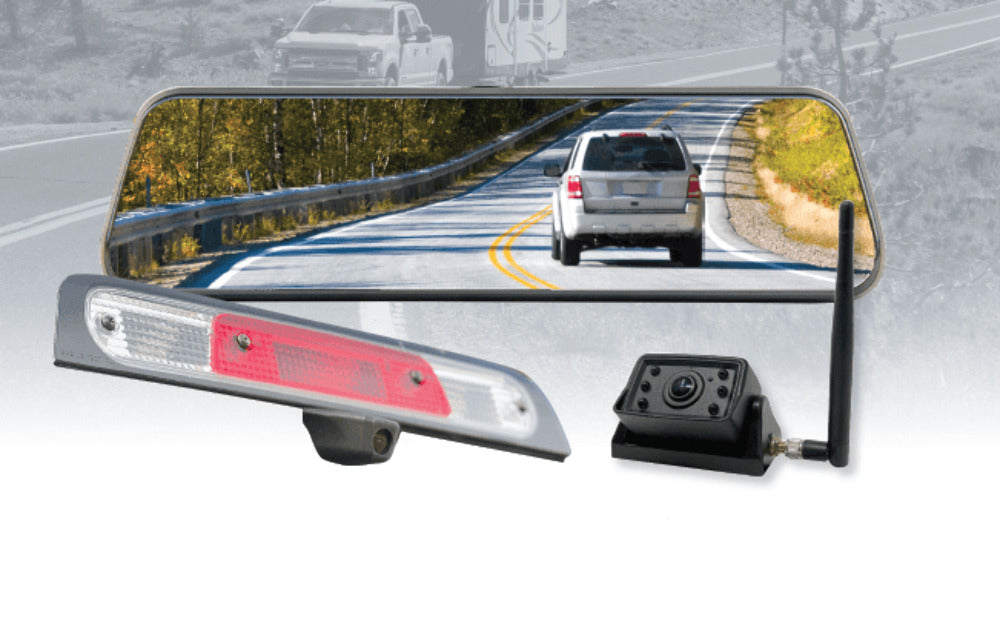

This Transparent Trailer Rear Vision System is designed for Ford F-150 (2015-Current) & Super Duty (2017-Current). This kit has two cameras and a 9.66″ edge-to-edge display mirror as a complete rear vision solution.

This kit is designed to function in various vehicles utilizing a D-Tab Wedge mount. Some vehicles may require an adaptor. Please verify product fits in the desired location before final installation.

This mirror is a non-dimming display mirror.

*Note: If you are requiring a microphone that your OEM mirror contained, please see 5000-PESMVR.

**Note: If you are looking for a transparent trailer system to use a different camera, please see TRNS-2100.
