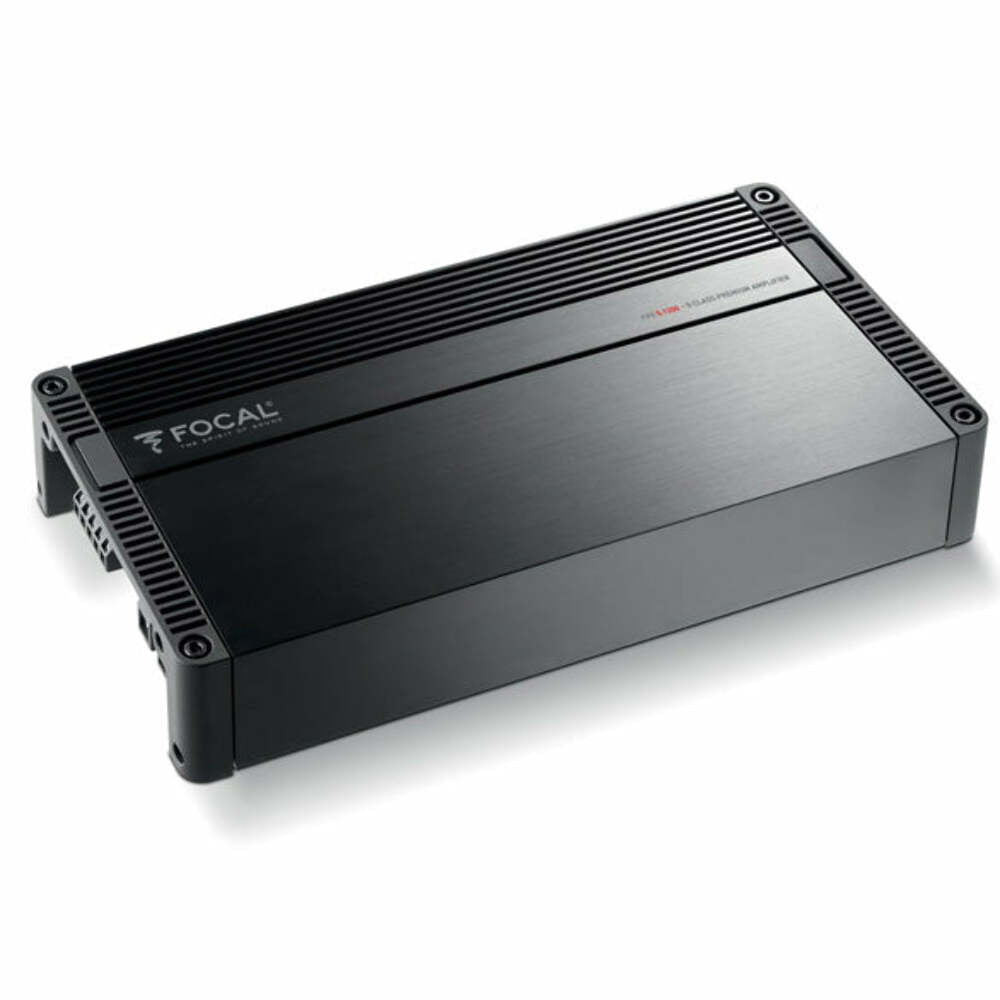

FOCAL COMPACT 5-CHANNEL CLASS D AMPLIFIER
FPX5.1200
From our Performance Line, the FPX 5.1200 is a compact 5-channel amplifier, equiupped with an active-crossover feature. With its capacity for high volume, and high power output, the FPX 5.1200 simplifies installation and preserves the integrity of your vehicle's interior
Featuring:
- 4 x 120 Watts under 2 Ohms
- 1 x 720 Watts under 2 Ohms
- Class D amplifier
- 2/4/6 - channel input modes
- Stable under 4 and 2 Ohms
- Active crossover for each pair of channels
- The FPX 5.1200 measures: 337 x 175 x 57 mm
TECHNICAL SPECIFICATIONS:
- Class D amplifier - 5/4/3 channels
- CEA power (4 ohms): 4 x 75Wrms + 1 x 420Wrms
- Power max (2 ohms): 4 x 120Wrms + 1 x 720Wrms
- Power max (channels 1 to 4 bridged at 4 ohms) + channel 5 at 2 ohms: 2 x 240Wrms + 720Wrms
- Bandwidth: 10Hz - 20kHz
- Total harmonic distortion: < 0.03%
- SNR (1W/A): > 75 dB
- High-Pass / Low-Pass filters channels 1 to 4: 50Hz – 500Hz
- Channel 5 (Subwoofer): Subsonic filter
- (High-pass) 10Hz - 50Hz +
- Low-pass filter 50Hz - 250Hz
- Channel 5 Bass-Boost : 45Hz / 0 to 12dB
- Phase adjustable from 0 to 180° for channel 5
- Copy mode: (6 CH/4 CH/2 CH)
- Full range mode
- Protection: Short circuit / low impedance / reverse polarity / DC / power drop / heat protection
- Dimensions (L x H x W): 1317/64" x 21/4" x 657/64" (337 x 175 x 57mm)
- Weight: 9 lbs (4,1kg)
