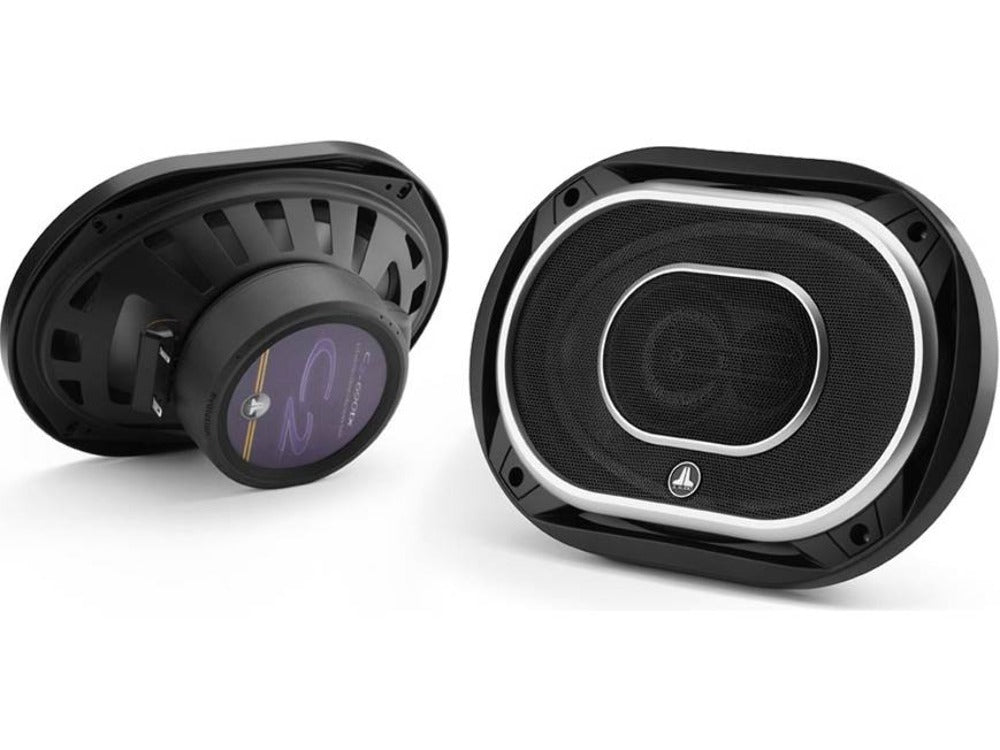

JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX

JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX

JL Audio
JLAC2-690TX
3 In Stock
$429.99
$365.49
$429.99
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX

JL Audio

JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX

$365.49 $429.99
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX
JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX

JL Audio

JL Audio C2 6X9-IN (150 X 230 MM) 3-WAY COAXIAL CAR SPEAKERS C2-690TX

$365.49 $429.99
Description

JL Audio® C2 Car Speakers 6 x 9" Three-way Coaxial

SKU: JLAC2-690TX

ALL-AROUND EXCELLENCE

C2 speaker systems combine real silk dome tweeter performance, smooth midrange and powerful midbass capabilities in a wide range of coaxial speaker sizes.

  • COAXIAL SPEAKERS
  • MULTIPLE SIZES AND FLEXIBLE MOUNTING-HOLE PATTERNS FOR EASY INSTALLATION
  • DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE
  • PURE SILK DOME TWEETERS FOR SMOOTHER, CLEANER SOUND
  • HIGH-PASS TWEETER FILTER WITH A SOLID-STATE PROTECTION CIRCUIT
  • 1-YEAR WARRANTY

What You'll Love:

DMA-OPTIMIZED WOOFERS

  • Proprietary motor, suspension, and cone modeling systems are employed, resulting in reduced distortion, improved transient performance, and stellar sound quality.

SMOOTH WOOFER ROLL-OFF

  • Woofers have no harshness in the upper midrange, and they transition smoothly to the tweeters. Well-damped cones and suspensions minimize ringing.

SILK DOME TWEETERS

  • Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

STYLISH GRILLE DESIGN

  • Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

EASY INSTALLATION

  • Speakers feature multiple hole patterns and breakaway mounting tabs (depending on model) as well as shallow woofer mounting depths and tweeters with minimal protrusion to fit behind factory grilles.

In The Box:

  • Two coaxial speakers
  • Eight mounting screws
  • 8 speed clips
  • Two 0.205" female crimpable connectors
  • Two 0.110" female crimpable connectors
  • Two Grilles with JL Audio logo badges*

C2-400x also includes:

  • Two 4x6 adapter brackets

C2-690tx also includes:

  • Two bottom-mount brackets

Specs:

Sizes 3.5"/4"/5 x 7"/5.25"/6"/6 x 9"/6.5"
Continuous power handling (RMS) 3.5": 25 W
4": 35 W
5 x 7"/5.25"/6"/6.5": 60 W
6 x 9": 70 W
Sensitivity (SPL @ 1 W/1 m) 3.5": 83 dB
4": 84.5 dB
5 x 7": 90.5 dB
5.25": 89.0 dB
6": 90.5 dB
6 x 9": 93 dB
6.5": 91.0 dB
Frequency response (+/- 3 dB) 3.5": 130 Hz-22 KHz
4": 71 Hz-22 KHz
5 x 7": 53 Hz-22 KHz
6"/6.5": 59 Hz-22 KHz
6 x 9": 53 Hz-22 KHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 3.5": 10-40 W/Channel
4": 10-50 W/Channel
5 x 7"/5.25"/6"/6.5": 15-100 W/Channel
6 x 9": 15-125 W/Channel
Voice coil diameter 3.5": 0.75 (19 mm)
4"/5 x 7"/6"/6.5": 1" (25 mm)
6 x 9": 1.25" (32 mm)
Cone material Mineral-filled polypropylene
Tweeter type Silk Dome
Tweeter size 0.75" (19 mm)
Grille(s) included 4"/6.5"/6 x 9": yes
Warranty 1 year

Connections

Speaker connections Spade connectors

Mounting Dimensions

Frame outer diameter 3.5": 3.44" (87 mm)
4": 4.02" (102 mm)
5 x 7": 5.47 x 7.68" (139 x 195 mm)
5.25": 5.80" (147 mm)
6": 6.21" (158 mm)
6 x 9": 6.40 x 9.33" (163 x 237 mm)
6.5": 6.5" (165 mm)
Mounting depth clearance 3.5": 1.50" (38 mm)
4": 1.81" (46 mm)
5 x 7": 2.43" (62 mm)
5.25": 2.50" (64 mm)
6": 2.38" (64 mm)
6 x 9": 3.06" (78 mm)
6.5": 2.44" (62 mm)
Frontal grille protrusion 4": 0.66" (17 mm)
5.25": 0.72" (18 mm)
6": 0.91" (23 mm)
6 x 9": 0.98" (25 mm)
6.5": 0.85" (22 mm)
Mounting hole 3.5": 3.19" (81 mm)
4": 3.81" (97 mm)
5.25": 4.56" (116 mm)
6": 5" (127 mm)
6.5": 5.56" (141 mm)
Grille tray outer diameter 4": 5.20" (132 mm)
5.25": 6.01" (153 mm)
6": 6.51" (163 mm)
6 x 9": 6.75 x 9.63" (172 x 245 mm)
6.5": 6.84" (174 mm)
Motor outer diameter 3.5"/4": 2.36" (60 mm)
5 x 7" x 5.25": 2.76" (70 mm)
6"/6.5": 3.15" (80 mm)
6 x 9": 3.94" (100 mm)
Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) 3.5": 0.54" (14 mm)
4": 0.56" (14 mm)
5 x 7": 0.47" (12 mm)
5.25": 0.46" (12 mm)
6": 0.55 in. (13.9 mm)
6 x 9": 0.75" (19 mm)
6.5": 0.45" (12 mm)
