Description

JL Audio® C3 Car Speakers 6.5" Two-way Coaxial/Component System

SKU: JLAC3-650

OUTSTANDING PERFORMANCE. MAXIMUM VERSATILITY.

Get the perfect installation — whether it’s a separate woofer and tweeter or a coaxial system. With C3 convertible component systems, the same product can be deployed in either configuration while delivering amazing sound quality.

  • CONVERTIBLE COMPONENTS FOR MORE FLEXIBLE INSTALLATIONS
  • ELEVATED FRAME COOLING™ SPEAKER DESIGN IMPROVES POWER HANDLING
  • DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE
  • PURE SILK DOME TWEETERS FOR SMOOTHER, CLEANER SOUND
  • TRUE TWO-WAY OUTBOARD CROSSOVERS
  • 1-YEAR WARRANTY

What You'll Love:

COMPLETE FLEXIBILITY

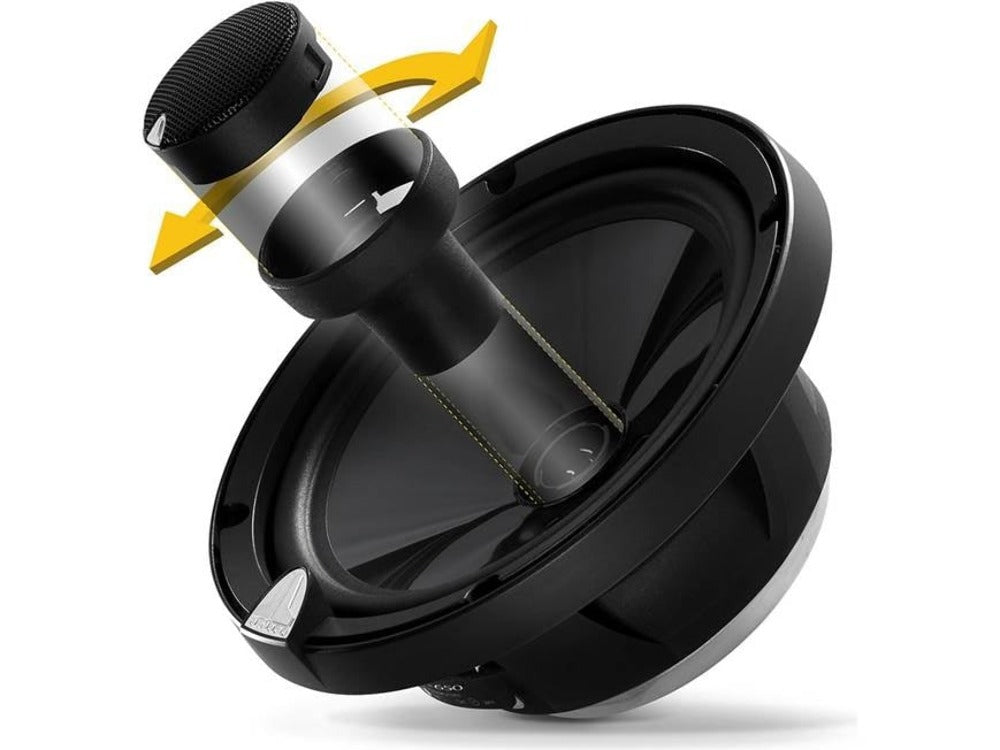

  • Our unique convertible components give you the option to install the speakers as separate components or as a coaxial system. Switching takes just a few seconds.

COAXIAL INSTALLATION

  • Get an easier installation by placing the tweeters in the center of each woofer.

COMPONENT INSTALLATION

  • Place the tweeters where they’re less likely to be blocked by legs or other obstructions.

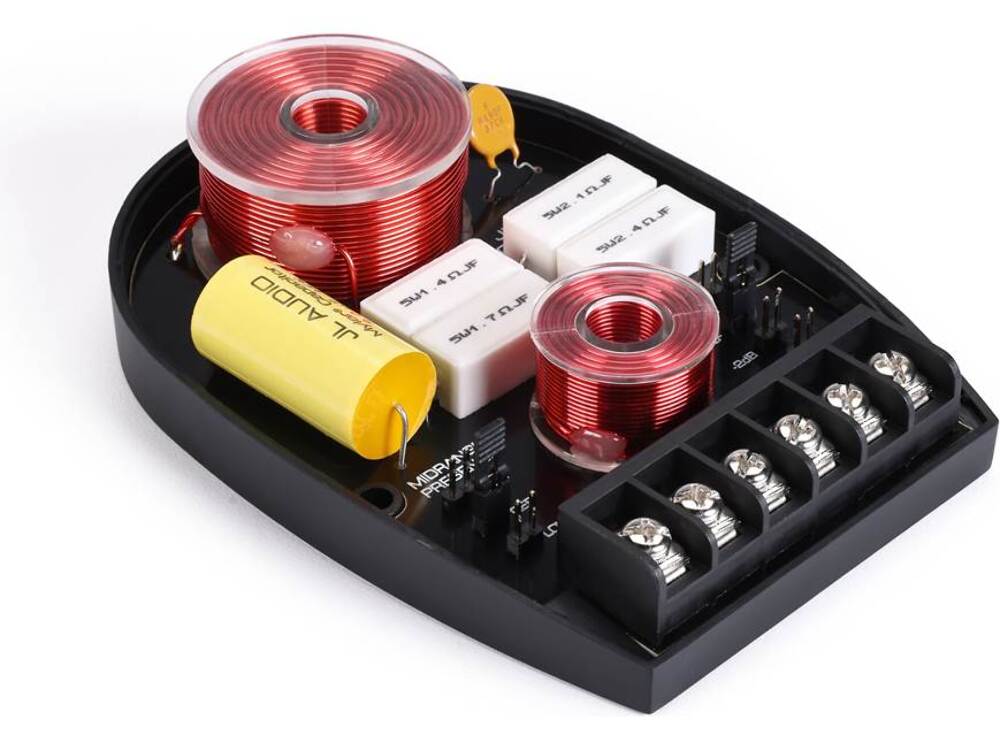

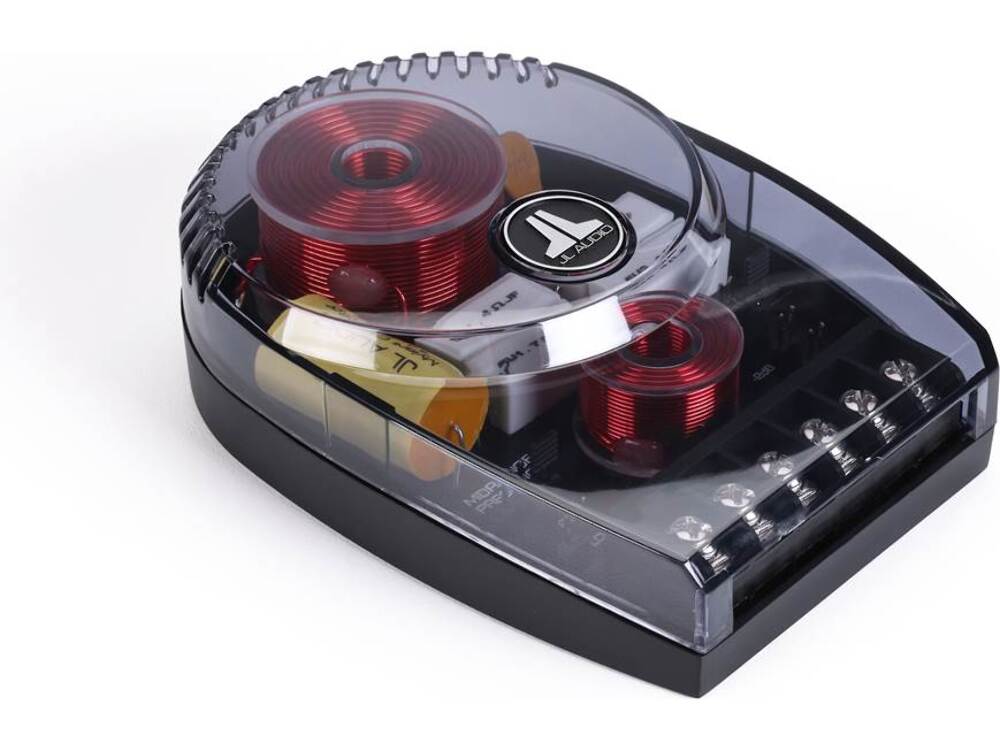

PREMIUM OUTBOARD CROSSOVERS

  • Experience true two-way crossover design with premium components, featuring low- and high-pass filters as well as midrange compensation for optimization of coaxial or separate tweeter mounting. Plus, the 4-position tweeter level sets the brightness of the system according to mounting location or listener tastes.

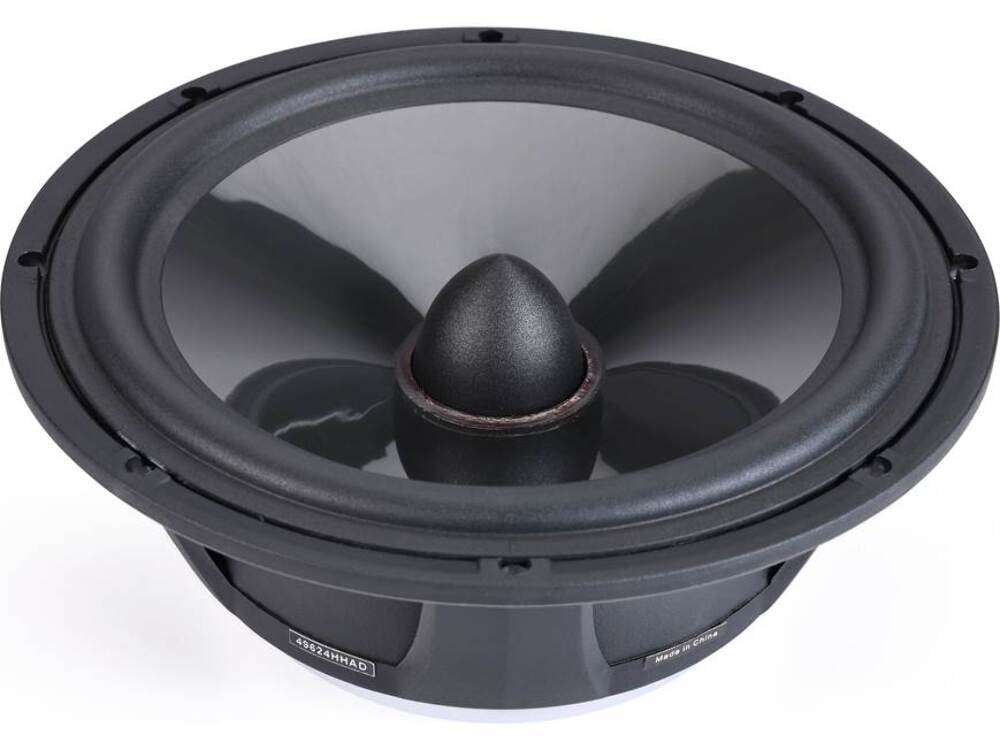

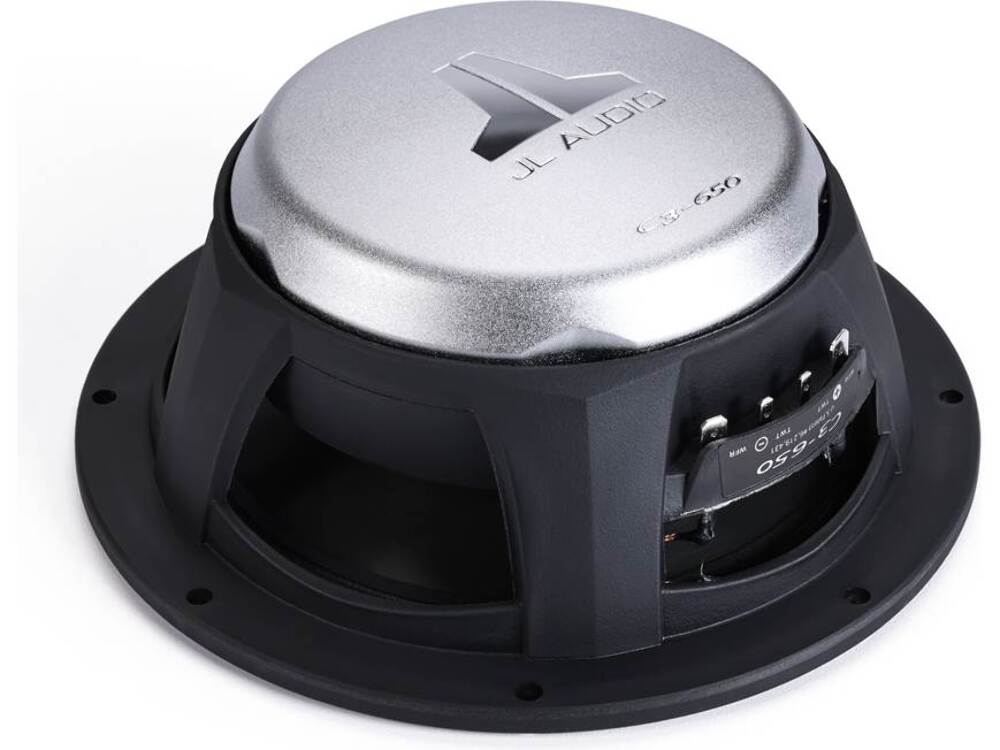

LONG EXCURSION WOOFER

  • The C3 system provides a DMA-optimized woofer for exceptional bass response and output capability, featuring oversized 1.2-inch woofer voice coils and durable composite basket. Plus, the Elevated Frame Cooling speaker component design improves power handling and sound quality by minimizing heat build-up in the woofer motor.

In The Box:

Component Tweeters (C3-100ct)

  • Two tweeters
  • Two inline crossovers
  • Two flush-mount tweeter housings
  • Two surface-mount tweeter housings
  • Four 1" mounting screws (for surface mounting)
  • Two metal spring clips (for flush mounting)
  • Two 30 mm machine screws

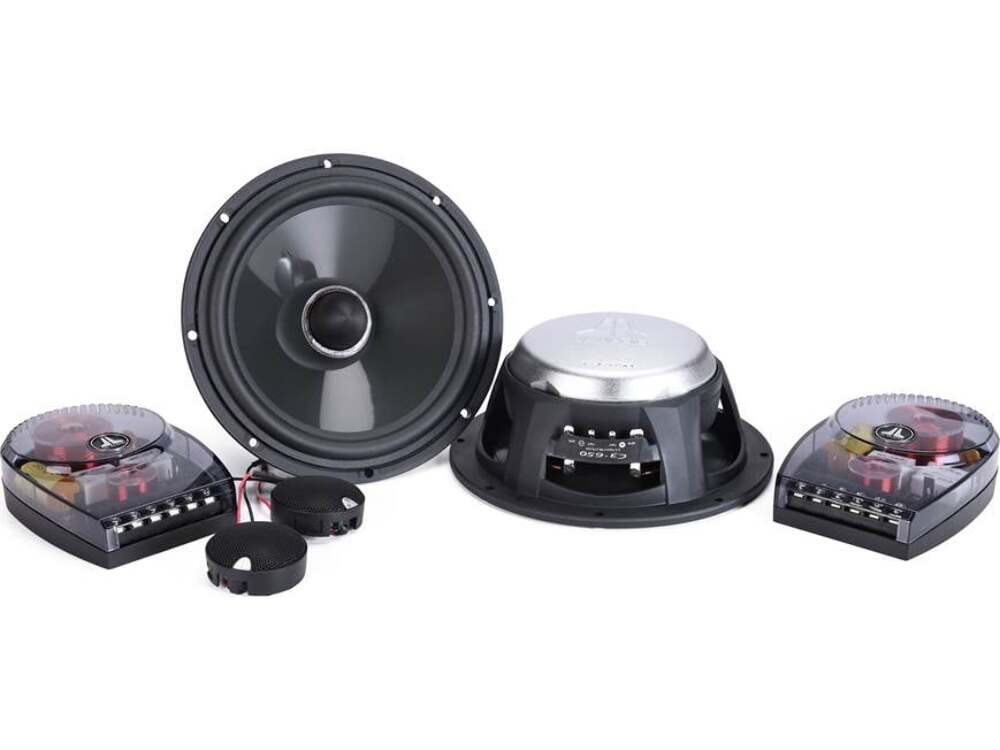

Component Systems (C3-525, C3-570, C3-600, C3-650)

  • Two woofers

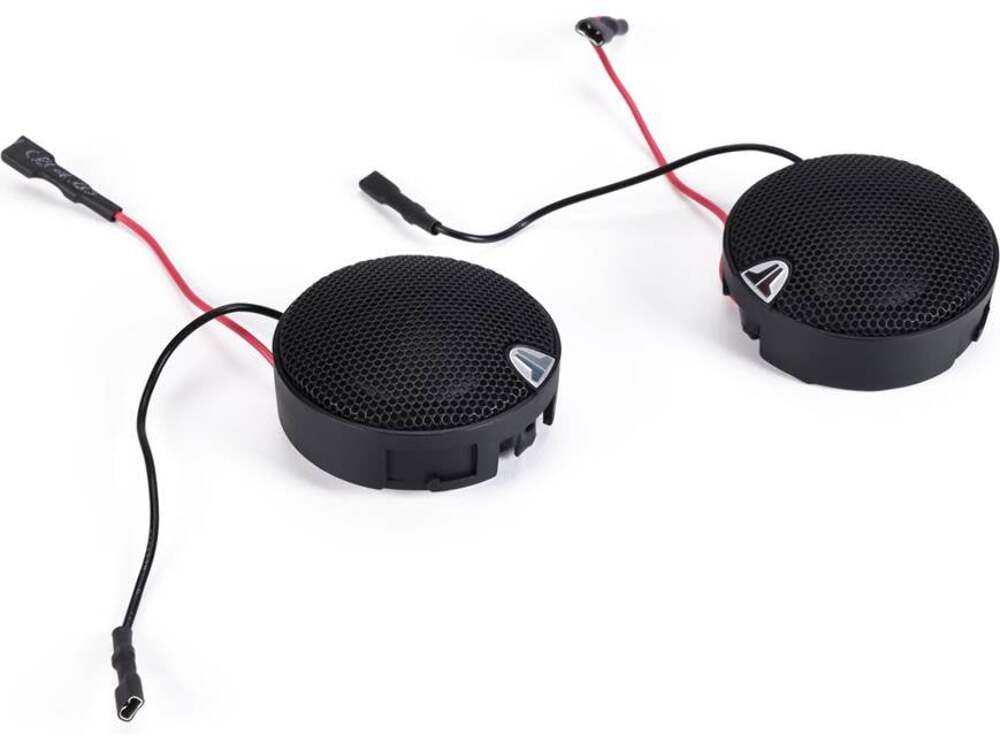

  • Two tweeters
  • Two crossovers

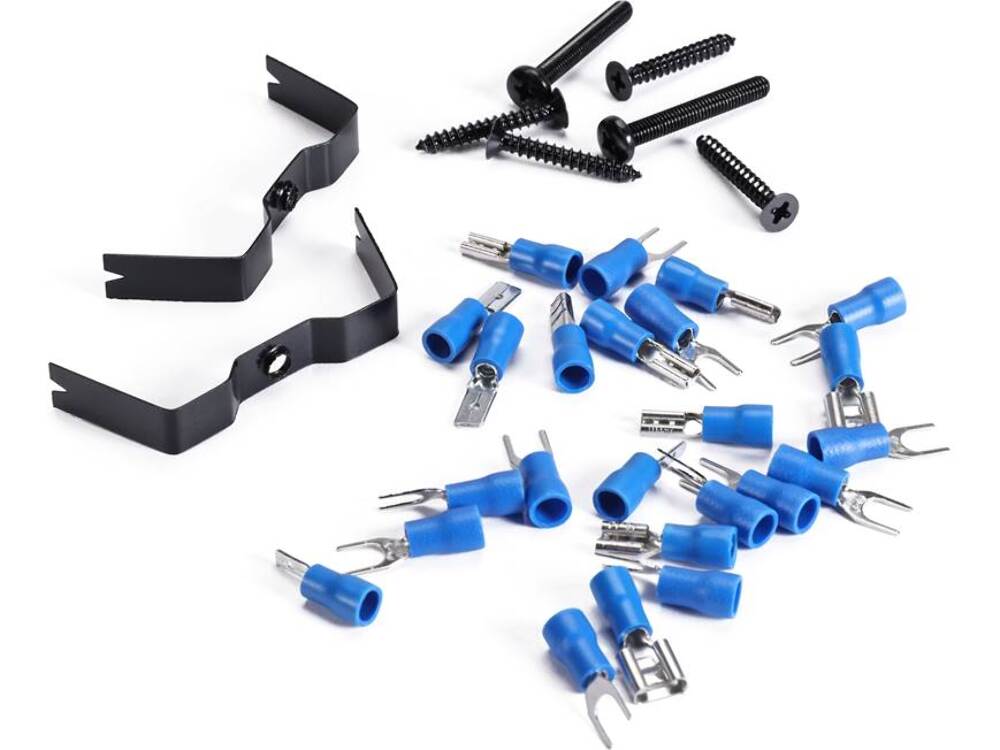

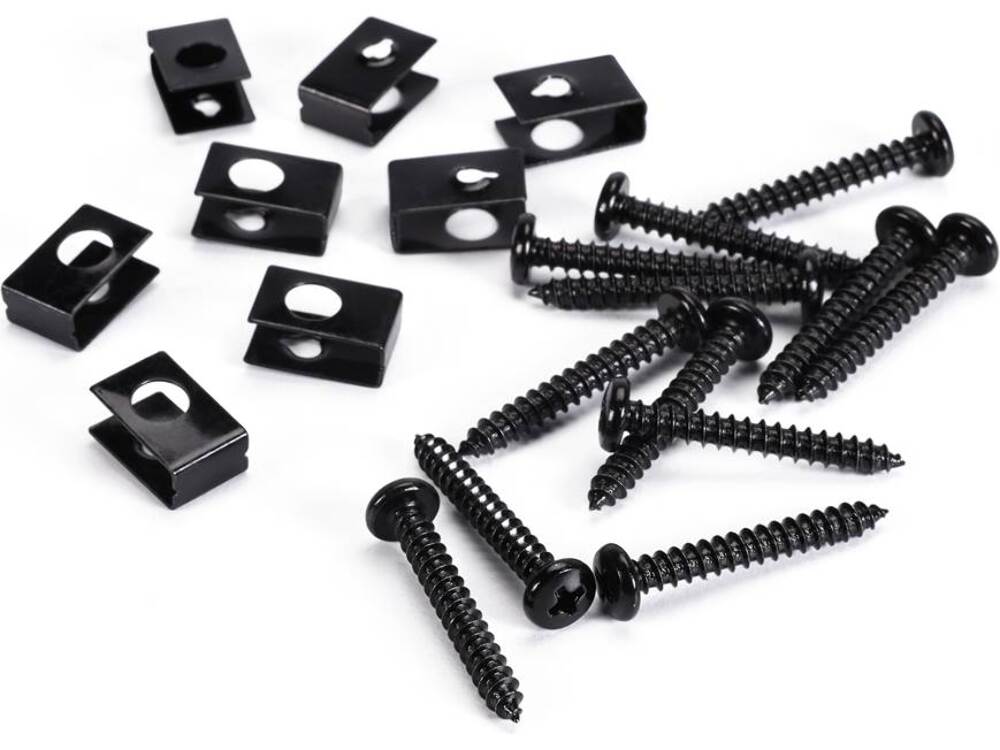

  • Eight speed clips
  • Two 0.250" female crimpable connectors
  • Two 0.185" female crimpable connectors
  • Two 0.185" male crimpable connectors
  • Two 0.110" male crimpable connectors
  • Four 0.110" female crimpable connectors
  • Twelve 1-1/4" speaker mounting screws

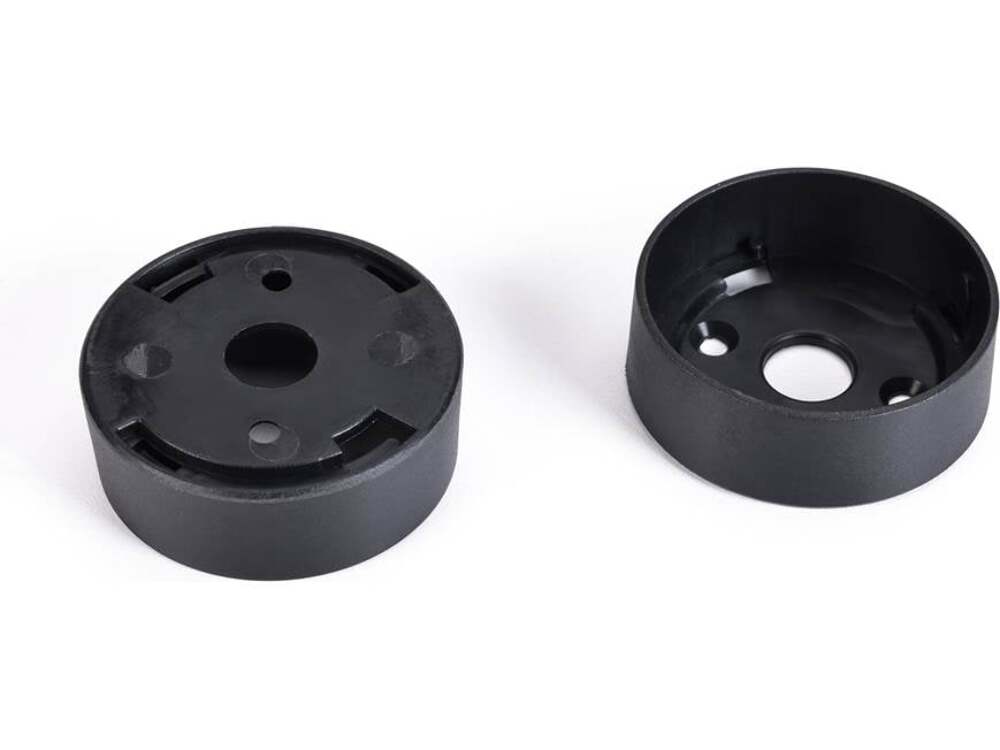

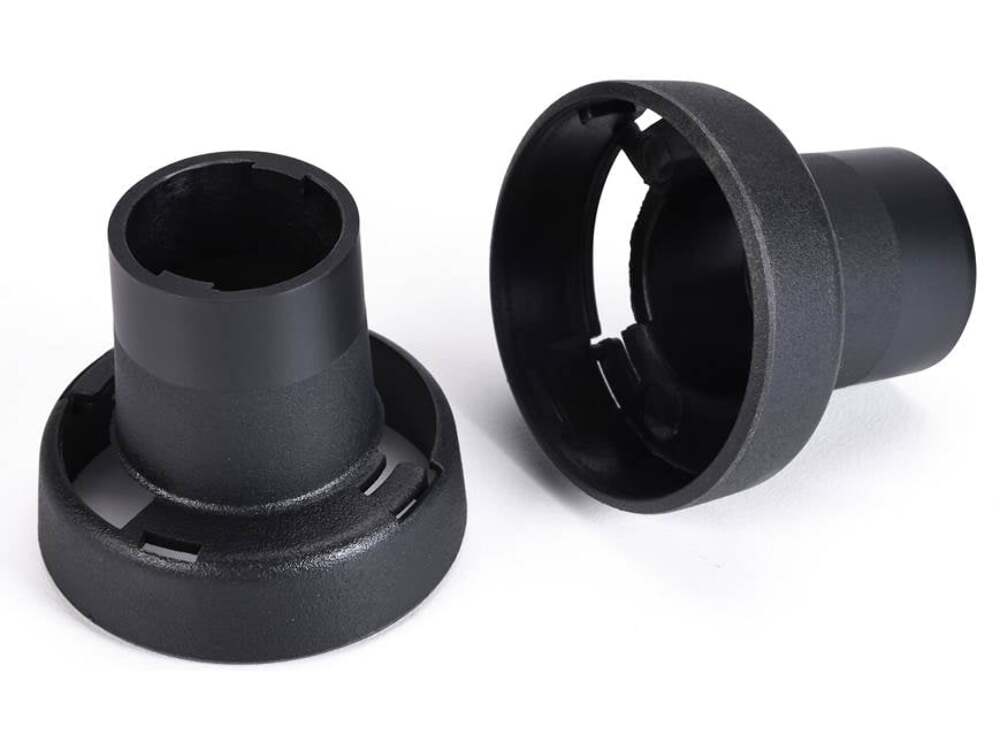

  • Two flush mount tweeter housings

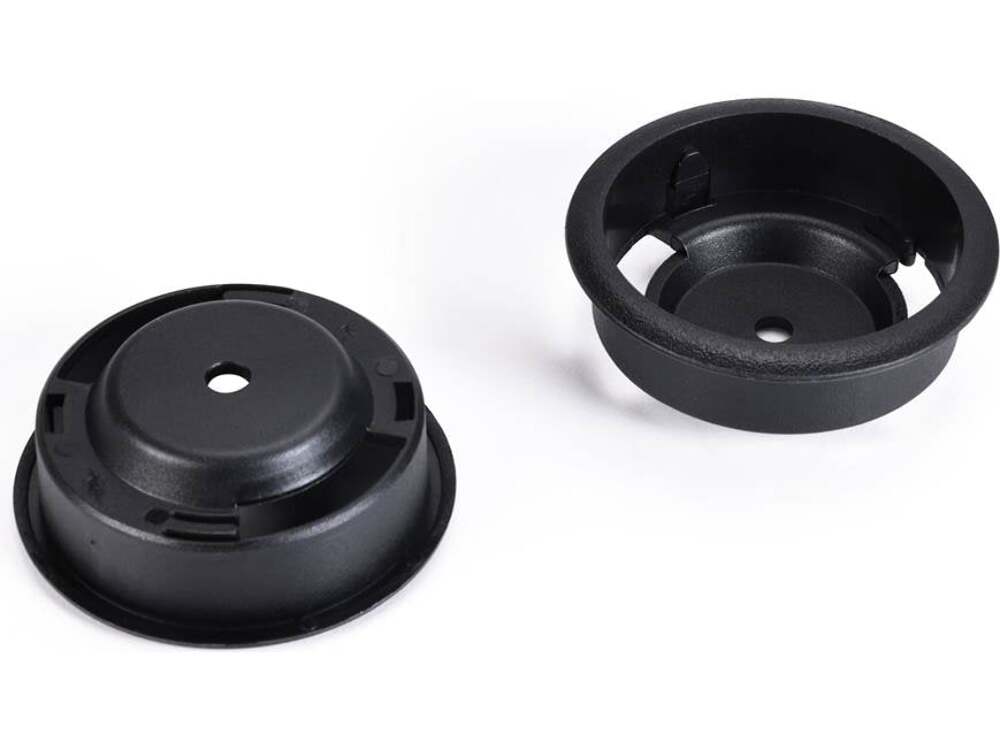

  • Two surface-mount tweeter housings
  • Four 1" mounting screws (for surface mounting)
  • Two metal spring clips (for flush mounting)
  • Two 30 mm machine screws
  • Twelve crimpable spade connectors

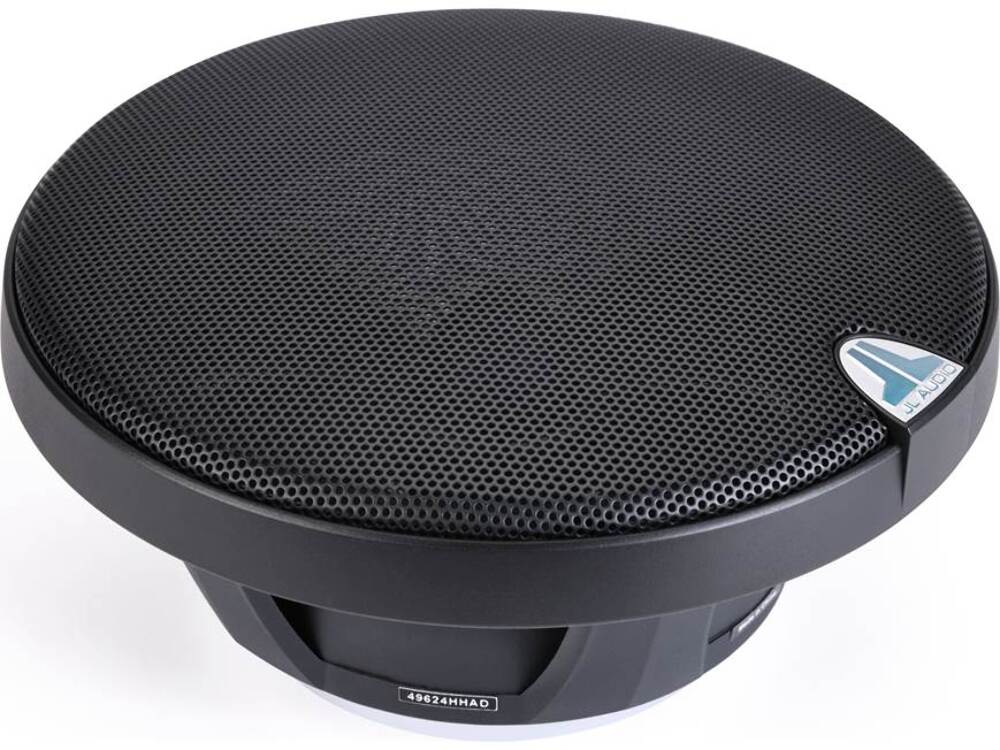

  • Two grilles with JL Audio logo badges

Component Woofers (C3-650cw, C3-600cw and C3-525cw)

  • One woofer
  • Six 1-1/4" mounting screws
  • One grille with the JL Audio logo badge

Specs:

Sizes 1"/5 x 7"/5.25"/6"/6.5"
Continuous power handling (RMS) 75 W
Sensitivity (SPL @ 1 W/1 m) 90 dB
6": 89.5 dB
Frequency response (+/- 3 dB) 5.25"/5 x 7"/6.5": 48 Hz-25 KHz ± 3 dB
6": 48 Hz-25 KHz
1": 4 kHz-25 KHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 25-150 W/Channel
Voice coil diameter 1.2" (30 mm)
Cone material Mineral-filled polypropylene
Tweeter type Silk Dome
Tweeter size 1" (25 mm)
Grille(s) included yes (5 x 7": no)
Warranty 1 year

Connections

Speaker connections Spade connectors

Mounting Dimensions

Frame outer diameter 5.25": 5.80" (147 mm)
5 x 7": 5.52 x 7.68" (140 x 195 mm)
6": 6.21" (157.7 mm)
6.5": 6.5" (165 mm)
Mounting depth clearance 5.25": 2.27" (58 mm)
5 x 7": 2.52" (64 mm)
6": 2.49" (63 mm)
6.5": 2.55" (65 mm)
Frontal grille protrusion 5.25": 1" (25 mm)
6"/6.5": 1.03" (26.2 mm)
Mounting hole 5.25": 4.56" (116 mm)
6": 5" (127 mm)
6.5": 5.56" (141 mm)
Grille tray outer diameter 5.25": 6" (152 mm)
6": 6.46" (164.1 mm)
6.5": 6.74" (171 mm)
Motor outer diameter 4.08" (104 mm)
5.25": 3.38" (86 mm)
Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) 5.25": 0.69" (18 mm)
5 x 7": 0.78" (20 mm)
6": 0.81" (20.6 mm)
6.5": 0.75" (19 mm)

Tweeter Specifications

Flush mount fixture diameter 2.12" (54 mm)
Surface mount fixture diameter 1.9" (49 mm)
Flush mount mounting hole diameter 1.875" (48 mm)
Flush mount mounting depth 0.71" (18 mm)
Flush mount tweeter frontal protrusion 0.32" (8 mm)
Surface mount tweeter frontal protrusion 0.95" (24 mm)

Crossover Specifications

Width 3.36" (85 mm)
Height 1.44" (37 mm)
Depth 4.72" (120 mm)
Fitment
